Removal And Installation: Removal

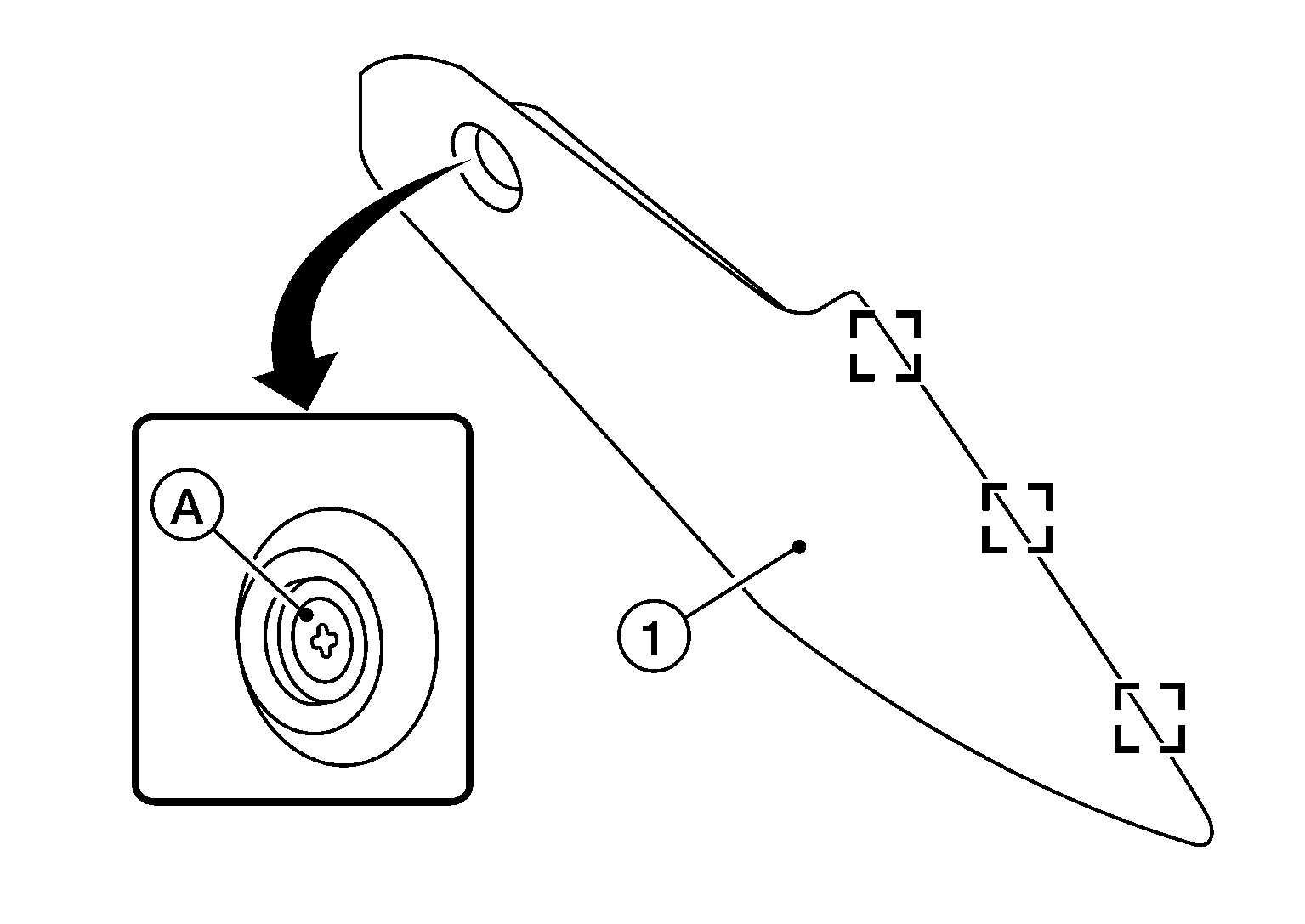

  1. Remove the center console side finishers (1) (LH/RH).
    1. Remove the center console side finisher screw cover.
    2. Remove the center console side finisher screw (A) (LH/RH).
      GNSALJIA1037ZZ-037Courtesy of NISSAN NORTH AMERICA, INC.
    3. Release the clips using a suitable tool, then remove the center console side finisher.

      SHIKAKU-H : Metal clip

  2. Remove the shift selector knob (CVT only) with the following procedure:
    G08989770Courtesy of NISSAN NORTH AMERICA, INC.
    1. Slide the knob cover (1) down.
    2. Pull out the lock pin (2).
    3. Pull the shift selector knob (3) and knob cover upwards to remove.

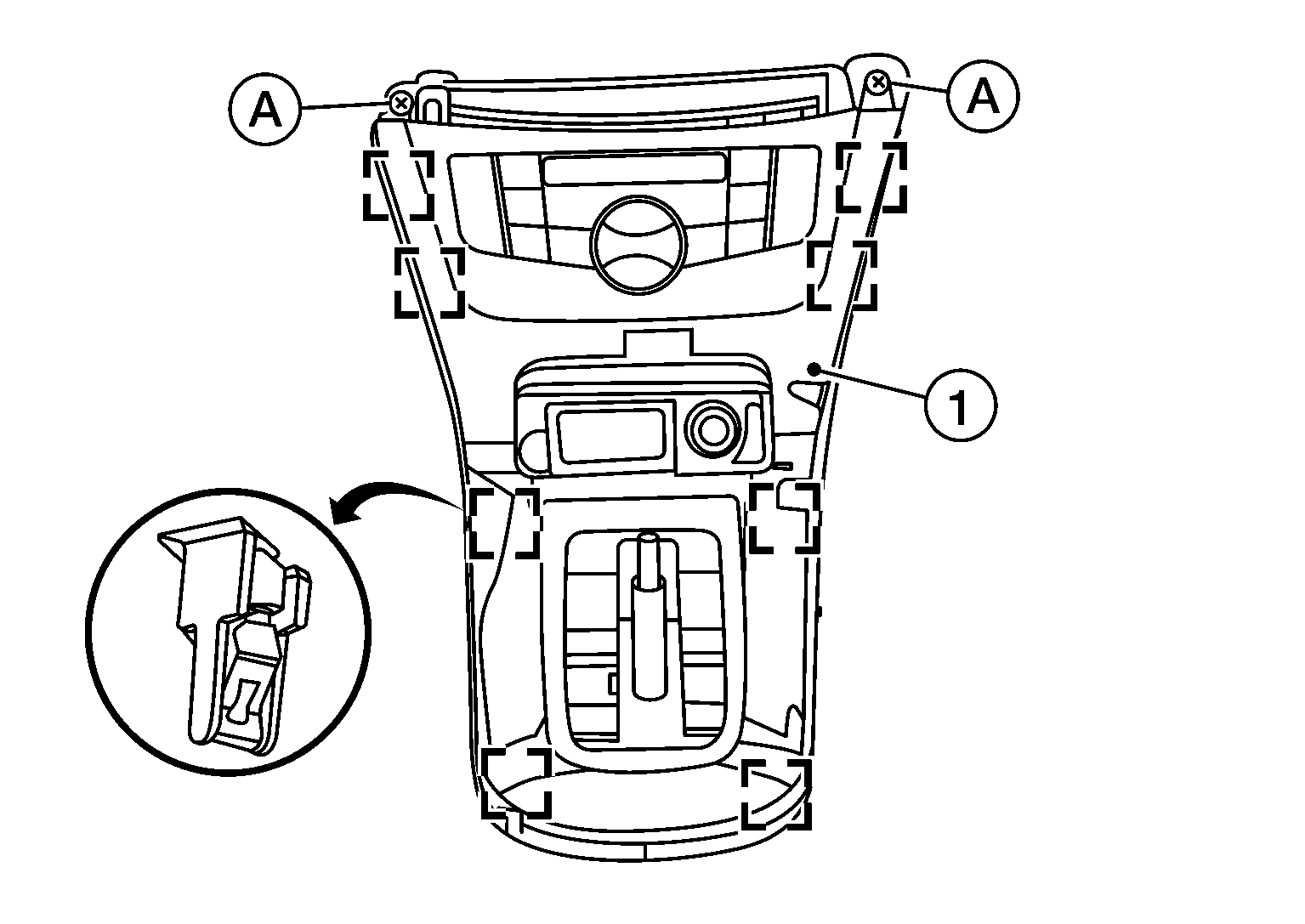

  3. Remove the shift selector finisher (1).
    GNSALJIA1038ZZ-038Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove cluster lid C lower. Refer to REMOVAL AND INSTALLATION .
    2. Remove the shift selector screws (A).
    3. Release the clips using a suitable tool, then remove the shift selector finisher.

      SHIKAKU-H : Metal clip

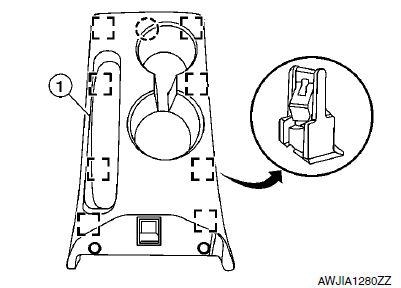

  4. Release the center console cup holder finisher clips, then remove the center console cup holder finisher (1).
    G00580835Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SHIKAKU-H : Metal clip

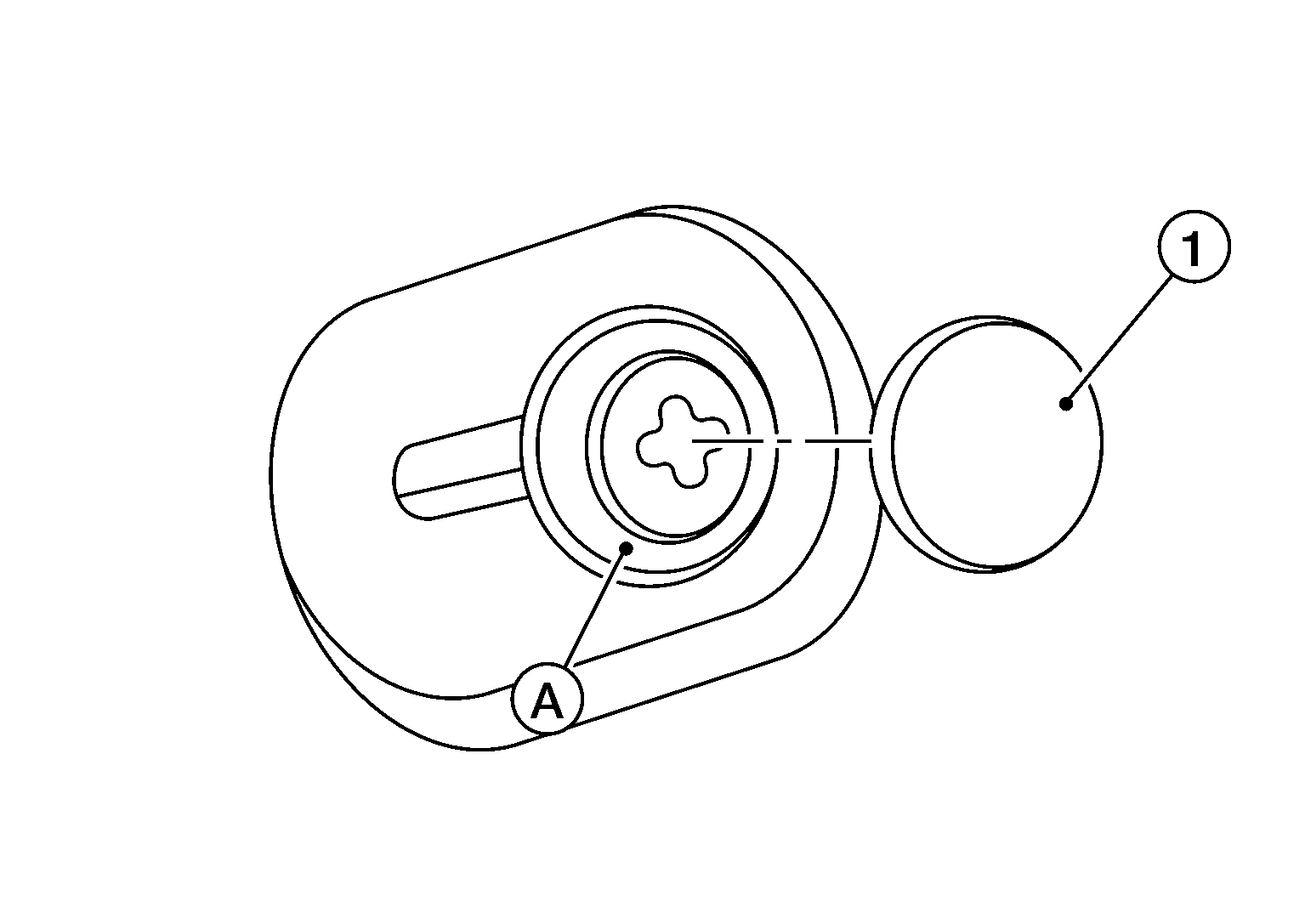

  5. Remove the center console screw cover (1) using a suitable tool and the center console screws (A) (LH/RH).
    G08990615Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the console rear finisher.

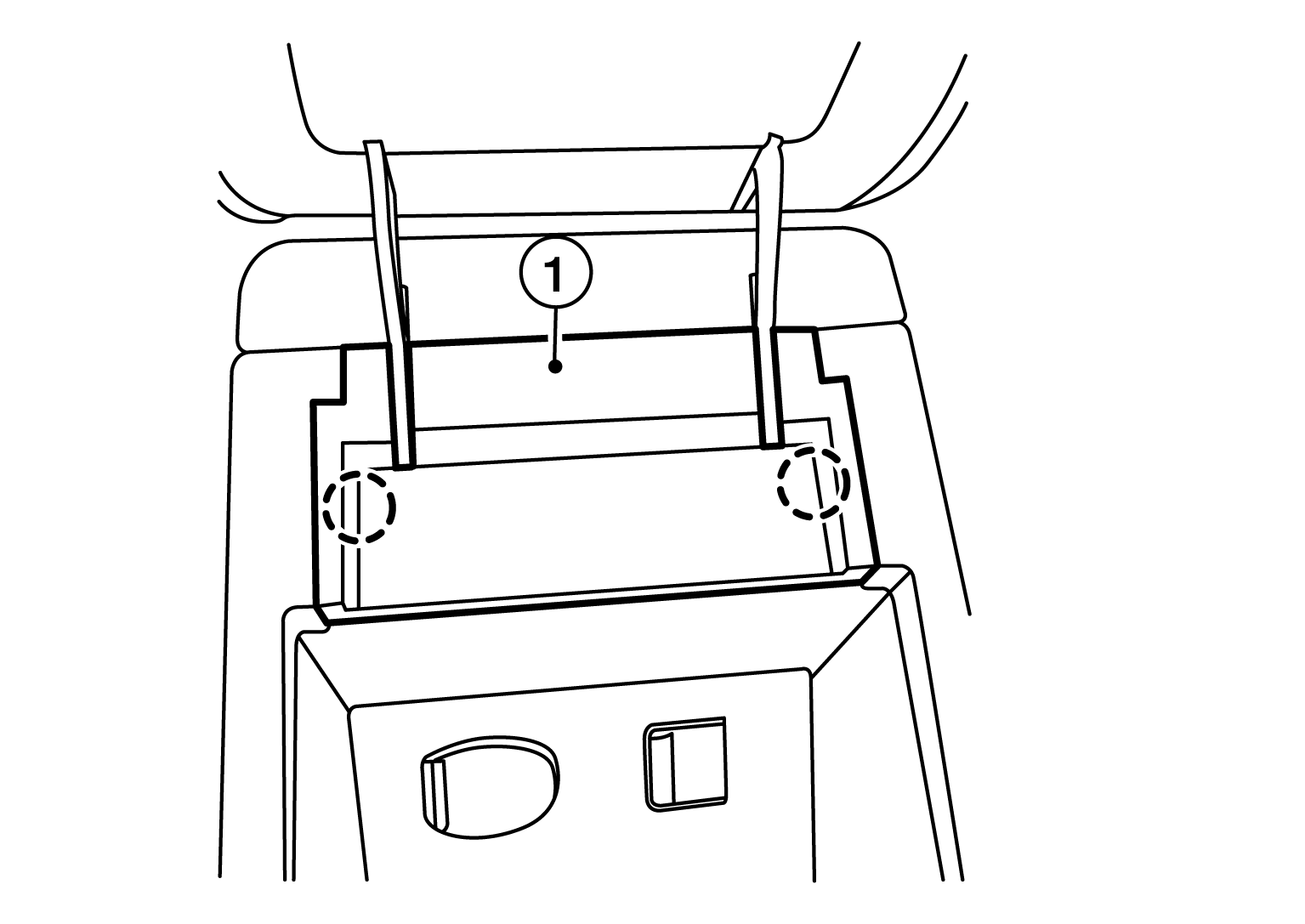

    1. Release the center console rear finisher cover pawls using a suitable tool, then remove the center console rear finisher cover (1).
      GNSALJIA1041ZZ-041Courtesy of NISSAN NORTH AMERICA, INC.

      MARU-H : Pawl

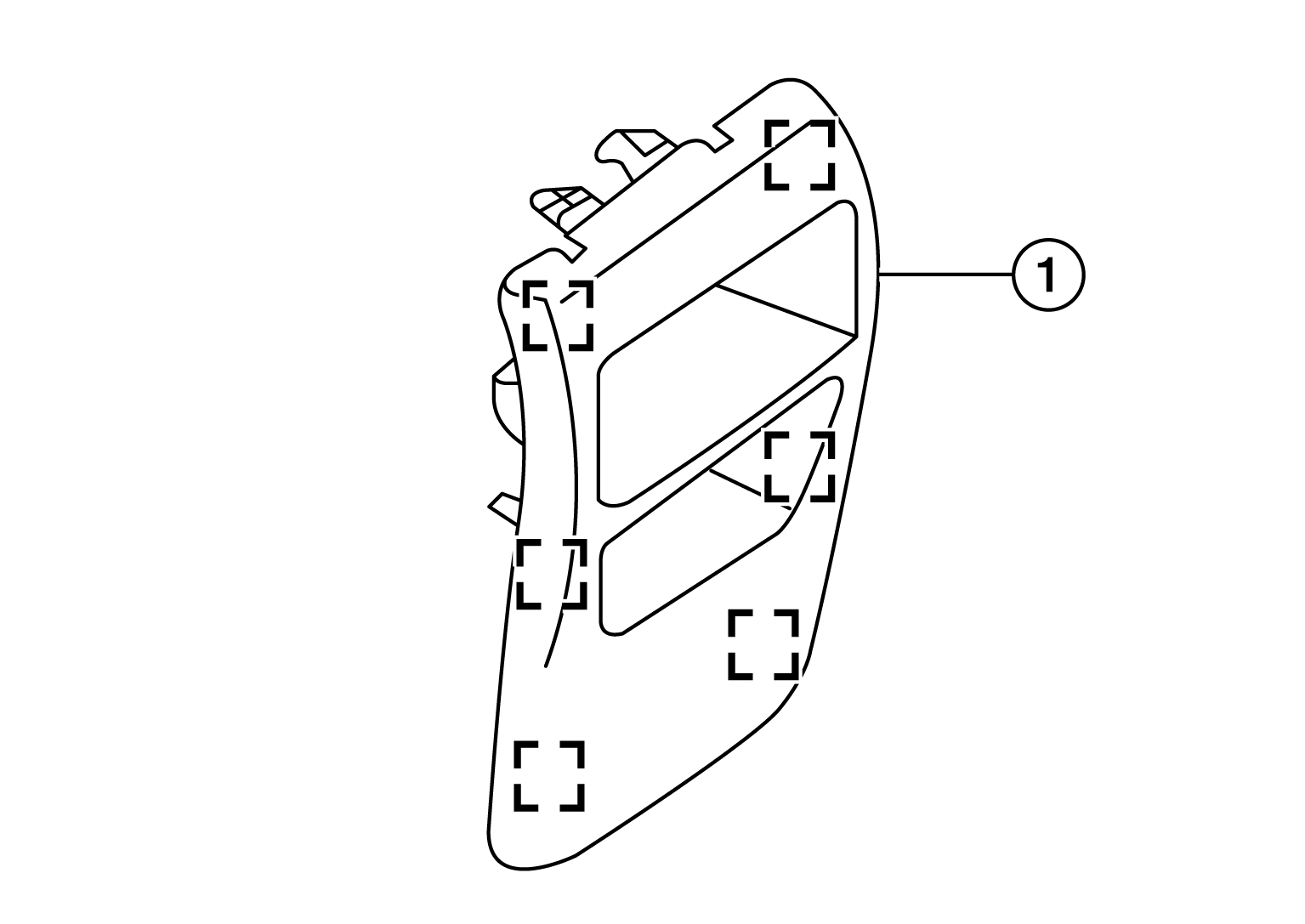

    2. Release the center console rear finisher clips using a suitable tool, then remove the center finisher (1).
      GNSALJIA1042ZZ-042Courtesy of NISSAN NORTH AMERICA, INC.

      SHIKAKU-H : Metal clip

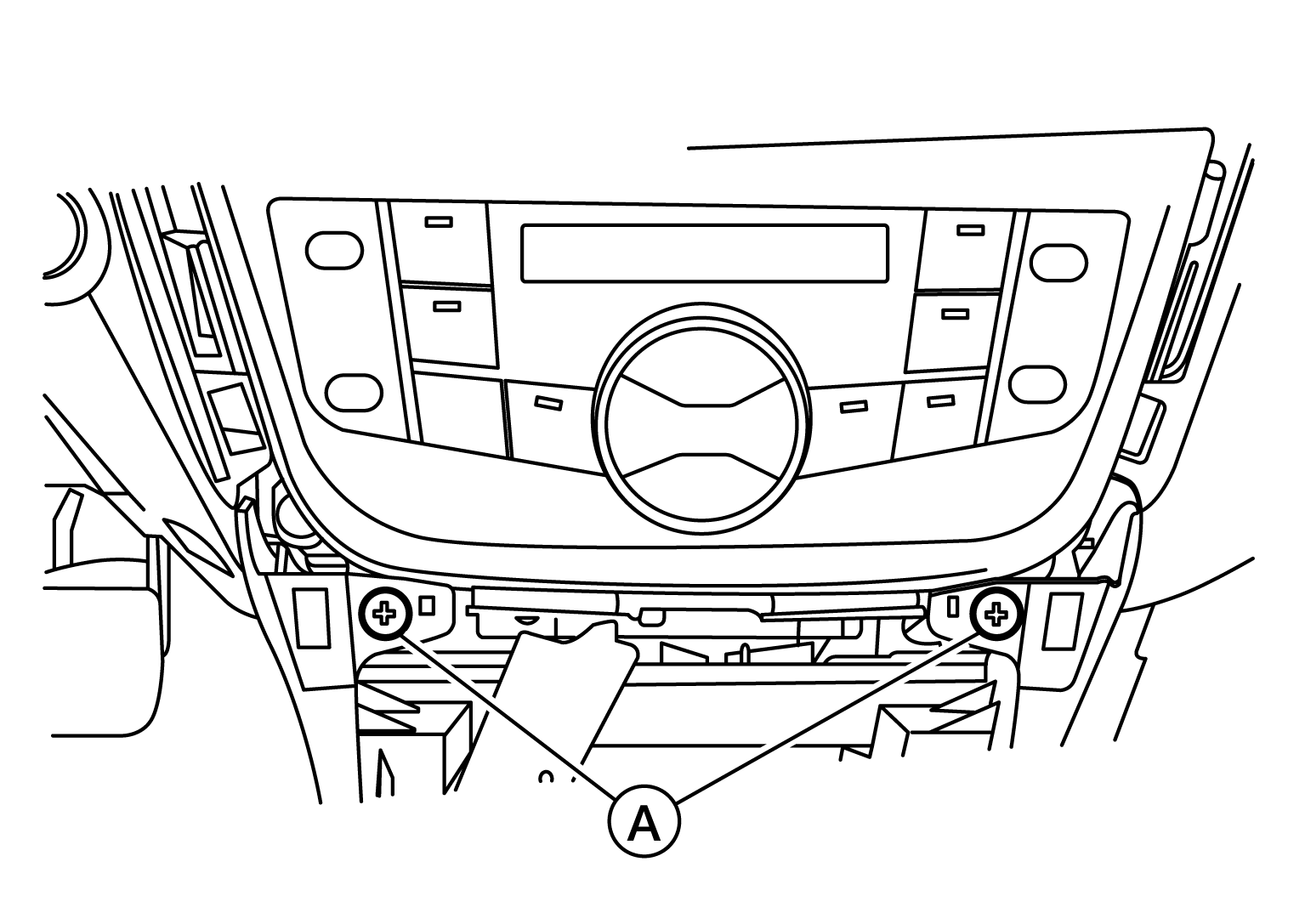

  7. Remove the remaining center console screws (A).
    G08990616Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove the A/C switch assembly. Refer to REMOVAL AND INSTALLATION (MANUAL A/C), or REMOVAL AND INSTALLATION (AUTOMATIC A/C).
  9. Disconnect the harness connectors from the center console assembly and remove.
