Exploded View

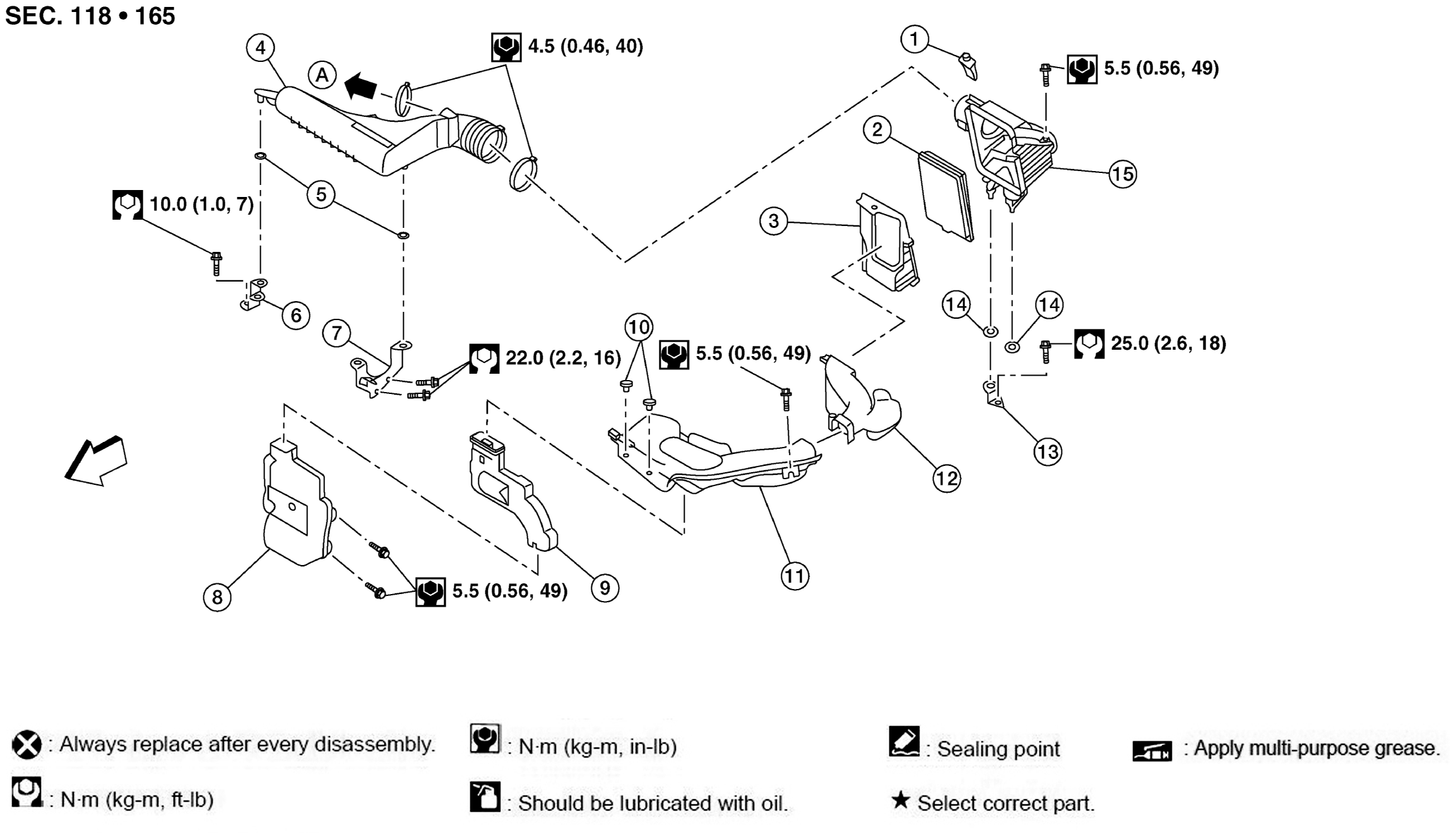

Fig 1: Air Cleaner And Air Duct With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mass air flow sensor	2.	Air cleaner filter	3.	Air cleaner case (lower)
4.	Air duct assembly (aft)	5.	Grommet	6.	Resonator bracket (front)
7.	Resonator bracket (rear)	8.	Resonator	9.	Air duct
10.	Mounting clip	11.	Air duct assembly (fore)	12.	Air cleaner case duct
13.	Air cleaner bracket	14.	Grommet	15.	Air cleaner case (upper)
A.	To Electric throttle control actuator		Front
