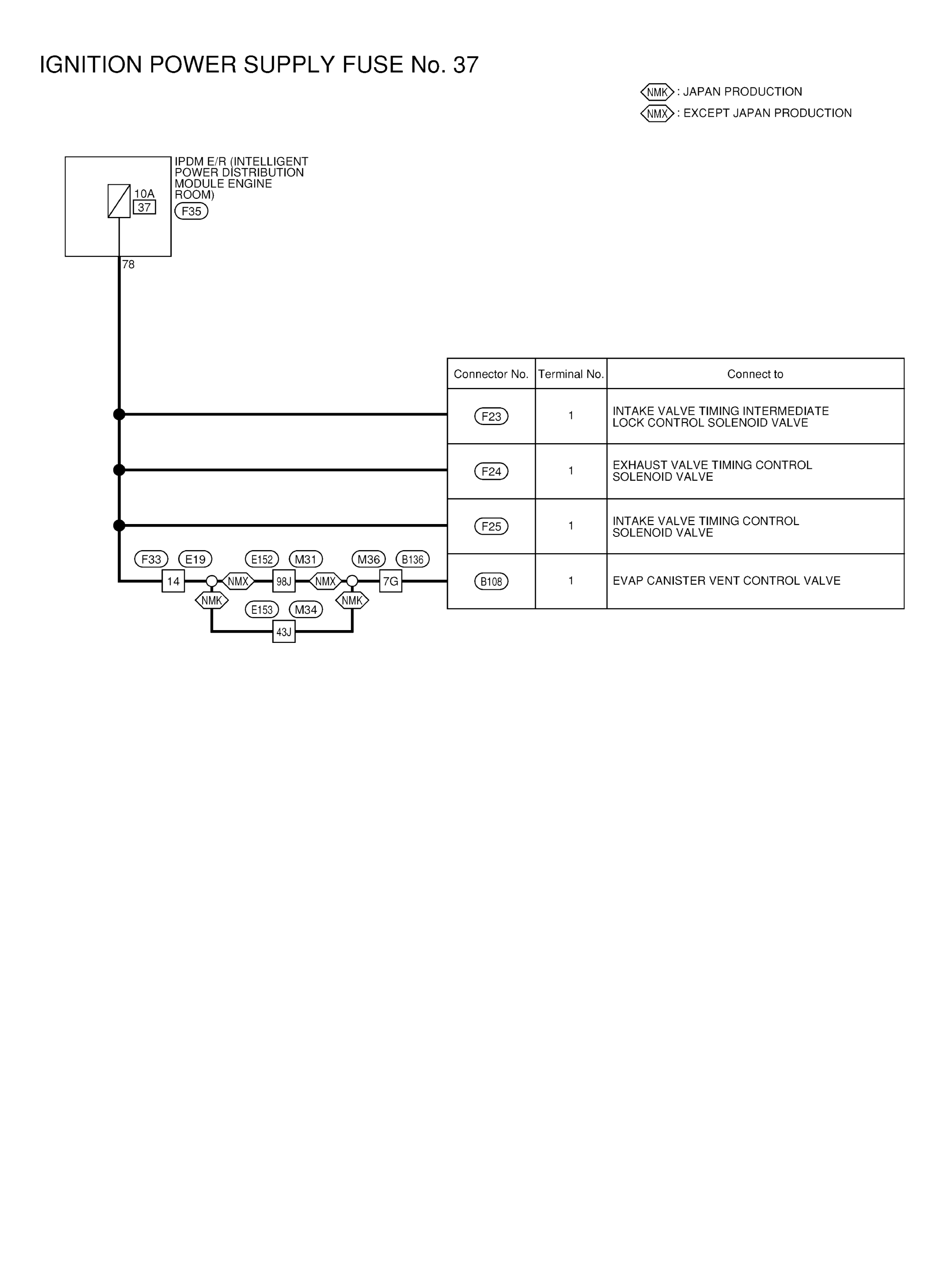

Wiring Diagram - Ignition Power Supply Fuse No. 37 -

GNSAAMIA5567GB-567

Courtesy of NISSAN NORTH AMERICA, INC.
