Wiring Diagram - Ignition Power Supply Fuse No. 30 -

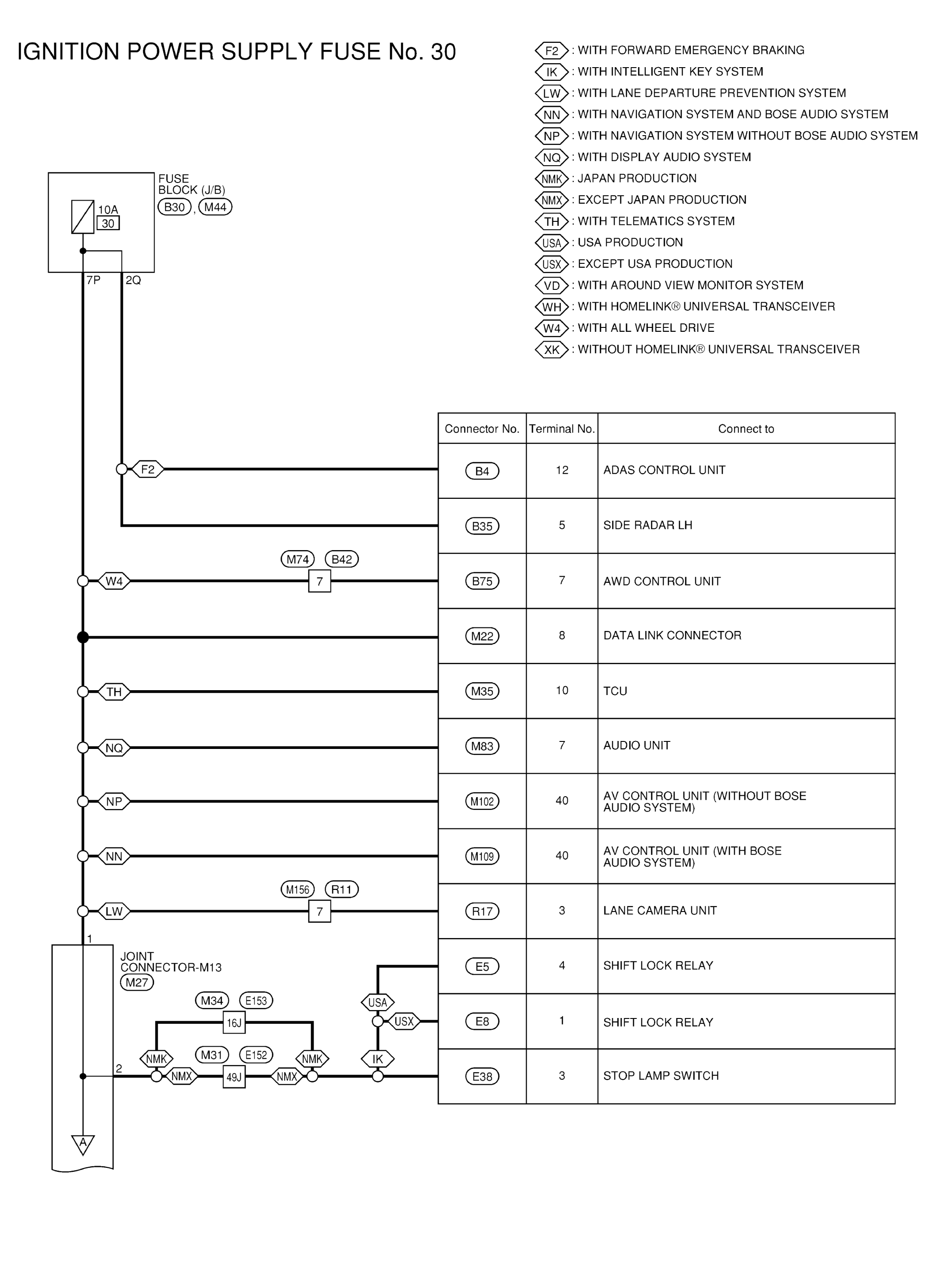

GNSAAMIA5564GB-564

Courtesy of NISSAN NORTH AMERICA, INC.

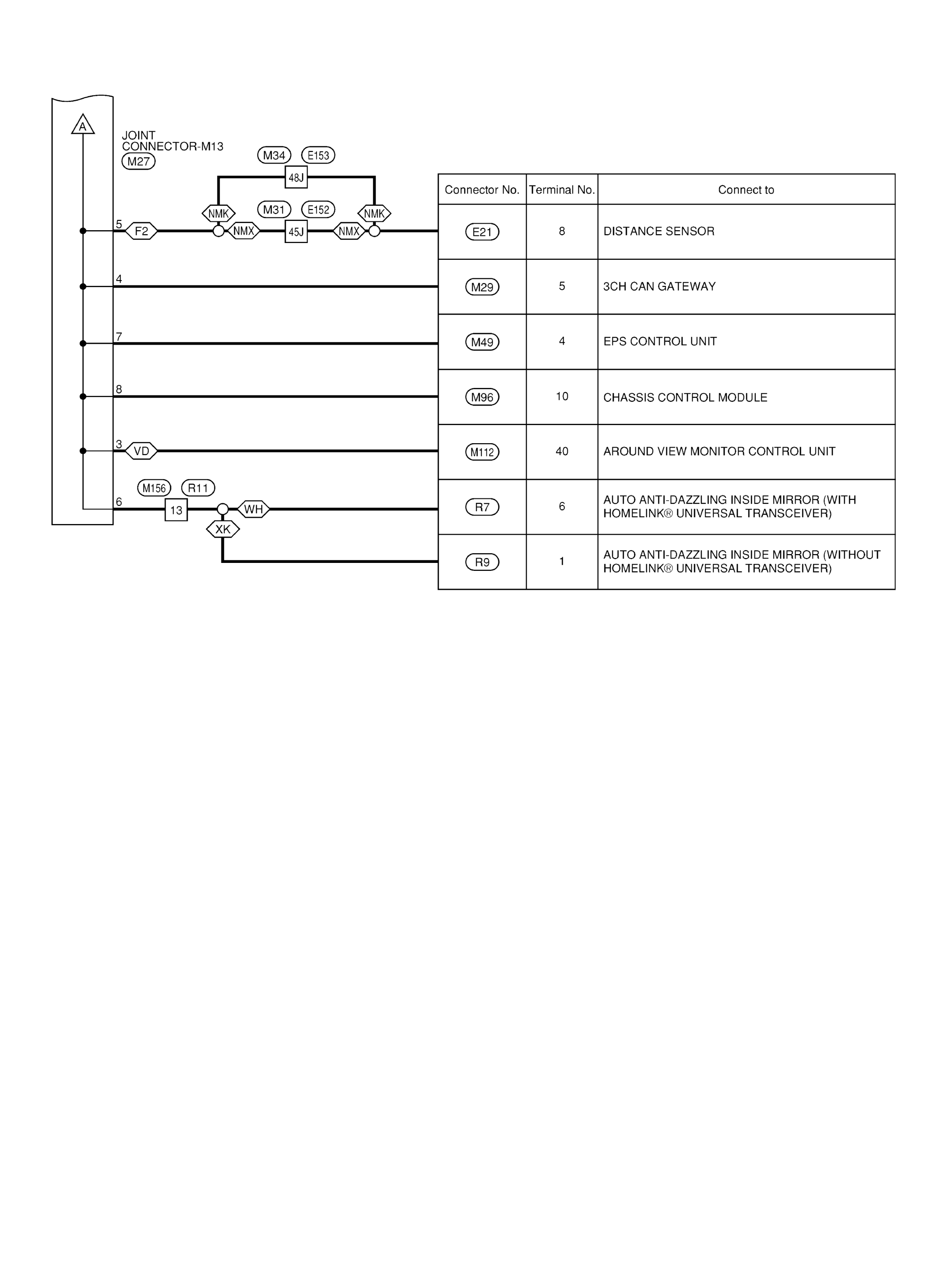

GNSAAMIA5565GB-565

Courtesy of NISSAN NORTH AMERICA, INC.
