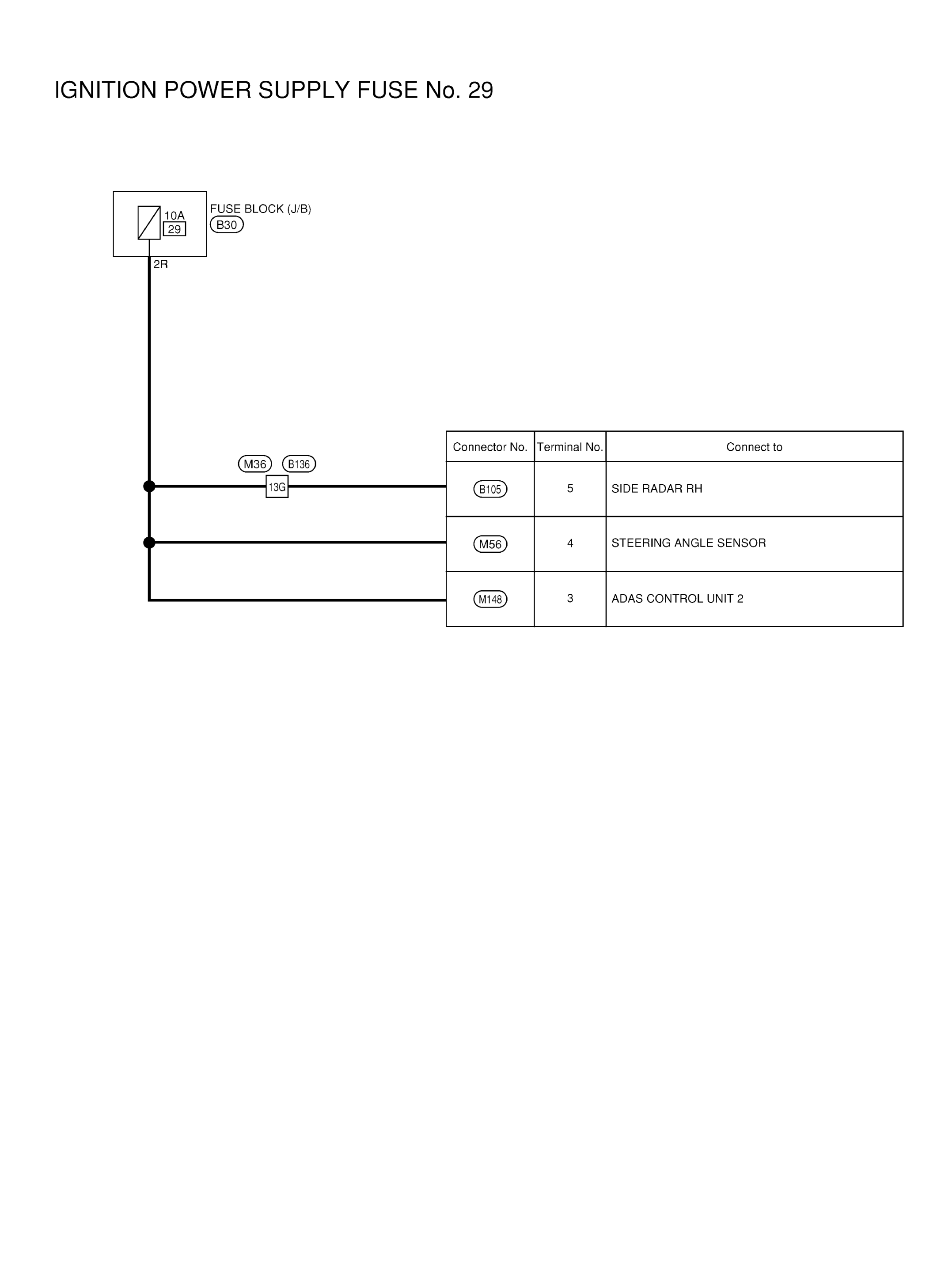

Wiring Diagram - Ignition Power Supply Fuse No. 29 -

GNSAAMIA5563GB-563

Courtesy of NISSAN NORTH AMERICA, INC.
