Wiring Diagram - Ignition Power Supply -

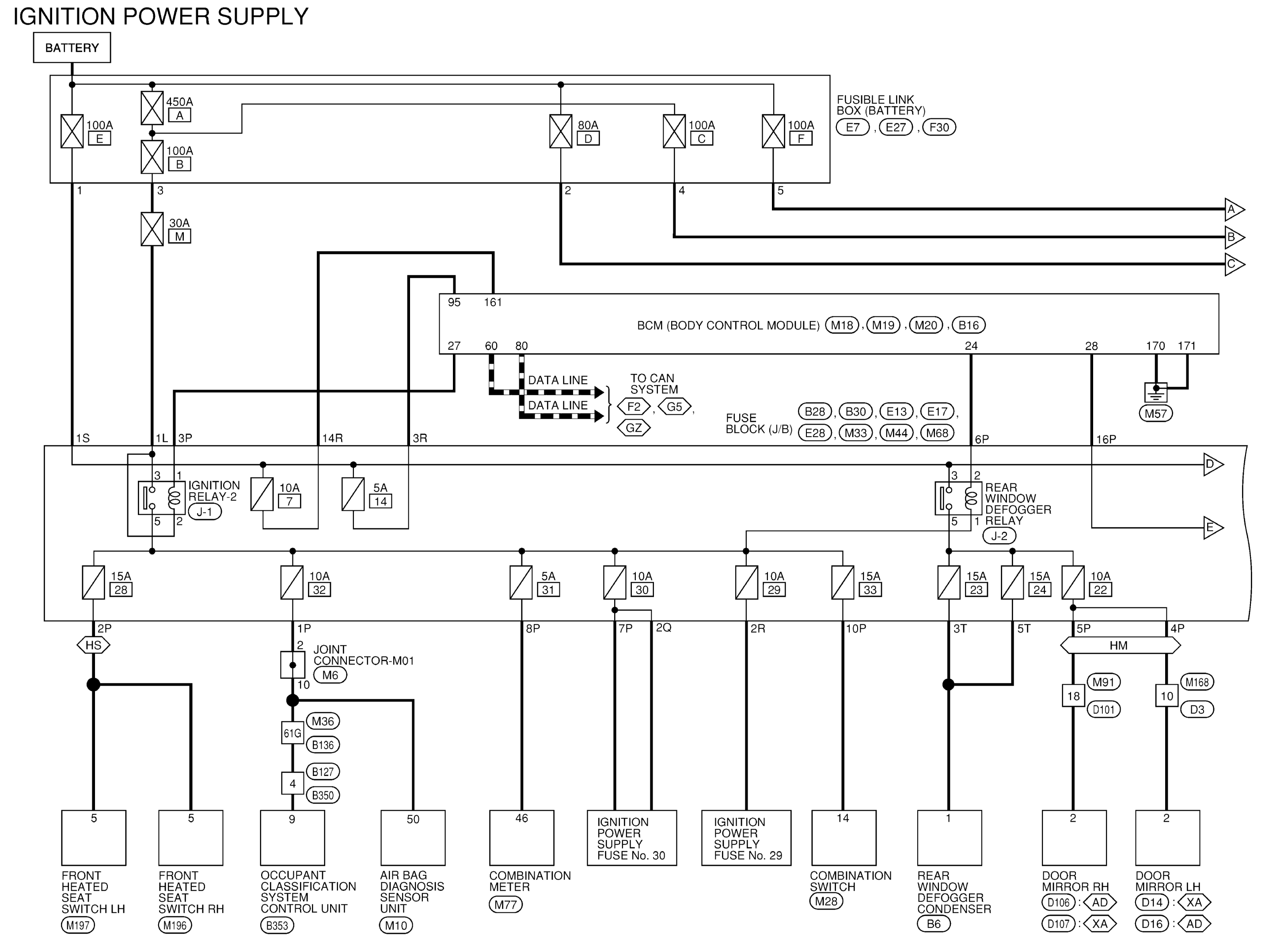

GNSAAMWA2459GB-459

Courtesy of NISSAN NORTH AMERICA, INC.

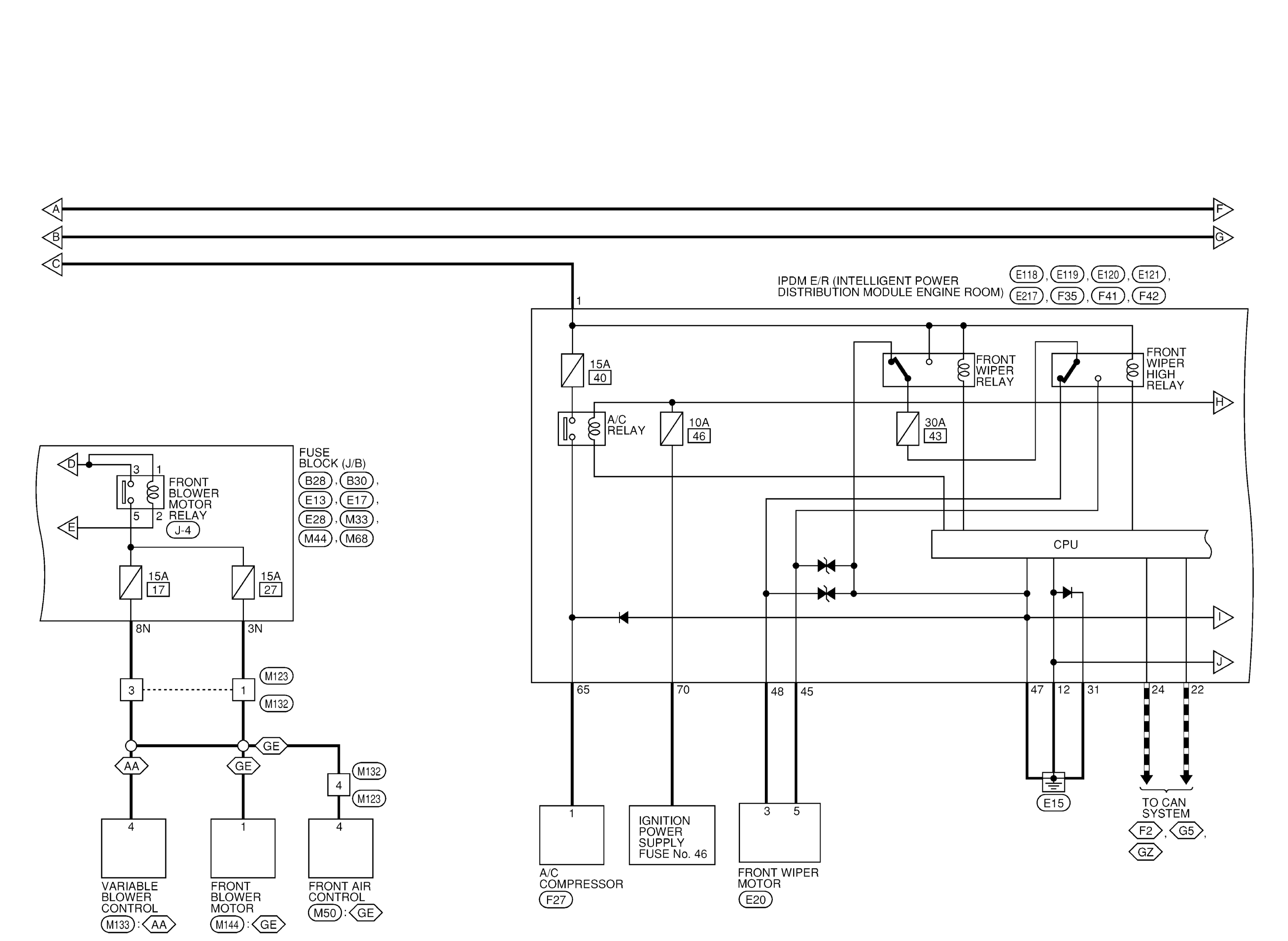

GNSAAMWA2460GB-460

Courtesy of NISSAN NORTH AMERICA, INC.

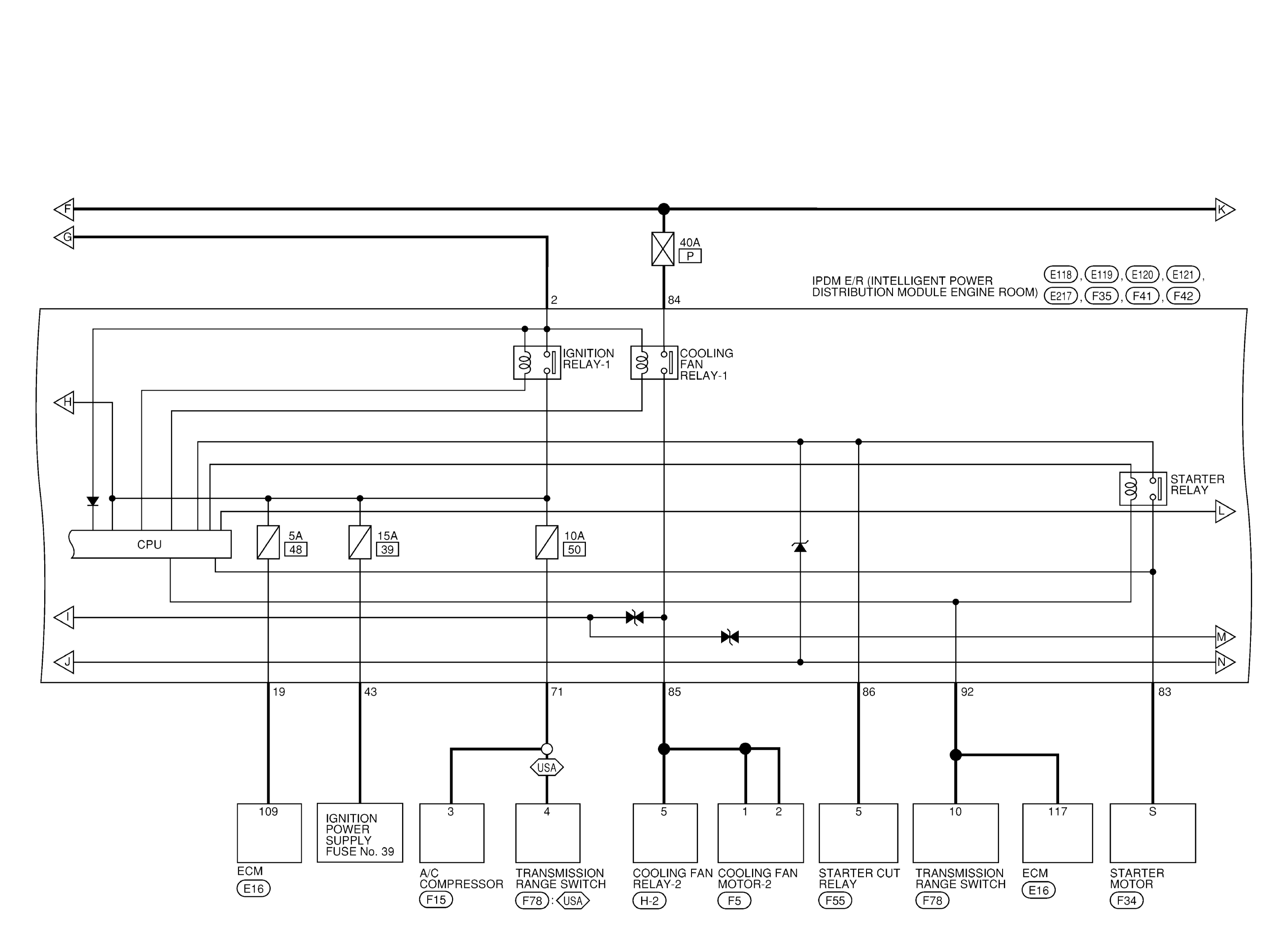

GNSAAMWA2461GB-461

Courtesy of NISSAN NORTH AMERICA, INC.

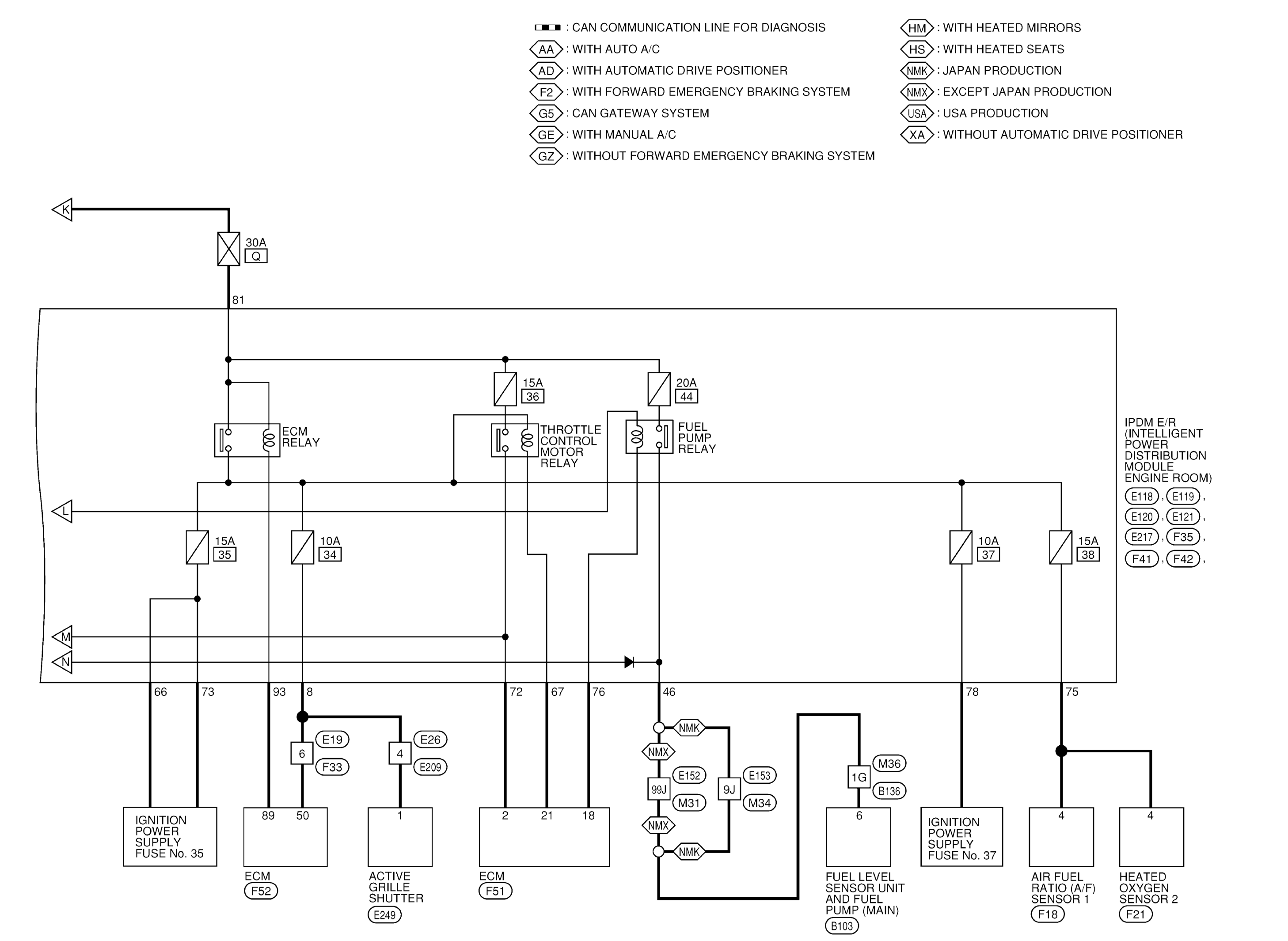

GNSAAMWA2462GB-462

Courtesy of NISSAN NORTH AMERICA, INC.

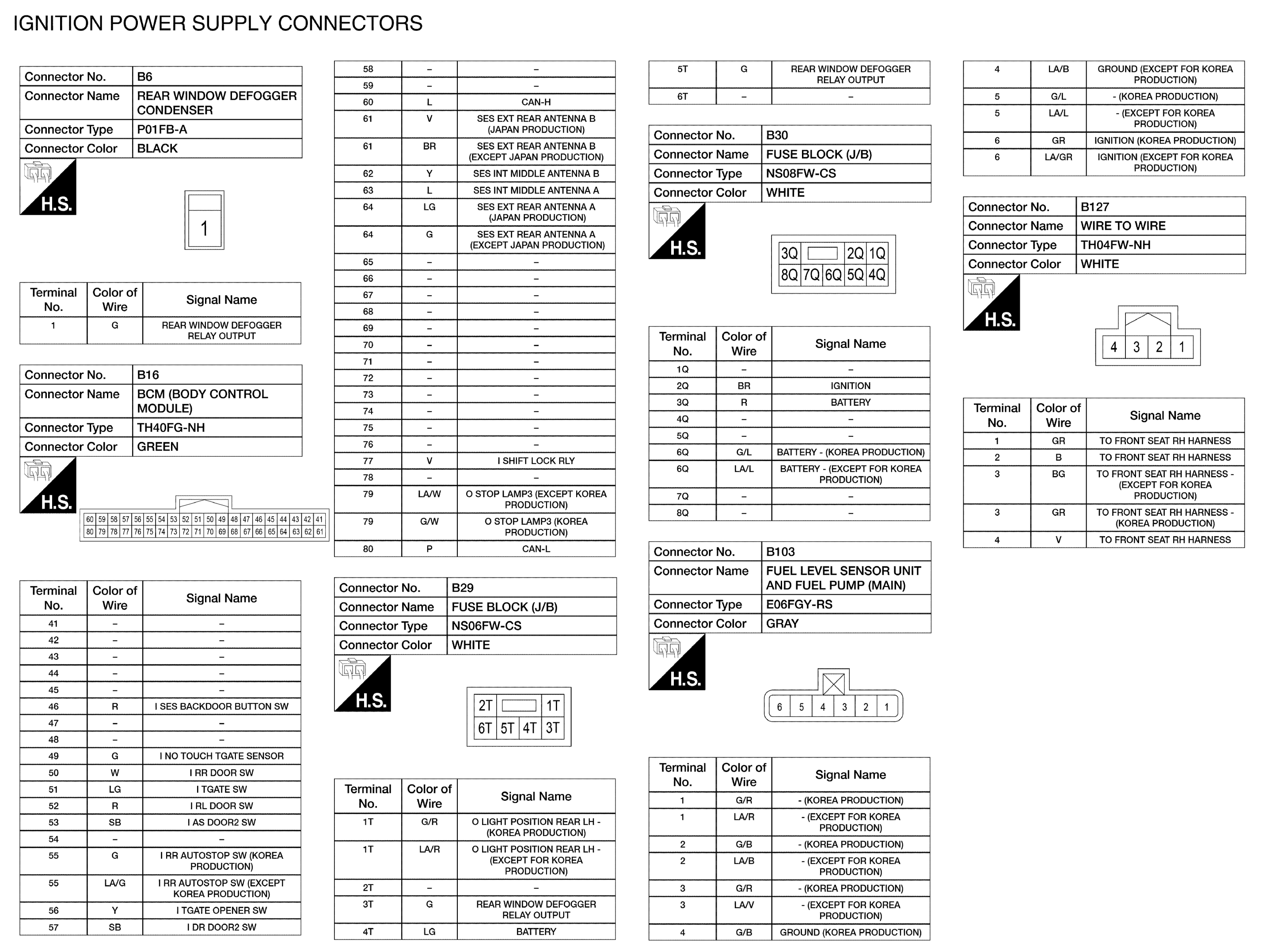

GNSAAMIA5522GB-522

Courtesy of NISSAN NORTH AMERICA, INC.

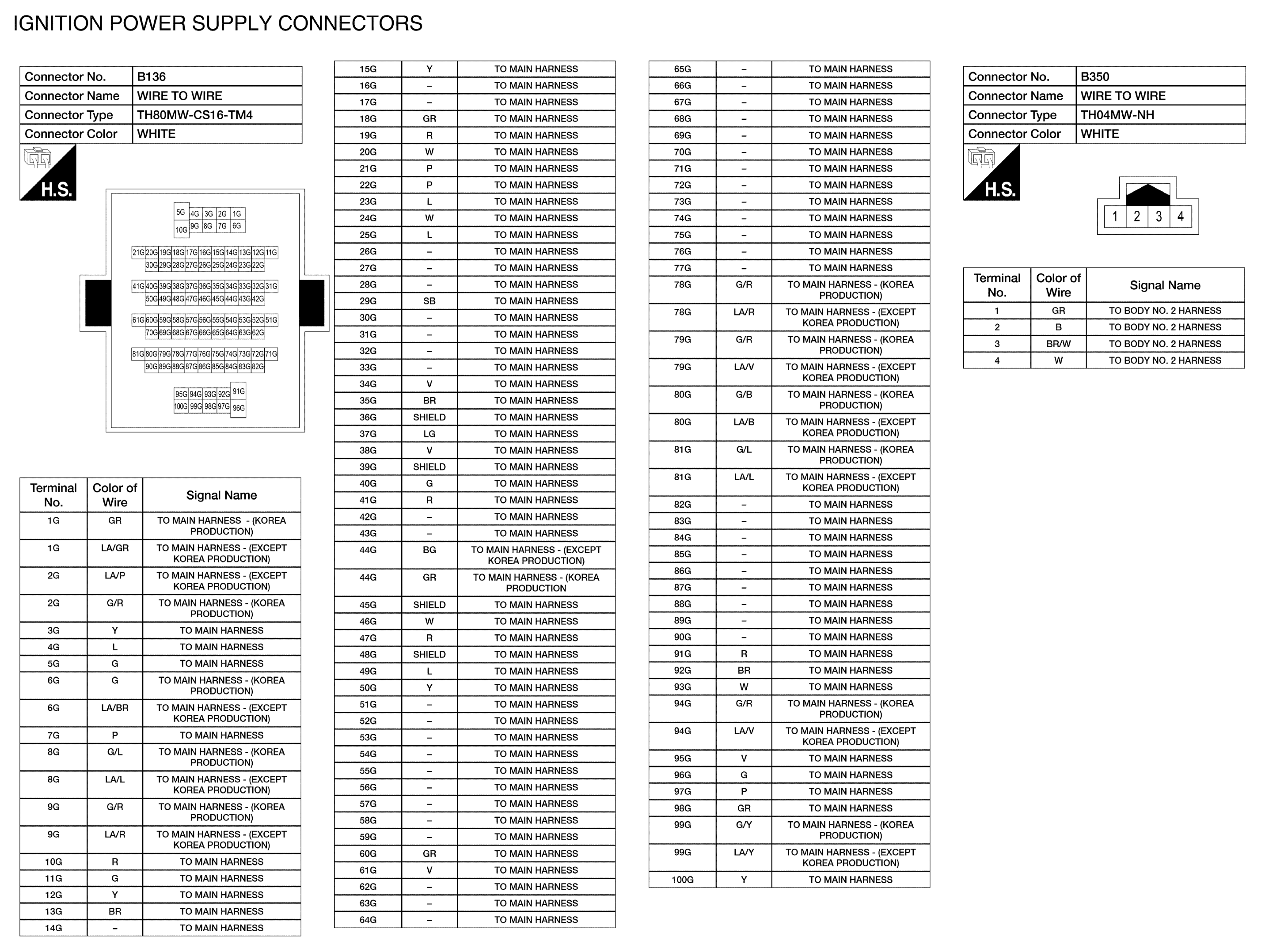

GNSAAMIA5523GB-523

Courtesy of NISSAN NORTH AMERICA, INC.

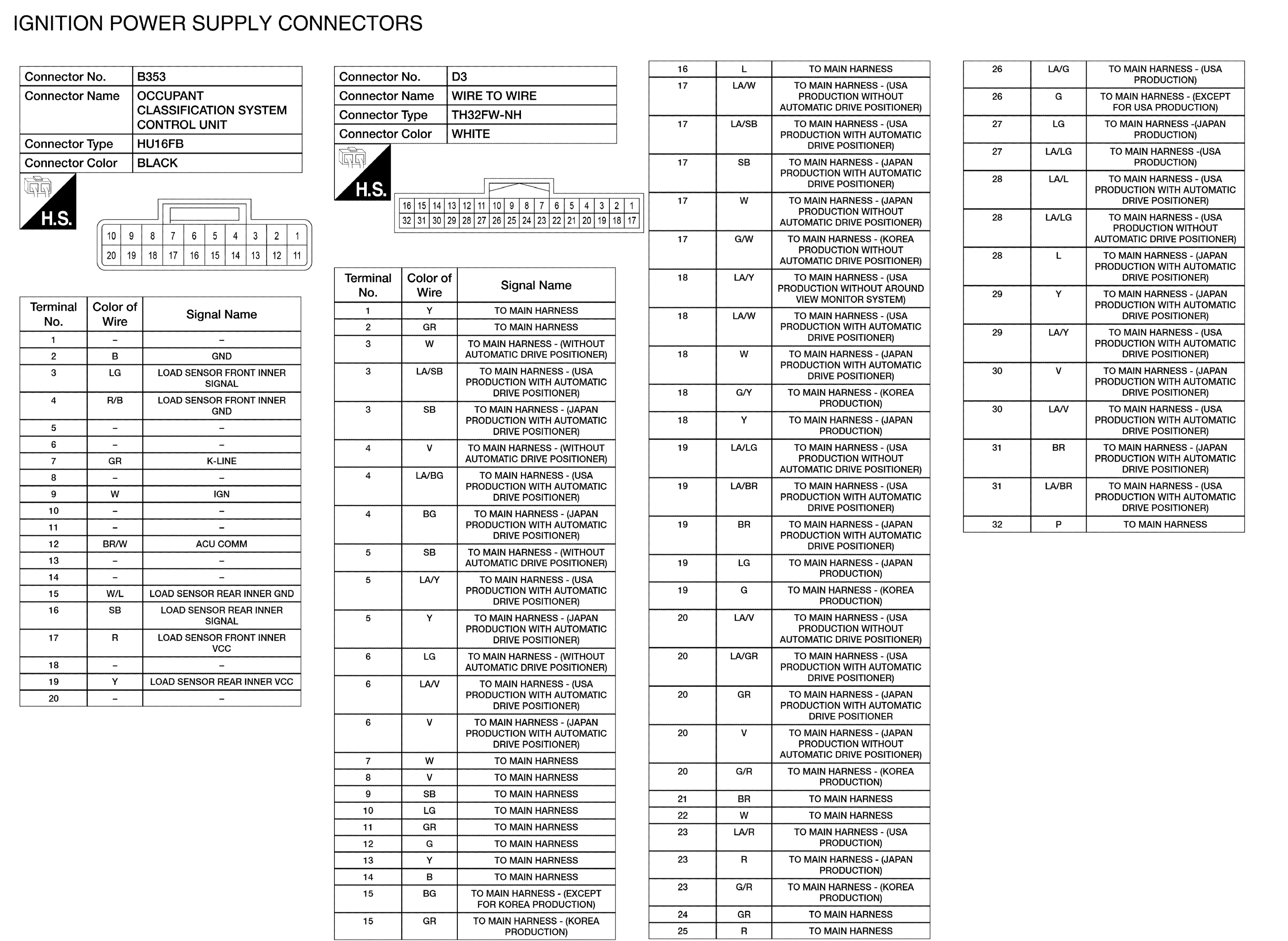

GNSAAMIA5524GB-524

Courtesy of NISSAN NORTH AMERICA, INC.

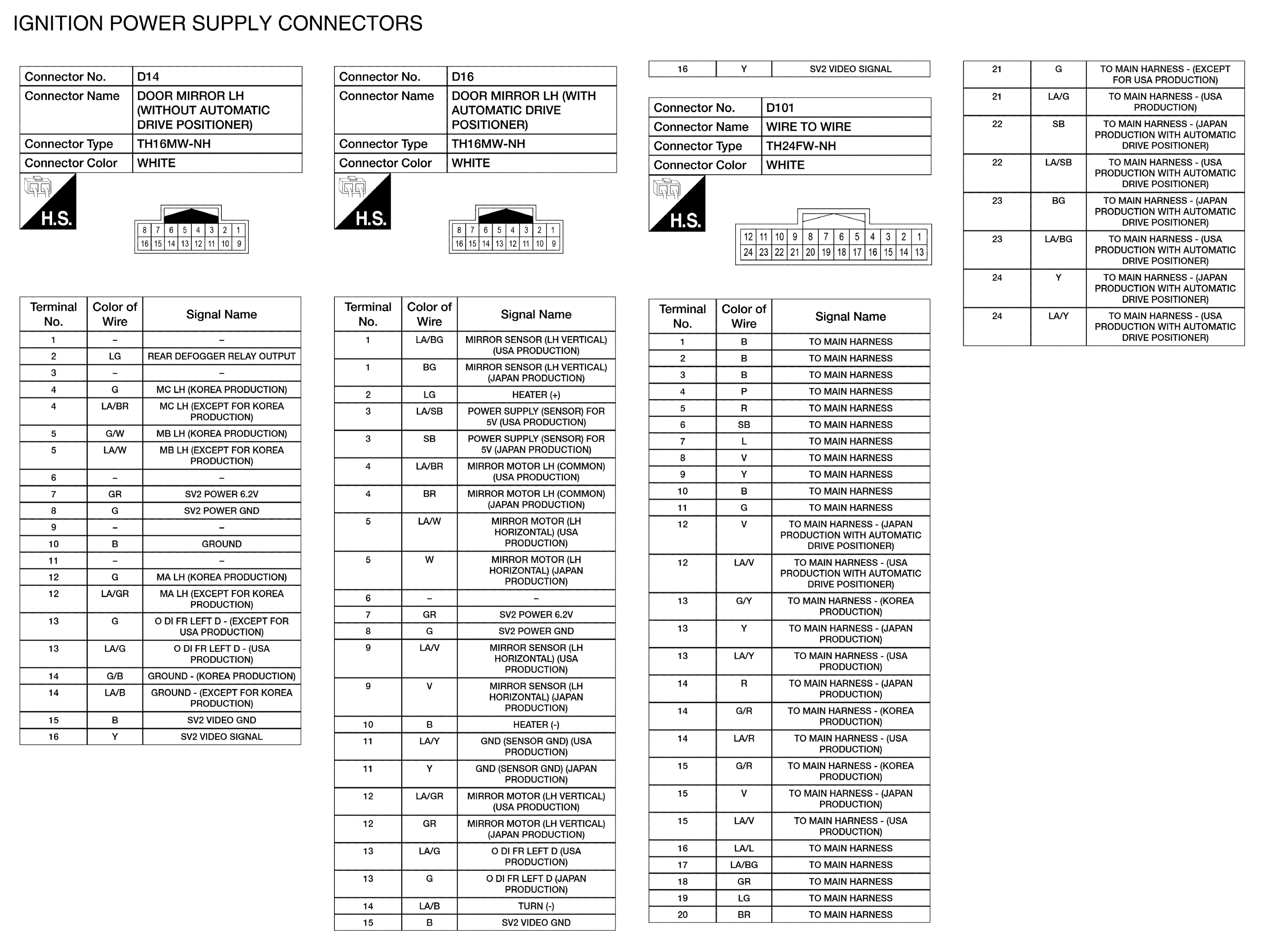

GNSAAMIA5525GB-525

Courtesy of NISSAN NORTH AMERICA, INC.

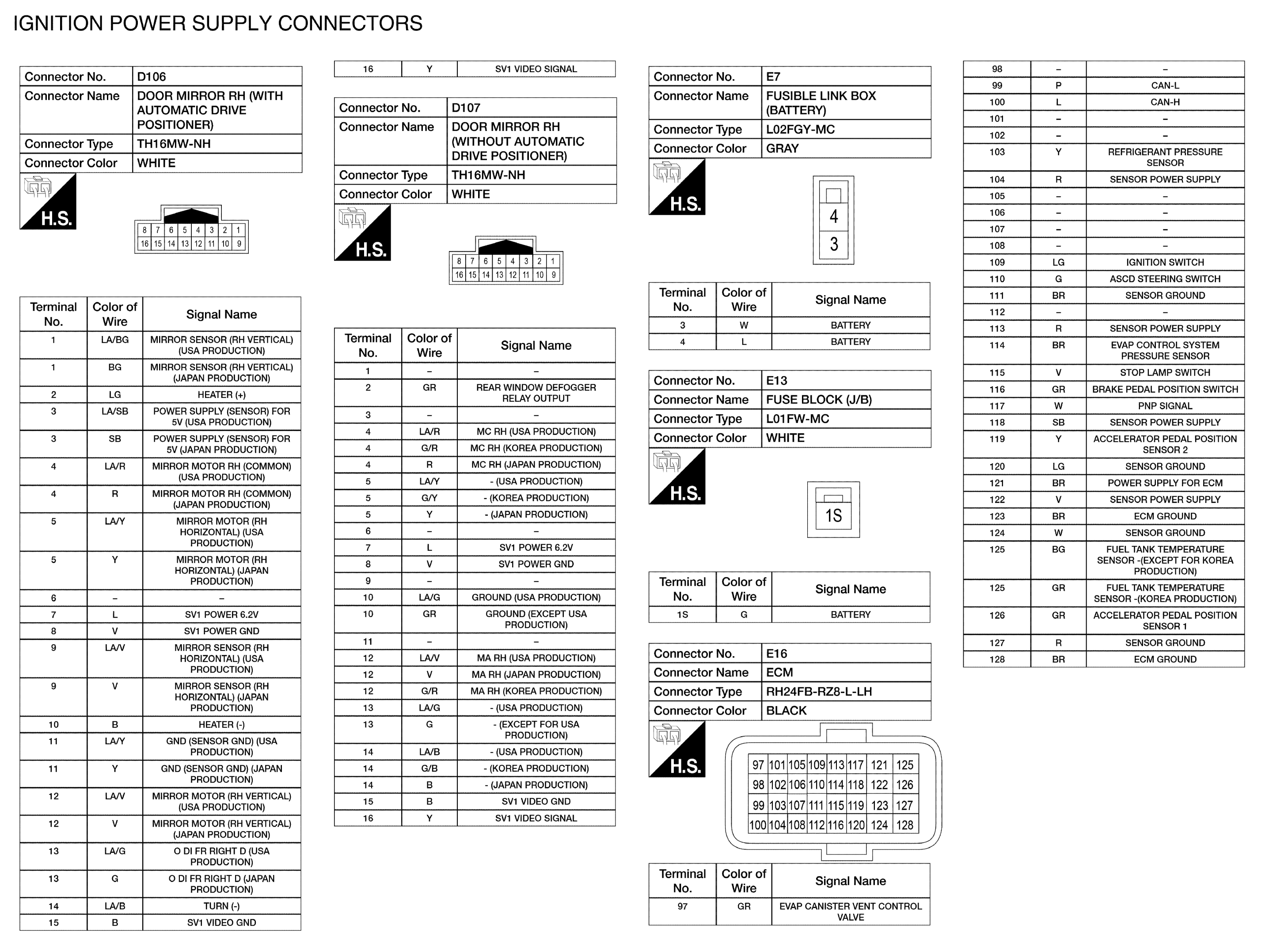

GNSAAMIA5526GB-526

Courtesy of NISSAN NORTH AMERICA, INC.

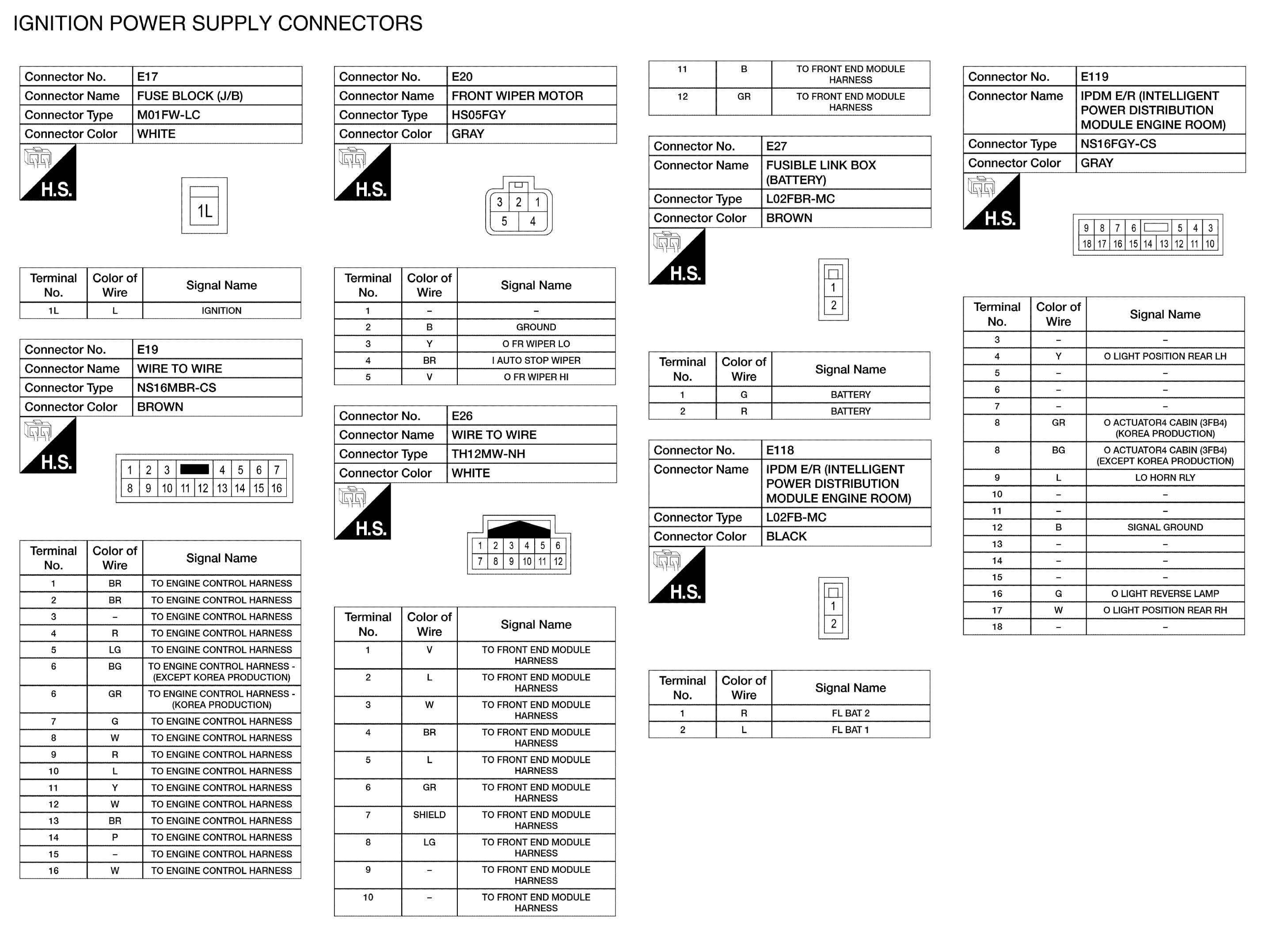

GNSAAMIA5527GB-527

Courtesy of NISSAN NORTH AMERICA, INC.

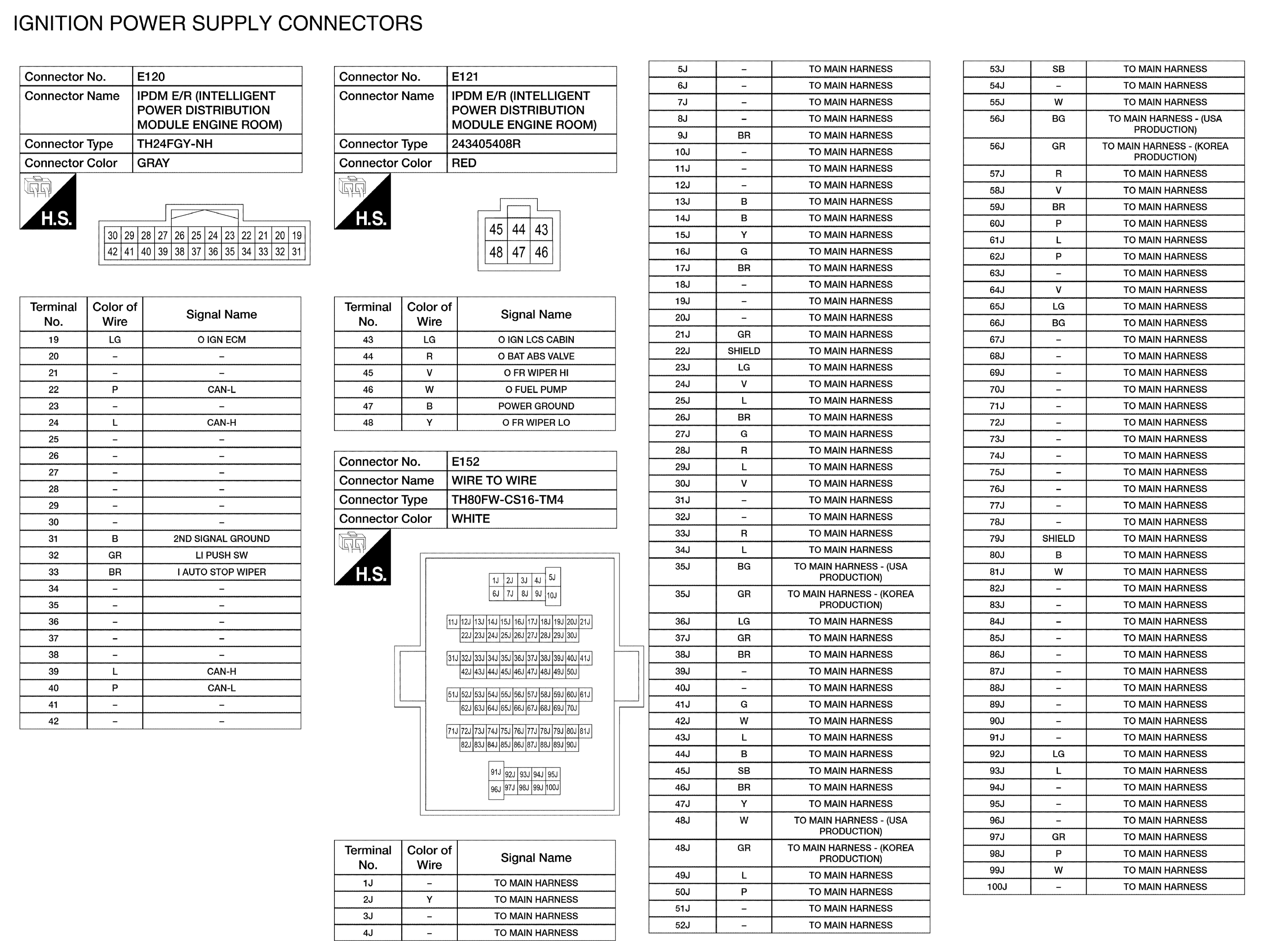

GNSAAMIA5528GB-528

Courtesy of NISSAN NORTH AMERICA, INC.

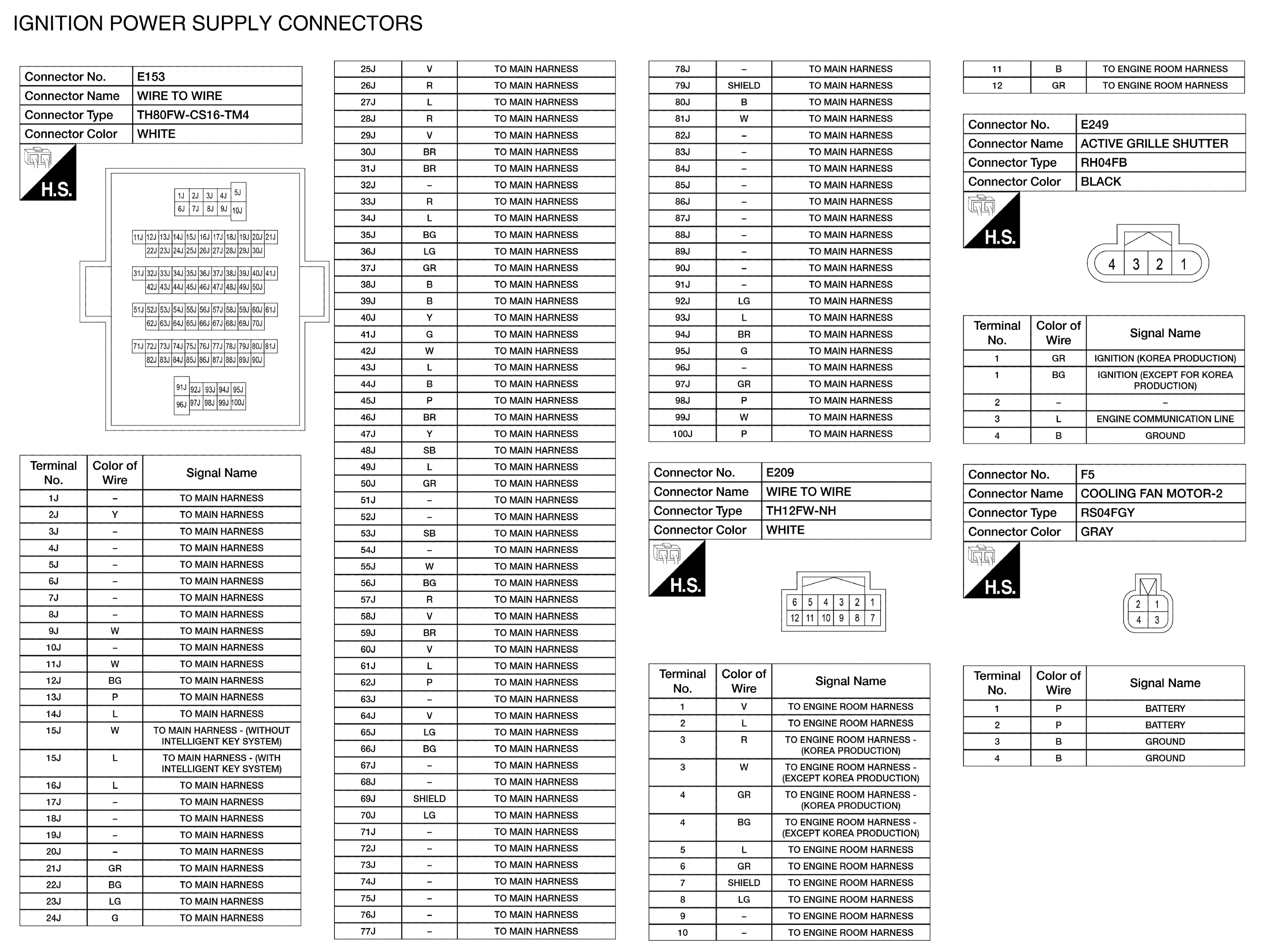

GNSAAMIA5529GB-529

Courtesy of NISSAN NORTH AMERICA, INC.

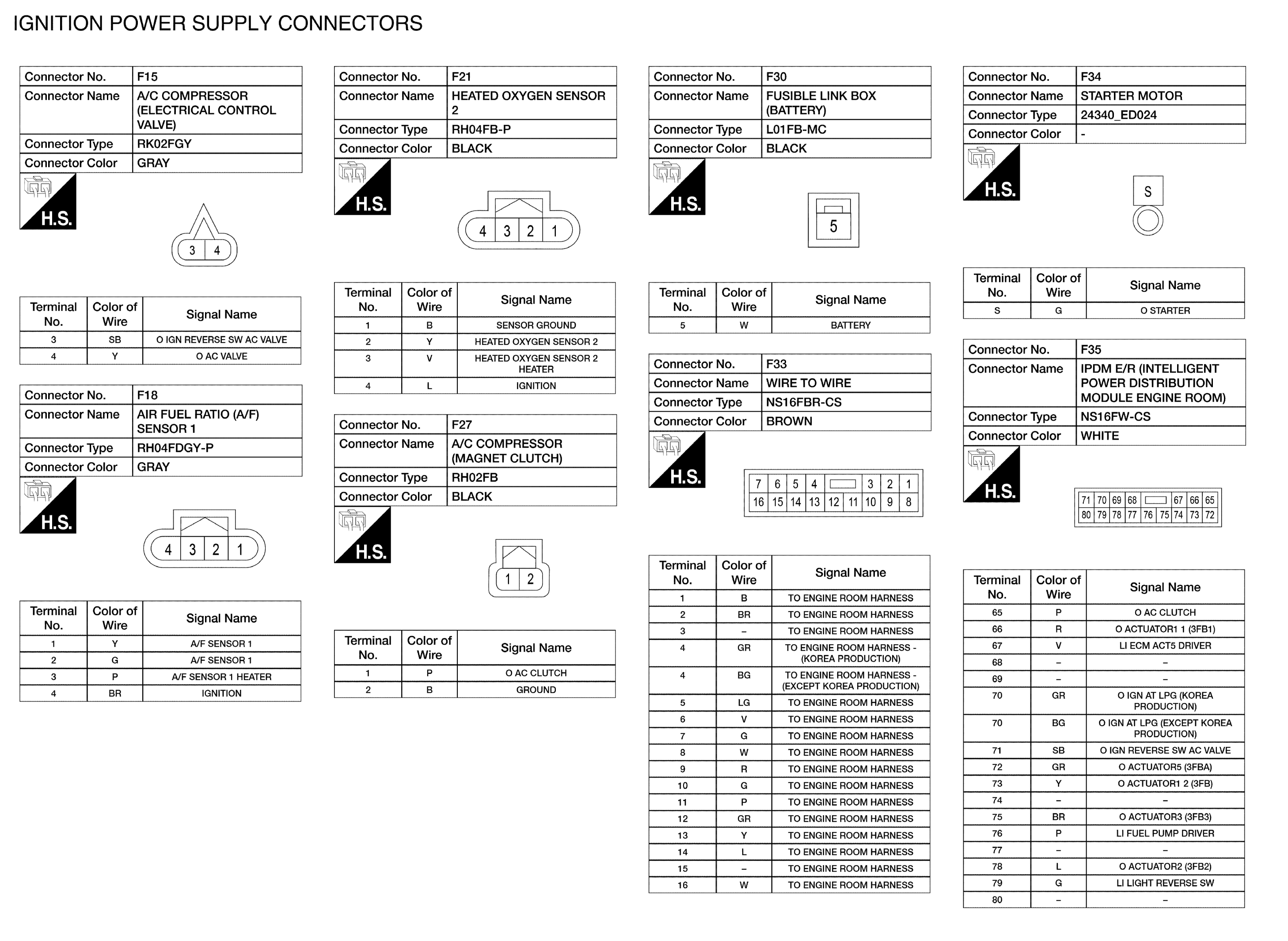

GNSAAMIA5530GB-530

Courtesy of NISSAN NORTH AMERICA, INC.

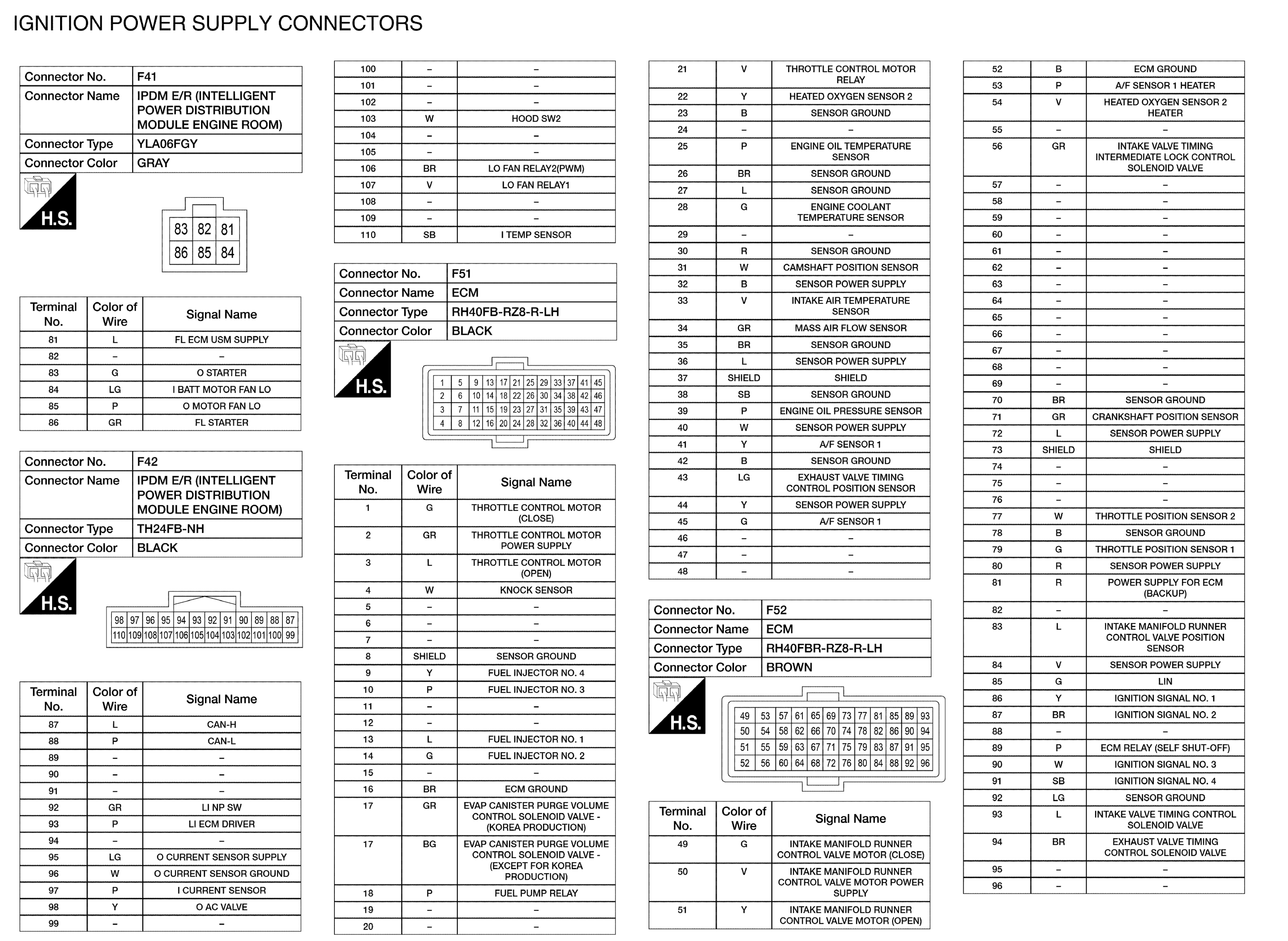

GNSAAMIA5531GB-531

Courtesy of NISSAN NORTH AMERICA, INC.

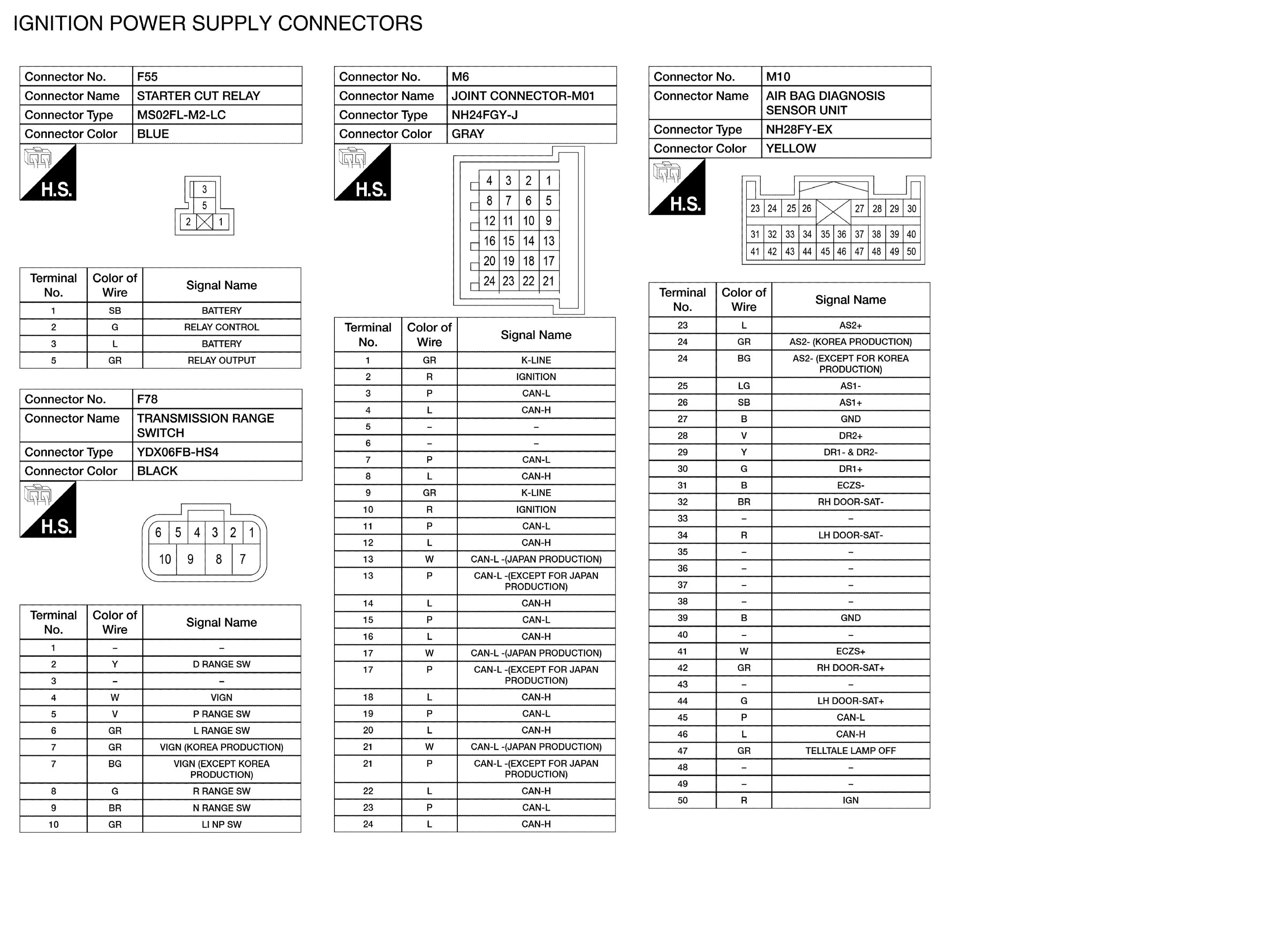

GNSAAMIA5532GB-532

Courtesy of NISSAN NORTH AMERICA, INC.

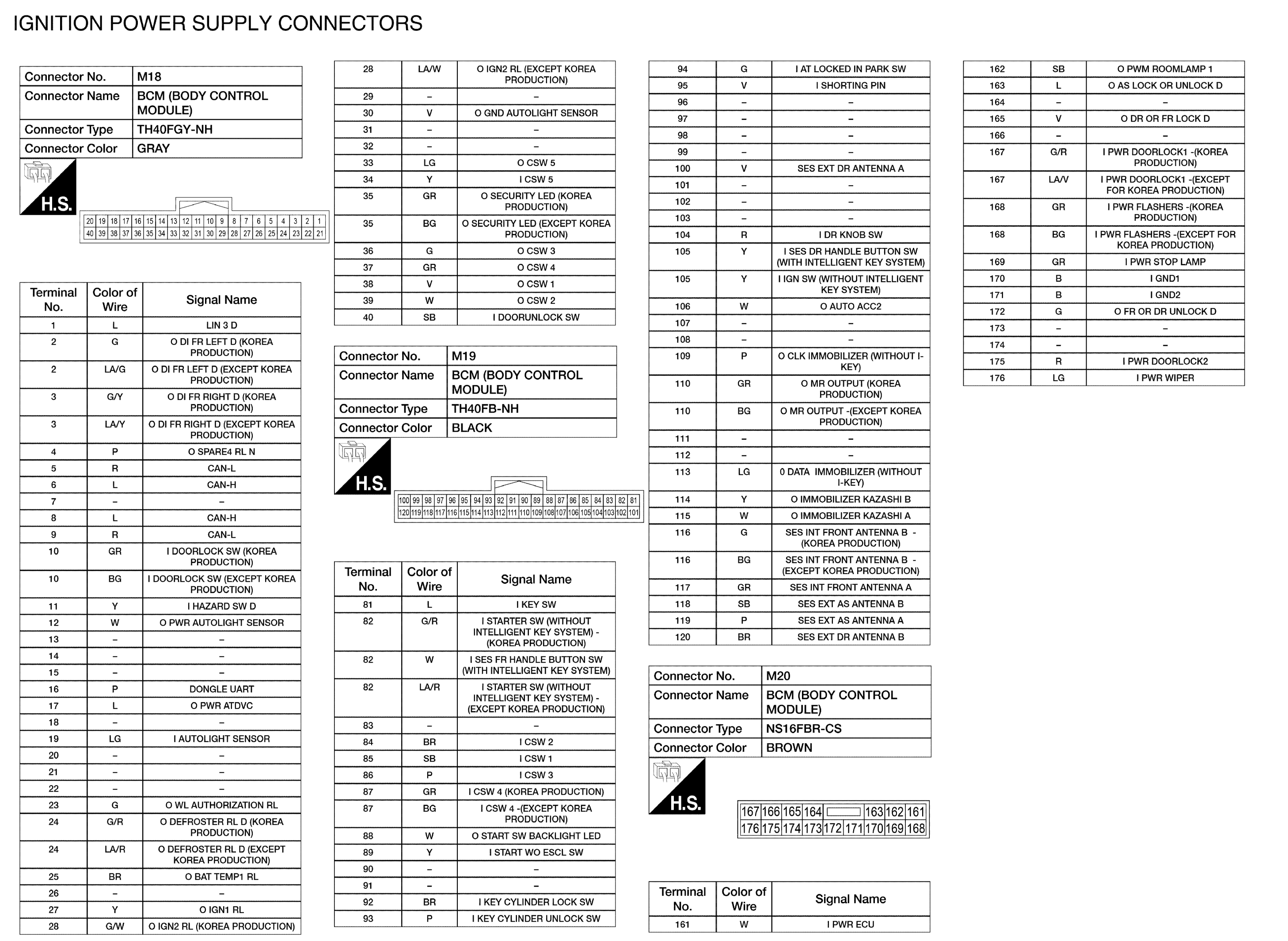

GNSAAMIA5533GB-533

Courtesy of NISSAN NORTH AMERICA, INC.

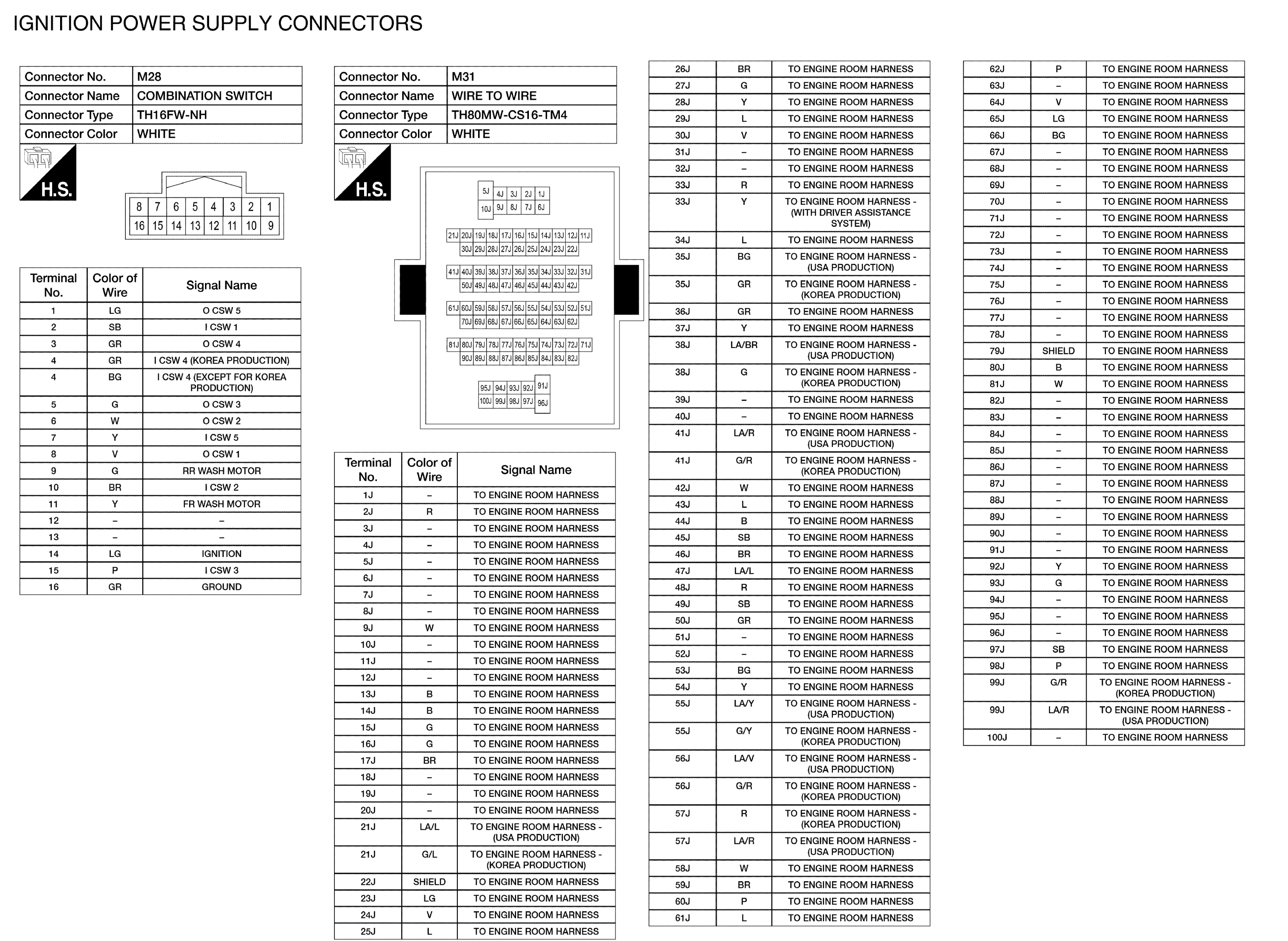

GNSAAMIA5534GB-534

Courtesy of NISSAN NORTH AMERICA, INC.

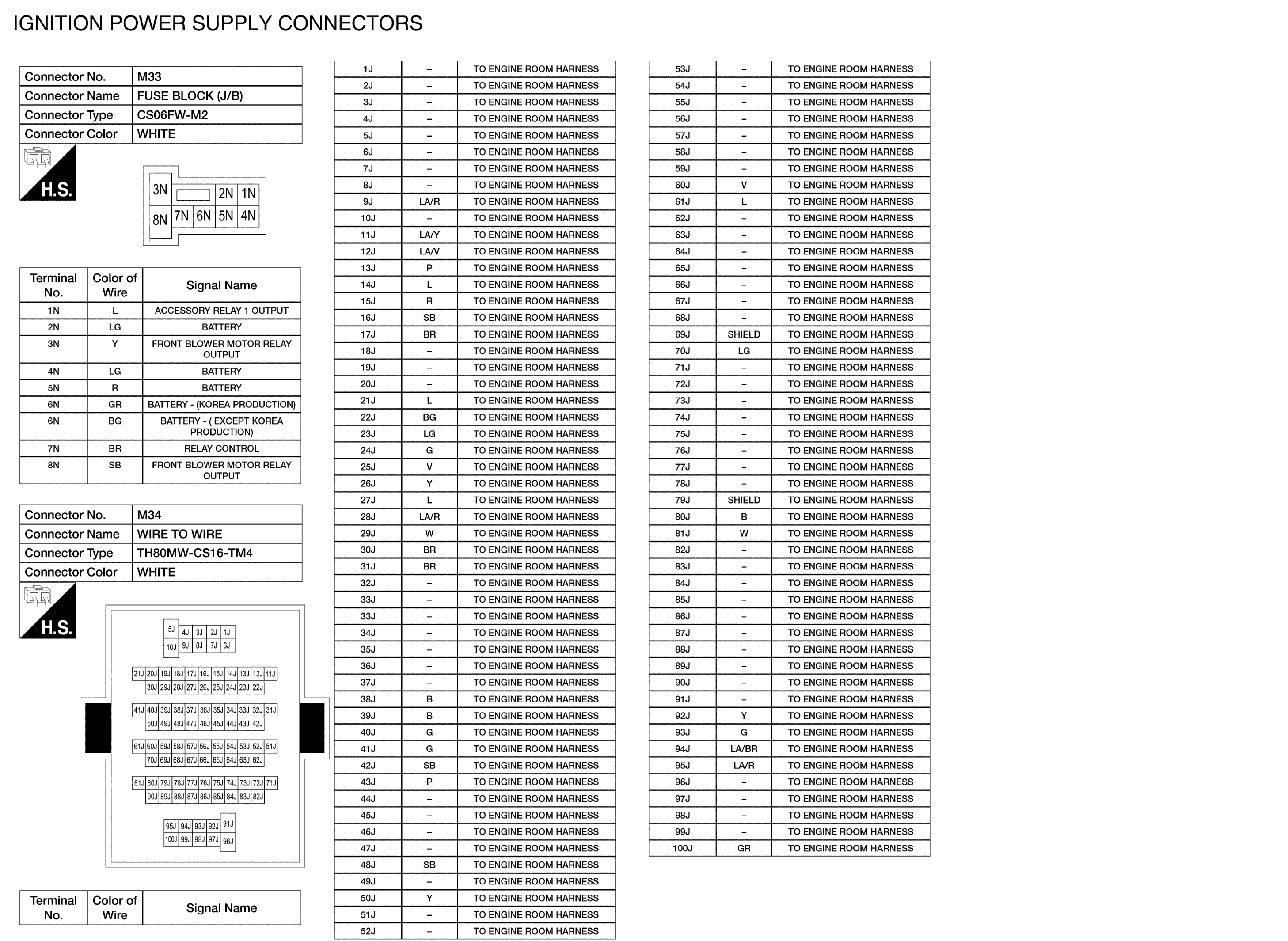

GNSAAMIA5535GB-535

Courtesy of NISSAN NORTH AMERICA, INC.

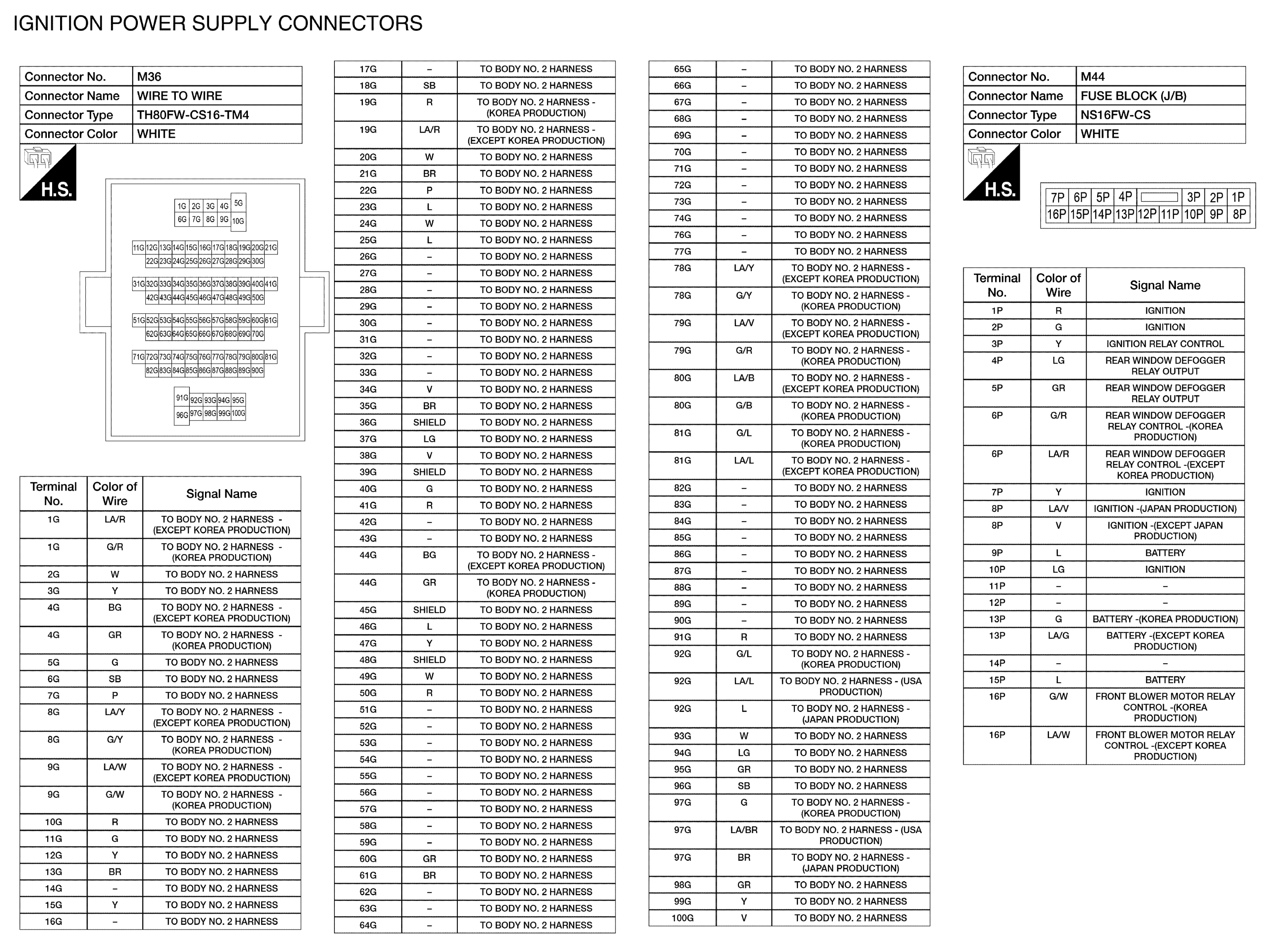

GNSAAMIA5536GB-536

Courtesy of NISSAN NORTH AMERICA, INC.

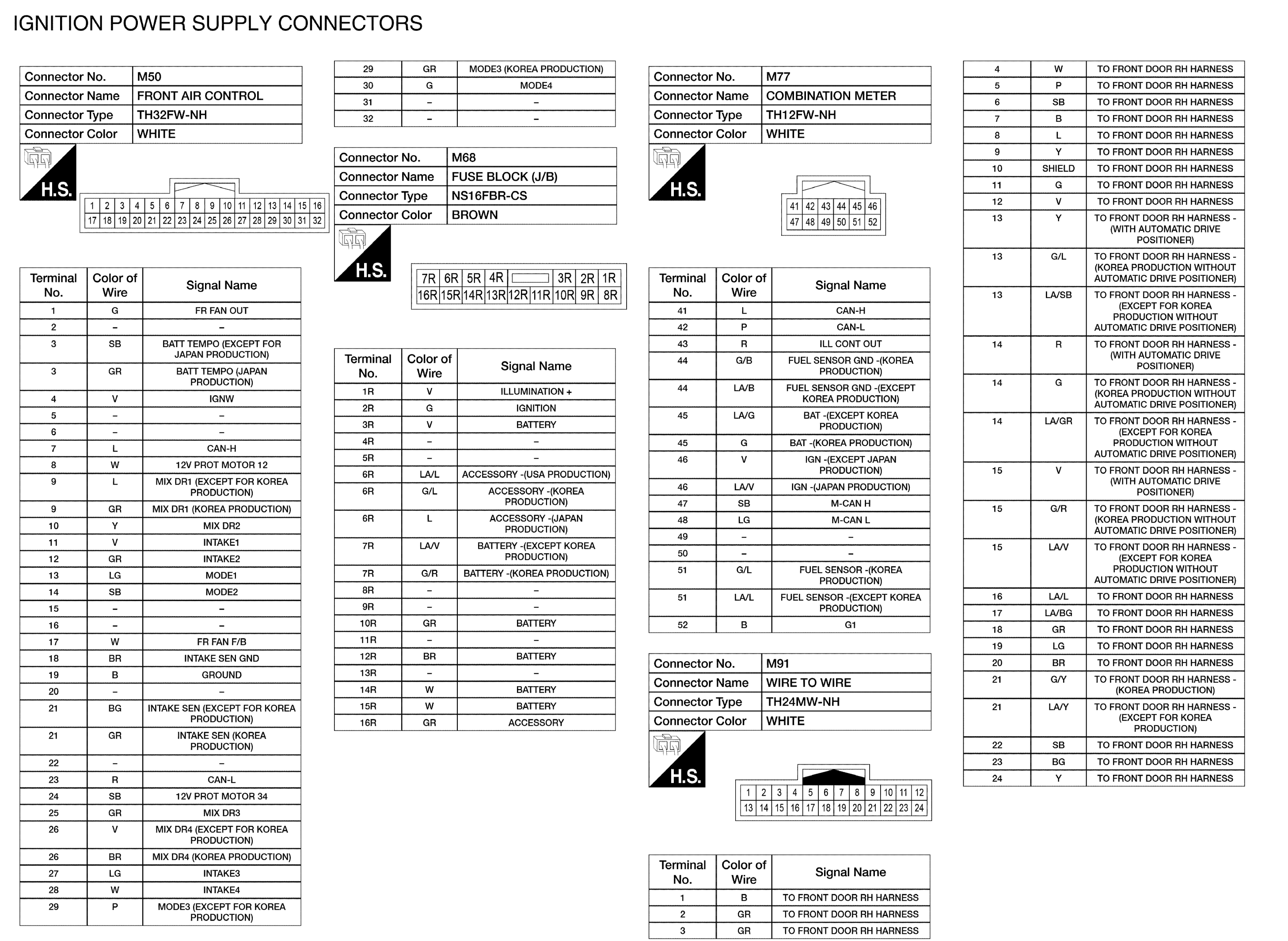

GNSAAMIA5537GB-537

Courtesy of NISSAN NORTH AMERICA, INC.

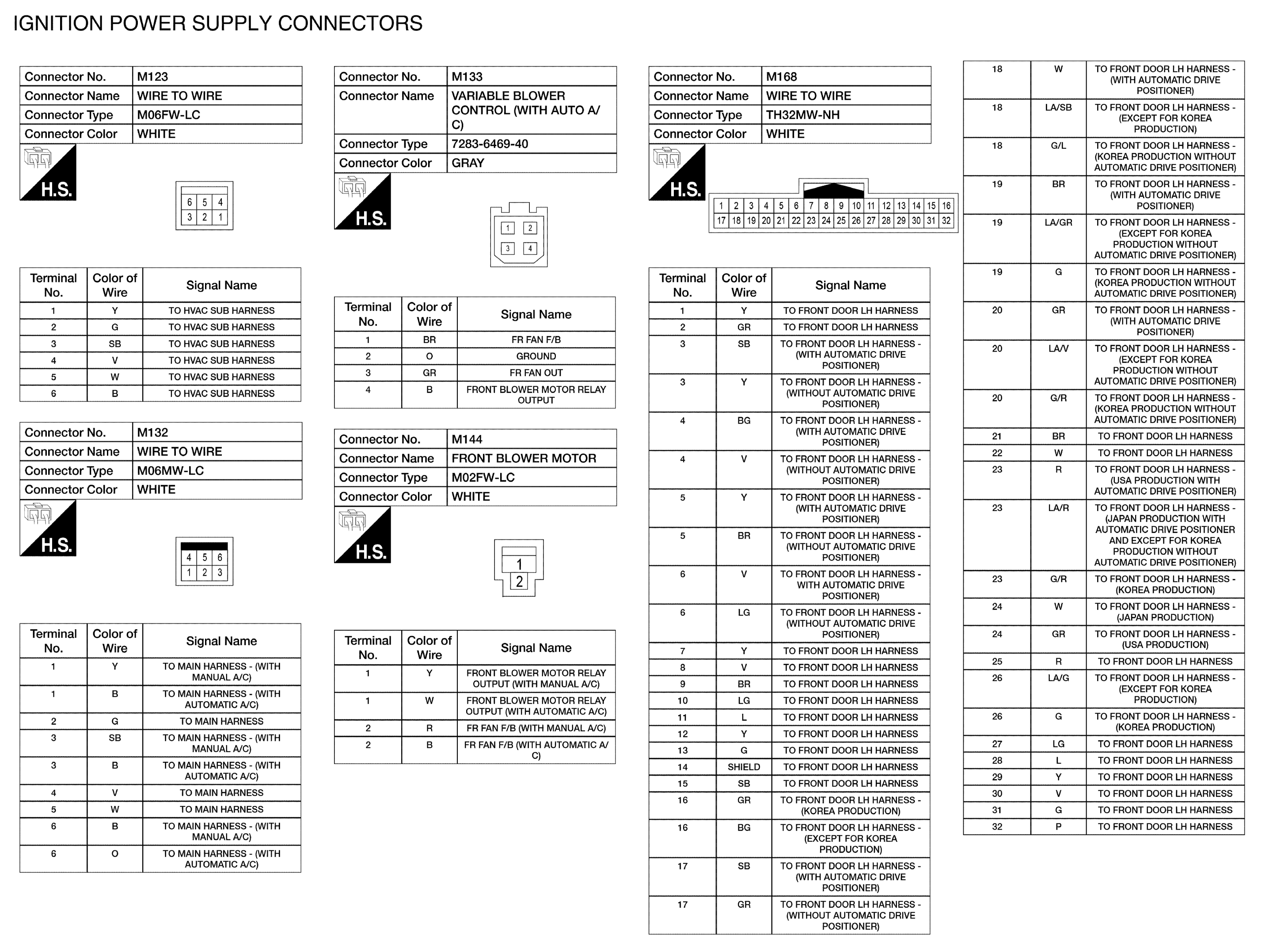

GNSAAMIA5680GB-680

Courtesy of NISSAN NORTH AMERICA, INC.

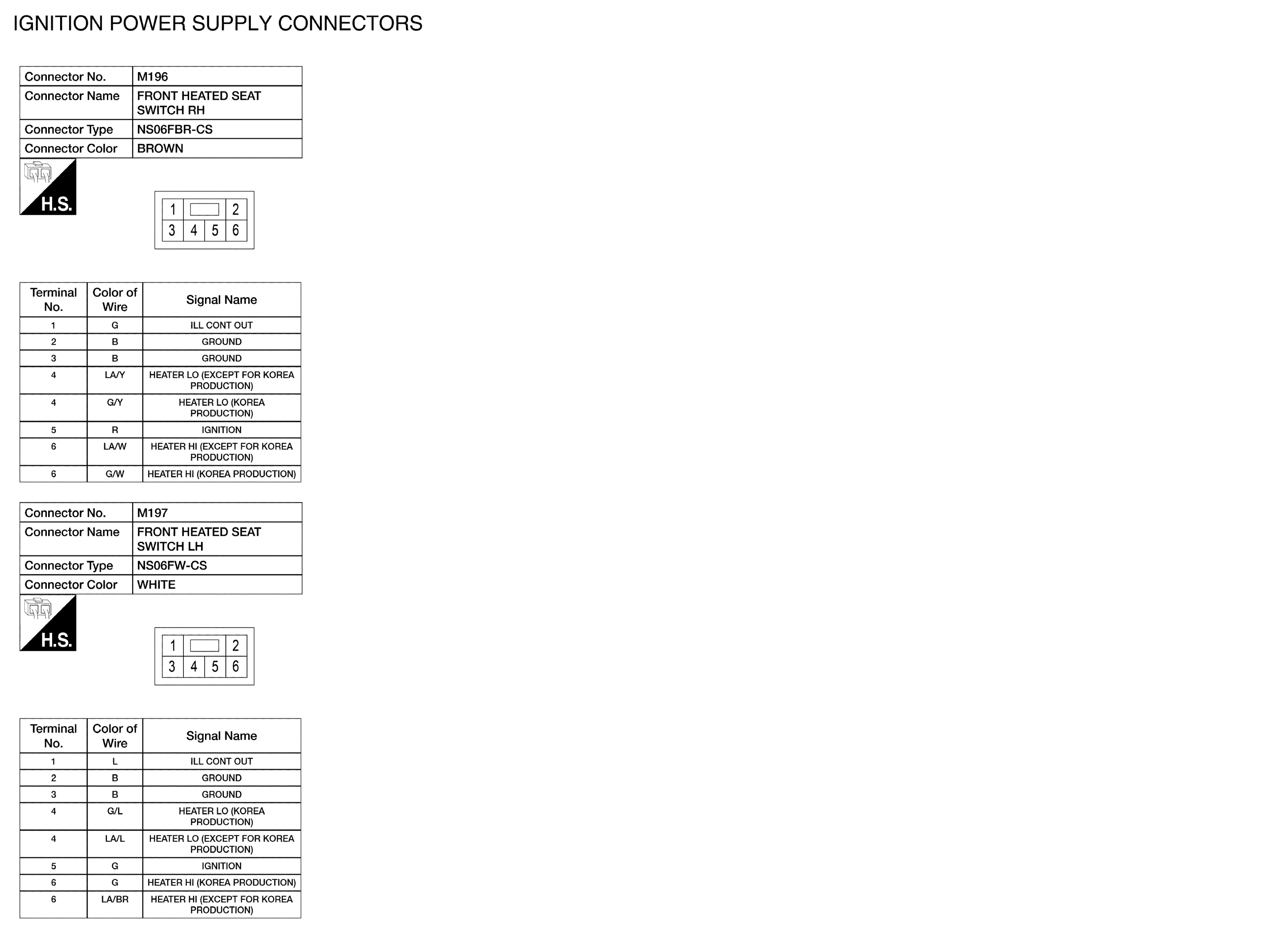

GNSAAMIA5681GB-681

Courtesy of NISSAN NORTH AMERICA, INC.
