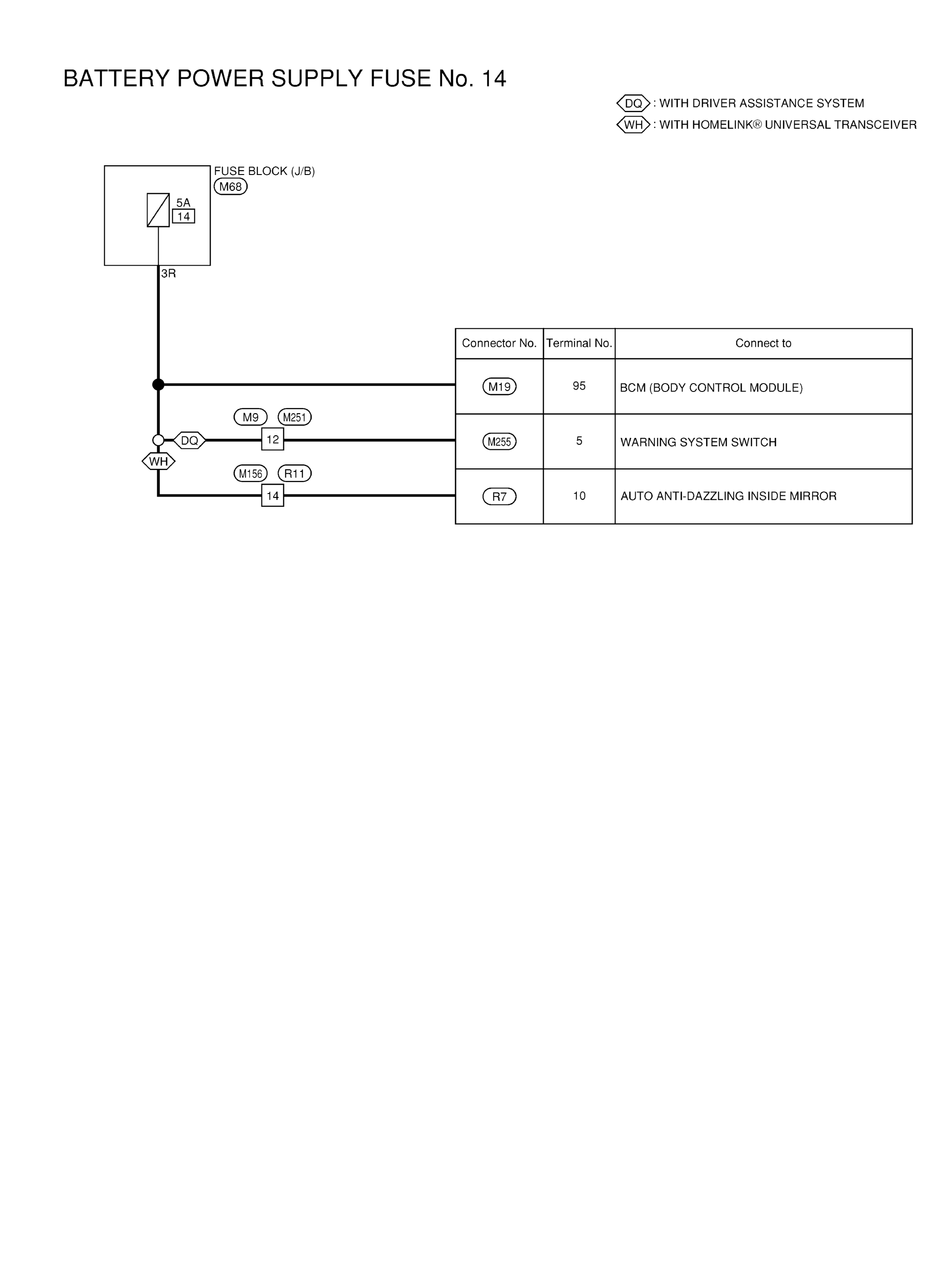

Wiring Diagram - Battery Power Supply Fuse No. 14 -

GNSAAMIA5560GB-560Courtesy of NISSAN NORTH AMERICA, INC.
