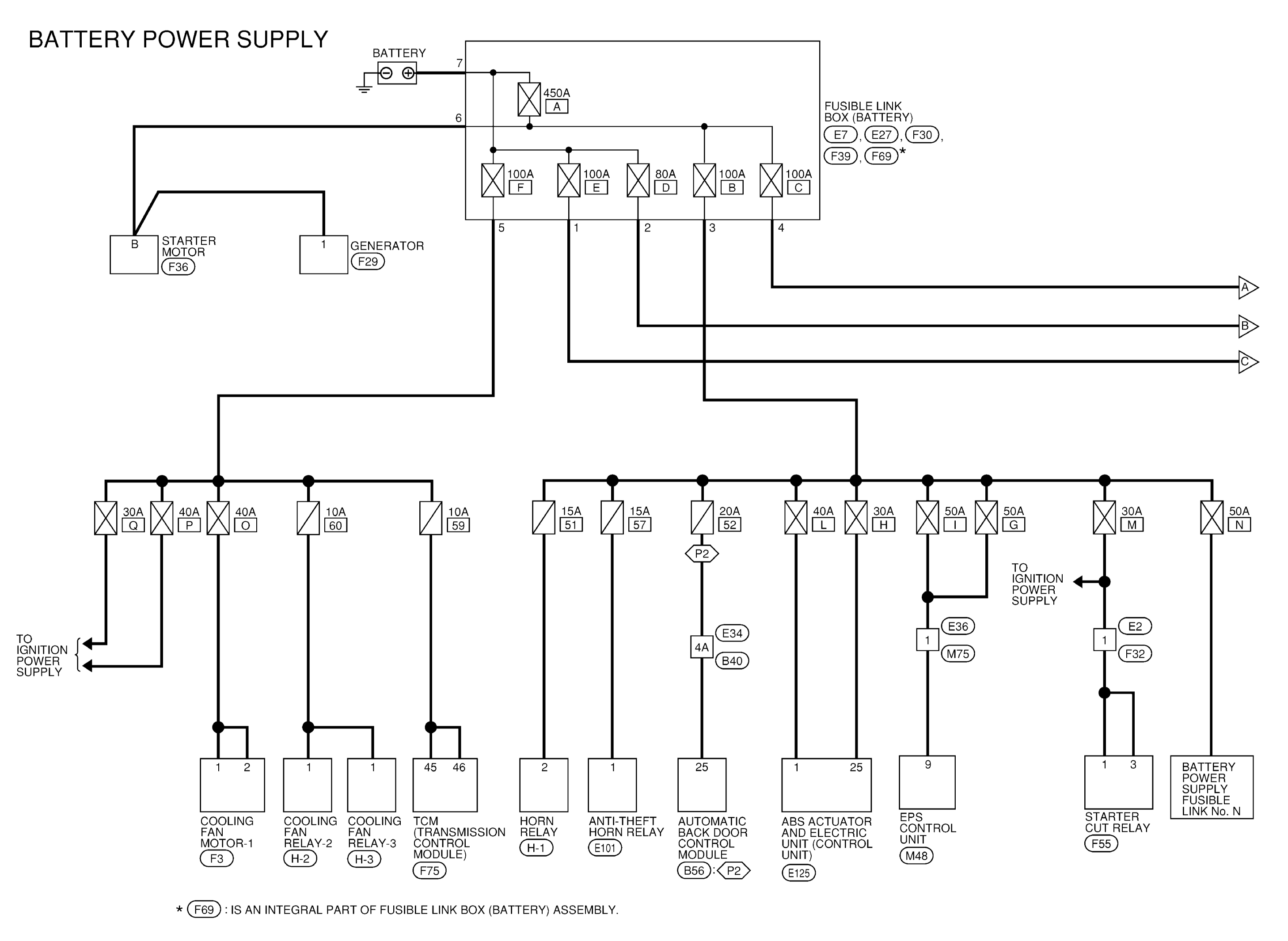

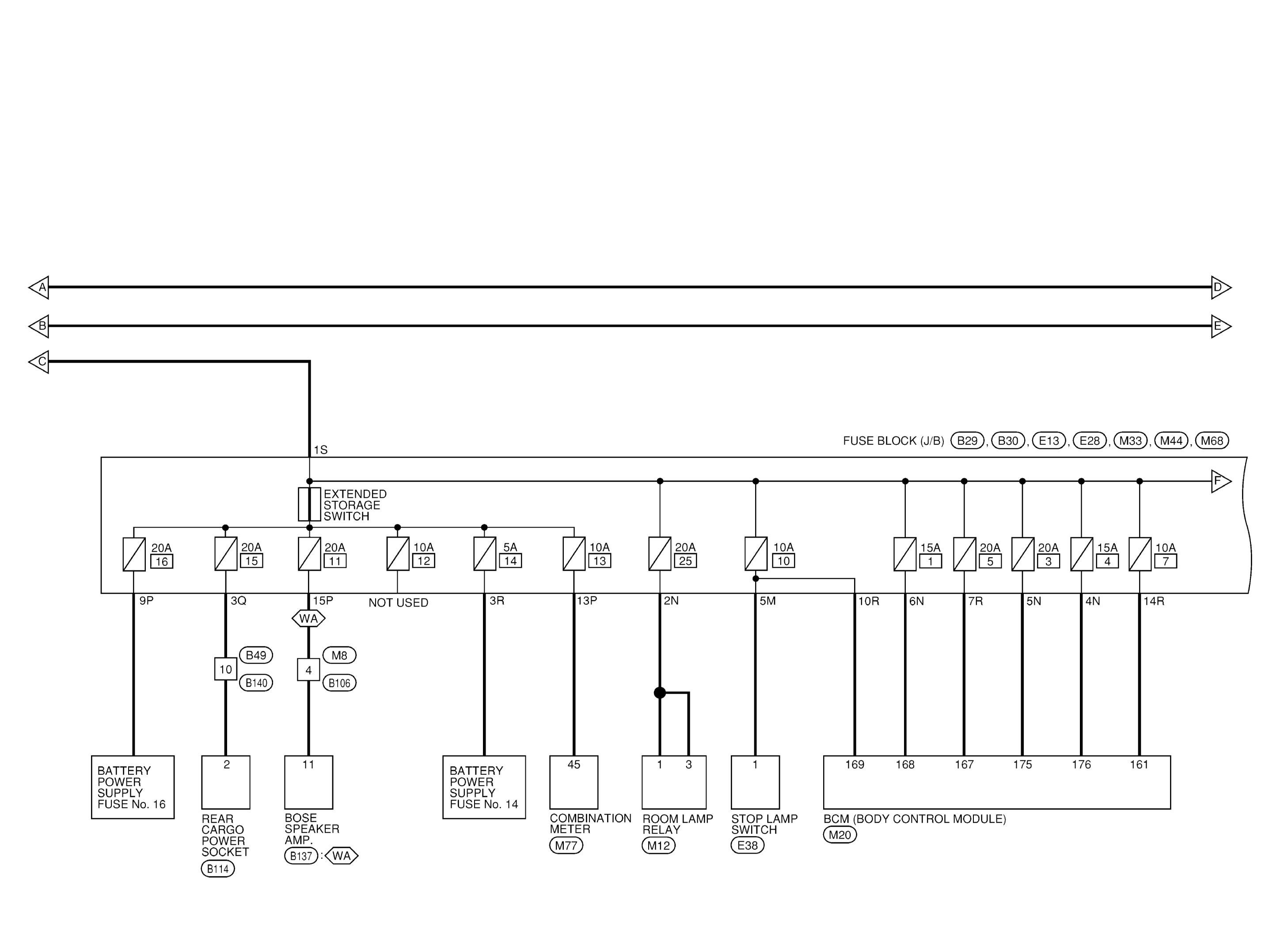

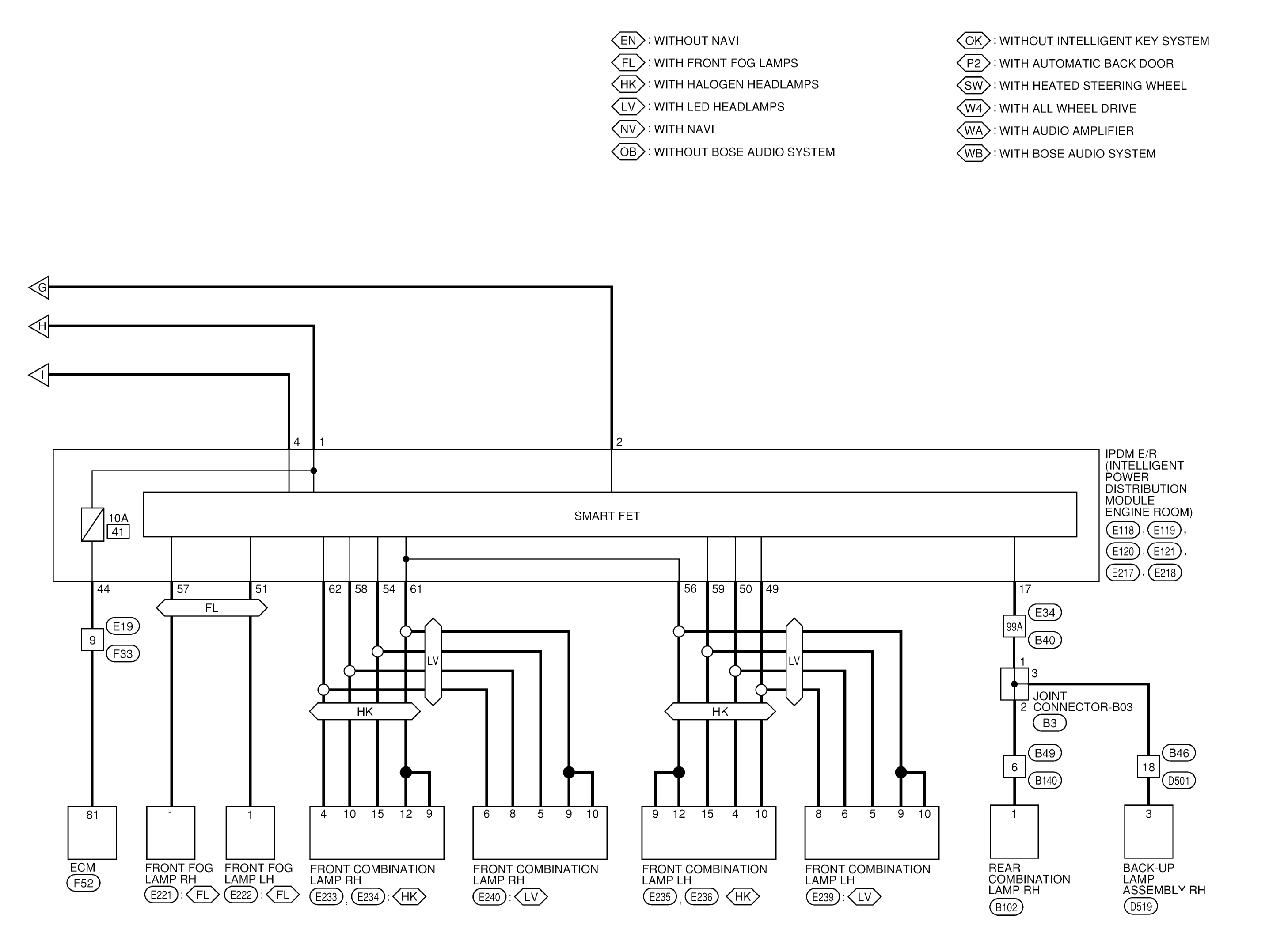

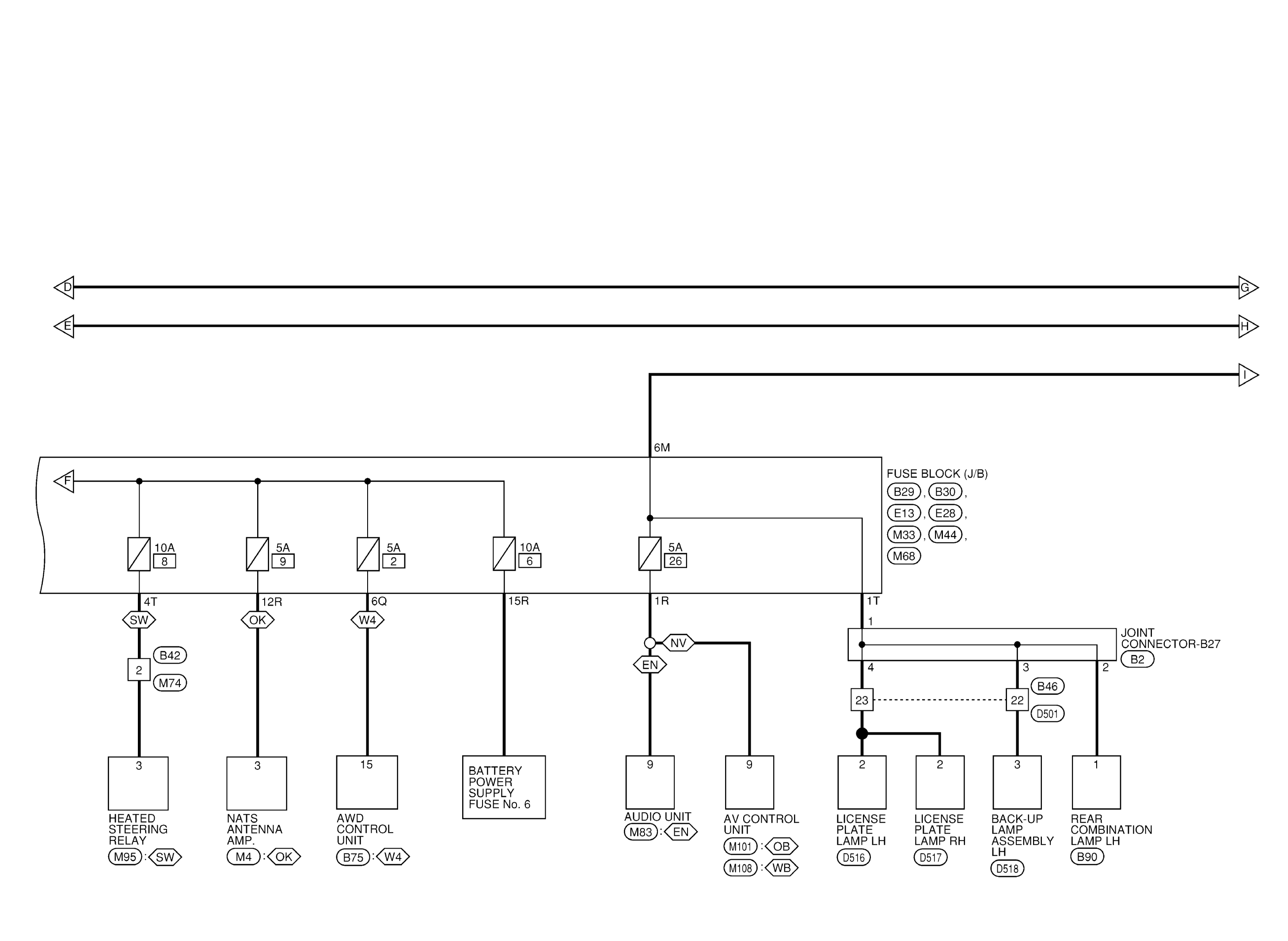

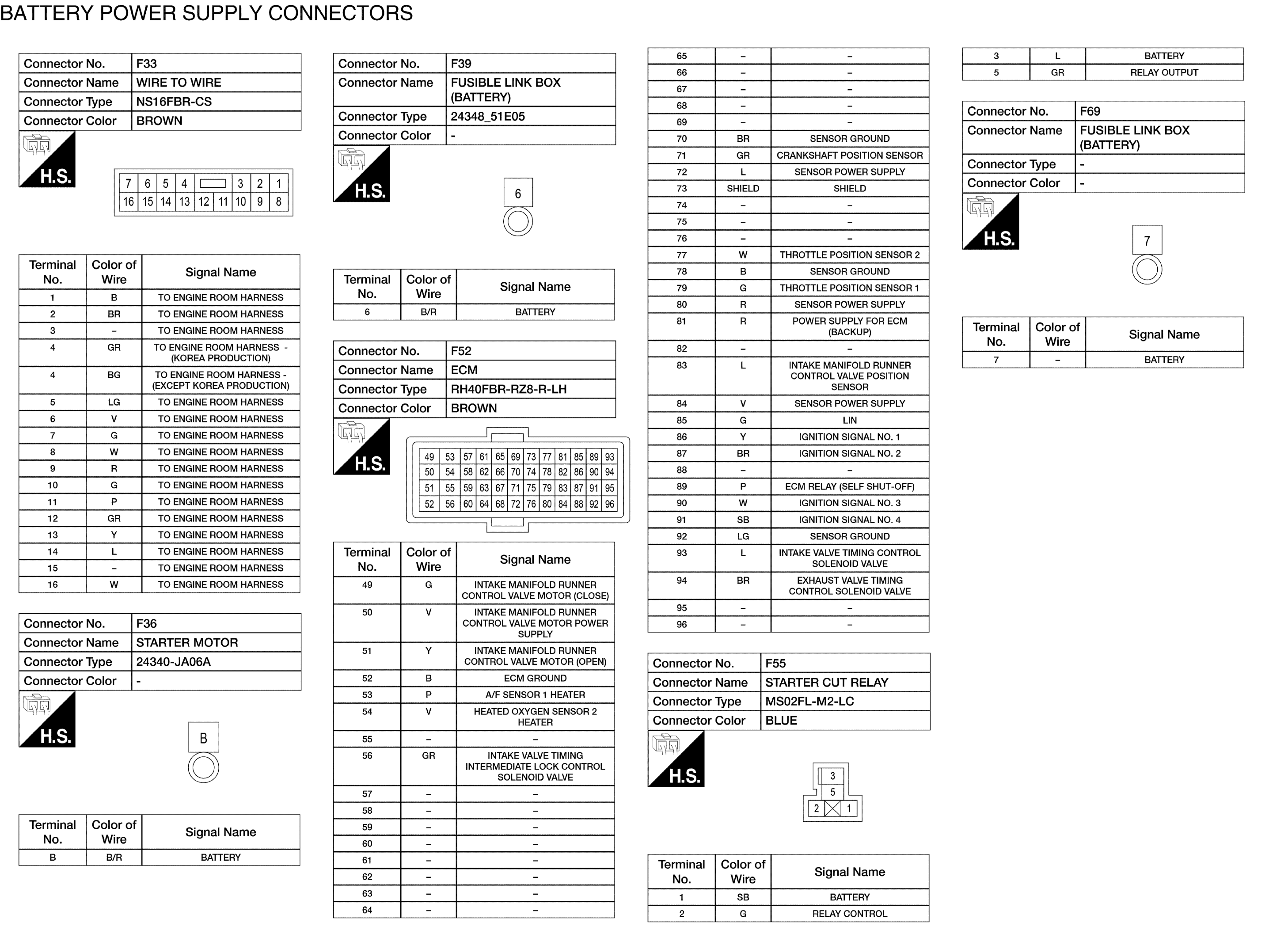

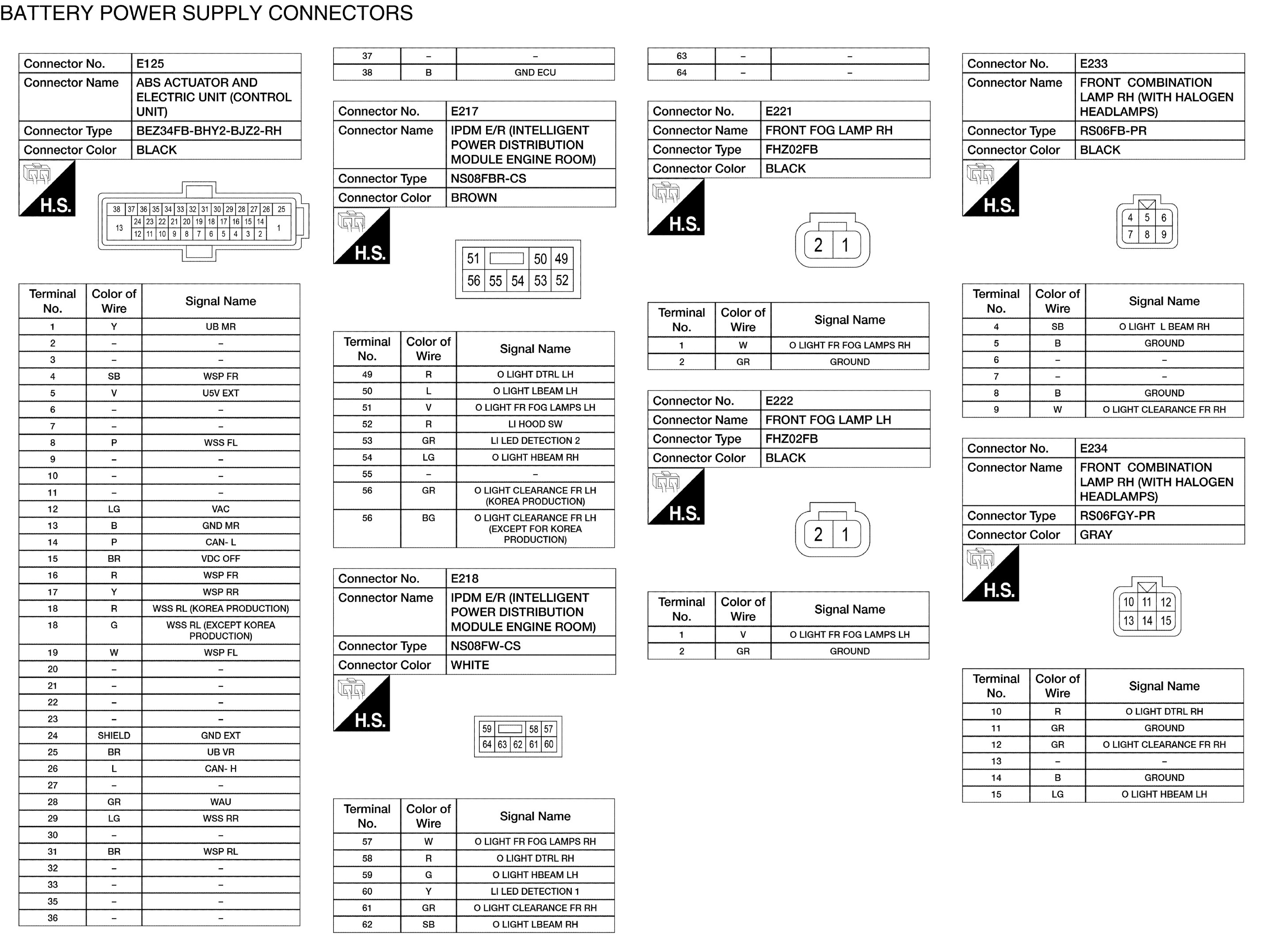

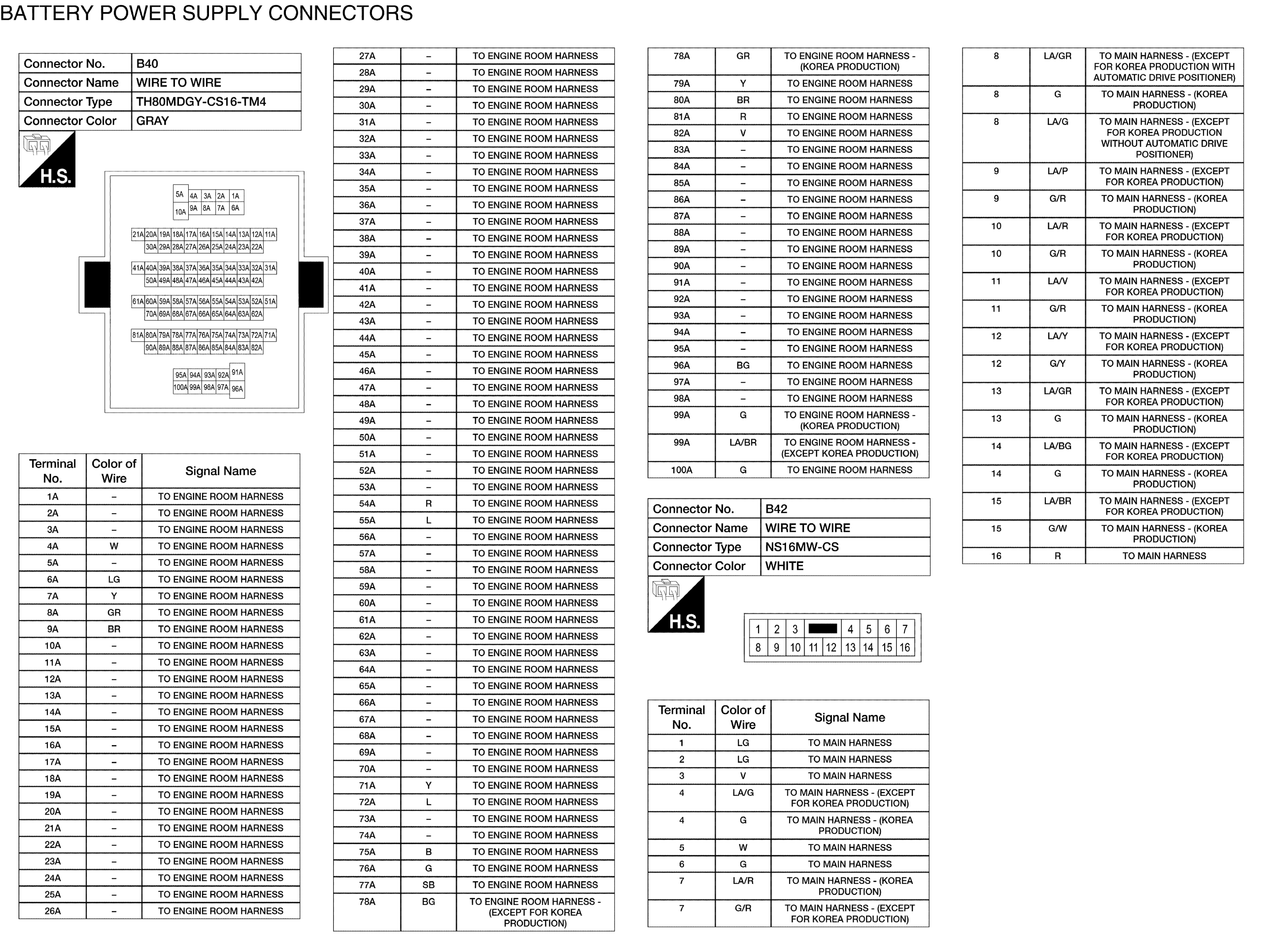

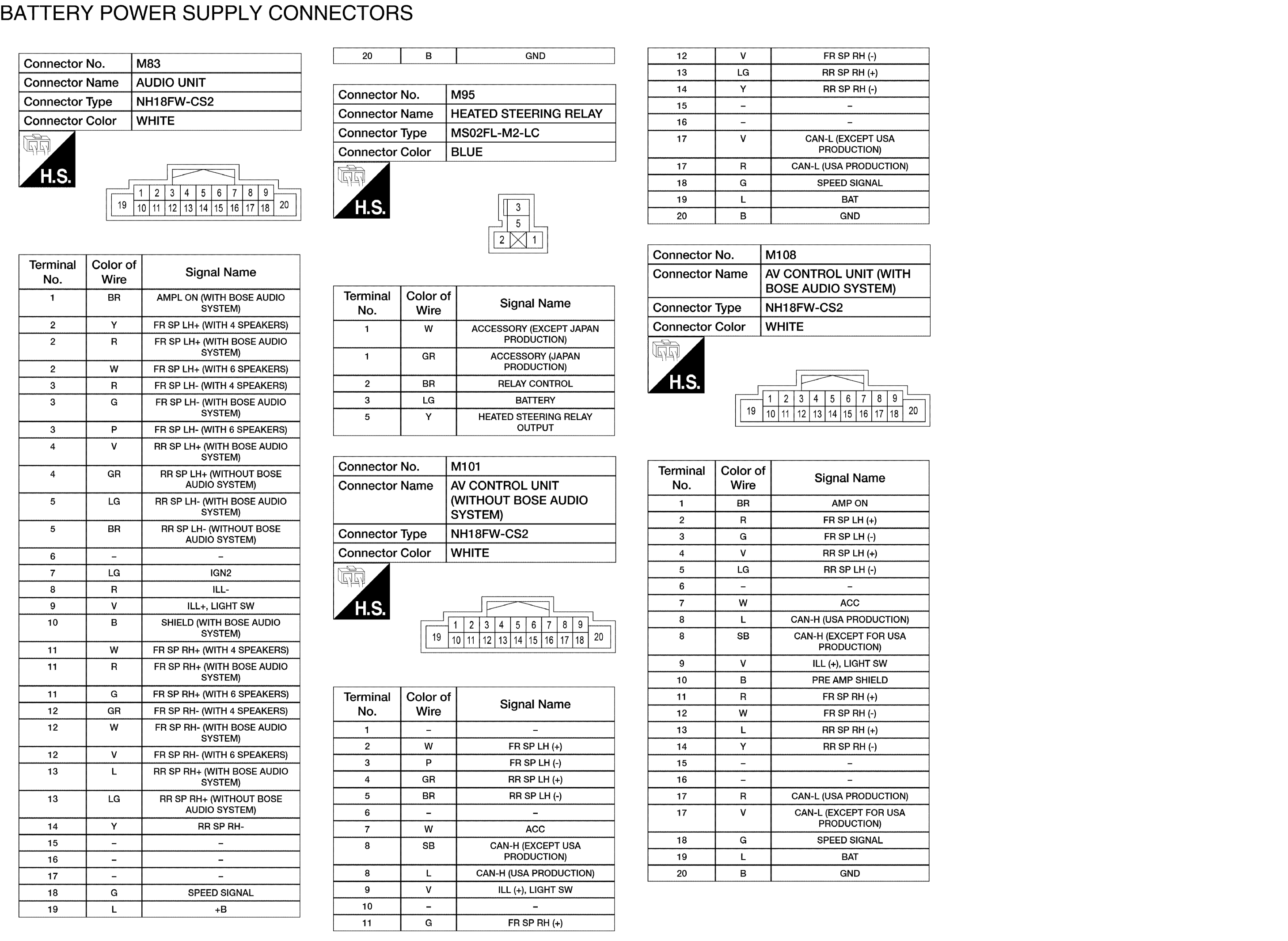

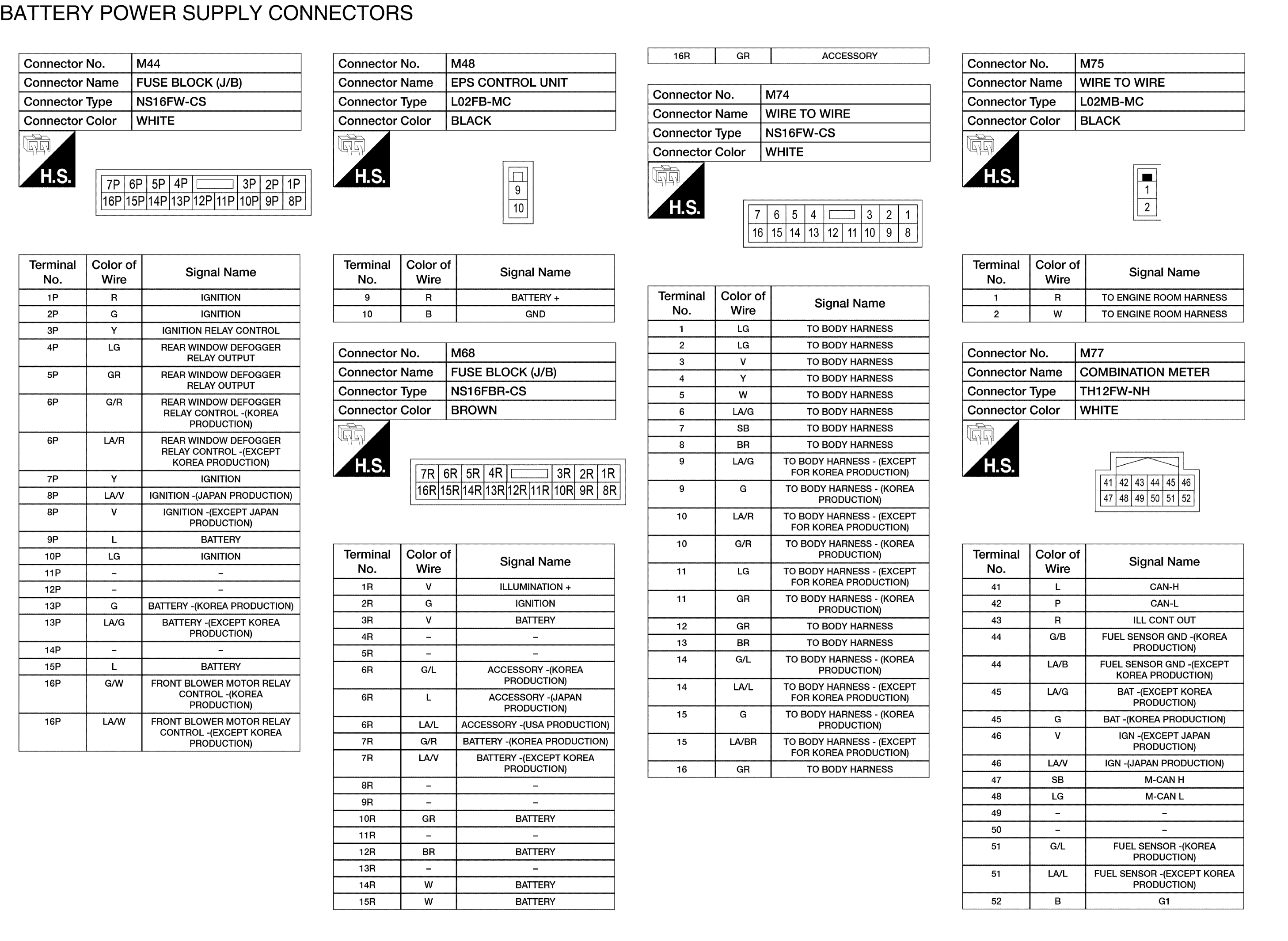

Wiring Diagram - Battery Power Supply -
Wiring Diagram - Battery Power Supply -

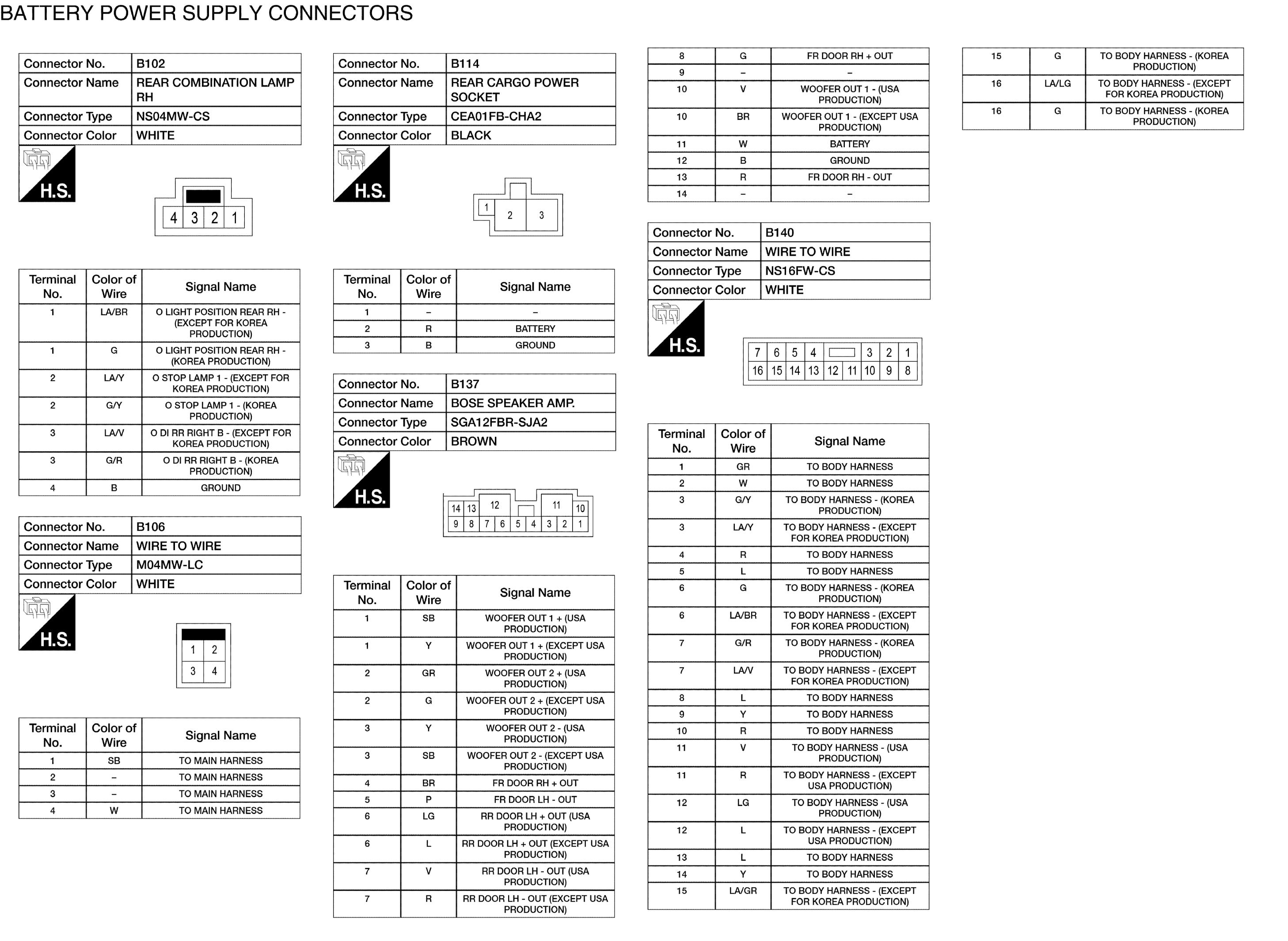

Courtesy of NISSAN NORTH AMERICA, INC.

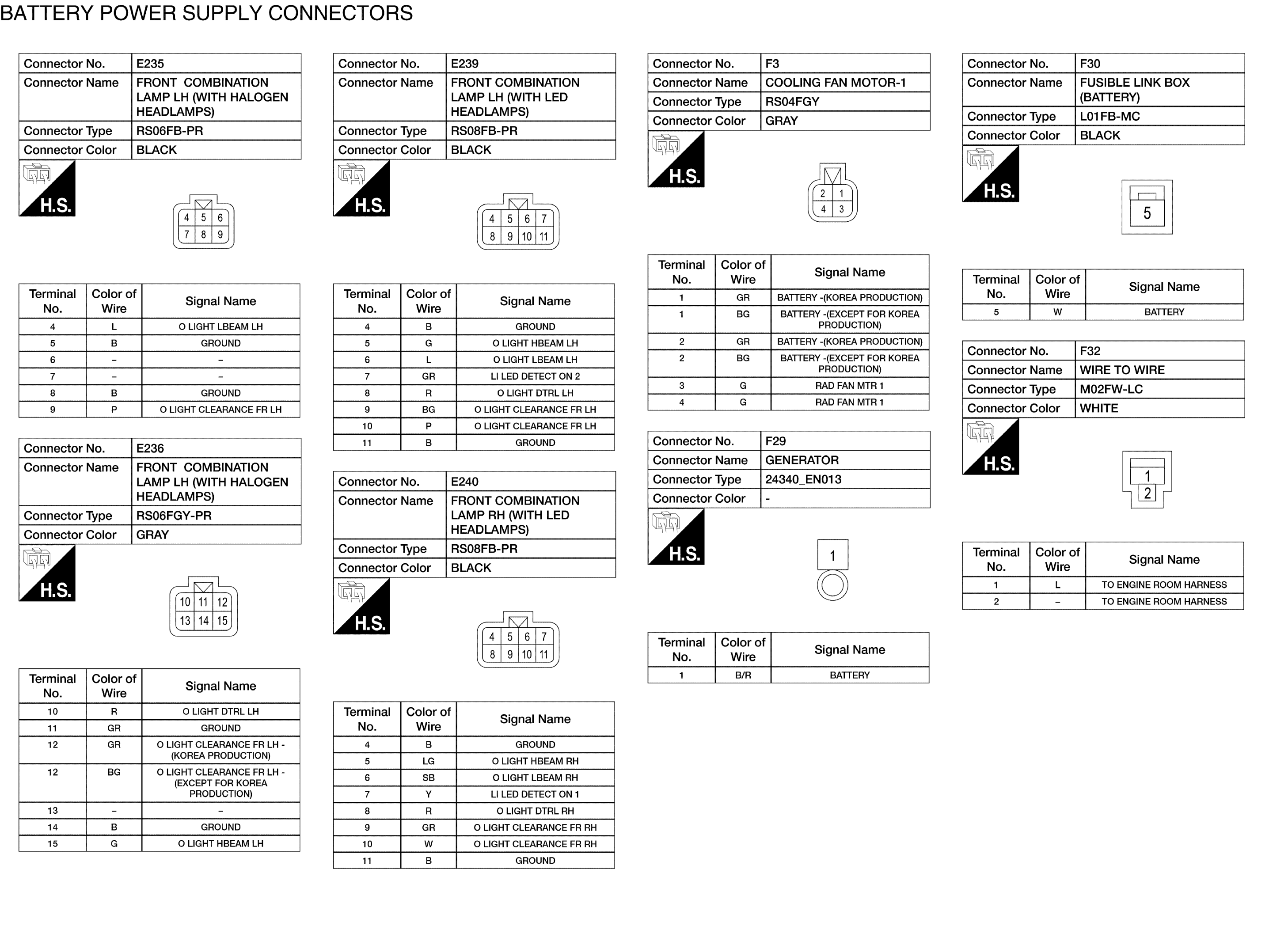

Courtesy of NISSAN NORTH AMERICA, INC.

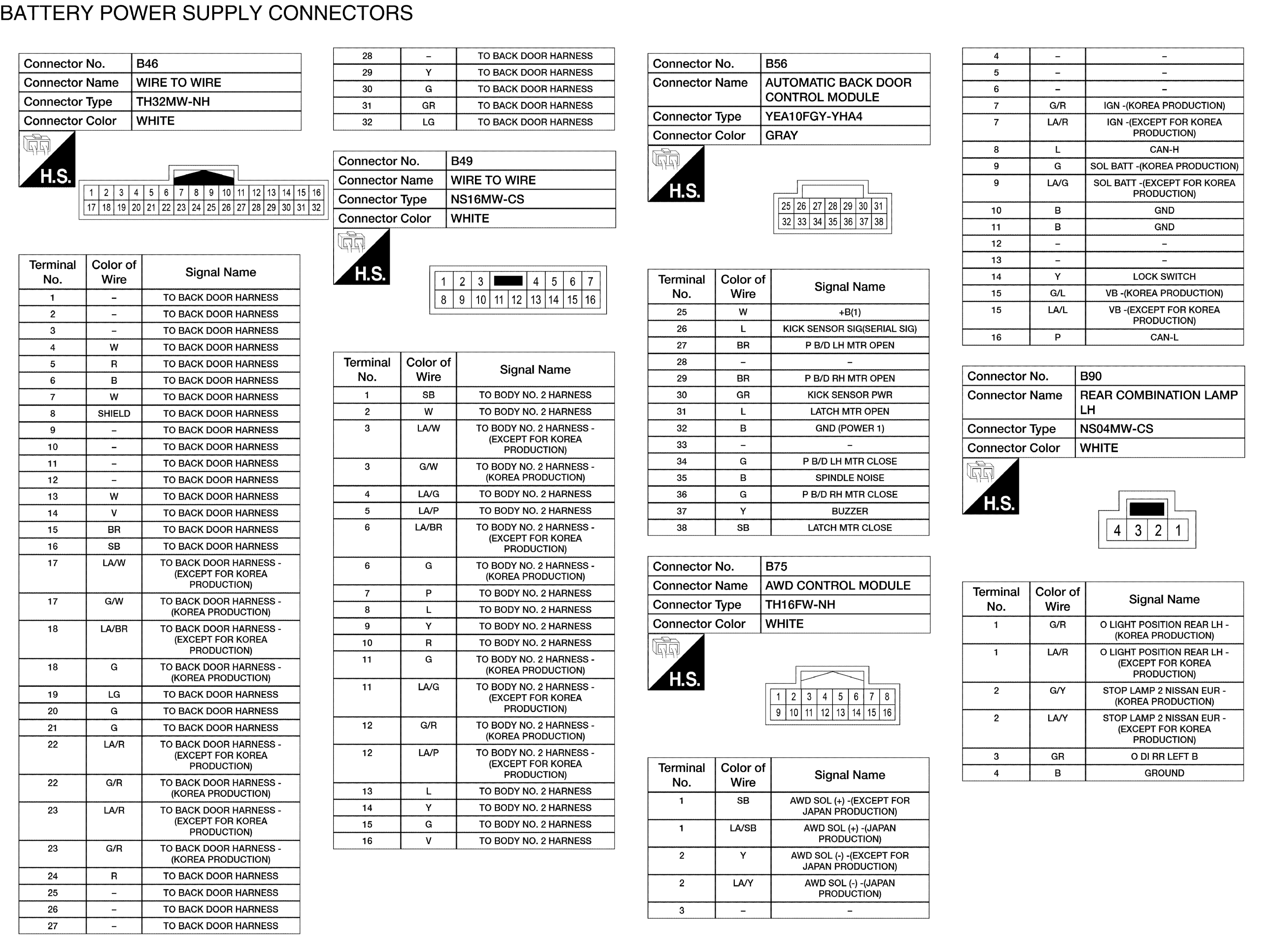

Courtesy of NISSAN NORTH AMERICA, INC.

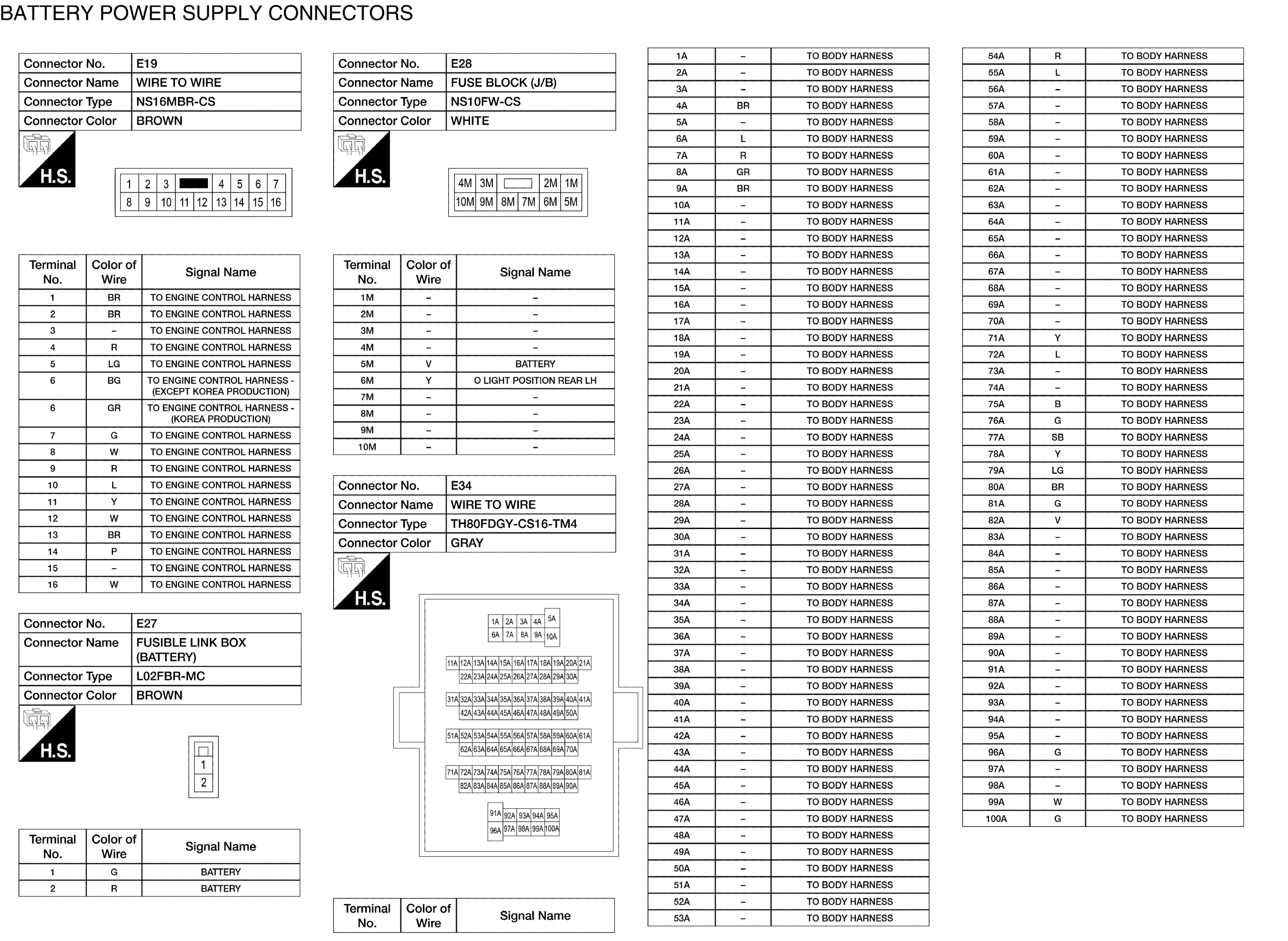

Courtesy of NISSAN NORTH AMERICA, INC.

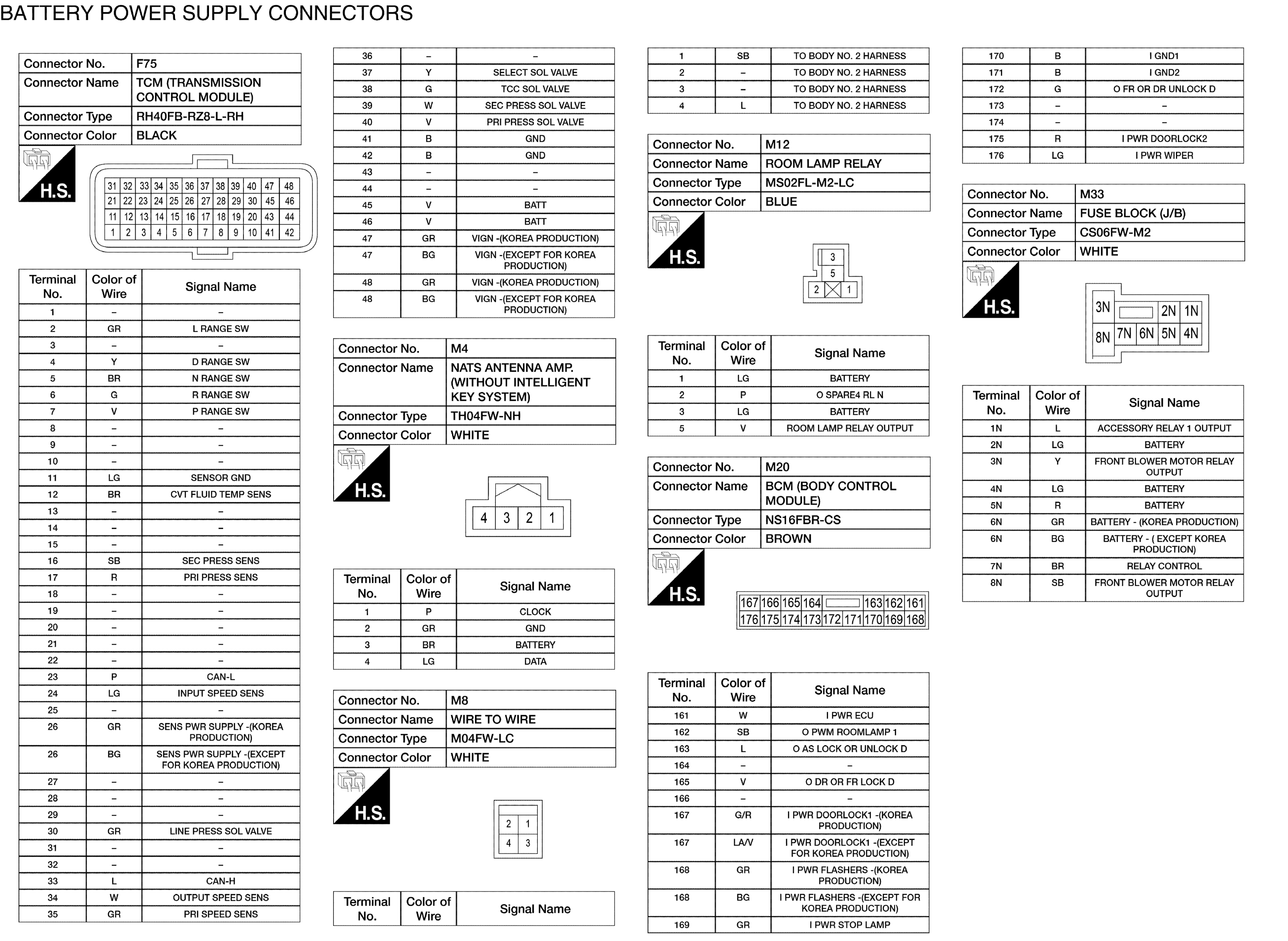

Courtesy of NISSAN NORTH AMERICA, INC.

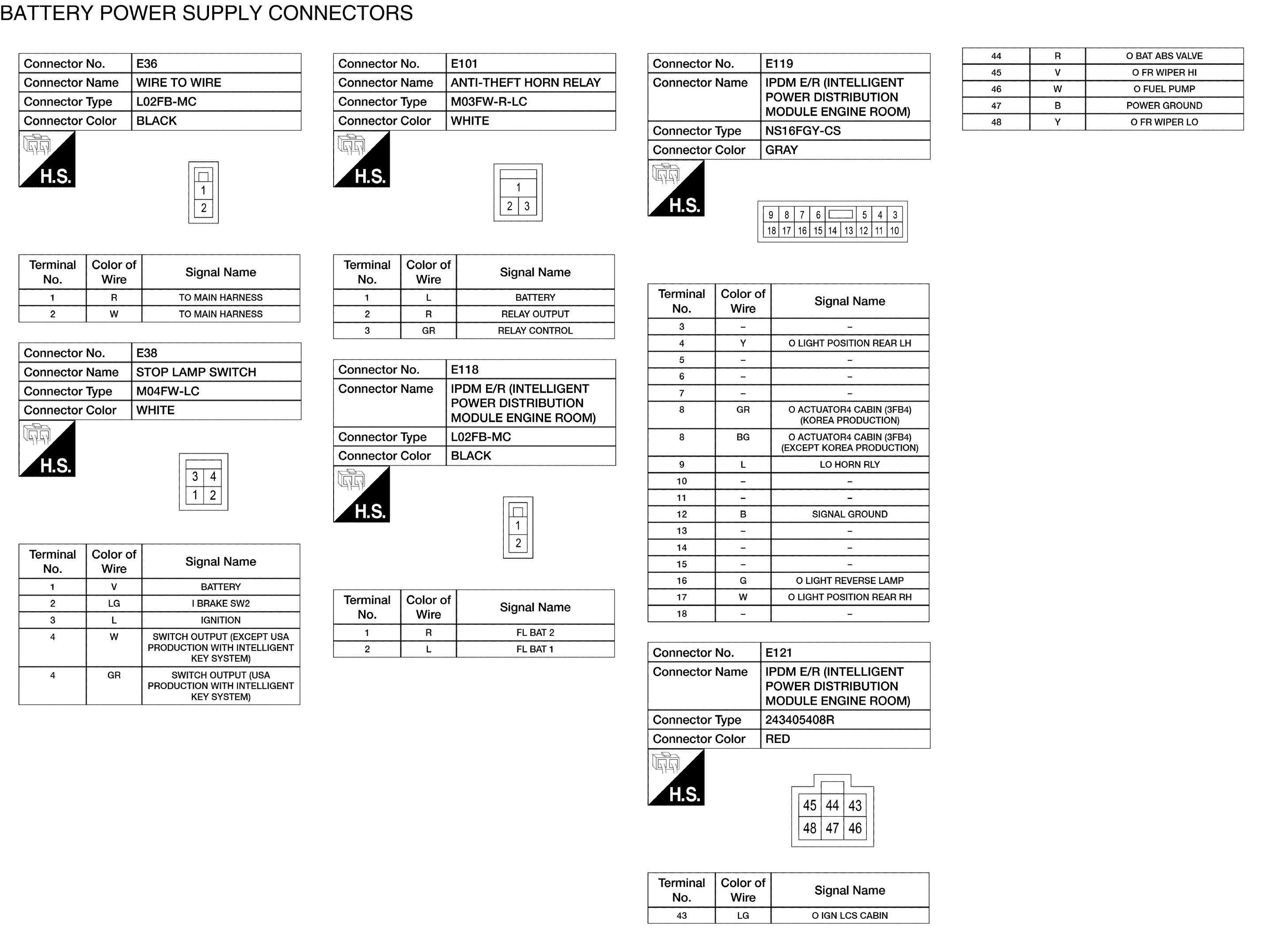

Courtesy of NISSAN NORTH AMERICA, INC.

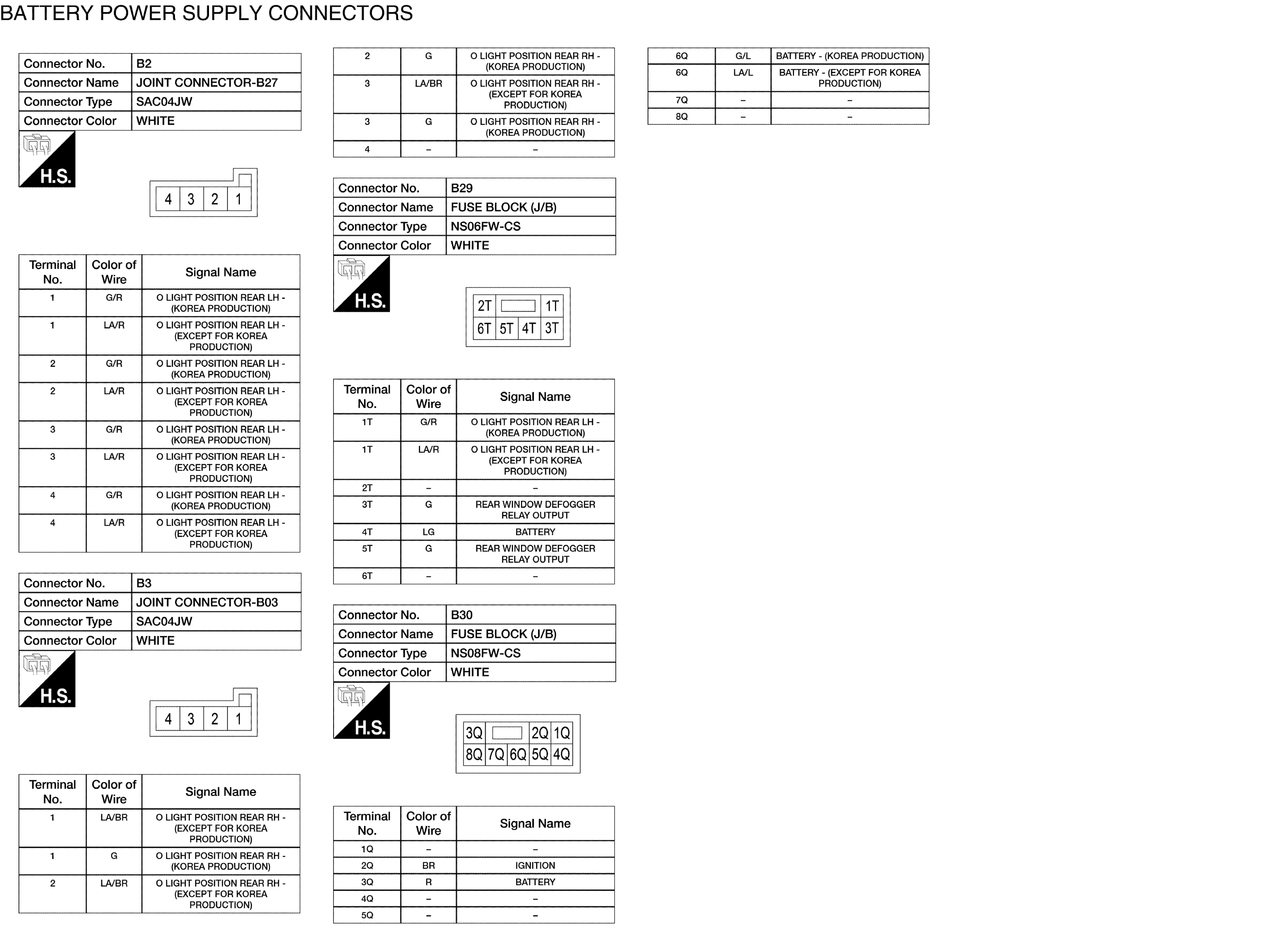

Courtesy of NISSAN NORTH AMERICA, INC.

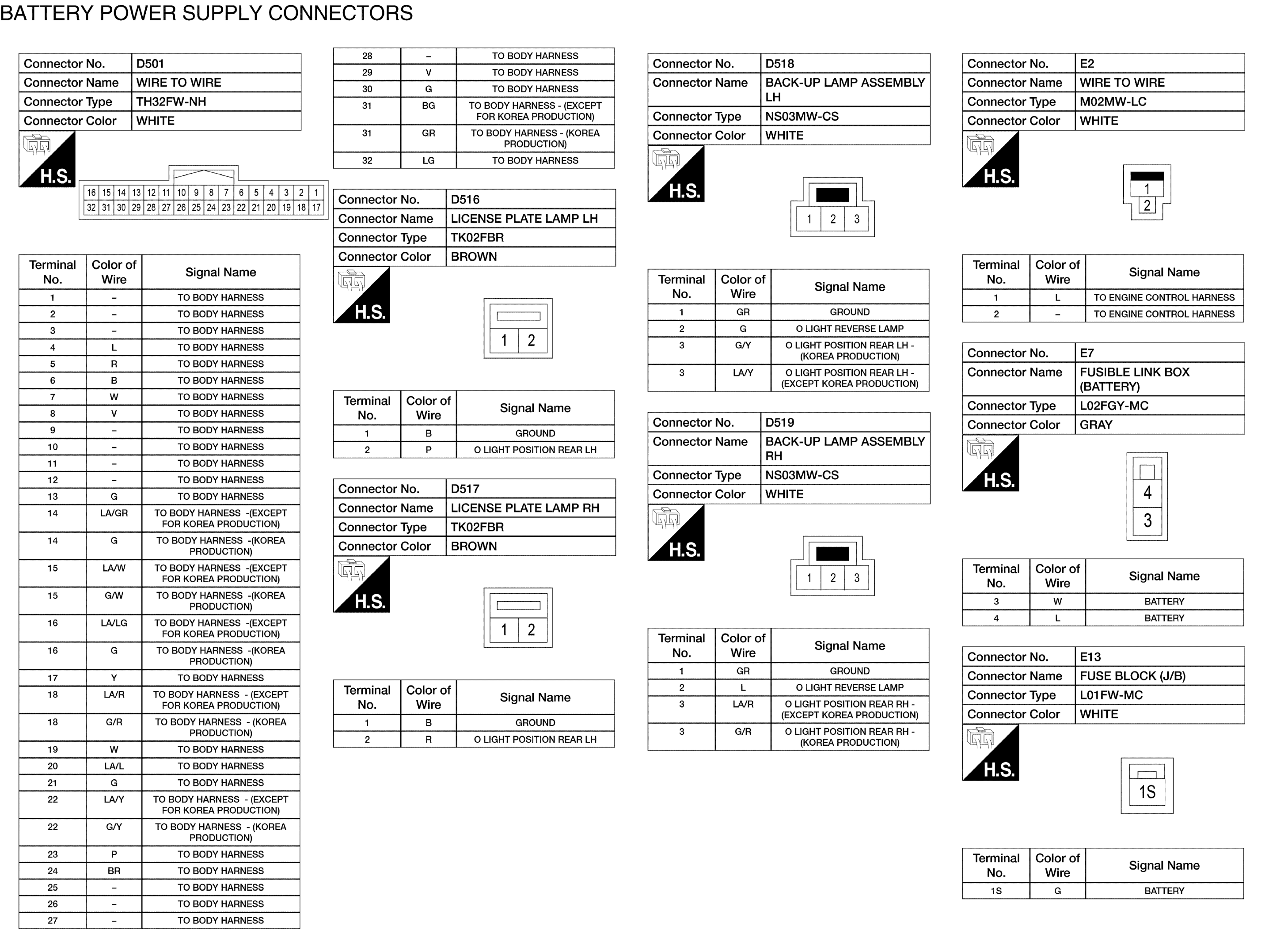

Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
