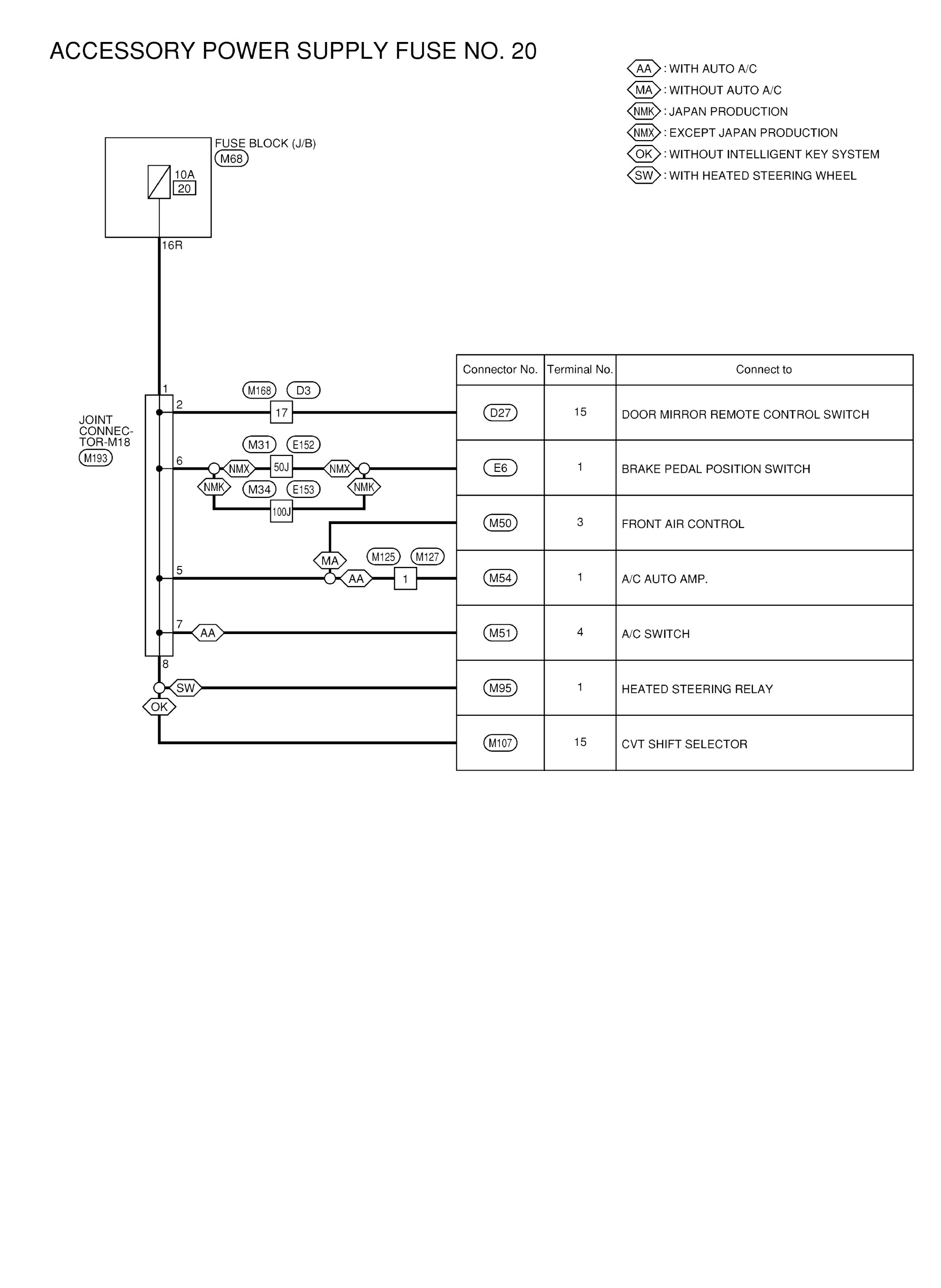

Wiring Diagram - Accessory Power Supply Fuse No. 20 -

GNSAAMIA5558GB-558

Courtesy of NISSAN NORTH AMERICA, INC.
