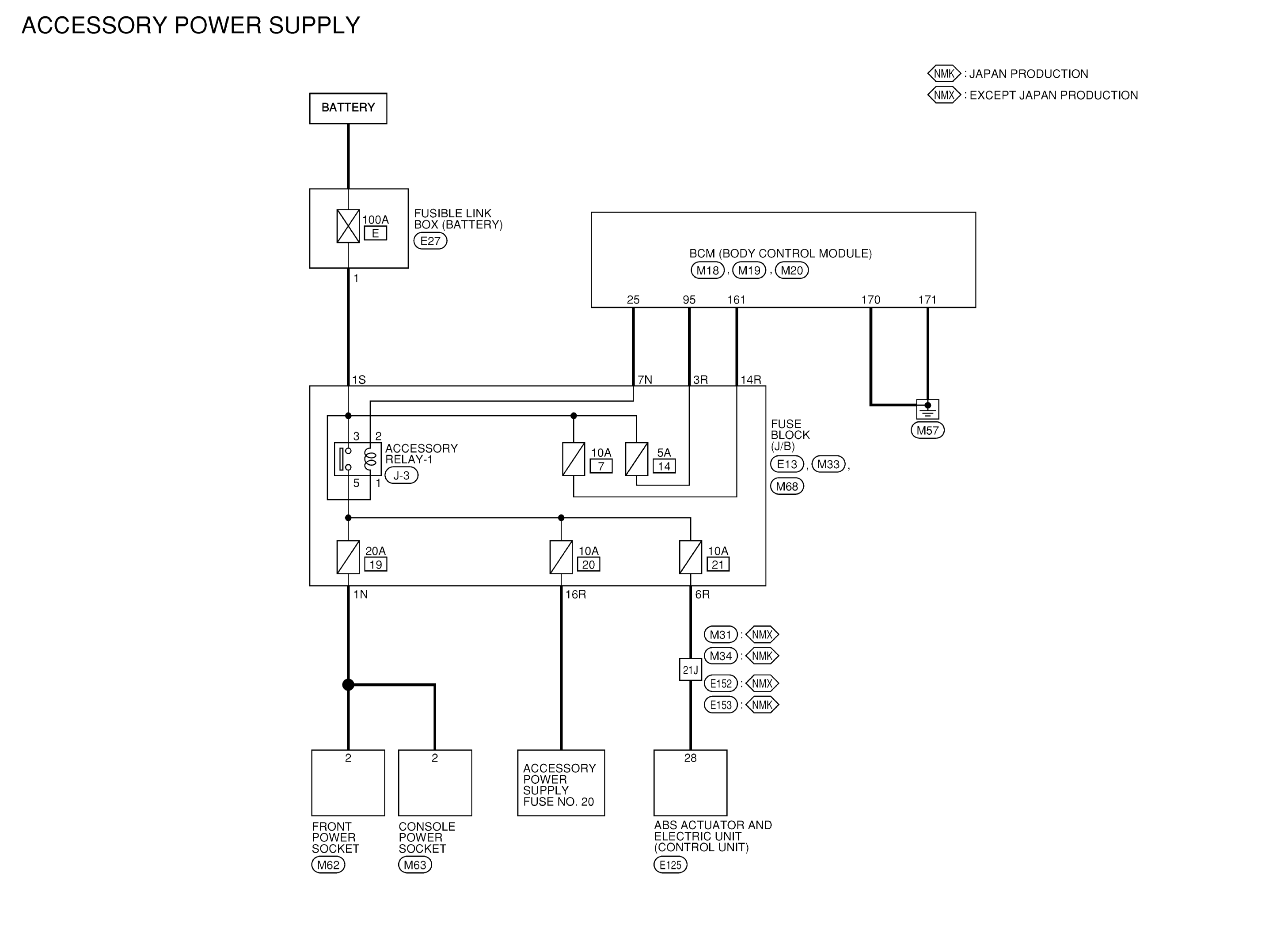

Wiring Diagram - Accessory Power Supply -

GNSAAMWA2470GB-470

Courtesy of NISSAN NORTH AMERICA, INC.

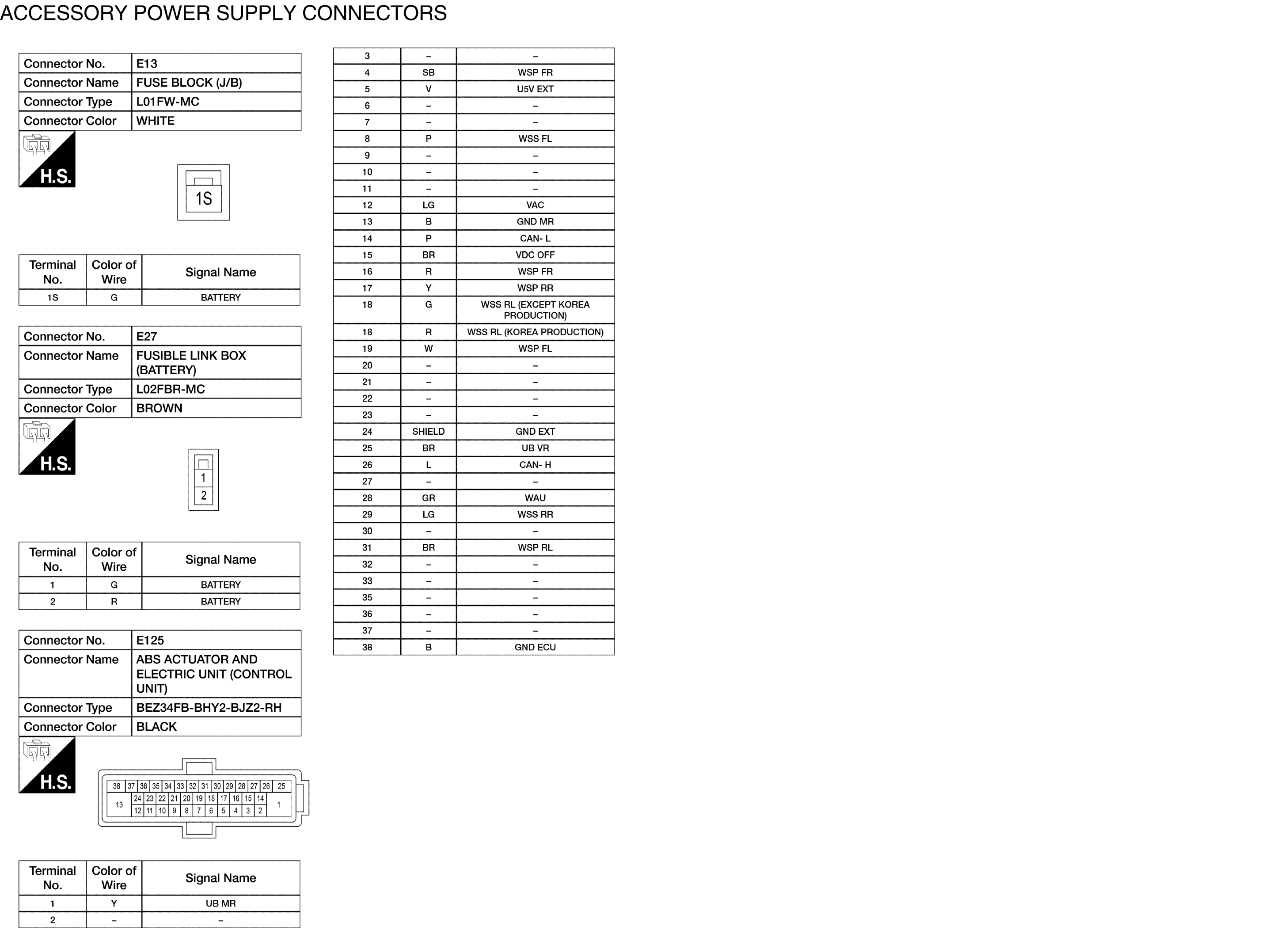

GNSAAMIA5538GB-538

Courtesy of NISSAN NORTH AMERICA, INC.

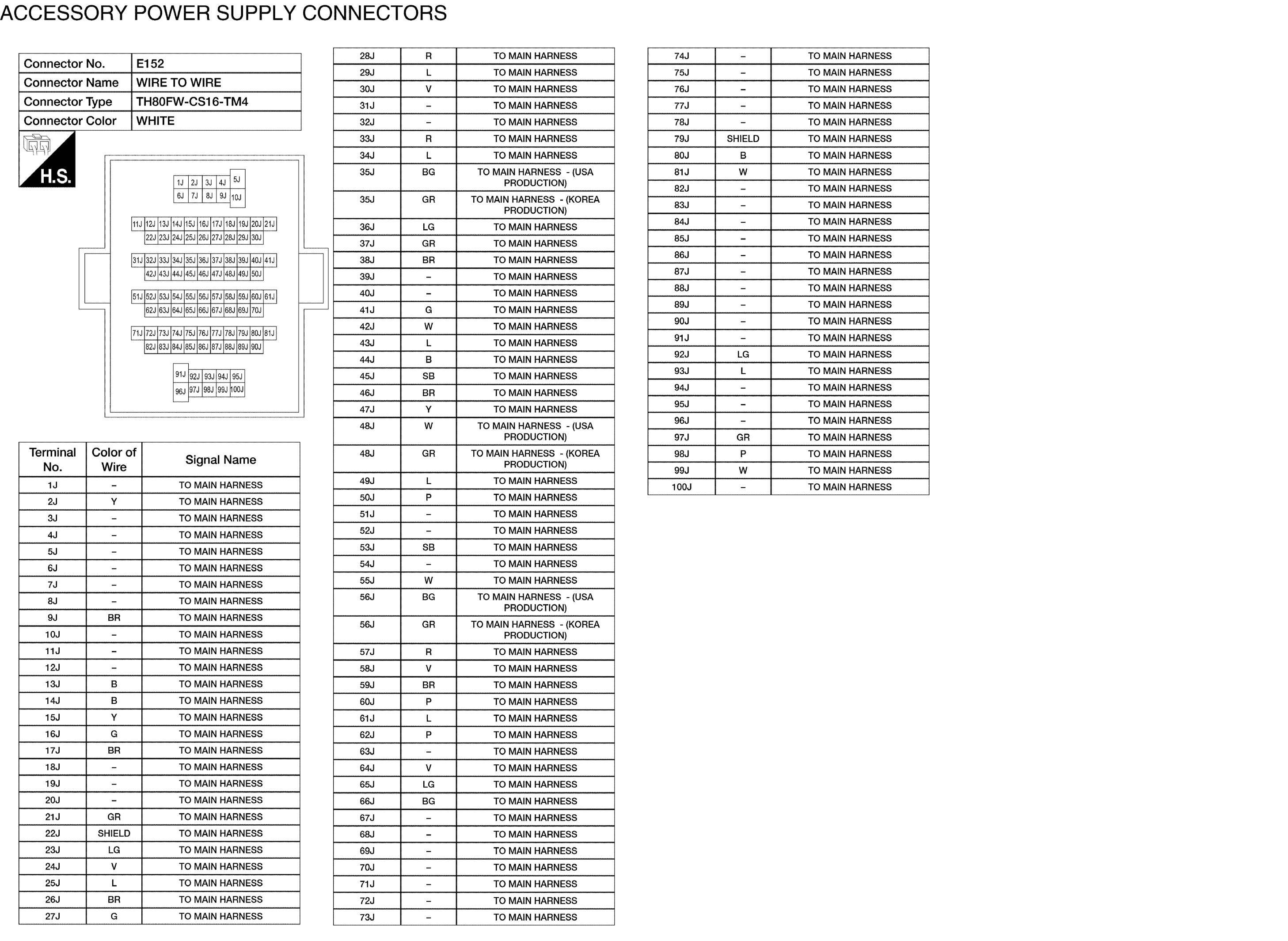

GNSAAMIA5539GB-539

Courtesy of NISSAN NORTH AMERICA, INC.

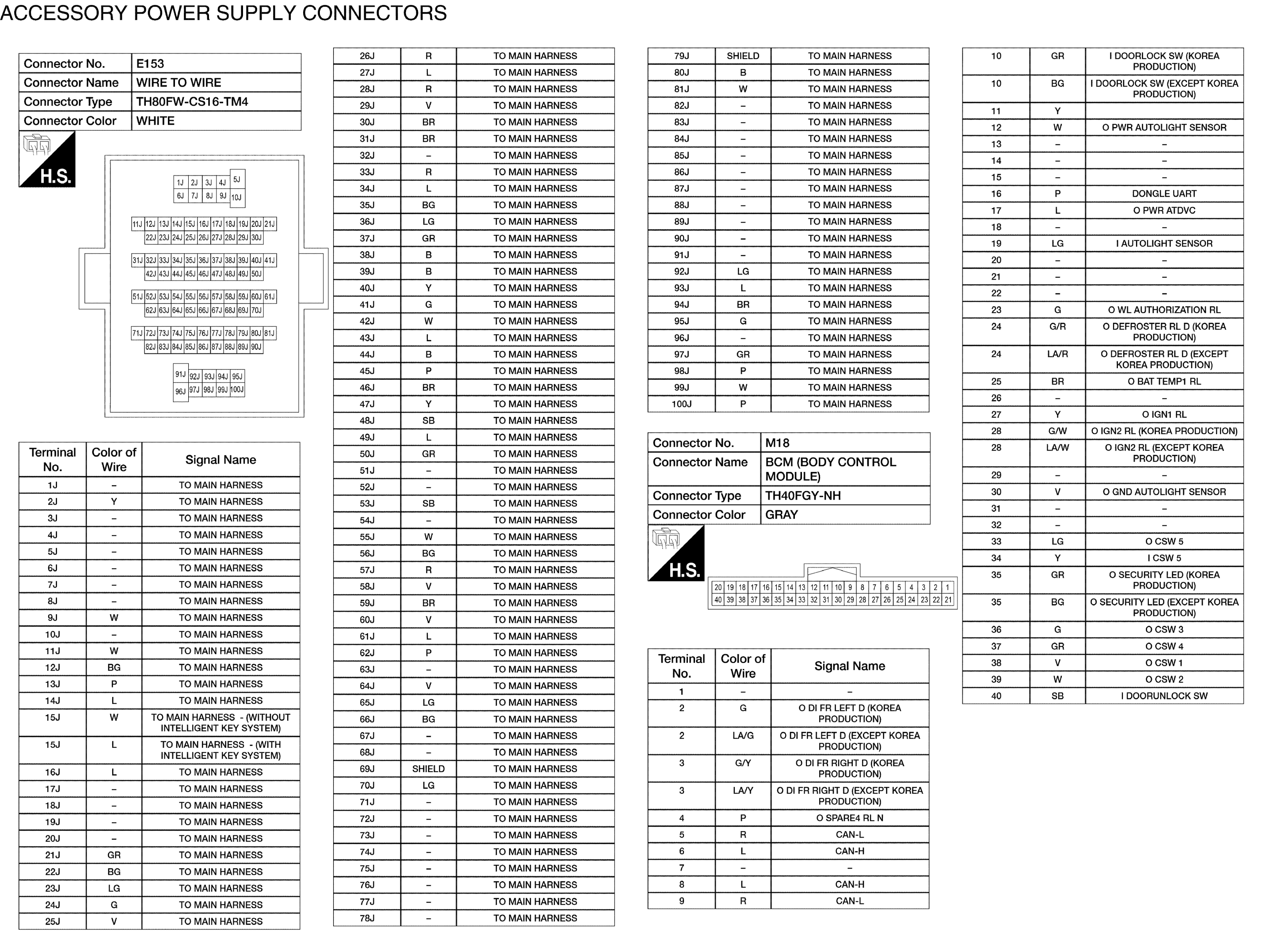

GNSAAMIA5540GB-540

Courtesy of NISSAN NORTH AMERICA, INC.

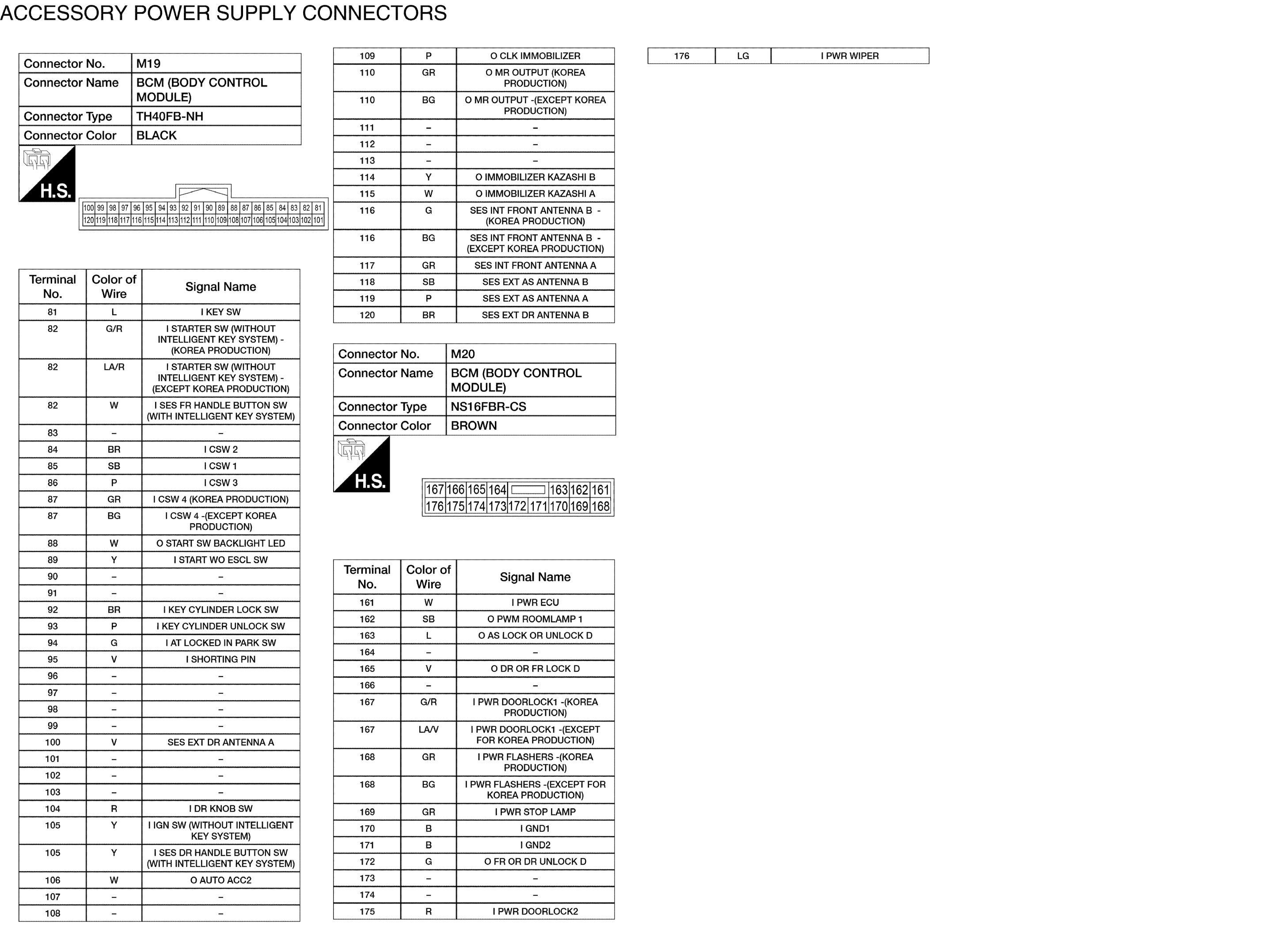

GNSAAMIA5541GB-541

Courtesy of NISSAN NORTH AMERICA, INC.

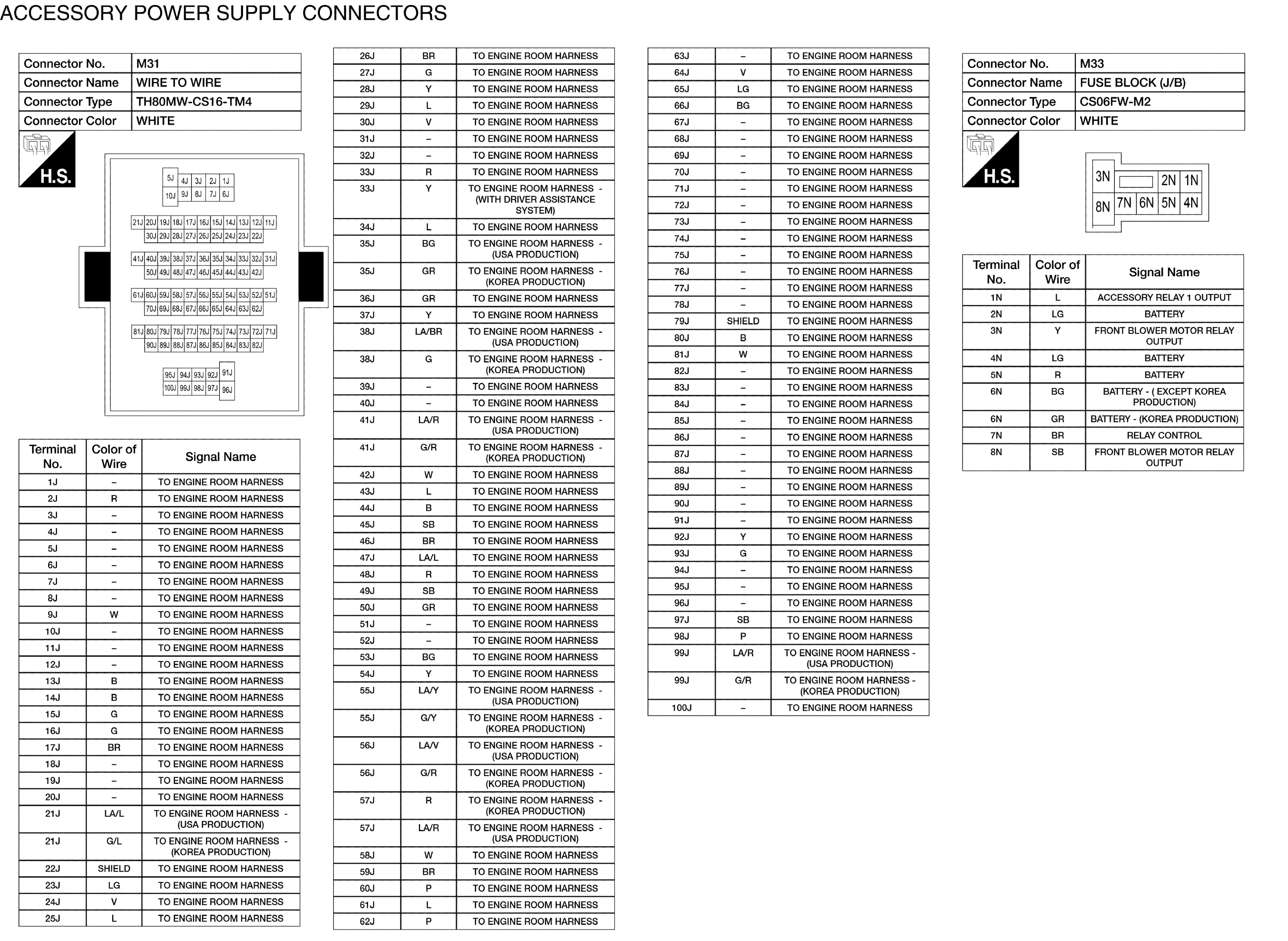

GNSAAMIA5542GB-542

Courtesy of NISSAN NORTH AMERICA, INC.

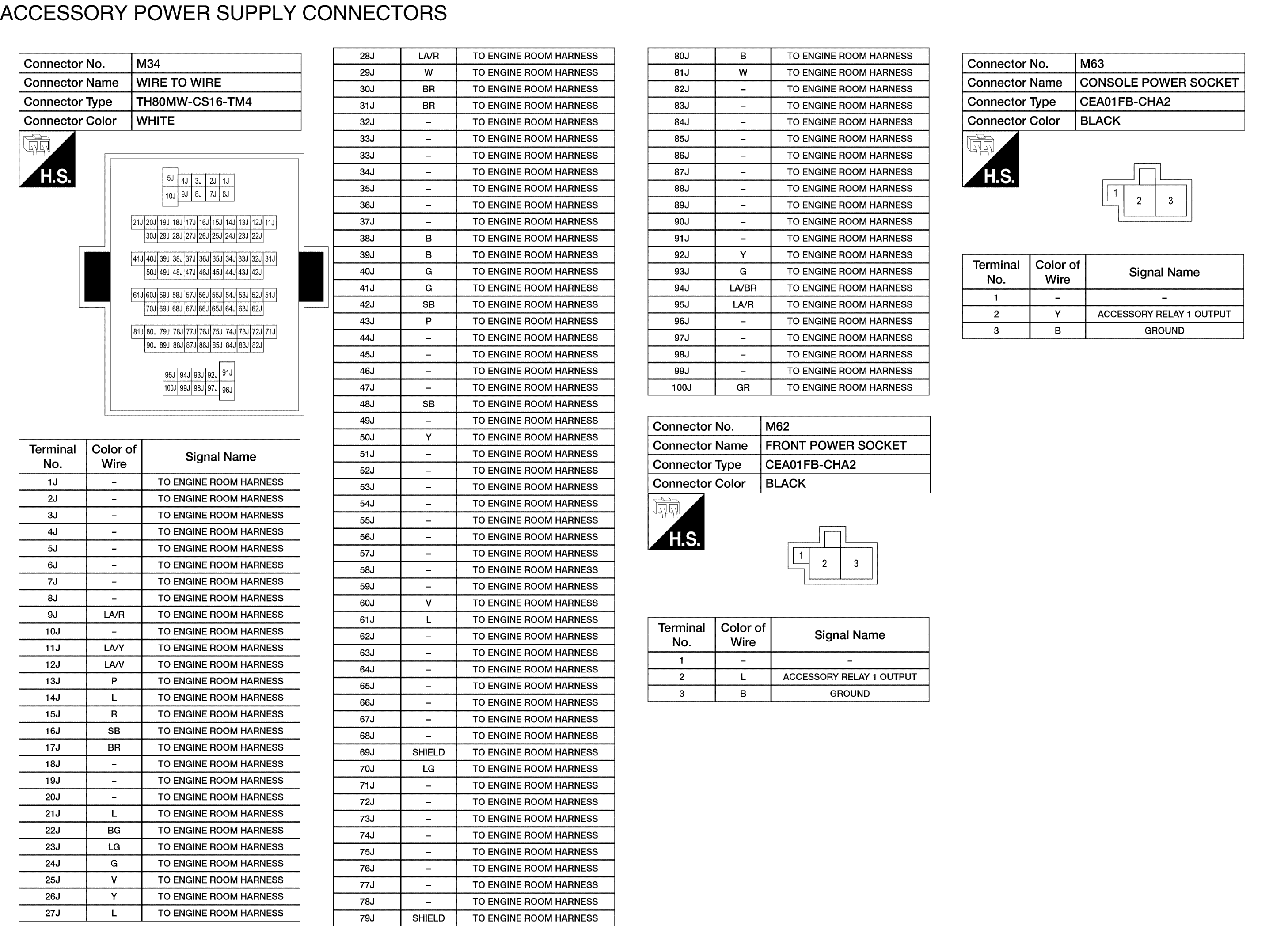

GNSAAMIA5543GB-543

Courtesy of NISSAN NORTH AMERICA, INC.

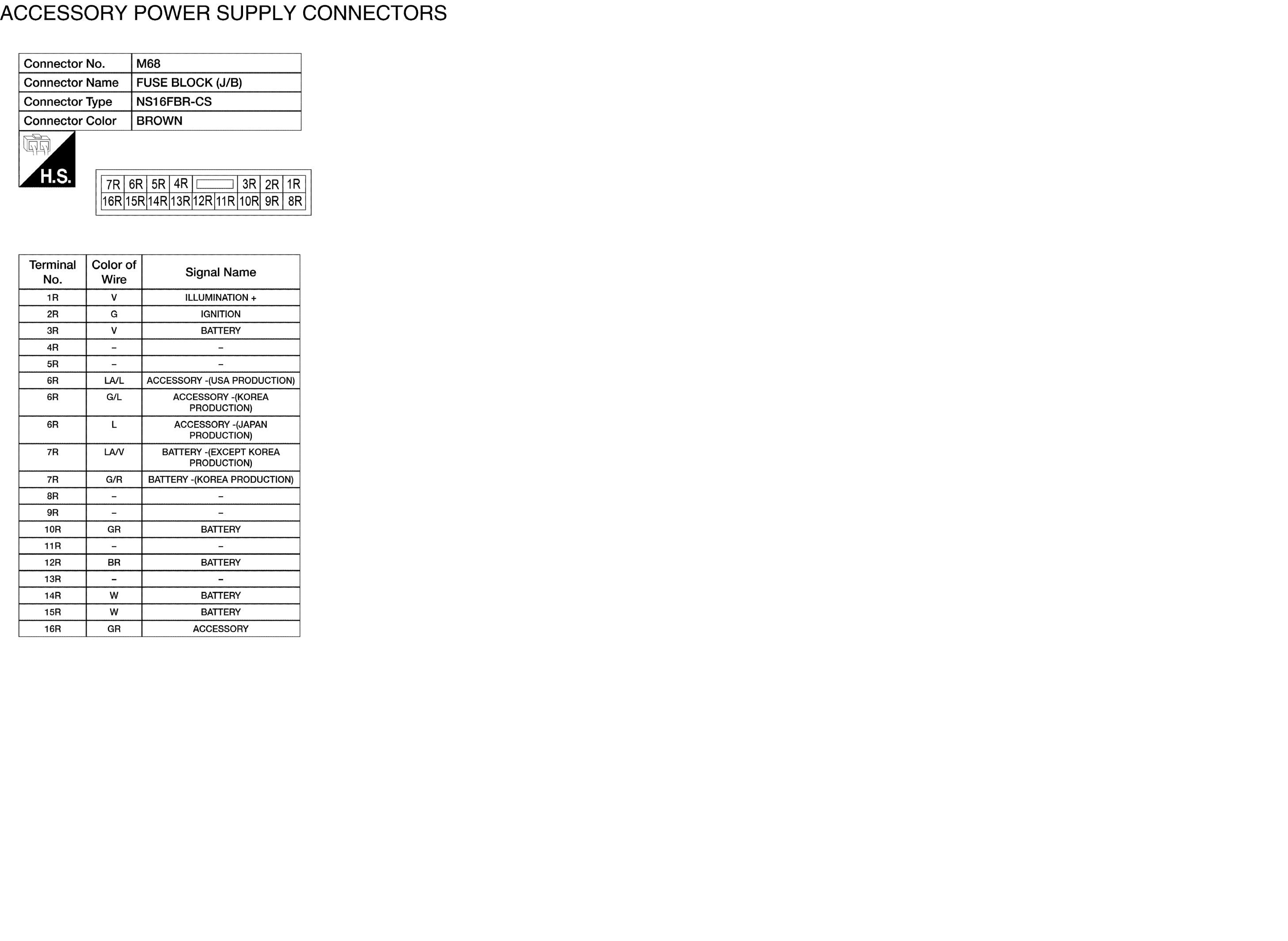

GNSAAMIA5544GB-544

Courtesy of NISSAN NORTH AMERICA, INC.
