Rear Door RH Harness

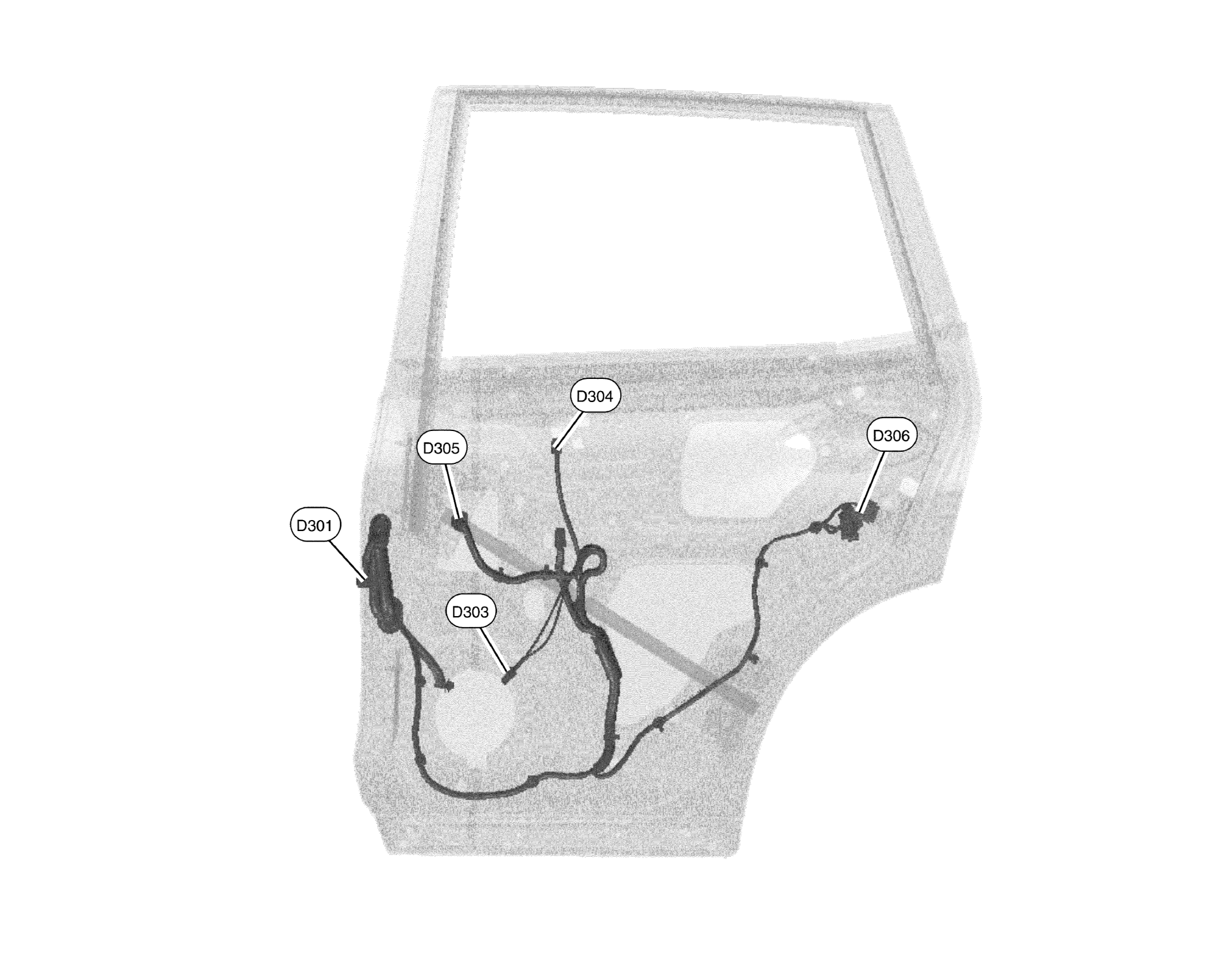

G09157706Courtesy of NISSAN NORTH AMERICA, INC.
D301 W/12 : To B101   D305 G/6 : Rear power window motor RH
D303 W/2 : Rear door speaker RH   D306 GR/6 : Rear door lock actuator RH
D304 W/8 : Rear power window switch RH
