Rear Door LH Harness

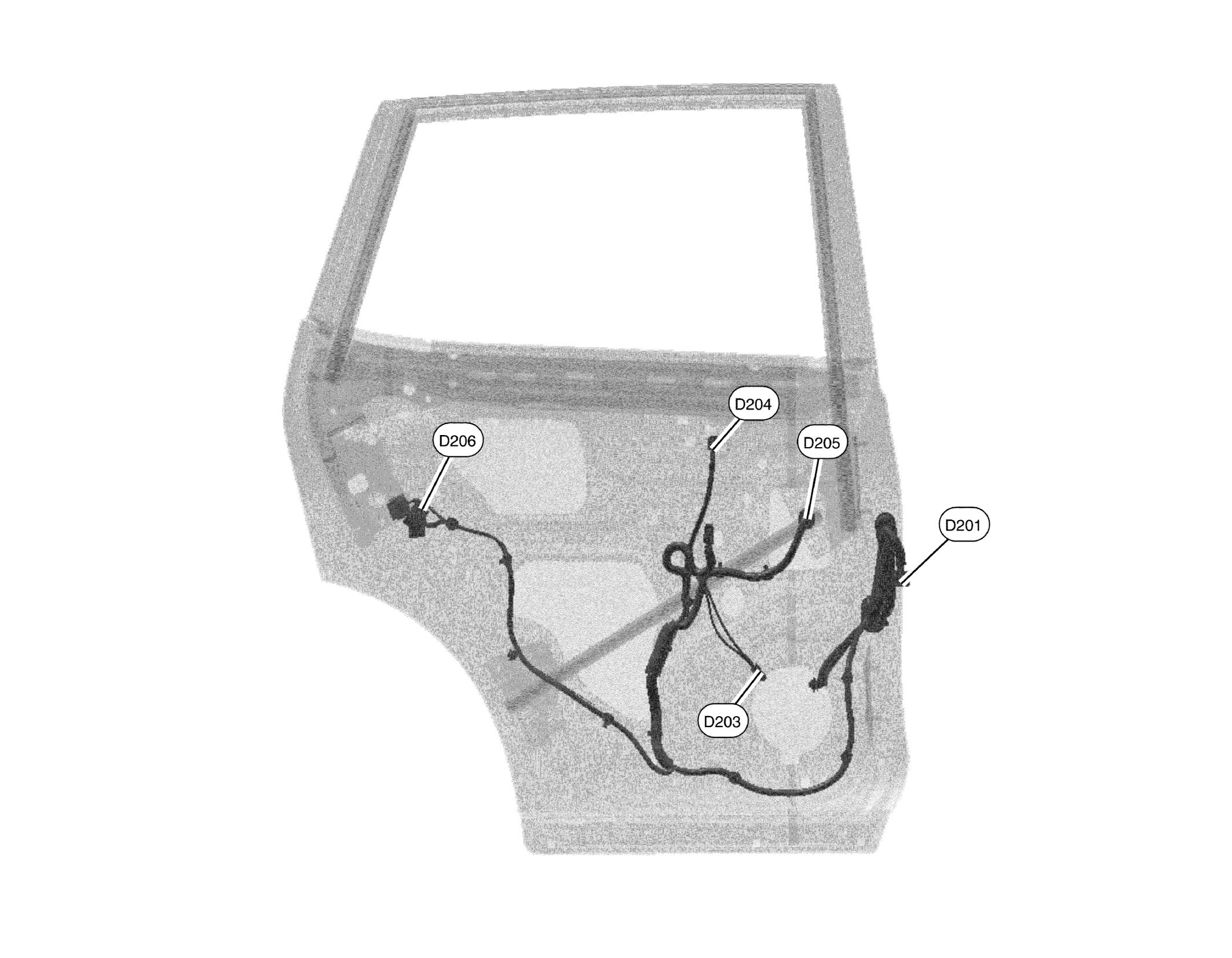

G09157705Courtesy of NISSAN NORTH AMERICA, INC.
D201 W/12 : To B51   D205 G/5 : Rear power window motor LH
D203 W/2 : Rear door speaker LH   D206 GR/6 : Rear door lock actuator LH
D204 W/8 : Rear power window switch LH
