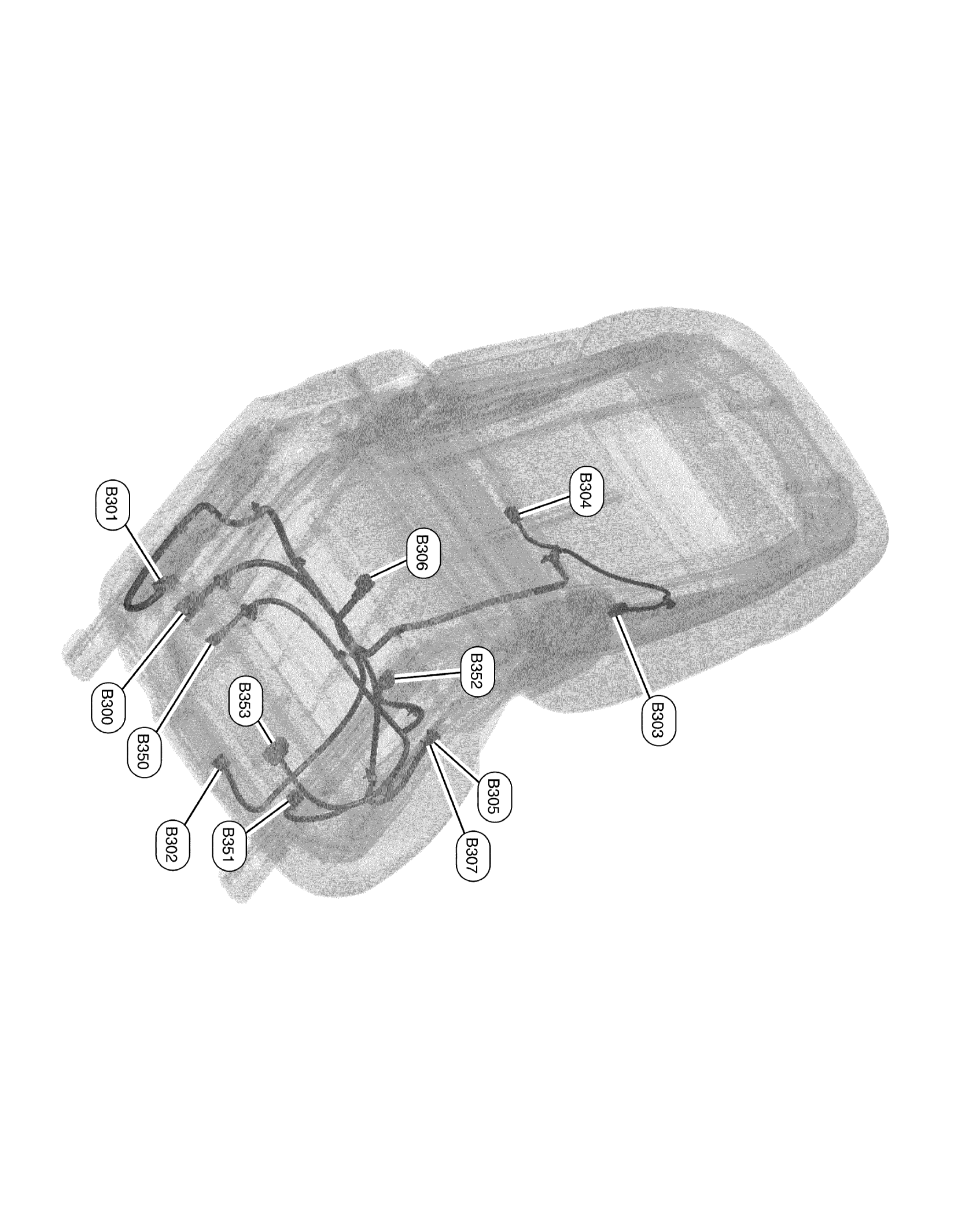

Front Seat RH Harness
| B300 | W/6 | : To B134 | B306 | B/3 | : Front seat heater RH | |
| B301 | W/10 | : Power seat switch RH | B307 | W/4 | : Seat belt buckle switch RH | |
| B302 | B/5 | : Sliding motor RH | B350 | W/4 | : To B127 | |
| B303 | B/5 | : Reclining motor RH | B351 | B/3 | : Occupant classification system sensor FI | |
| B304 | B/2 | : Seat cushion heater RH | B352 | B/3 | : Occupant classification system sensor RI | |
| B305 | W/2 | : Seat belt buckle switch RH | B353 | B/20 | : Occupant classification system control unit |
