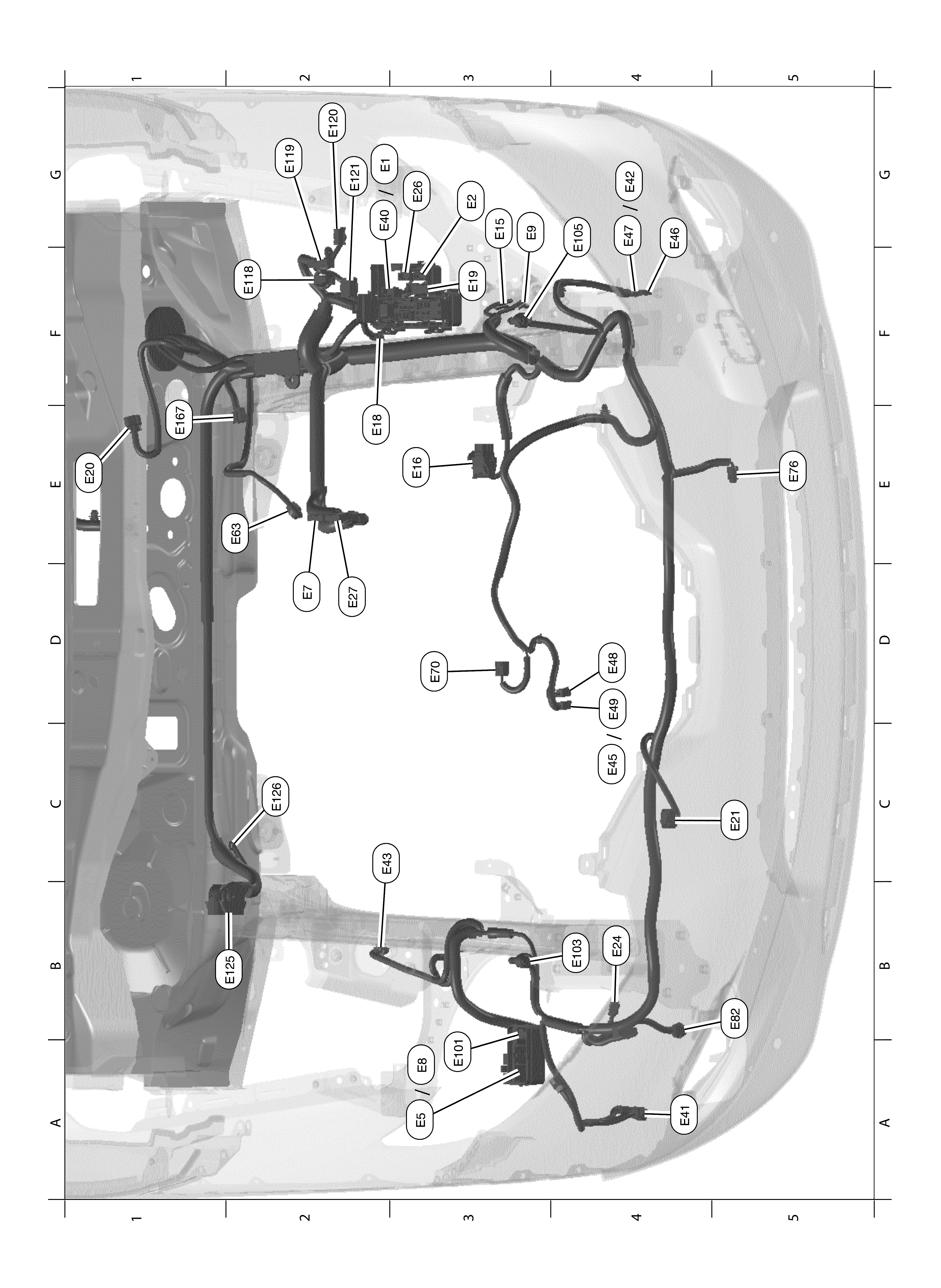

Engine Room Harness

Courtesy of NISSAN NORTH AMERICA, INC.

G2	E1	W/2	: To E202	C4	E45	B/2	: Horn (Low) (USA production)
G3	E2	W/2	: To F32	G4	E46	B/1	: Horn
A3	E5	L/4	: Shift lock relay (USA production)	G4	E47	BR/1	: Horn
A3	E8	B/5	: Shift lock relay (Except for USA production)	D4	E48	B/1	: Horn (Low)
D2	E7	GR/2	: Fusible link box (Battery)	D4	E49	BR/1	: Horn (Low)
G3	E9	-	: Body ground	E2	E63	B/2	: Brake fluid level switch
G3	E15	-	: Body ground	D3	E70	Y/2	: Crash zone sensor
E3	E16	B/32	: ECM	E5	E76	B/2	: Ambient sensor
E2	E18	GR/2	: Front wheel sensor LH	B5	E82	W/2	: Washer fluid level switch
F3	E19	BR/16	: To F33	A3	E101	W/3	: Anti-theft horn relay
E1	E20	GR/5	: Front wiper motor	B4	E103	GR/3	: Front combination lamp RH
C5	E21	B/8	: Distance sensor	G4	E105	GR/3	: Front combination lamp LH
B4	E24	BR/3	: Intelligent Key warning buzzer	F2	E118	B/2	: IPDM E/R (Intelligent power distribution module engine room)
G3	E26	W/24	: To E209	G2	E119	GR/16	: IPDM E/R (Intelligent power distribution module engine room)
D2	E27	BR/2	: Fusible link box (Battery)	G2	E120	GR/24	: IPDM E/R (Intelligent power distribution module engine room)
G2	E40	W/4	: To E201	G2	E121	R/6	: IPDM E/R (Intelligent power distribution module engine room)
A4	E41	B/2	: Front and rear washer motor	B2	E125	B/37	: ABS actuator and electric unit (Control unit)
G4	E42	B/2	: Horn (USA production)	C2	E126	-	: Body ground
C2	E43	GR/2	: Front wheel sensor RH	E1	E167	B/3	: Vacuum sensor
