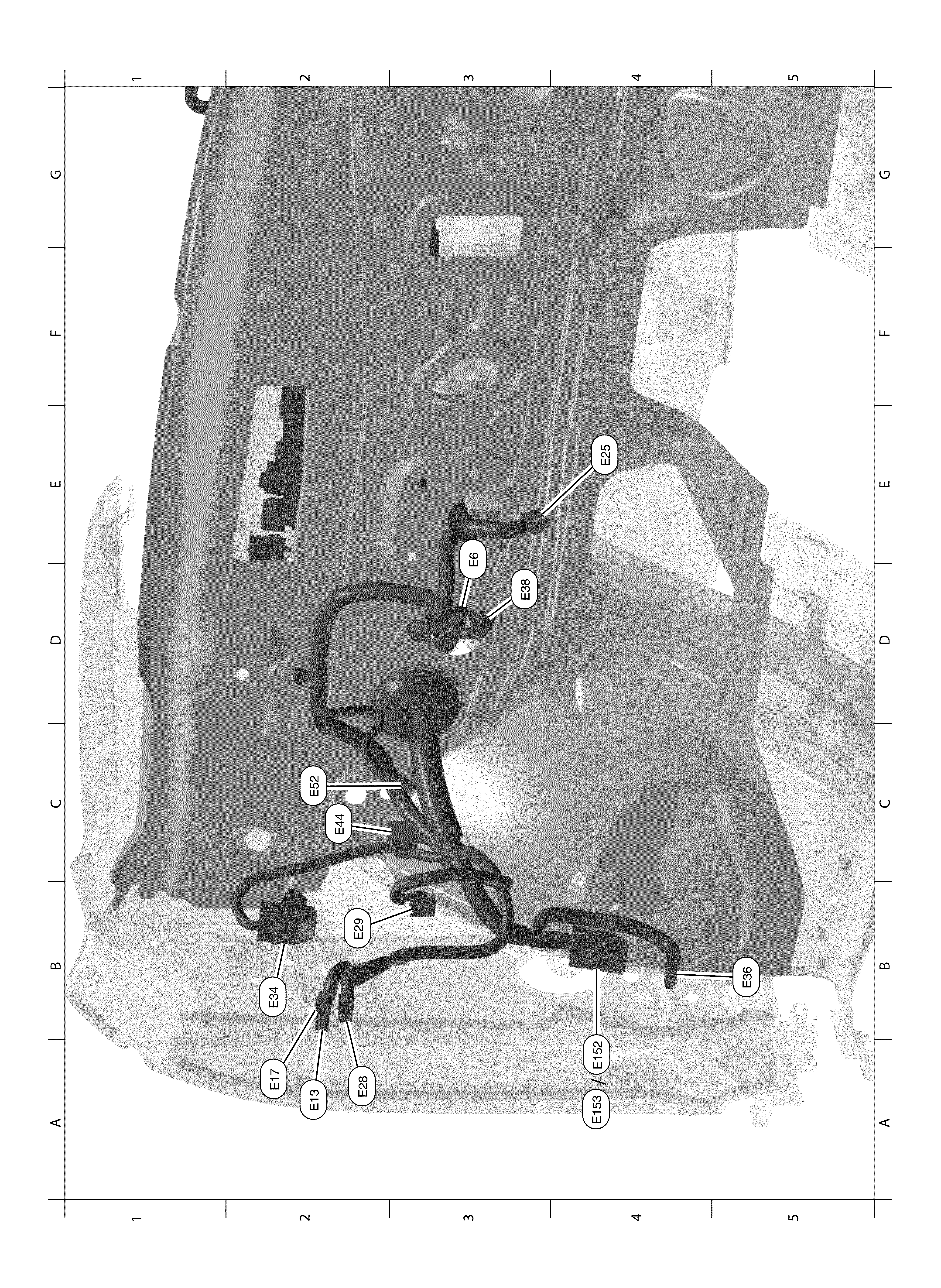

Engine Room Harness (Passenger Compartment)
| E3 | E6 | BR/2 | : Brake pedal position switch | B5 | E36 | B/2 | : To M75 | |
| A2 | E13 | W/1 | : Fuse block (J/B) | D3 | E38 | W/4 | : Stop lamp switch | |
| A2 | E17 | W/1 | : Fuse block (J/B) | C2 | E44 | W/28 | : Joint connector-E01 | |
| E4 | E25 | B/6 | : Accelerator pedal position sensor | C2 | E52 | B/1 | : Parking brake switch | |
| A2 | E28 | W/10 | : Fuse block (J/B) | A4 | E152 | SMJ | : To M31 | |
| B2 | E29 | B/24 | : BCM (Body control module) | A4 | E153 | SMJ | : To M34 | |
| B2 | E34 | SMJ | : To B40 |
