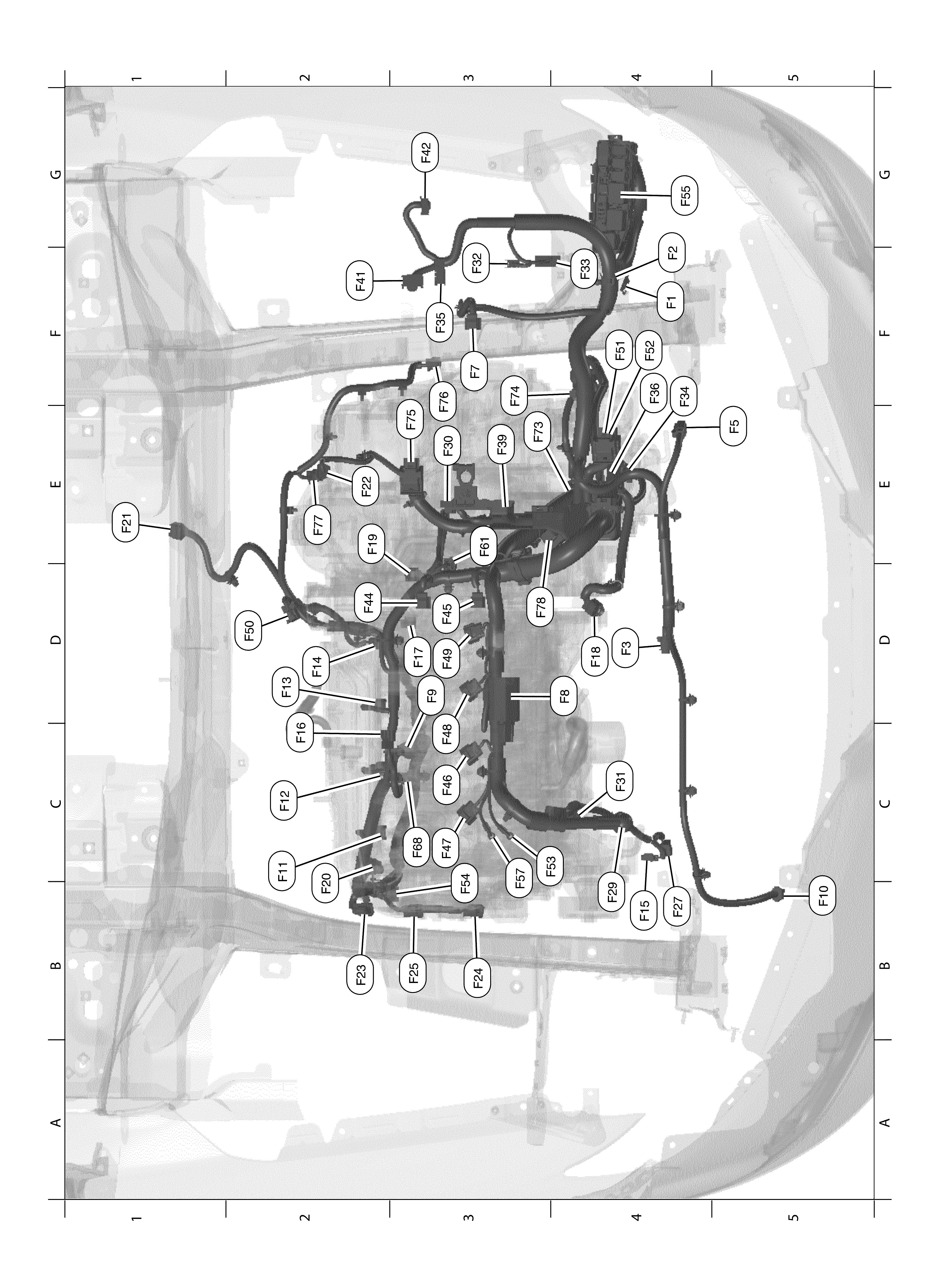

Engine Control Harness

Courtesy of NISSAN NORTH AMERICA, INC.

F4	F1	-	: Engine ground	G3	F33	BR/16	: To E19
G4	F2	-	: Engine ground	D4	F34	-	: Starter motor
D5	F3	GR/4	: Cooling fan motor-1	F2	F35	W/16	: IPDM E/R (Intelligent power distribution module engine room)
F5	F5	GR/4	: Cooling fan motor-2	E4	F36	-	: Starter motor
F3	F7	B/4	: Battery current sensor	G4	F39	-	: Fusible link box (Battery)
D4	F8	B/10	: Joint connector-F01	F2	F41	GR/6	: IPDM E/R (Intelligent power distribution module engine room)
C2	F9	GR/2	: Knock sensor	G2	F42	B/24	: IPDM E/R (Intelligent power distribution module engine room)
B5	F10	B/3	: Refrigerant pressure sensor	D2	F44	B/3	: Camshaft position sensor
C2	F11	GR/2	: Fuel injector no. 1	D3	F45	B/3	: Exhaust valve timing control position sensor
C2	F12	GR/2	: Fuel injector no. 2	C3	F46	GR/3	: Ignition coil no. 2 (With power transistor)
D2	F13	GR/2	: Fuel injector no. 4	B3	F47	GR/3	: Ignition coil no. 2 (With power transistor)
D3	F14	GR/2	: Fuel injector no. 3	C3	F48	GR/3	: Ignition coil no. 2 (With power transistor)
B4	F15	GR/2	: A/C compressor (Electrical control valve)	D3	F49	GR/3	: Ignition coil no. 2 (With power transistor)
C2	F16	L/2	: EVAP canister purge volume control solenoid valve	D2	F50	B/6	: Electric throttle control actuator
D3	F17	B/3	: Crankshaft position sensor	E3	F51	B/48	: ECM
B4	F18	GR/4	: Air fuel ratio (A/F) sensor 1	F3	F52	BR/48	: ECM
E2	F19	B/2	: Intake manifold runner control valve	B3	F53	-	: Engine ground
B2	F20	B/3	: Intake manifold runner control valve position sensor	B2	F54	B/3	: Engine oil pressure sensor
E2	F21	B/4	: Heated oxygen sensor 2	G4	F55	L/4	: Starter cut relay
E2	F22	B/4	: Mass air flow sensor	C3	F57	-	: Engine ground
B2	F23	GR/2	: Intake valve intermediate lock timing control solenoid valve	E3	F61	GR/2	: Engine coolant temperature sensor
B3	F24	GR/2	: Exhaust valve timing control solenoid valve	C3	F68	GR/2	: Engine oil temperature sensor
C3	F25	GR/2	: Intake valve timing control solenoid valve	F4	F73	B/3	: Input speed sensor
C4	F27	B/2	: A/C compressor (Magnet clutch)	E5	F74	GR/22	: CVT unit
B4	F29	-	: Generator	E2	F75	B/48	: TCM (Transmission control module)
E3	F30	B/1	: Fusible link box (Battery)	F3	F76	B/3	: Primary speed sensor
C4	F31	B/2	: Generator	F2	F77	B/3	: Output speed sensor
G3	F32	W/2	: To E2	D4	F78	B/10	: Transmission range switch
