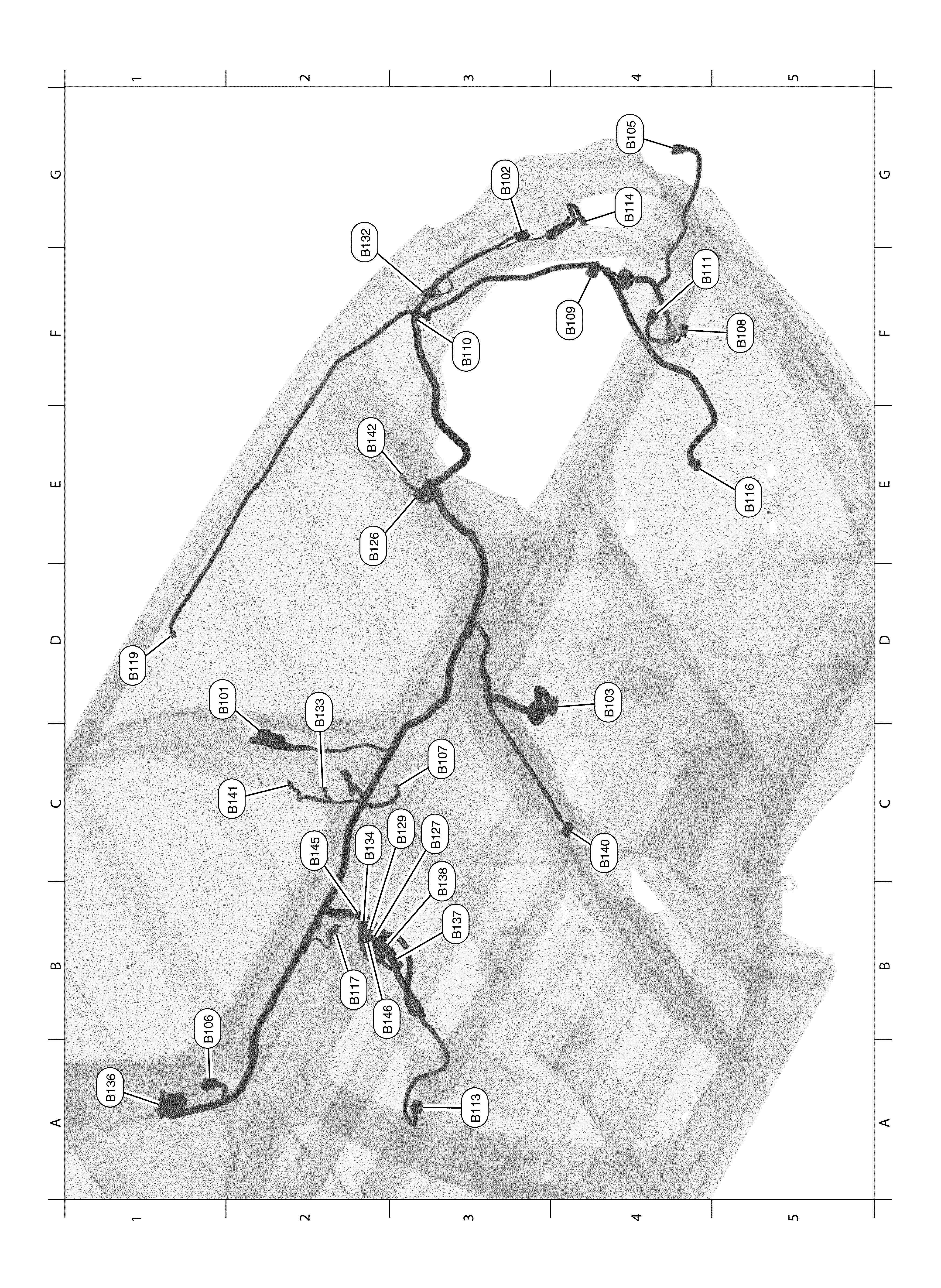

Body No. 2 Harness
| D1 | B101 | W/12 | : To D301 | E2 | B126 | Y/2 | : Rear side satellite sensor RH | |
| G3 | B102 | W/4 | : Rear combination lamp RH | C3 | B127 | W/4 | : To B350 | |
| D4 | B103 | GR/6 | : Fuel level sensor unit and fuel pump (Main) |
C3 | B127 | W/4 | : To B350 | |
| G4 | B105 | B/8 | : Side radar RH | C3 | B129 | Y/2 | : Side air bag module RH | |
| B1 | B106 | W/6 | : To M8 | G2 | B132 | - | : Body ground | |
| C3 | B107 | O/2 | : Front RH seat belt pre-tensioner (Lap belt) |
D2 | B133 | Y/2 | : Front RH seat belt pre-tensioner (Shoulder belt) |
|
| F5 | B108 | B/2 | : EVAP canister vent control valve | C2 | B134 | W/6 | : To B300 | |
| F4 | B109 | B/20 | : Joint connector-B05 | A1 | B136 | SMJ | : To M36 | |
| F3 | B110 | B/4 | : Remote starter receiver | B3 | B137 | BR/14 | : BOSE™ speaker amp. | |
| F4 | B111 | GR/3 | : EVAP control system pressure sensor | C3 | B138 | BR/23 | : BOSE speaker amp. | |
| A3 | B113 | Y/22 | : Air bag diagnosis sensor unit | C4 | B140 | W/12 | : To B49 | |
| G4 | B114 | B/3 | : Rear cargo power socket | C2 | B141 | W/4 | : Front door switch RH | |
| E5 | B116 | GR/4 | : Sub woofer | E2 | B142 | W/4 | : Rear door switch RH | |
| B2 | B117 | - | : Body ground | C2 | B145 | W/6 | : Joint connector-B10 | |
| D1 | B119 | Y/2 | : Curtain air bag module RH | B2 | B146 | W/6 | : Joint connector-B11 |
