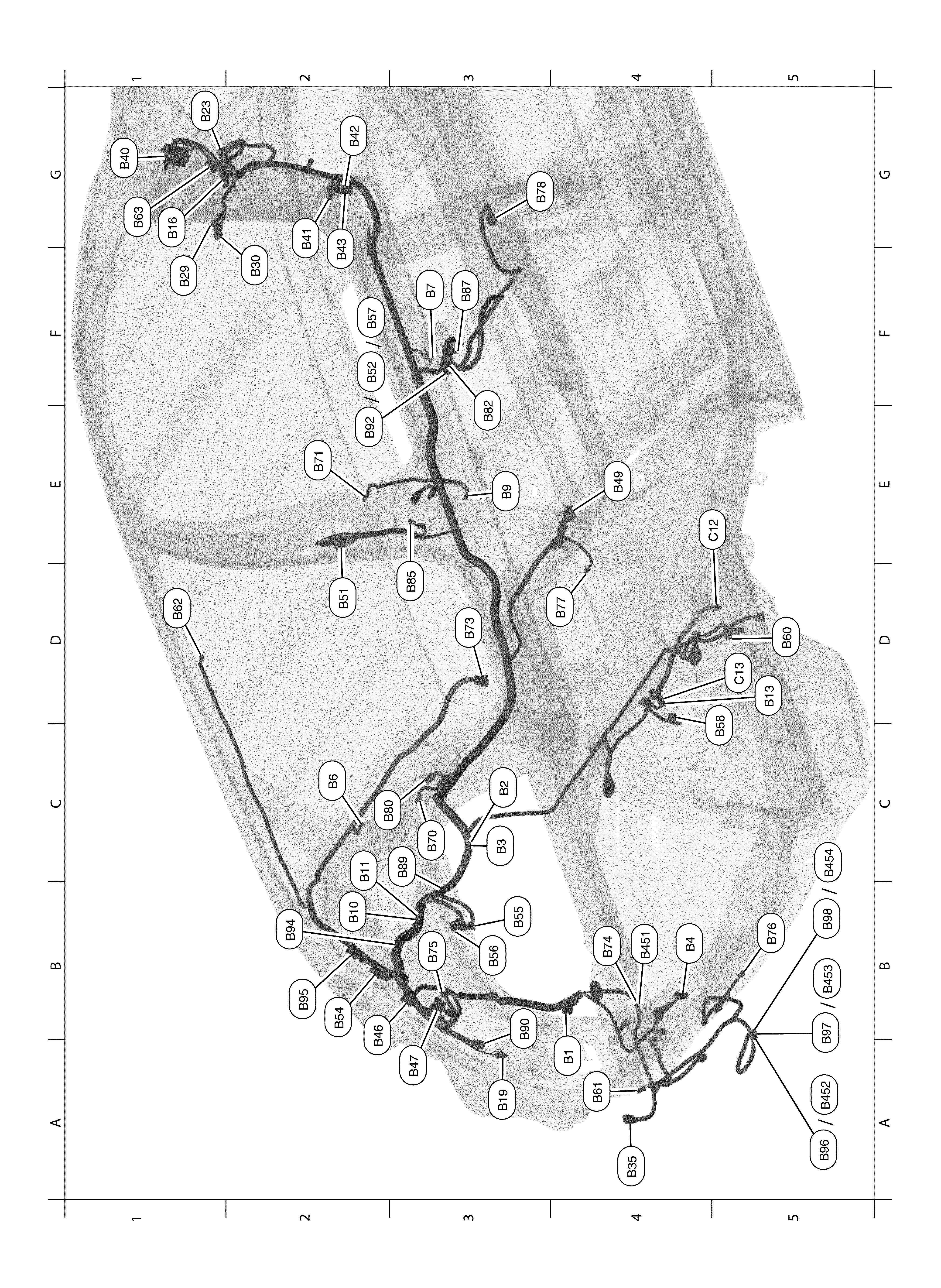

Body Harness
| A4 | B1 | B/6 | : Joint connector-B02 | D1 | B62 | Y/2 | : Side curtain air bag module LH | |
| C3 | B2 | W/4 | : Joint connector-B27 | G1 | B63 | GR/24 | : Joint connector-B01 | |
| C3 | B3 | W/4 | : Joint connector-B03 | C3 | B70 | W/4 | : Rear door switch LH | |
| C2 | B6 | B/1 | : Rear window defogger condenser | E2 | B71 | W/4 | : Front door switch LH | |
| F3 | B7 | - | : Body ground | D3 | B73 | W/8 | : Spindle unit RH | |
| E3 | B9 | O/2 | : Front LH seat belt pre-tensioner (Lap belt) |
B4 | B74 | B/3 | : To B451 | |
| B2 | B10 | W/4 | : Joint connector-B31 | B3 | B75 | W/16 | : AWD control module | |
| C2 | B11 | W/4 | : Joint connector-B32 | B5 | B76 | GR/2 | : Outside key antenna (Rear bumper) | |
| D5 | B13 | B/2 | : To C13 | D4 | B77 | GR/2 | : Inside key antenna (Console) | |
| G1 | B16 | G/40 | : BCM (Body control module) | G3 | B78 | Y/22 | : Air bag diagnosis sensor unit | |
| A3 | B19 | - | : Body ground | C2 | B80 | Y/2 | : Rear side satellite sensor LH | |
| G1 | B23 | GR/16 | : BCM (Body control module) | E3 | B82 | Y/2 | : Side air bag module LH | |
| F1 | B29 | W/6 | : Fuse block (J/B) | D3 | B85 | Y/2 | : Front LH seat belt pre-tensioner (Shoulder belt) |
|
| F2 | B30 | W/8 | : Fuse block (J/B) | F3 | B87 | W/4 | : Seat belt buckle switch (Driver seat) | |
| A4 | B35 | B/8 | : Side radar LH | C3 | B89 | W/4 | : Joint connector-B25 | |
| G1 | B40 | SMJ | : To E34 | B3 | B90 | W/4 | : Rear combination lamp LH | |
| G2 | B41 | W/32 | : To M69 | E2 | B92 | W/6 | : To B202 | |
| G2 | B42 | W/16 | : To M74 | B2 | B94 | W/4 | : Joint connector-B24 | |
| F3 | B43 | W/16 | : To M52 | B2 | B95 | W/8 | : Spindle unit LH | |
| B2 | B46 | W/32 | : To D501 | A5 | B96 | B/3 | : Motion activated back door control unit (Except for Japan production) |
|
| A3 | B47 | W/16 | : To D502 | B5 | B97 | B/2 | : Motion activated back door control unit (Except for Japan production) |
|
| E4 | B49 | W/12 | : To B140 | B5 | B98 | B/2 | : Motion activated back door control unit (Except for Japan production) |
|
| D2 | B51 | W/12 | : To D201 | Chassis harness | ||||
| F2 | B52 | W/16 | : To B201 | E5 | C12 | GR/2 | : AWD solenoid | |
| B2 | B54 | W/2 | : To D505 | D5 | C13 | B/2 | : To B13 | |
| B3 | B55 | B/24 | : Automatic back door control module | Motion activated back door sub-harness | ||||
| B3 | B56 | GR/14 | : Automatic back door control module | B4 | B451 | B/3 | : To B74 | |
| F2 | B57 | BR/12 | : To B200 | A5 | B452 | B/3 | : Motion activated back door control unit (Japan production) |
|
| C5 | B58 | B/2 | : Rear wheel sensor LH | B5 | B453 | B/2 | : Motion activated back door control unit (Japan production) |
|
| D5 | B60 | B/2 | : Rear wheel sensor RH | C5 | B454 | B/2 | : Motion activated back door control unit (Japan production) |
|
| A4 | B61 | GR/2 | : Automatic back door warning buzzer | |||||
