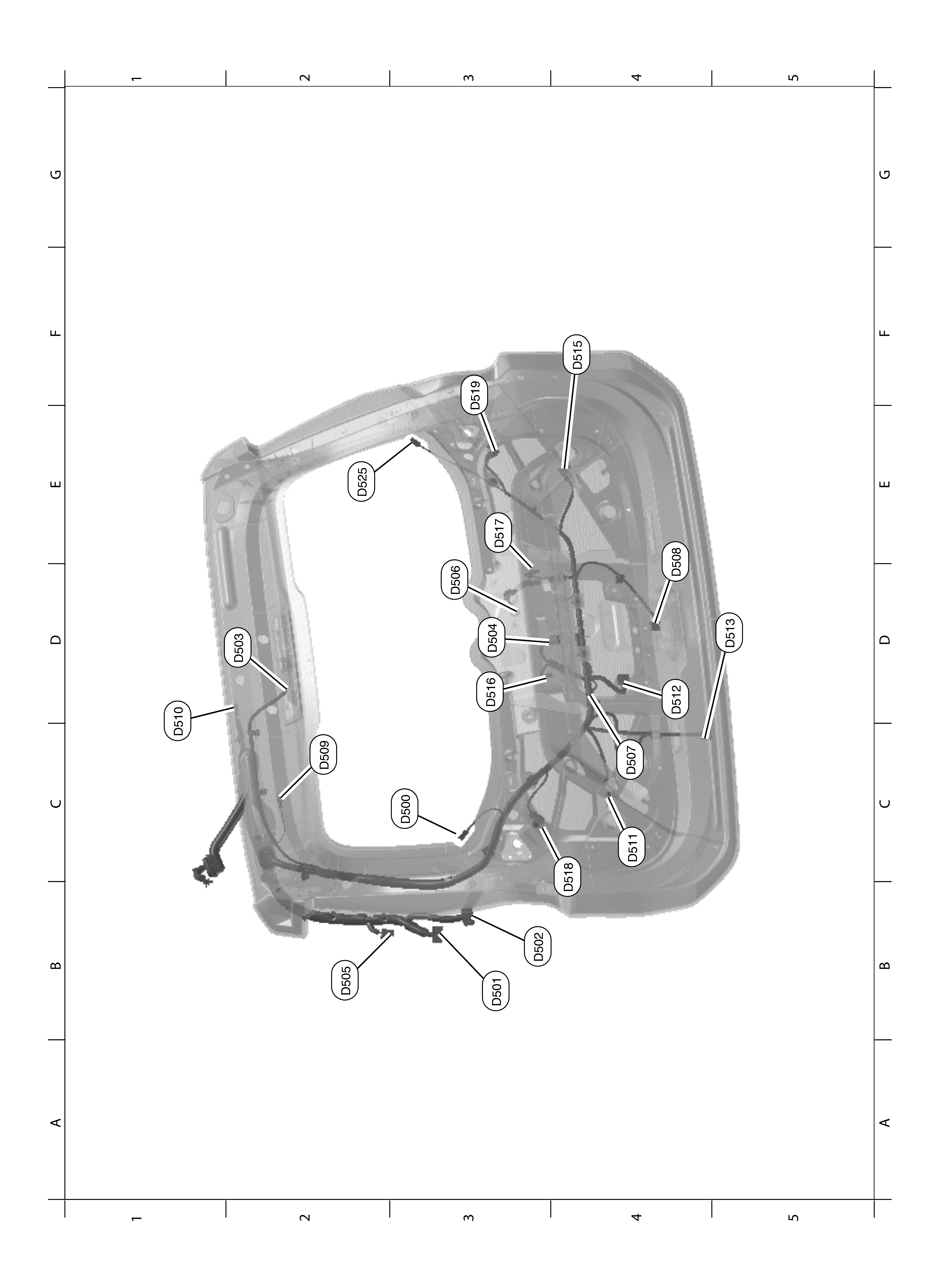

Back Door Harness
| C3 | D500 | B/1 | : Rear window defogger condenser | D1 | D510 | B/1 | : Rear window defogger | |
| B3 | D501 | W/32 | : To B46 | C4 | D511 | W/2 | : Touch sensor LH | |
| B3 | D502 | W/16 | : To B47 | D4 | D512 | W/8 | : Back door lock assembly (With power back door system) |
|
| D2 | D503 | W/2 | : High-Mounted stop lamp | D5 | D513 | GR/6 | : Automatic back door close switch | |
| D3 | D504 | B/6 | : Rear view camera | F4 | D515 | W/2 | : Touch sensor RH | |
| B2 | D505 | W/2 | : To B54 | D3 | D516 | BR/2 | : License plate lamp LH | |
| D3 | D506 | W/3 | : Rear wiper motor | E3 | D517 | BR/2 | : License plate lamp RH | |
| C4 | D507 | W/4 | : Back door opener switch | C4 | D518 | W/3 | : Back-up lamp assembly LH | |
| E4 | D508 | W/4 | : Back door lock assembly (Without power back door system) |
F3 | D519 | W/3 | : Back-up lamp assembly RH | |
| C2 | D509 | - | : Body ground | E2 | D525 | B/1 | : Rear window defogger |
