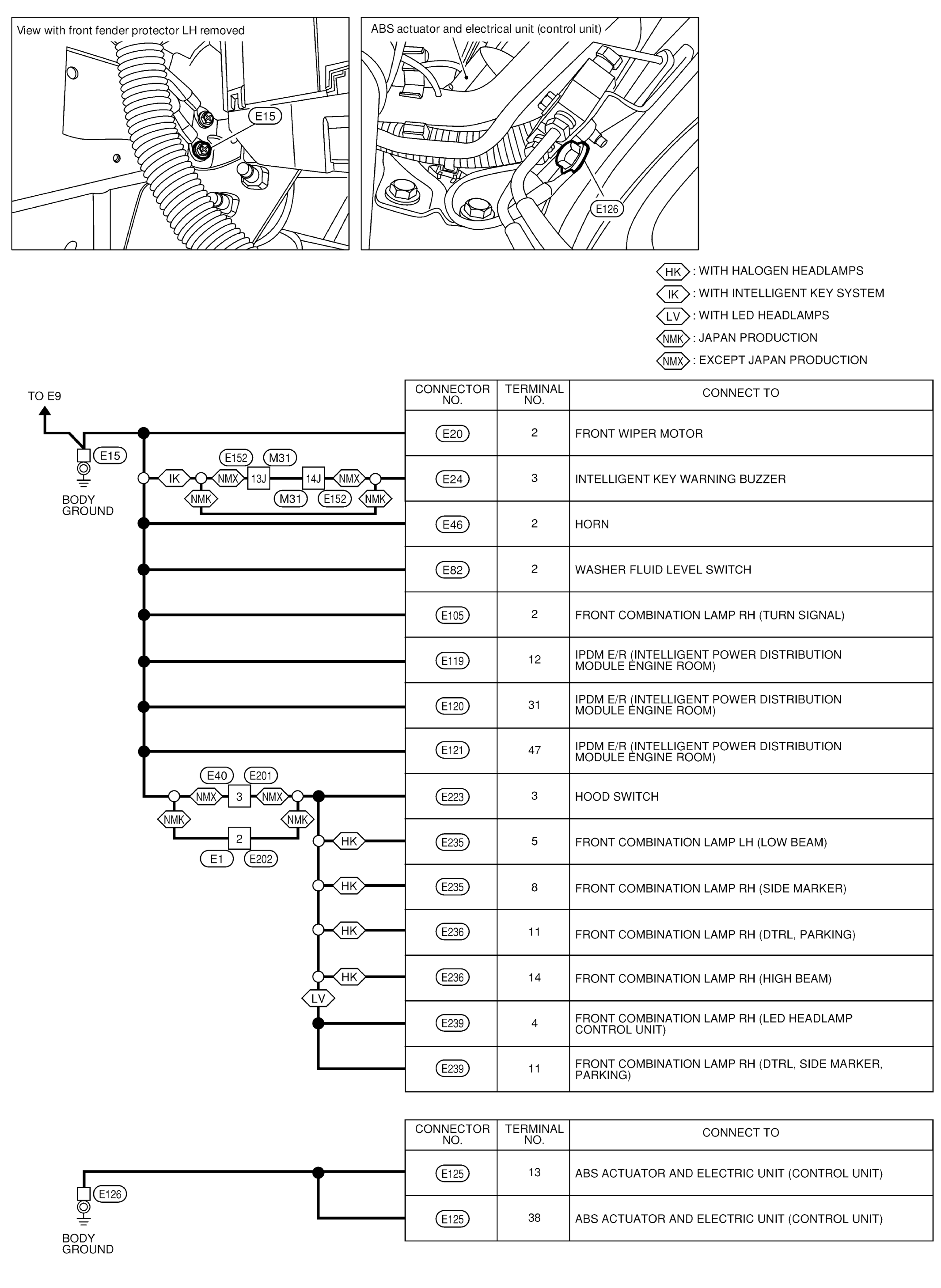

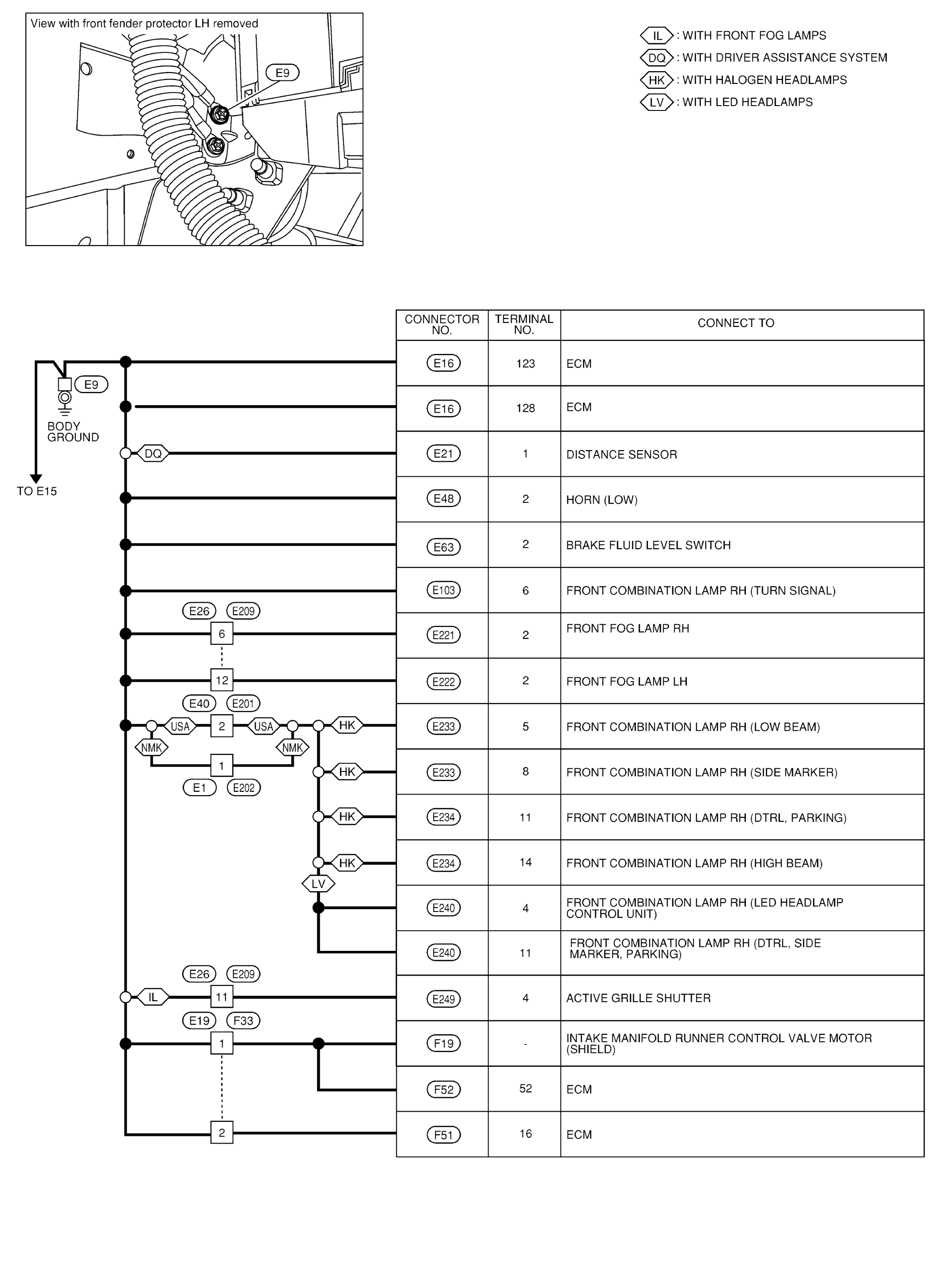

Home >> Nissan-Datsun >> 2017 >> Rogue S, AWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Supply, Ground & Circuit Elements (Except Hybrid) >> Wiring Diagram >> Ground >> Ground Distribution >> Engine Room Harness
