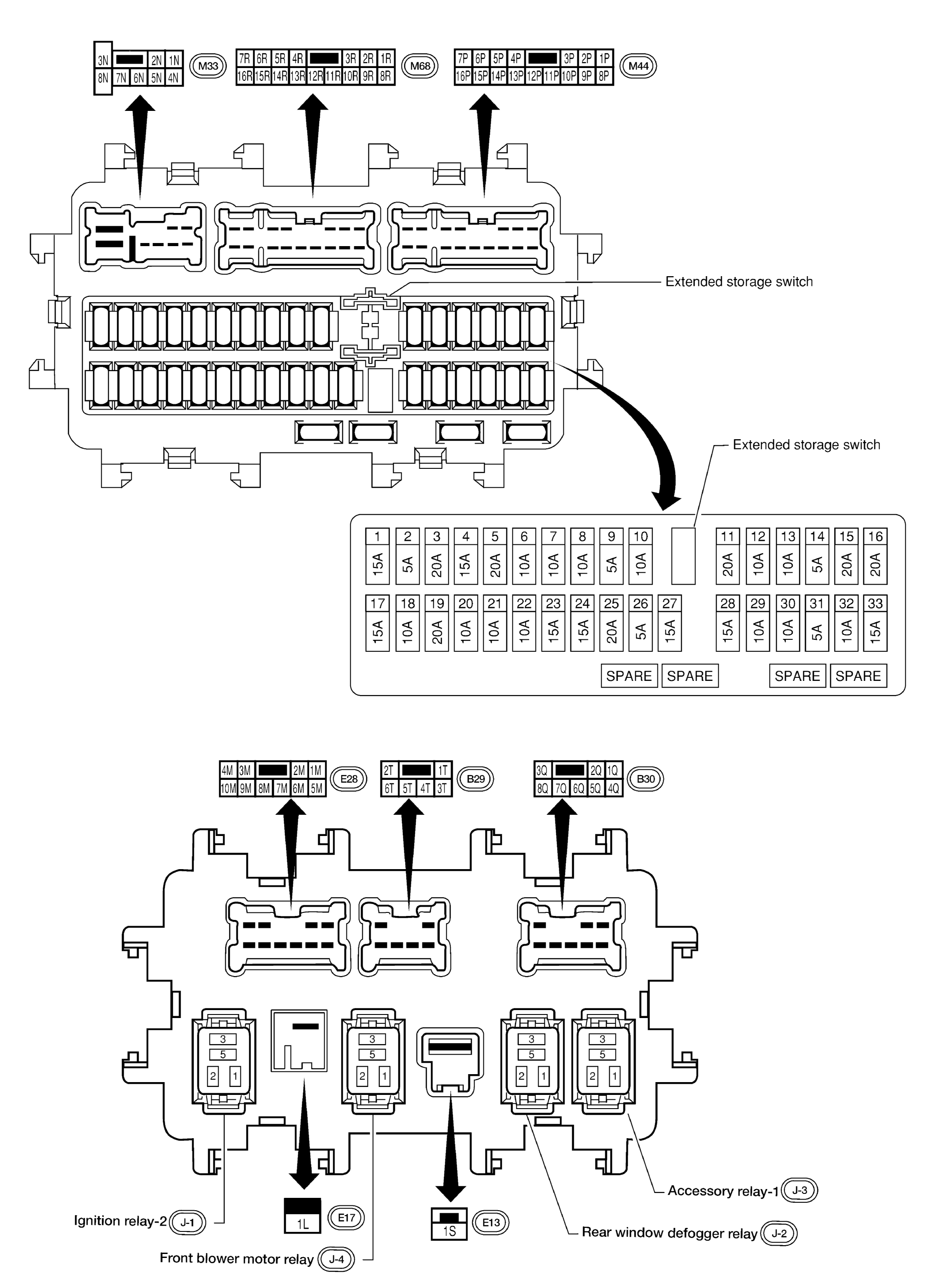

Home >> Nissan-Datsun >> 2017 >> Rogue S, AWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Supply, Ground & Circuit Elements (Except Hybrid) >> Wiring Diagram >> Fuse Block - Junction Box (J/B) >> Terminal Arrangement
