Exploded View With Torque Specifications

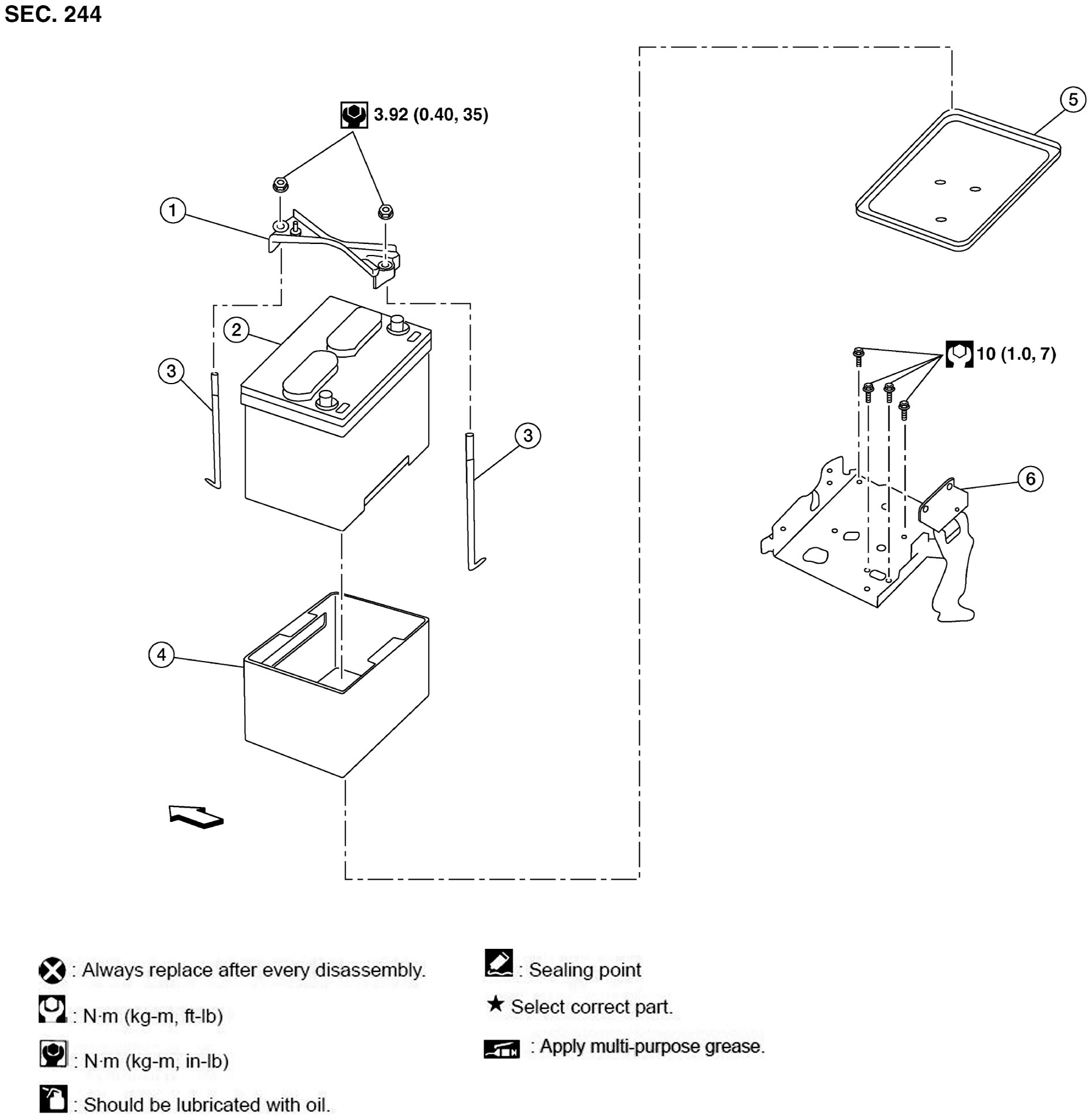

Fig 1: Exploded View Of Battery Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Battery frame	2.	Battery	3.	Battery rod
4.	Battery cover	5.	Battery tray liner	6.	Battery tray
	Front
