Exploded View With Torque Specifications

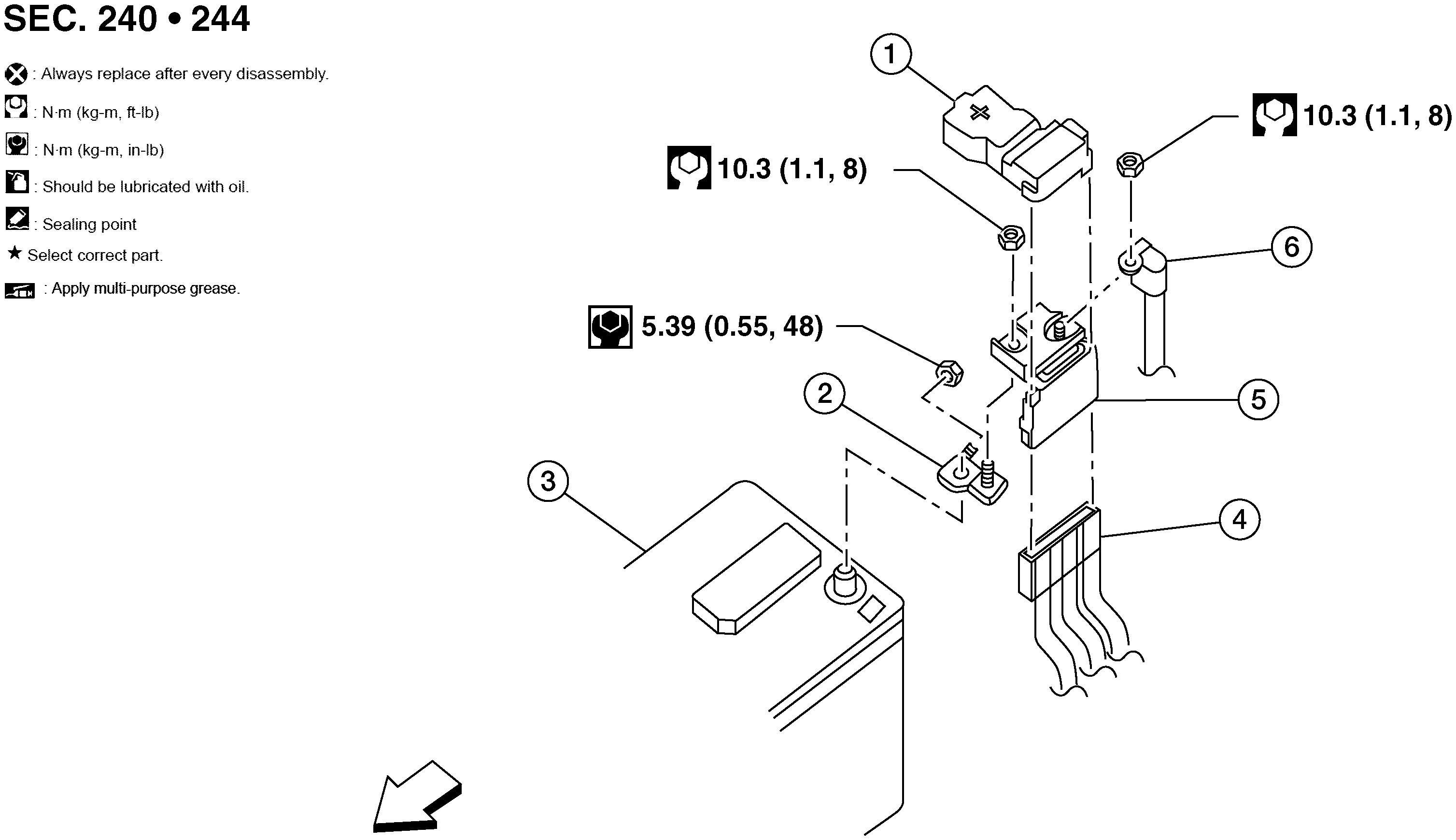

Fig 1: Exploded View Of Battery Terminal With Fusible Link Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Positive terminal	3.	Battery
4.	Harness connectors	5.	Fusible link box (battery)	6.	Positive cable
	Front
