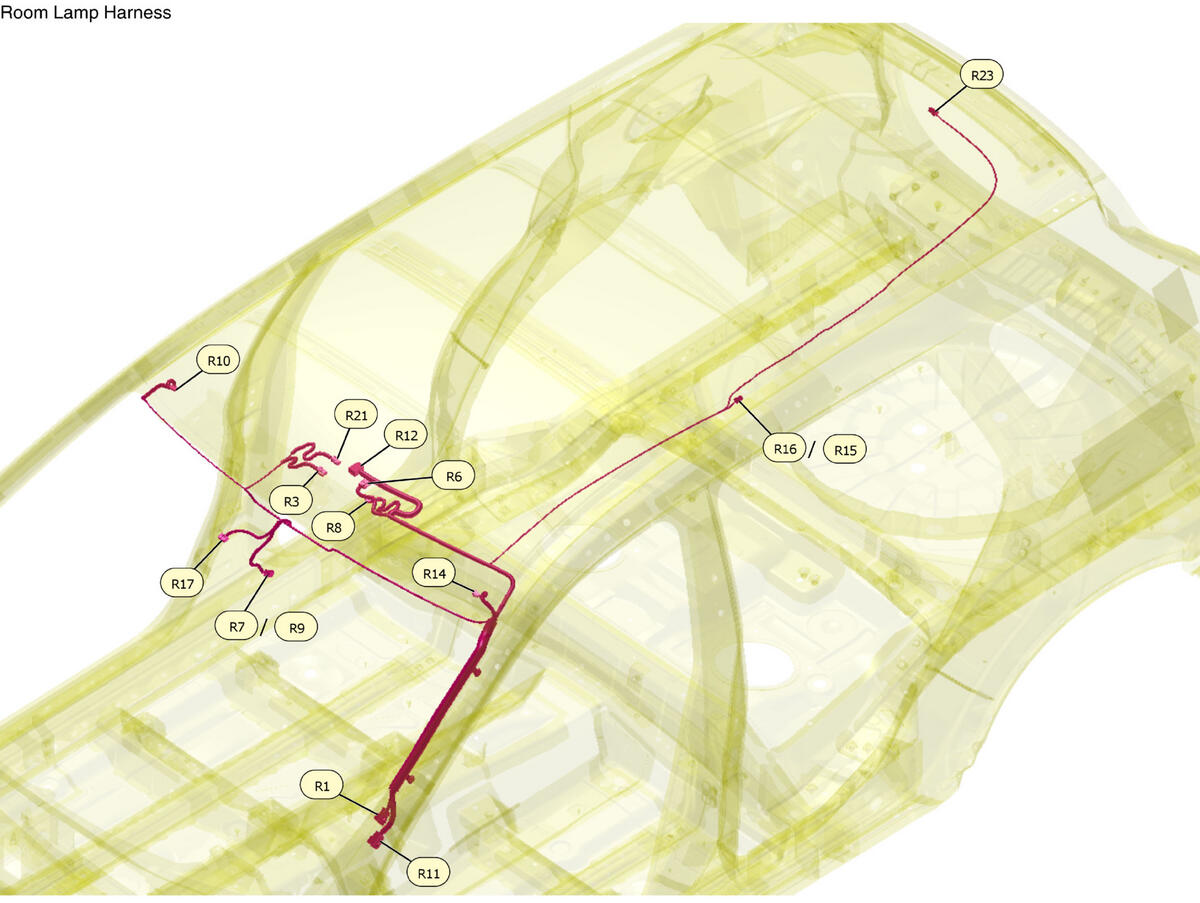

Room Lamp Harness
| R11 | WIRE TO WIRE |
| R1 | WIRE TO WIRE |
| R7 | AUTO ANTI-DAZZLING INSIDE MIRROR (WITH HOMELINK UNIVERSAL TRANSCEIVER) |
| R9 | AUTO ANTI-DAZZLING INSIDE MIRROR (WITHOUT UNIVERSAL TRANSCEIVER) |
| R14 | VANITY MIRROR LAMP LH |
| R10 | VANITY MIRROR LAMP RH |
| R3 | MOONROOF SWITCH |
| R16 | PERSONAL LAMP 2ND ROW |
| R6 | MAP LAMP ASSEMBLY |
| R8 | MICROPHONE |
| R15 | ROOM LAMP |
| R12 | WIRE TO WIRE |
| R23 | LUGGAGE ROOM LAMP |
| R21 | TELEMATICS SWITCH |
| R17 | LANE CAMERA UNIT |
