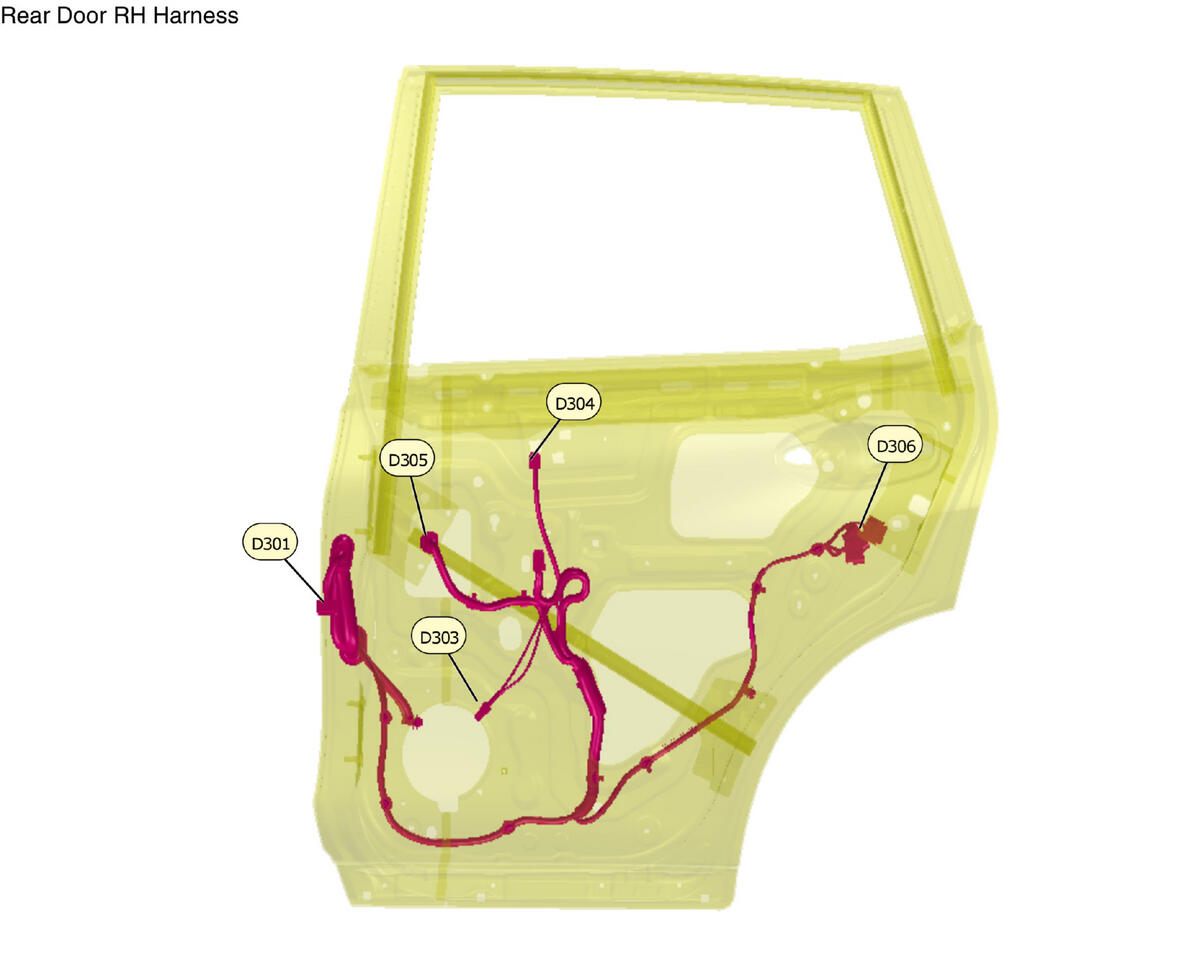

Rear Door RH Harness

GNSW87690

Courtesy of NISSAN NORTH AMERICA, INC.

D306	REAR DOOR LOCK ACTUATOR RH
D303	REAR DOOR SPEAKER RH
D304	REAR POWER WINDOW SWITCH RH
D305	REAR POWER WINDOW MOTOR RH
D301	WIRE TO WIRE
