Component Inspection

  1. CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) (MAIN)

    1. Remove the fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to REMOVAL AND INSTALLATION .
    2. Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor) (main).

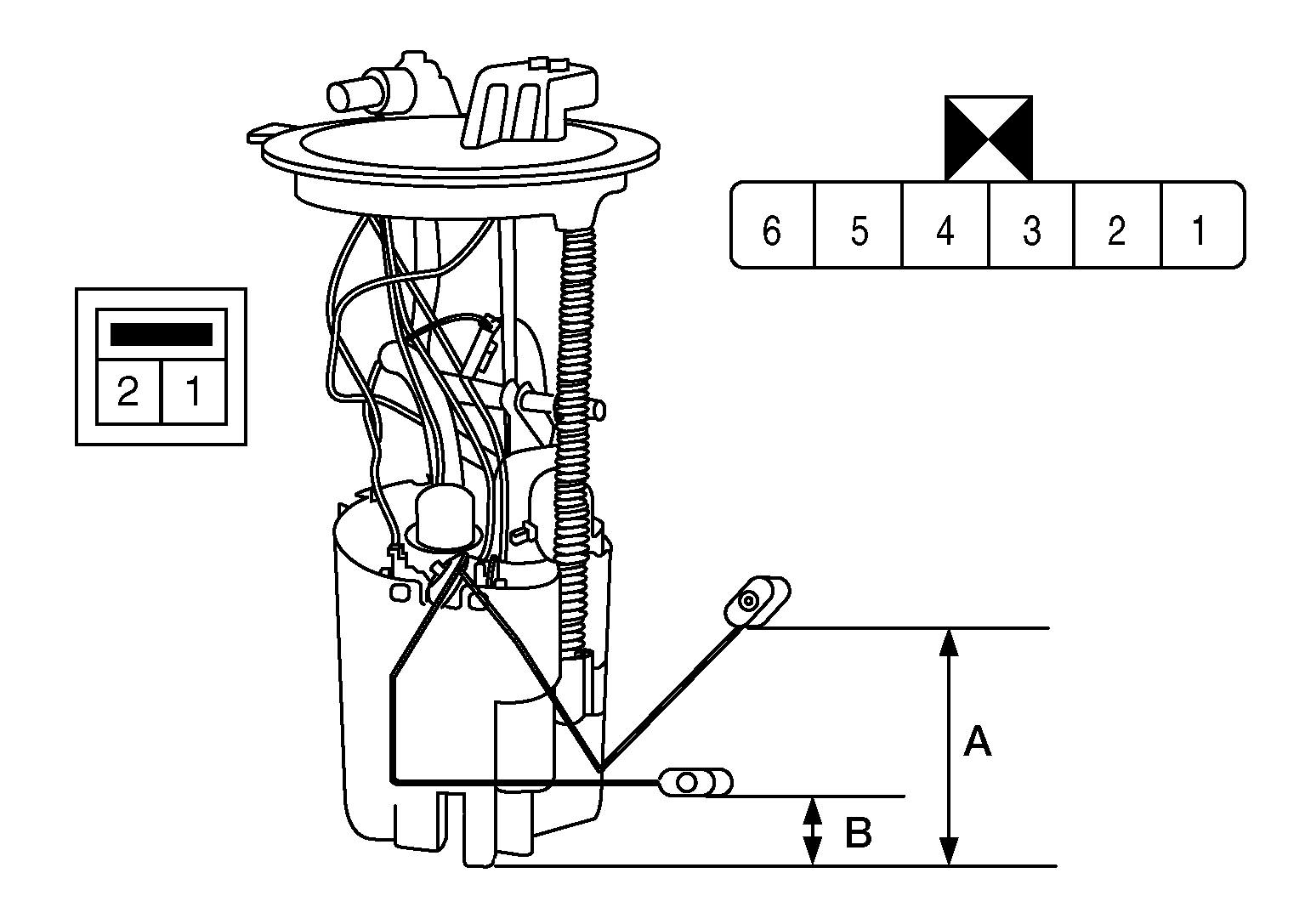

      GNSALNIA1790ZZ-790Courtesy of NISSAN NORTH AMERICA, INC.
      Fuel level sensor unit and fuel pump (fuel level sensor) (main) Condition Resistance (Ω)
      (Approx.)      		 Height
      [mm (in)]
      Terminals
      2 1 Full* (A) 45 171.4 (6.7)
      Empty* (B) 141 20.5 (0.8)
      5 2 - 0 -

      * : When float rod is contact with stopper.

    Is the inspection result normal?

    YES

    GO TO STEP 2.

    NO

    Replace fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to REMOVAL AND INSTALLATION .

  2. CHECK FUEL LEVEL SENSOR UNIT (SUB)

    1. Remove the fuel level sensor unit (sub). Refer to REMOVAL AND INSTALLATION .
    2. Check the resistance between fuel level sensor unit (sub).
      GNSALNIA1791ZZ-791Courtesy of NISSAN NORTH AMERICA, INC.
      Fuel level sensor unit (sub) Condition Resistance (Ω)
      (Approx.)      		 Height
      [mm (in)]
      Terminals
      2 1 Full* (A) 6.0 194.1 (7.6)
      Empty* (B) 141 18 (0.7)

      * : When float rod is contact with stopper.

    Is the inspection result normal?

    YES

    Inspection End.

    NO

    Replace fuel level sensor unit (sub). Refer to REMOVAL AND INSTALLATION .
