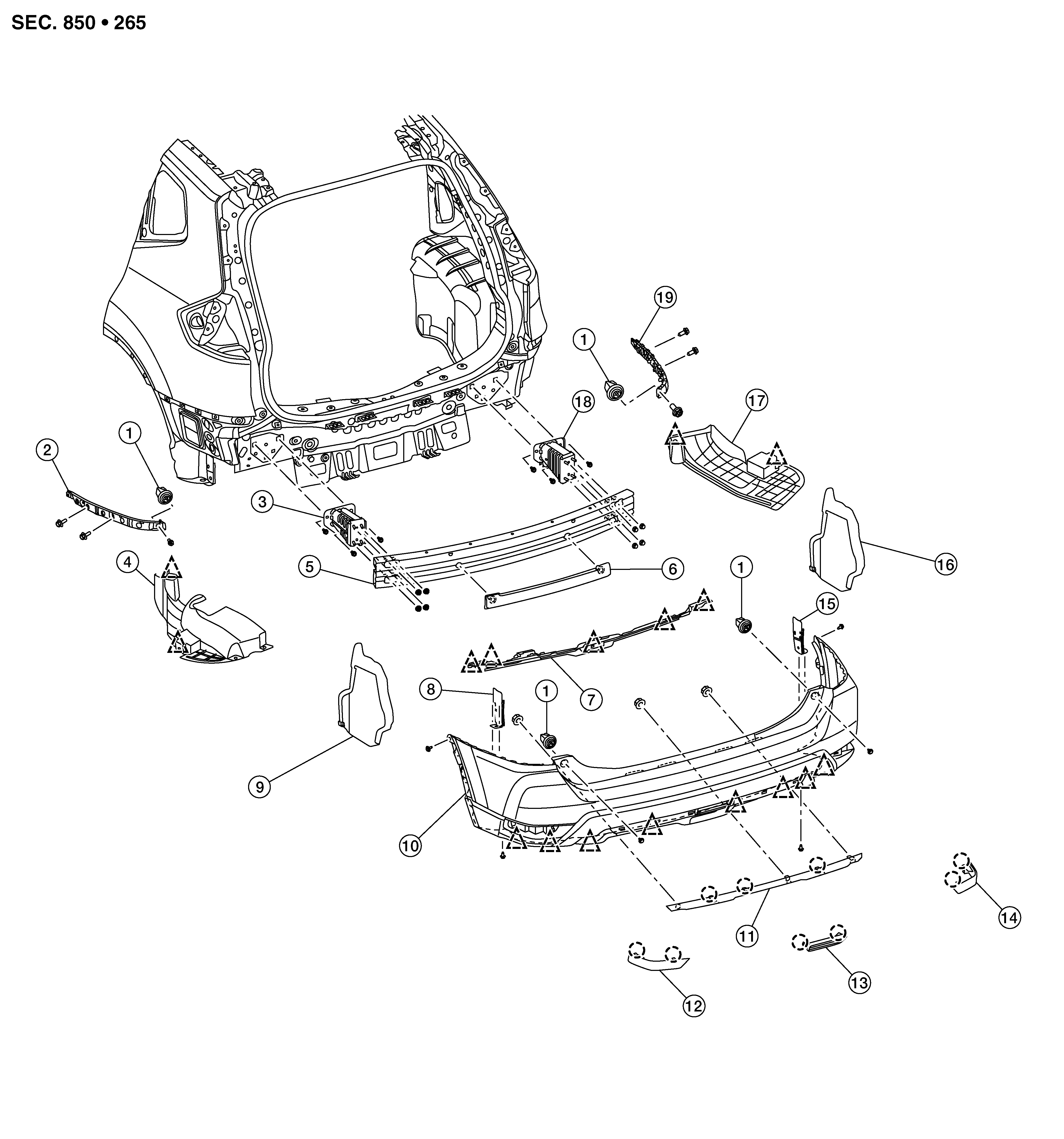

| 1. |
Grommet |
2. |
Rear bumper fascia side bracket (LH) |
3. |
Rear bumper reinforcement support (LH) |
| 4. |
Rear bumper fascia undercover (LH) |
5. |
Rear bumper reinforcement |
6. |
Rear energy absorber |
| 7. |
Motion activated back door bracket |
8. |
Rear bumper fascia |
9. |
Closing plate (LH) |
| 10. |
Rear bumper fascia |
11. |
Rear bumper fascia reflector (LH) |
12. |
Rear bumper finisher |
| 13. |
Rear bumper fascia reflector (RH) |
14. |
Rear bumper bracket (RH) |
15. |
Closing plate (RH) |
| 16. |
Rear bumper fascia undercover (RH) |
17. |
Rear bumper bracket (RH) |
18. |
Rear bumper fascia side bracket (RH) |
