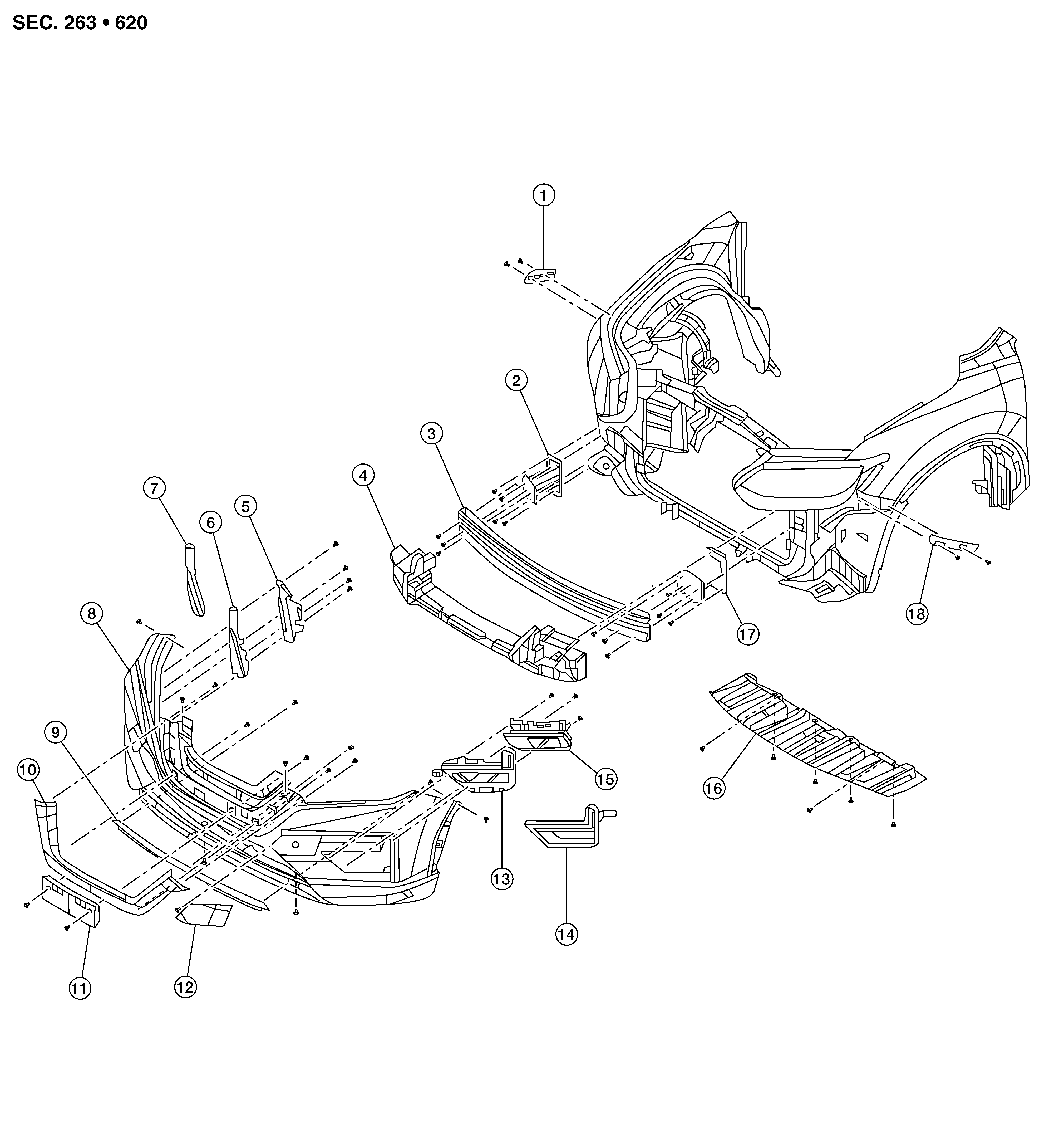

| 1. |
Front bumper fascia side bracket (RH) |
2. |
Front bumper reinforcement support (RH) |
3. |
Front bumper reinforcement |
| 4. |
Front energy absorber |
5. |
Front fog lamp (RH) (if equipped) |
6. |
Front fog lamp finisher (RH) (if equipped) |
| 7. |
Front bumper fascia finisher (RH) (if equipped) |
8. |
Front bumper |
9. |
Front bumper fascia molding |
| 10. |
Grill cover |
11. |
Front license plate bracket |
12. |
Tow cover |
| 13. |
Front fog lamp finisher (LH) (if equipped) |
14. |
Front bumper fascia finisher (LH) (if equipped) |
15. |
Front fog lamp (LH) (if equipped) |
| 16. |
Front under cover |
17. |
Front bumper reinforcement support (LH) |
18. |
Front bumper fascia side bracket (LH) |
