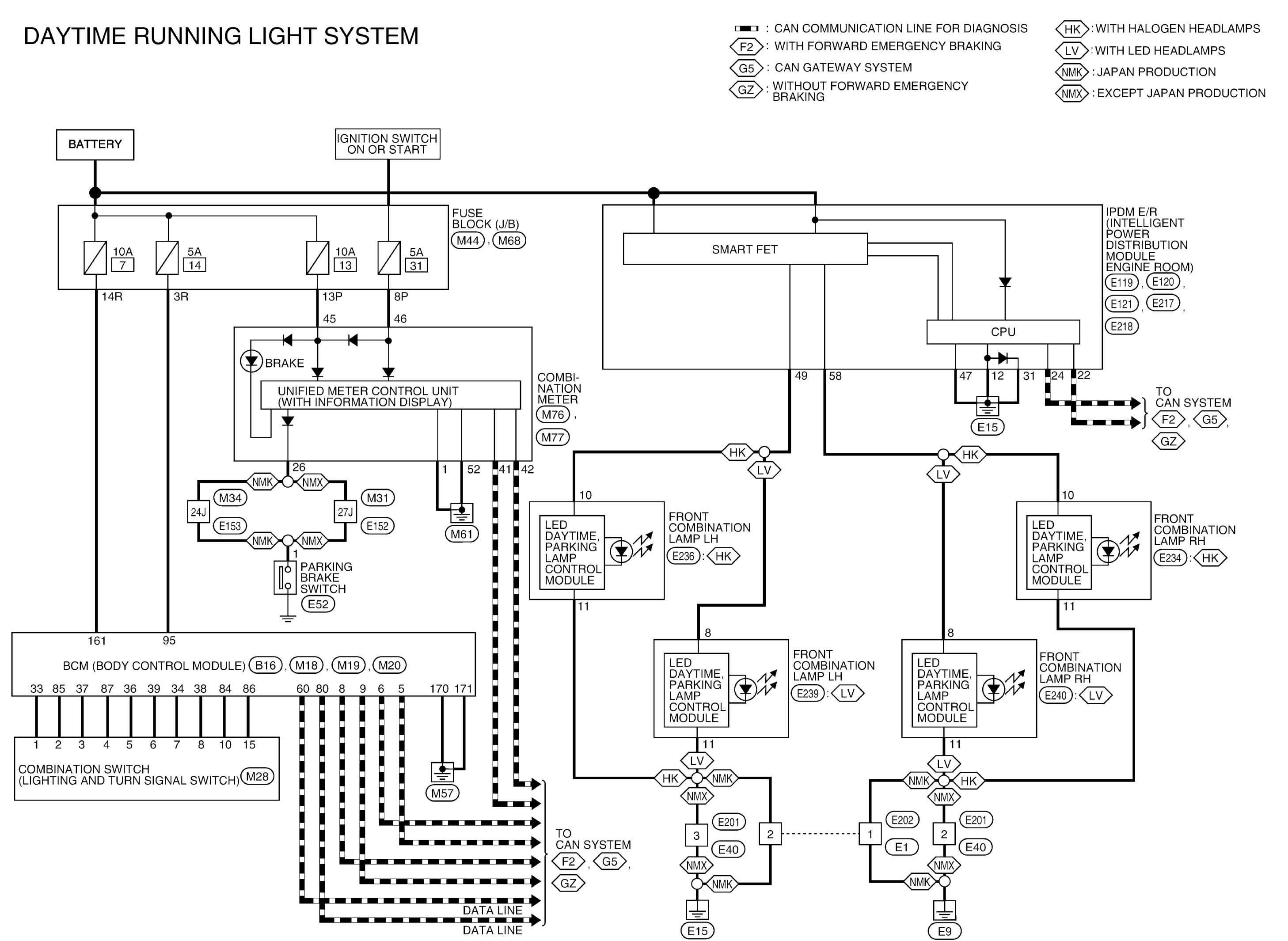

Daytime Running Light System: Wiring Diagram

GNSAALWA1771GB-771

Courtesy of NISSAN NORTH AMERICA, INC.

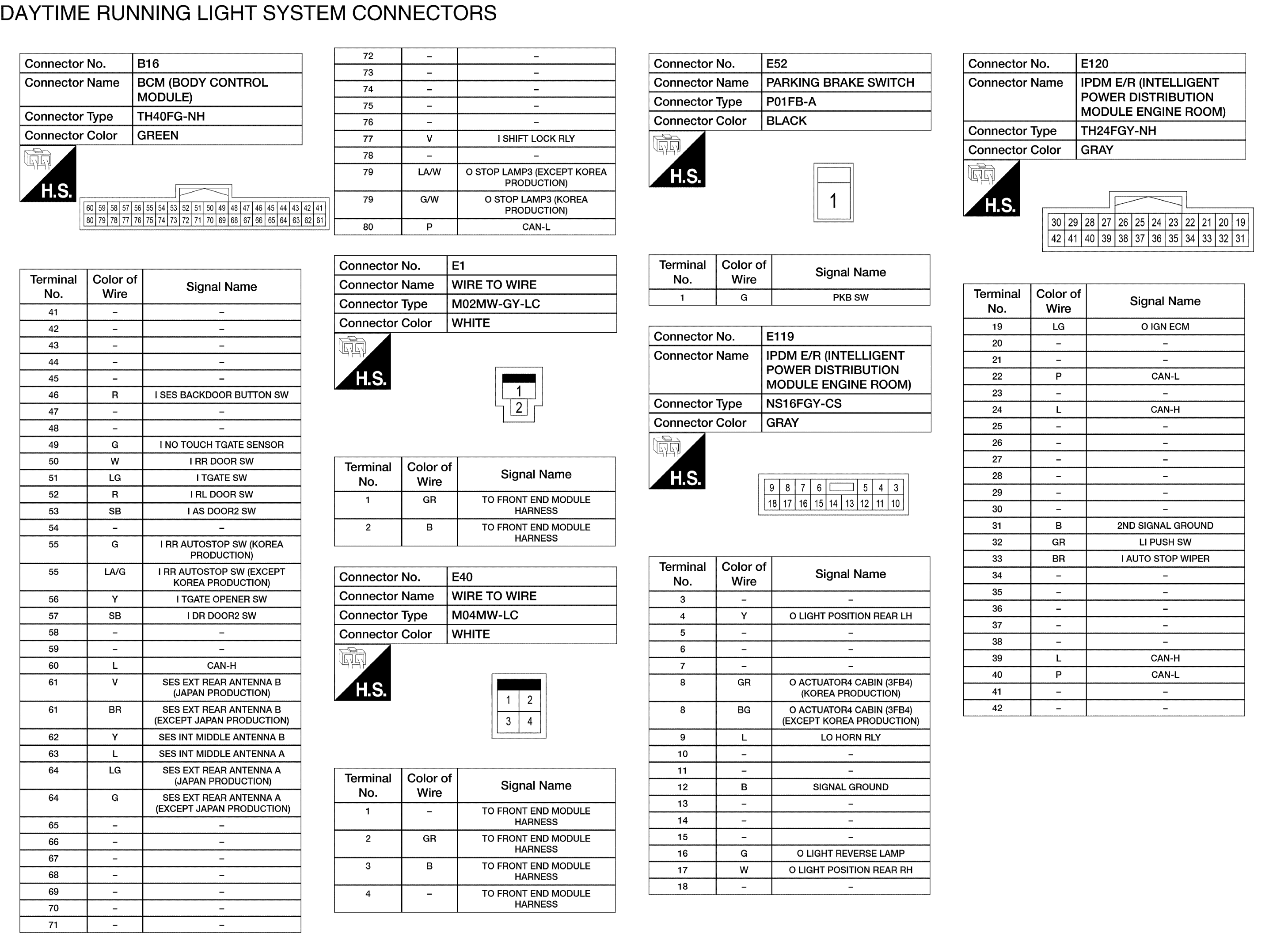

GNSAALIA5851GB-851

Courtesy of NISSAN NORTH AMERICA, INC.

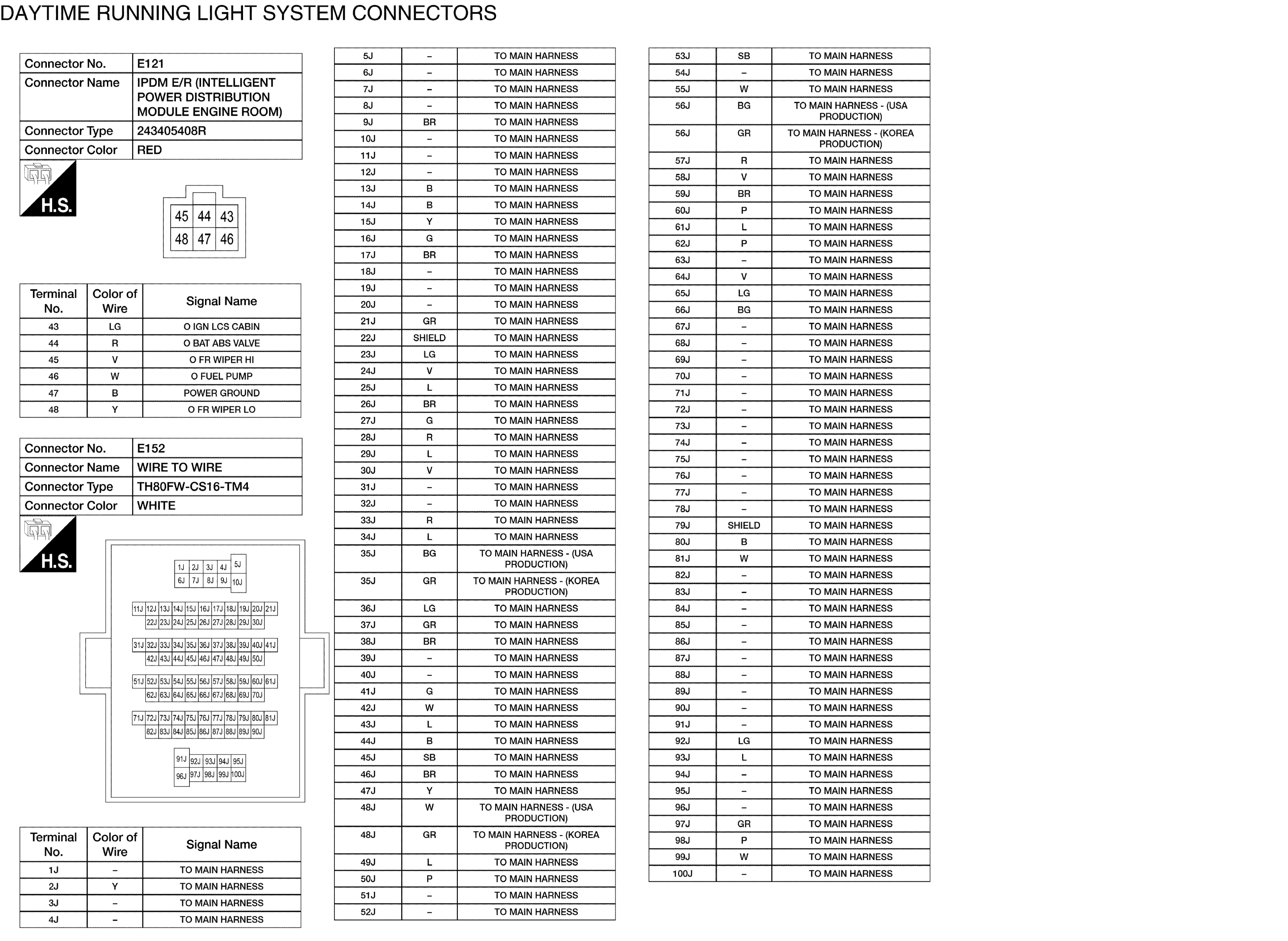

GNSAALIA5852GB-852

Courtesy of NISSAN NORTH AMERICA, INC.

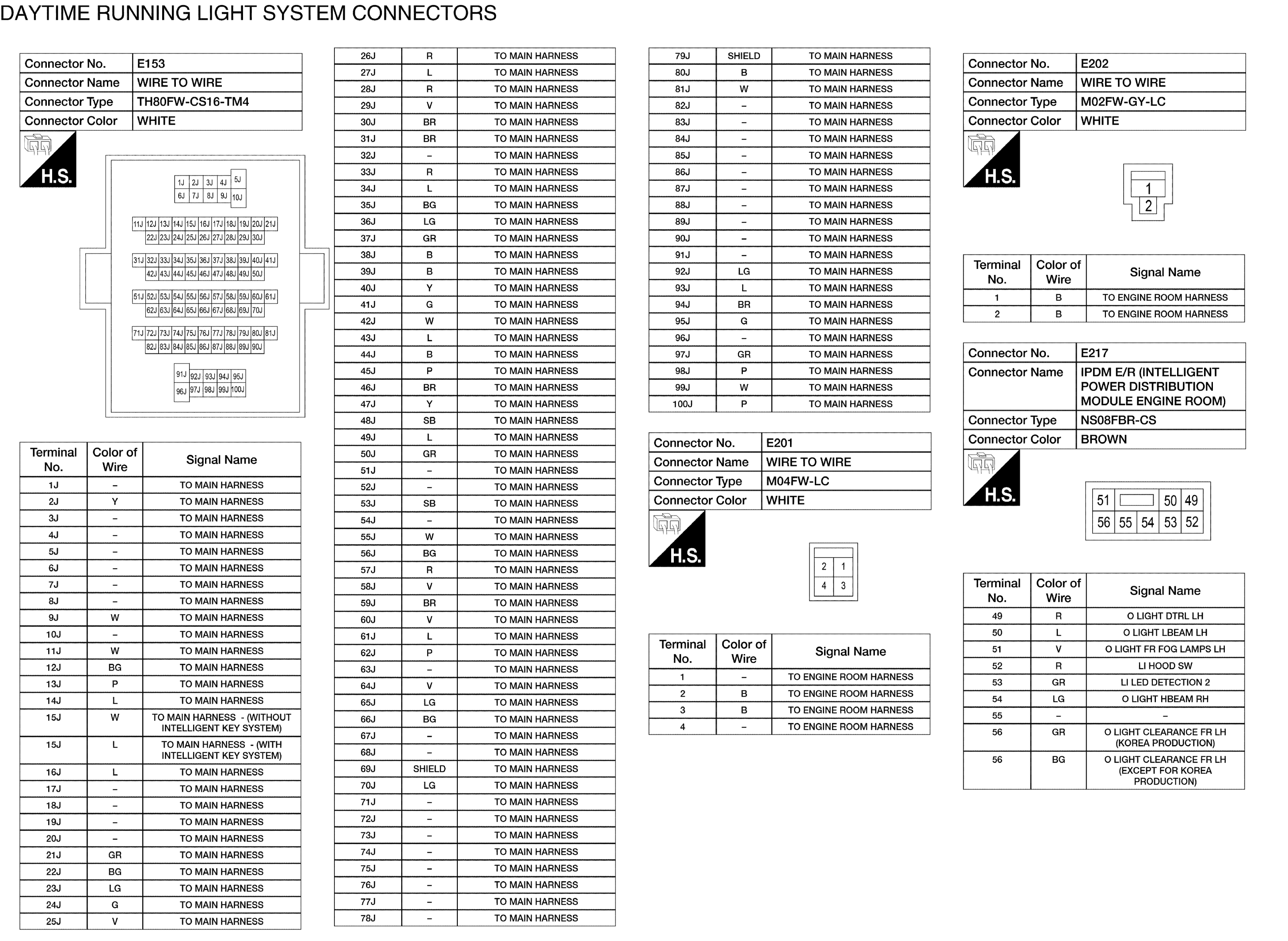

GNSAALIA5853GB-853

Courtesy of NISSAN NORTH AMERICA, INC.

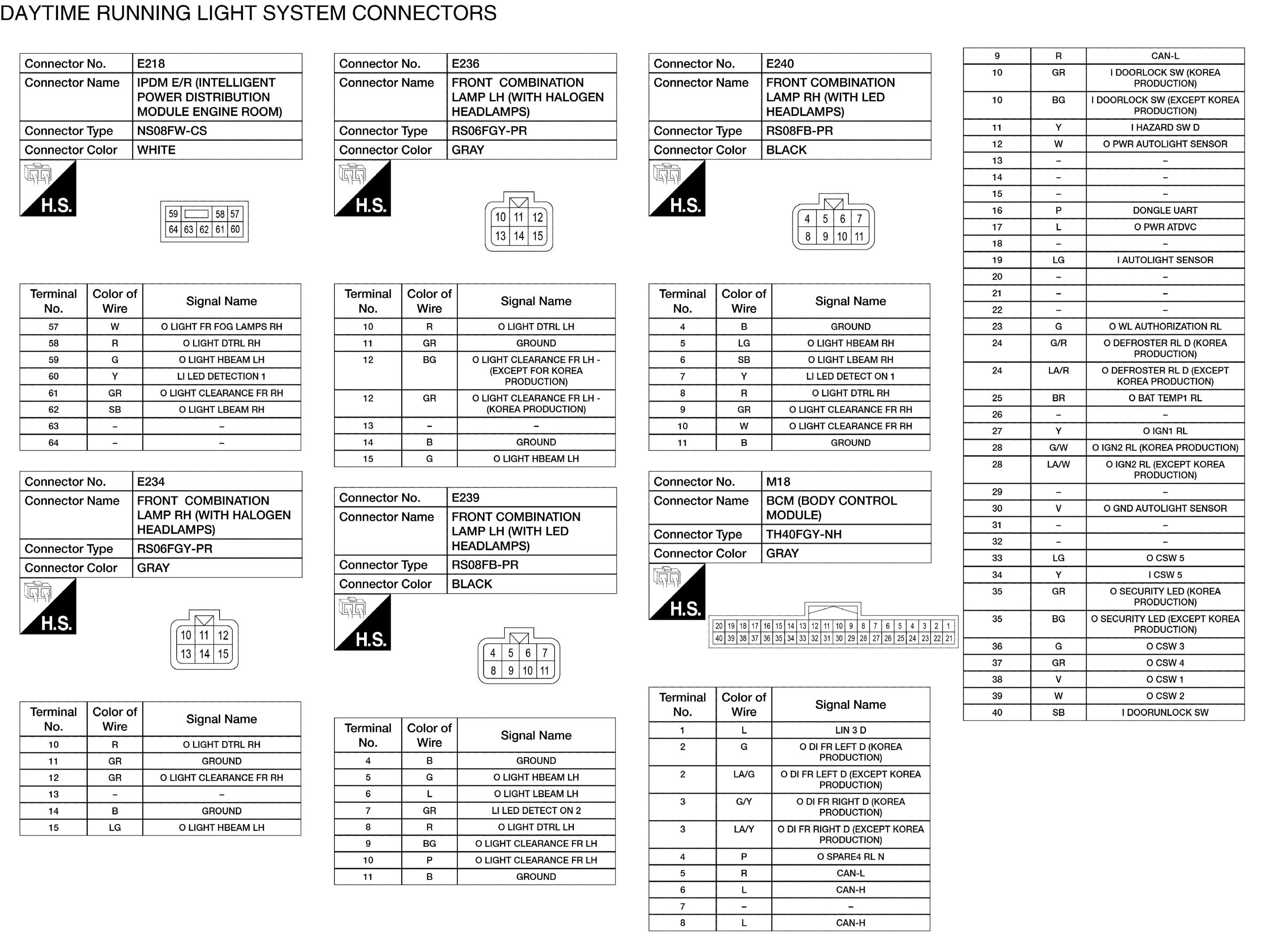

GNSAALIA5854GB-854

Courtesy of NISSAN NORTH AMERICA, INC.

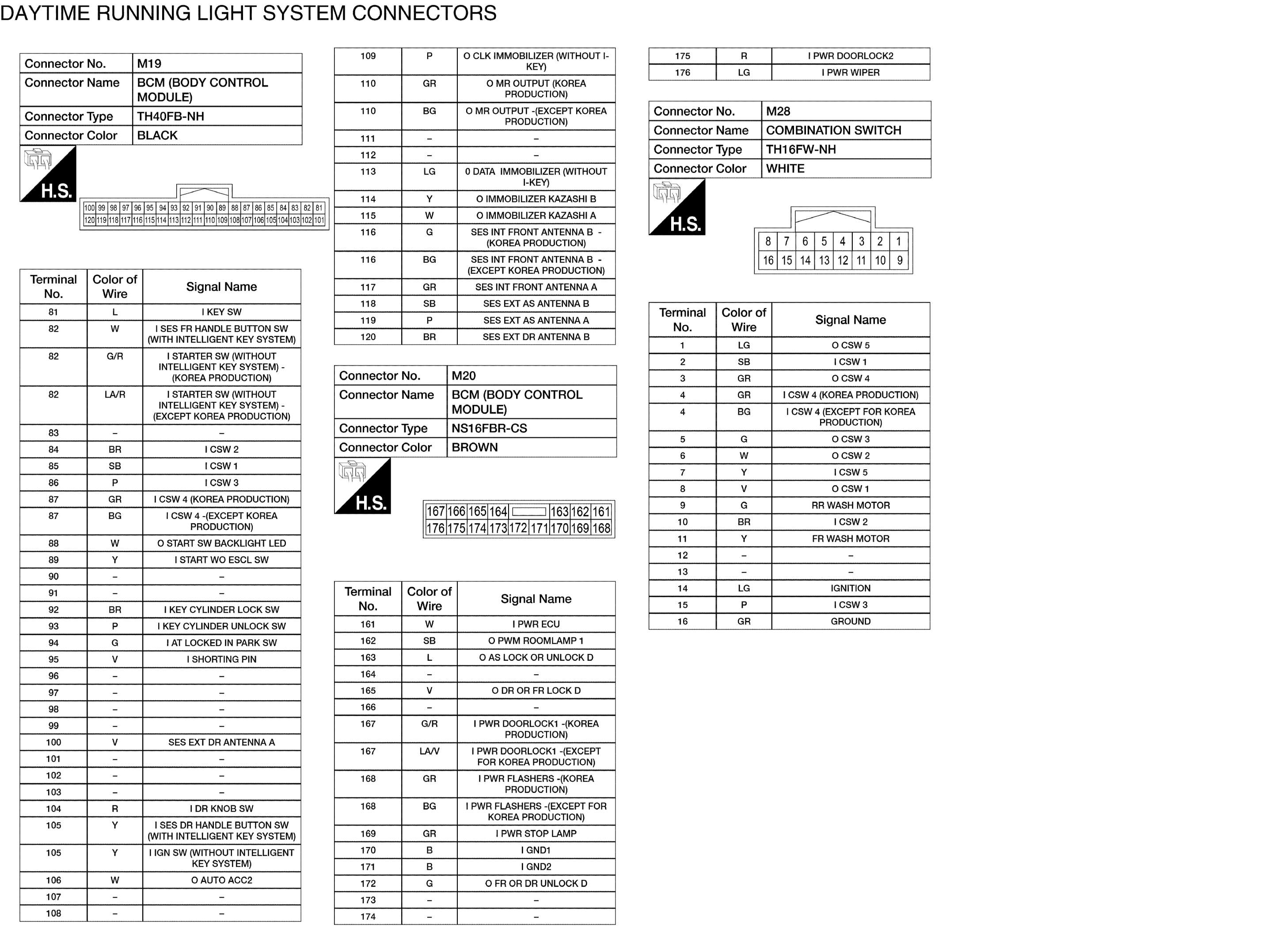

GNSAALIA5855GB-855

Courtesy of NISSAN NORTH AMERICA, INC.

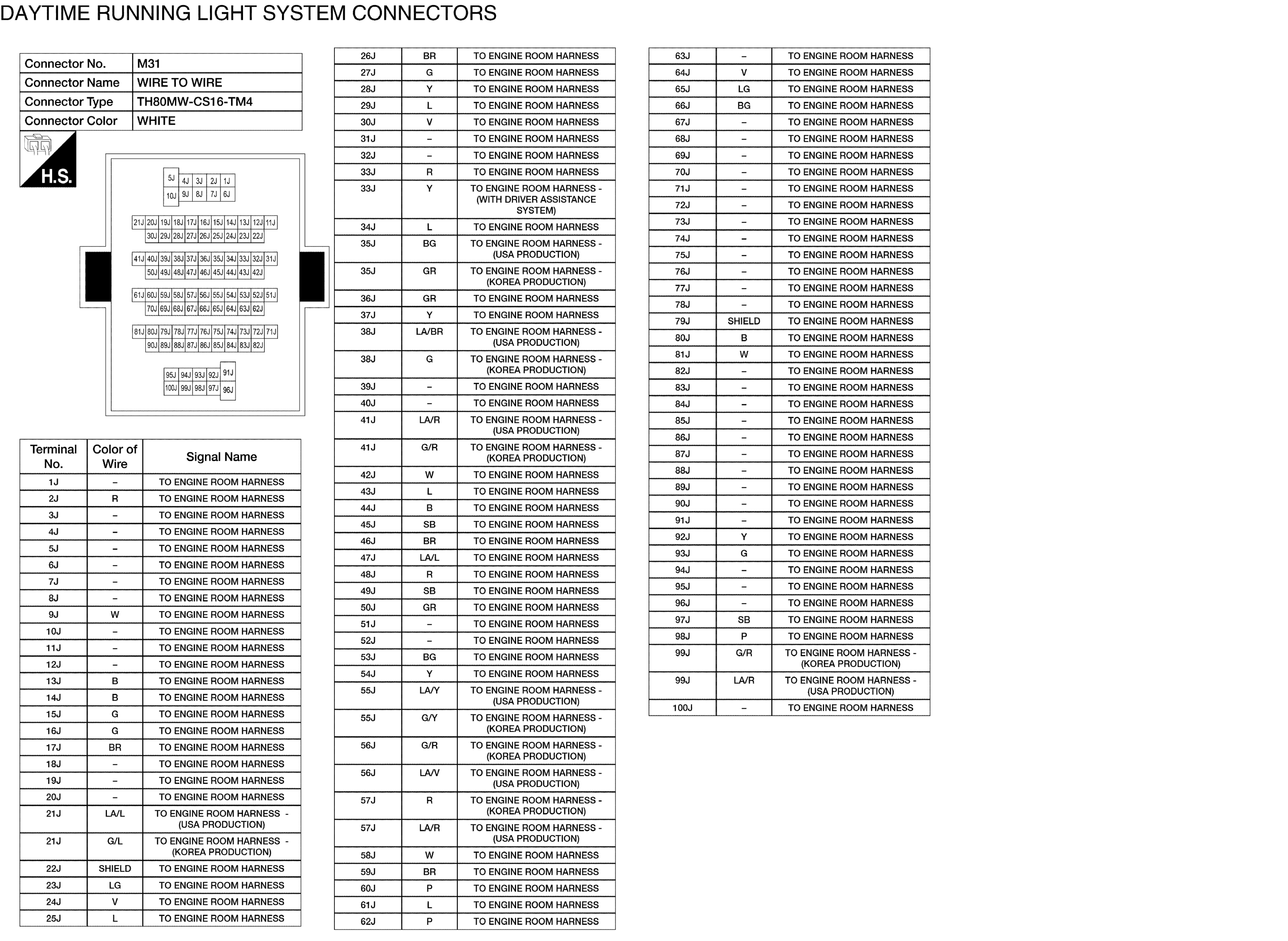

GNSAALIA5856GB-856

Courtesy of NISSAN NORTH AMERICA, INC.

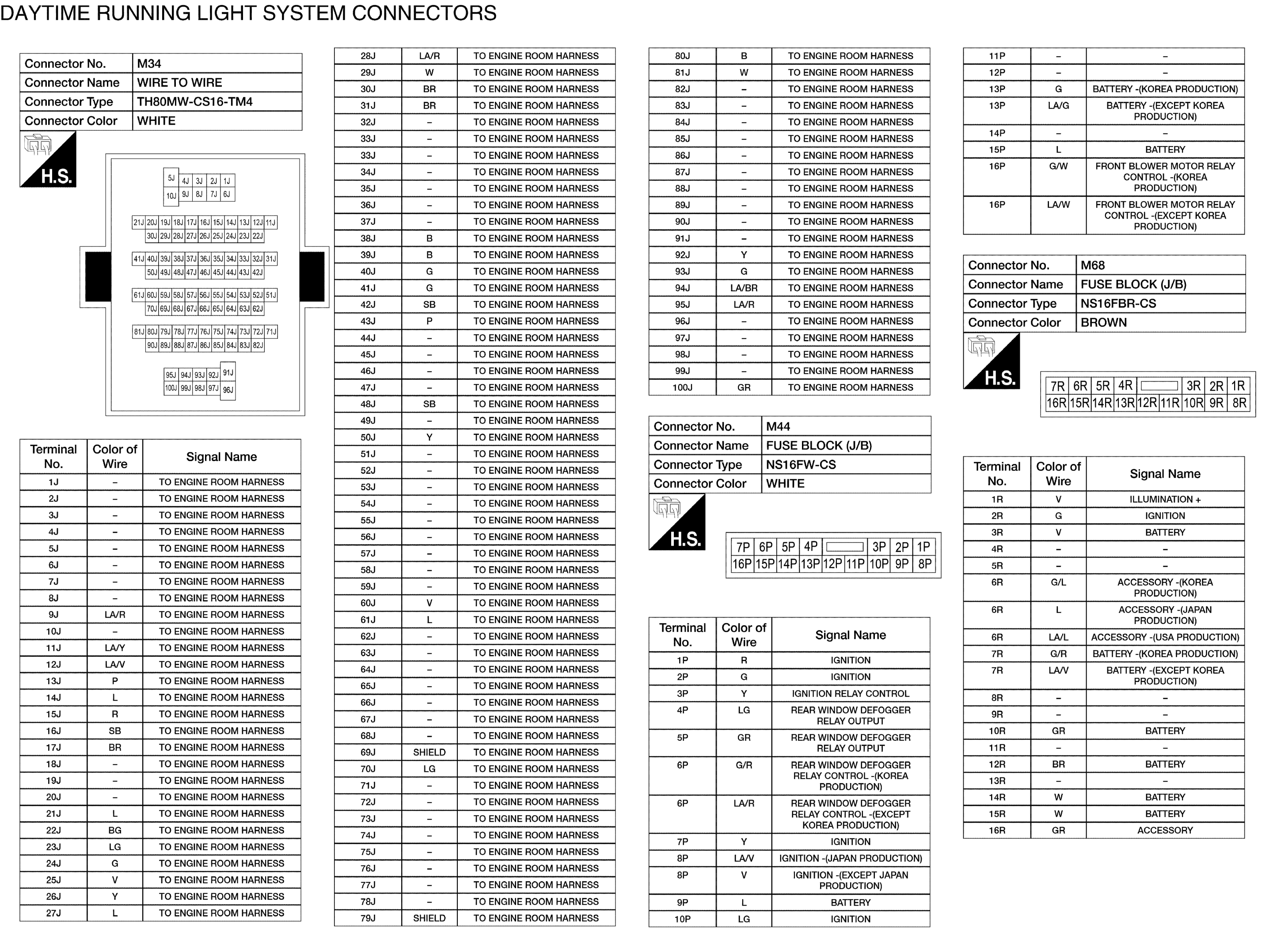

GNSAALIA6045GB-045

Courtesy of NISSAN NORTH AMERICA, INC.

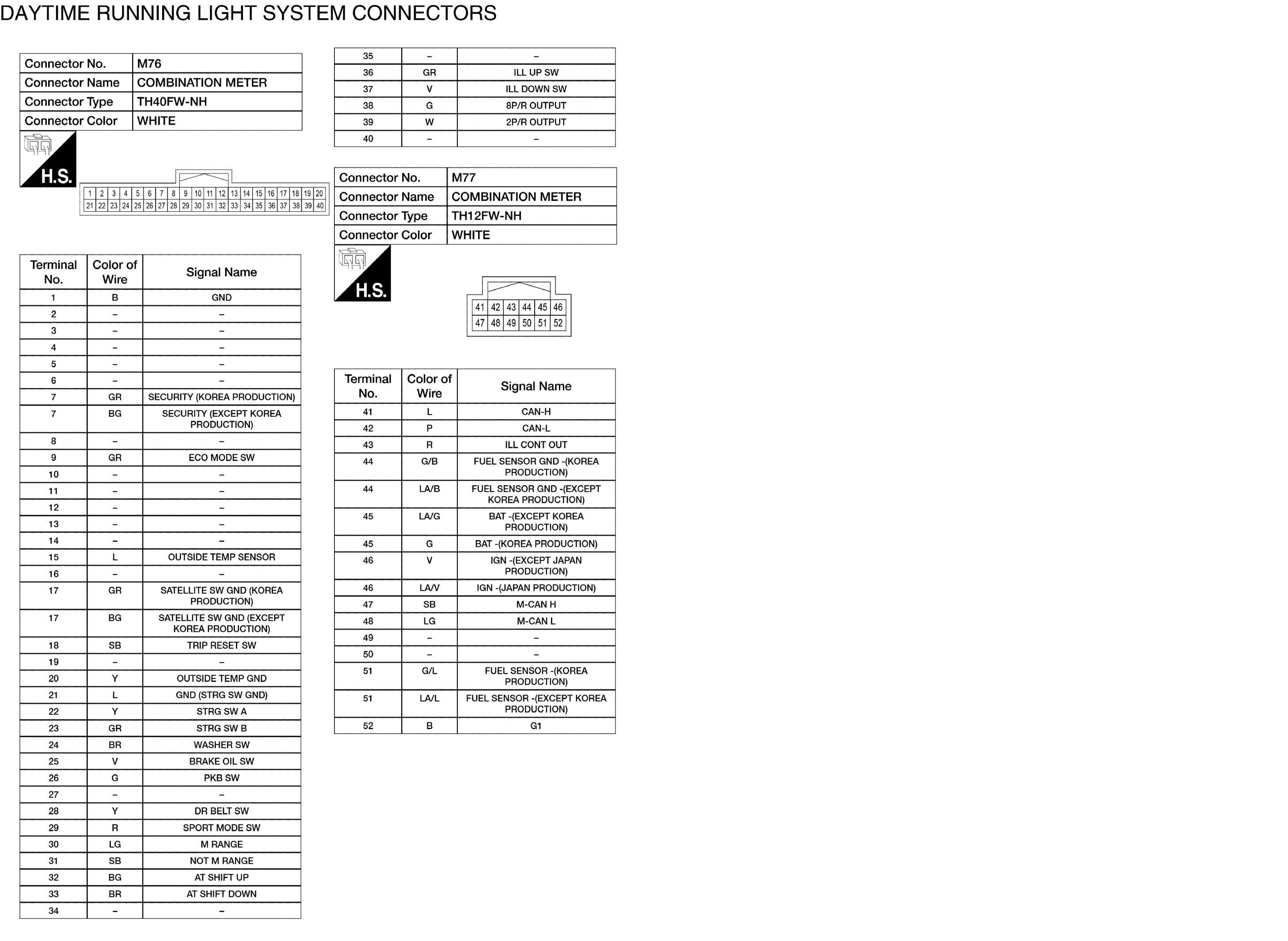

GNSAALIA6046GB-046

Courtesy of NISSAN NORTH AMERICA, INC.
