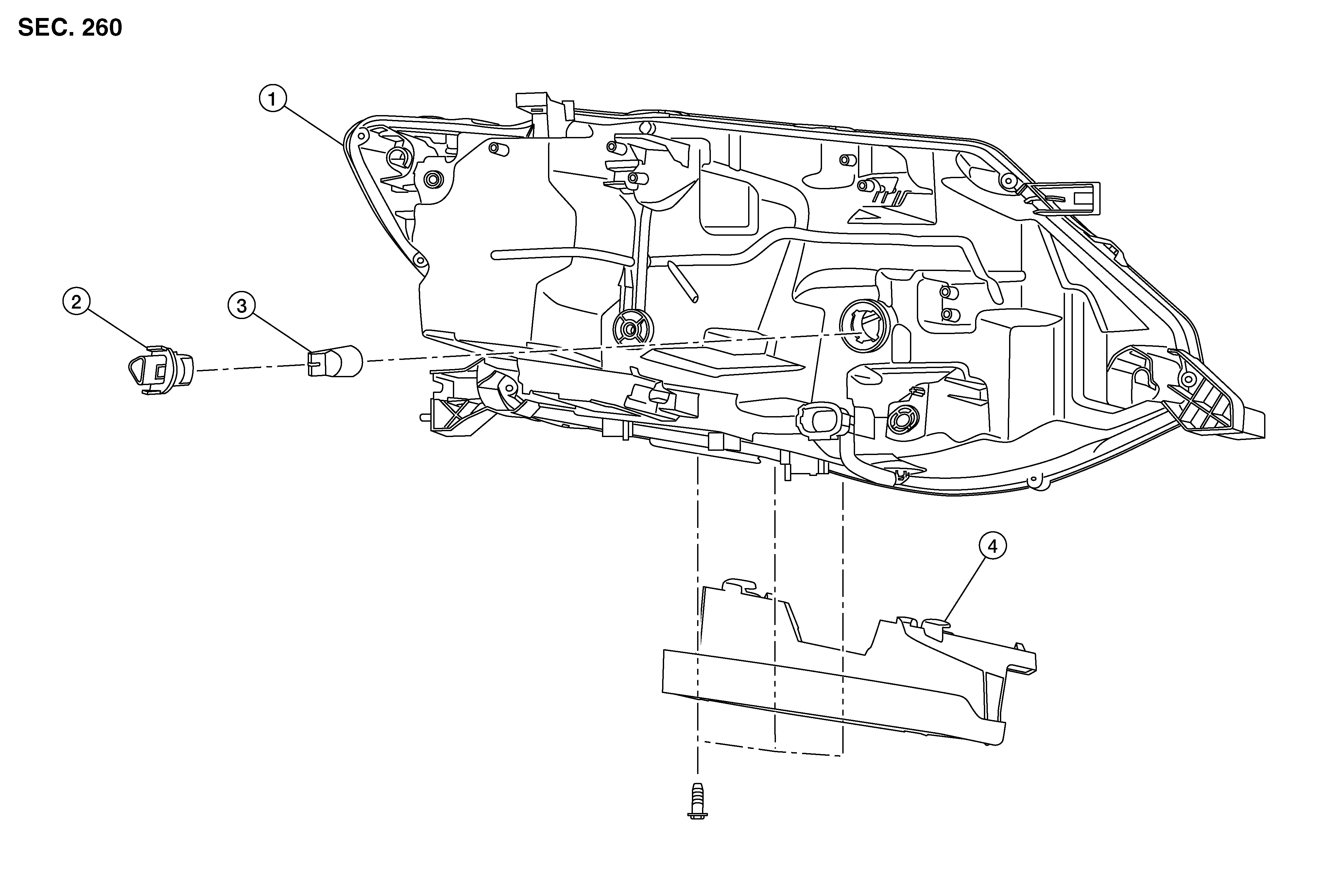

Exploded View With Torque Specifications
Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front combination lamp
2.
Turn signal lamp bulb socket
3.
Turn signal lamp bulb
4.
Front combination lamp mounting bracket
Courtesy of NISSAN NORTH AMERICA, INC.
