Exterior Lighting System (Halogen Headlamp) (Except Hybrid)
>>
Periodic Maintenance
>>
Headlamp Aiming Adjustment
>>
Inspection
>>

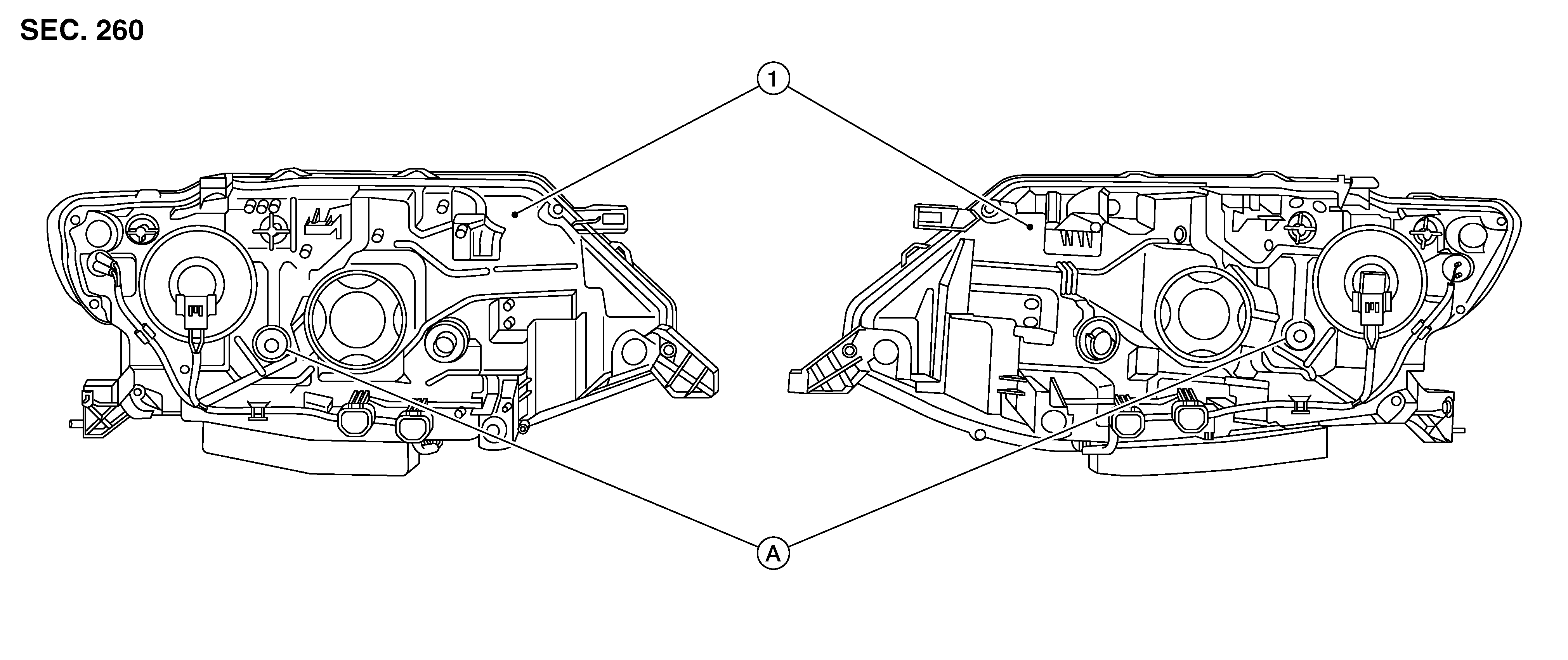

Aiming Adjustment Screw
Aiming Adjustment Screw
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front combination lamp (view from rear)
A.
Headlamp HI/LO (UP/DOWN) adjustment screw
