Aiming Adjustment Procedure

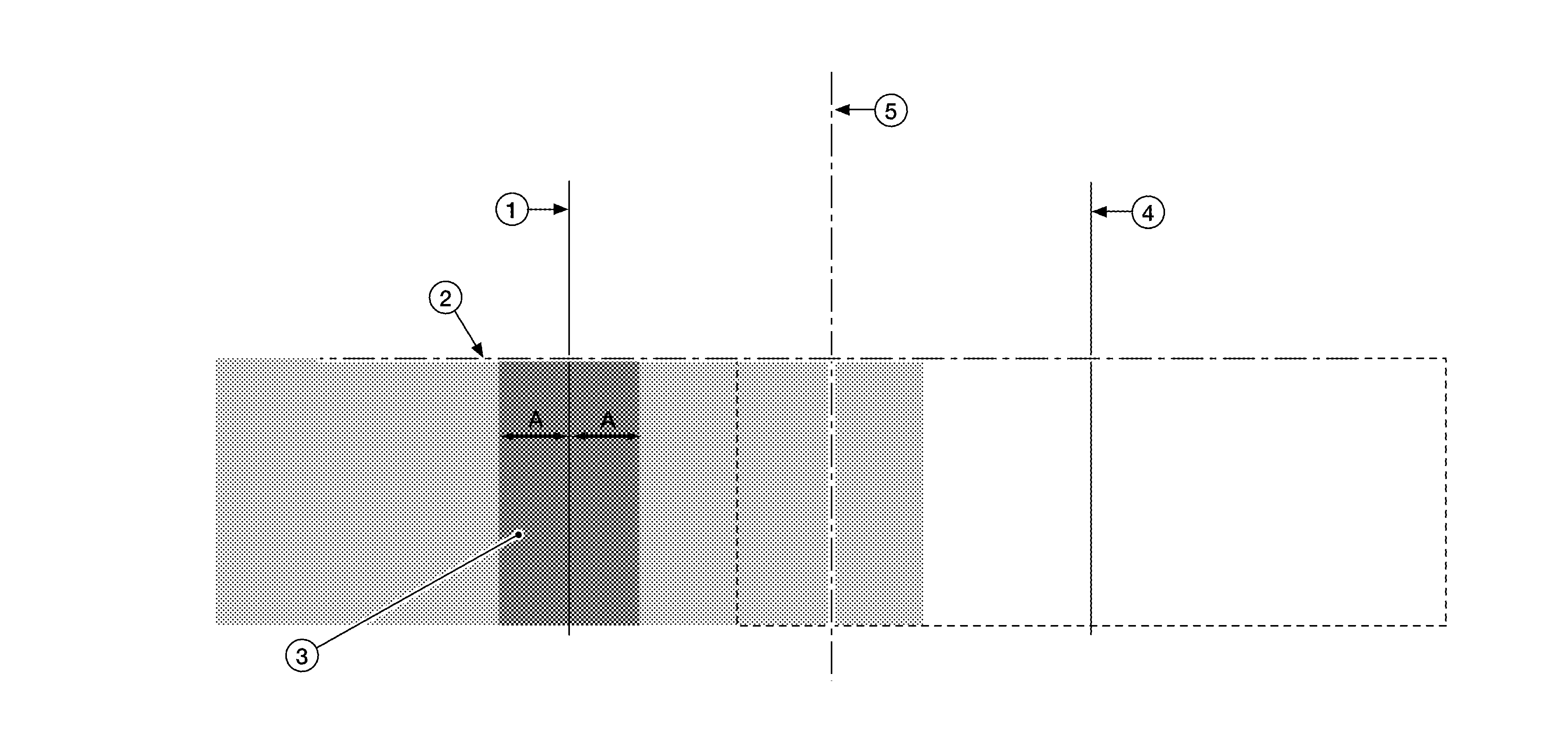

Aiming Chart
| 1. | Vertical center line of front fog lamp (LH) | 2. | Lamp center above ground | 3. | Front fog lamp high intensity area (LH) |
| 4. | Vertical center line of front fog lamp (RH) | 5. | Vertical center axis | A. | 100mm (4in) |
NOTE:
- (LH) Front fog lamp aiming specifications shown, (RH) similar.
- Check the following conditions before performing the aiming adjustment.
- Keep all tires inflated to correct pressure.
- Place vehicle on level ground.
- See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.
- When performing adjustment, if necessary, cover the headlamps and opposite front fog lamp.
- Set the distance between the screen and the center of the front fog lamp lens as shown.
(1) Aiming screen or a matte white surface
(2) 7.62 m (25 ft)
(3) Floor to center of front fog lamp lens
(4) Floor
- Turn front fog lamps ON.
- Access adjusting screw from underneath front bumper fascia. Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is at the front fog lamp centers above ground.
