Meter System: Wiring Diagram

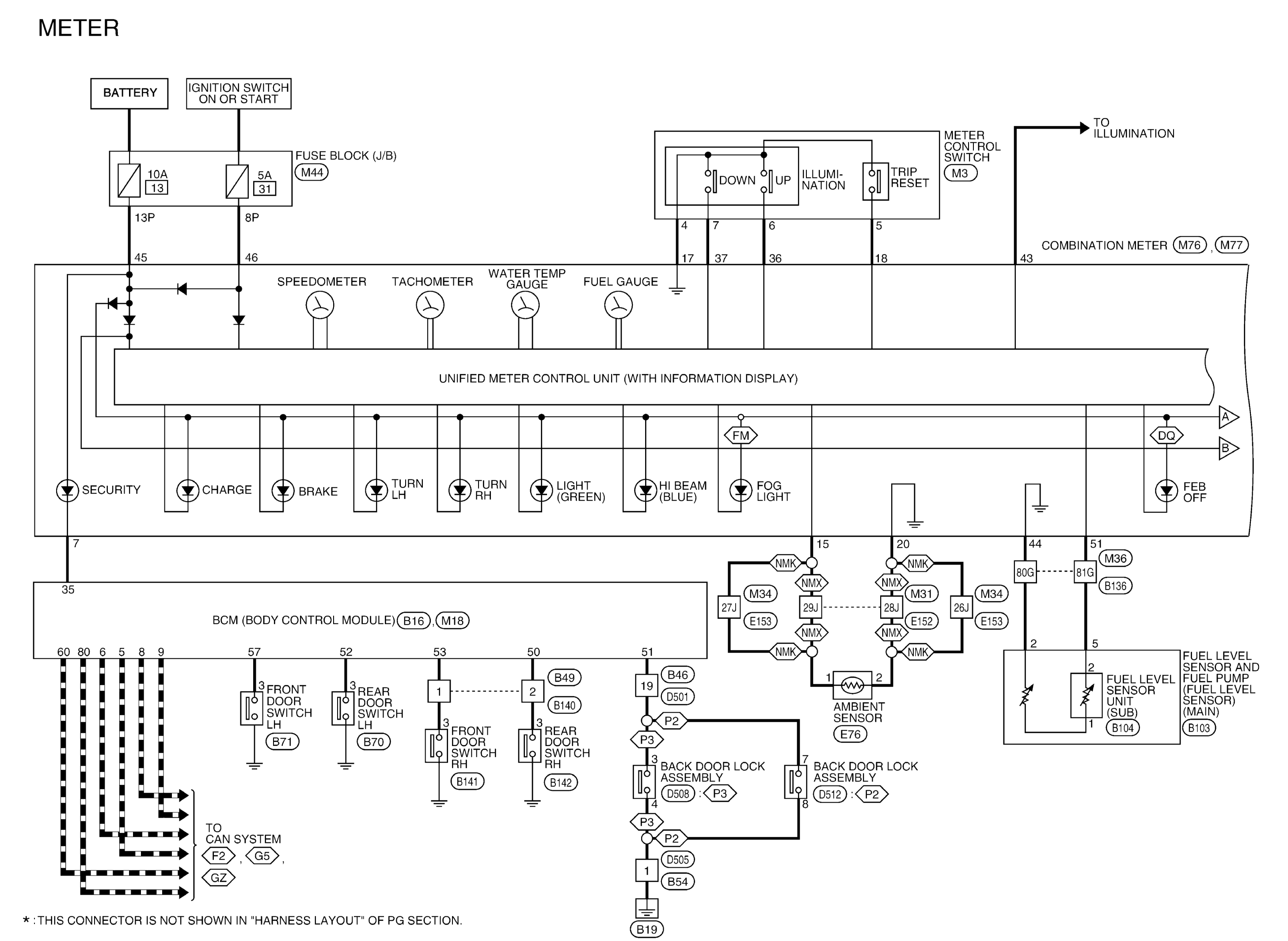

GNSAANWA1765GB-765

Courtesy of NISSAN NORTH AMERICA, INC.

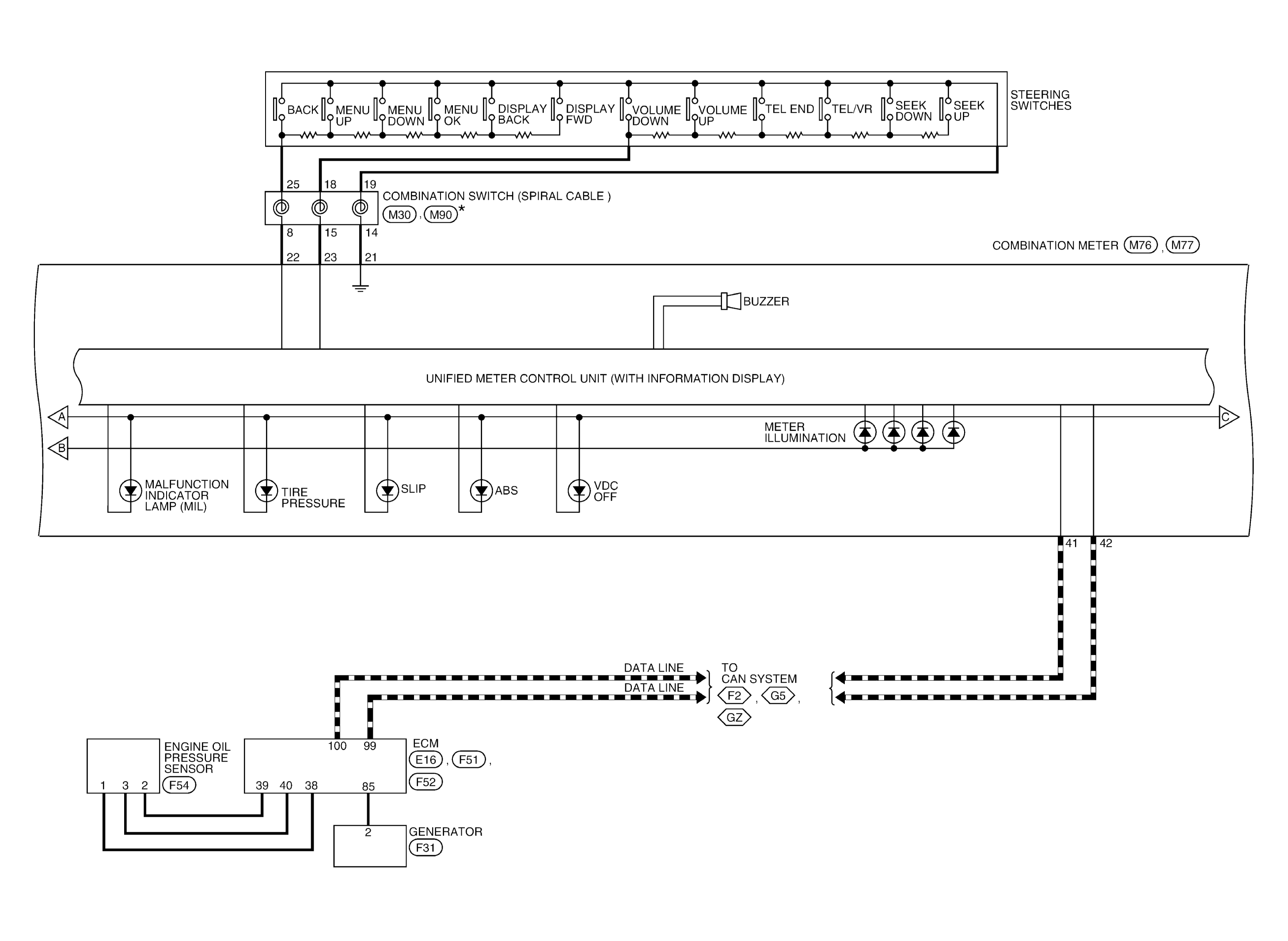

GNSAANWA1766GB-766

Courtesy of NISSAN NORTH AMERICA, INC.

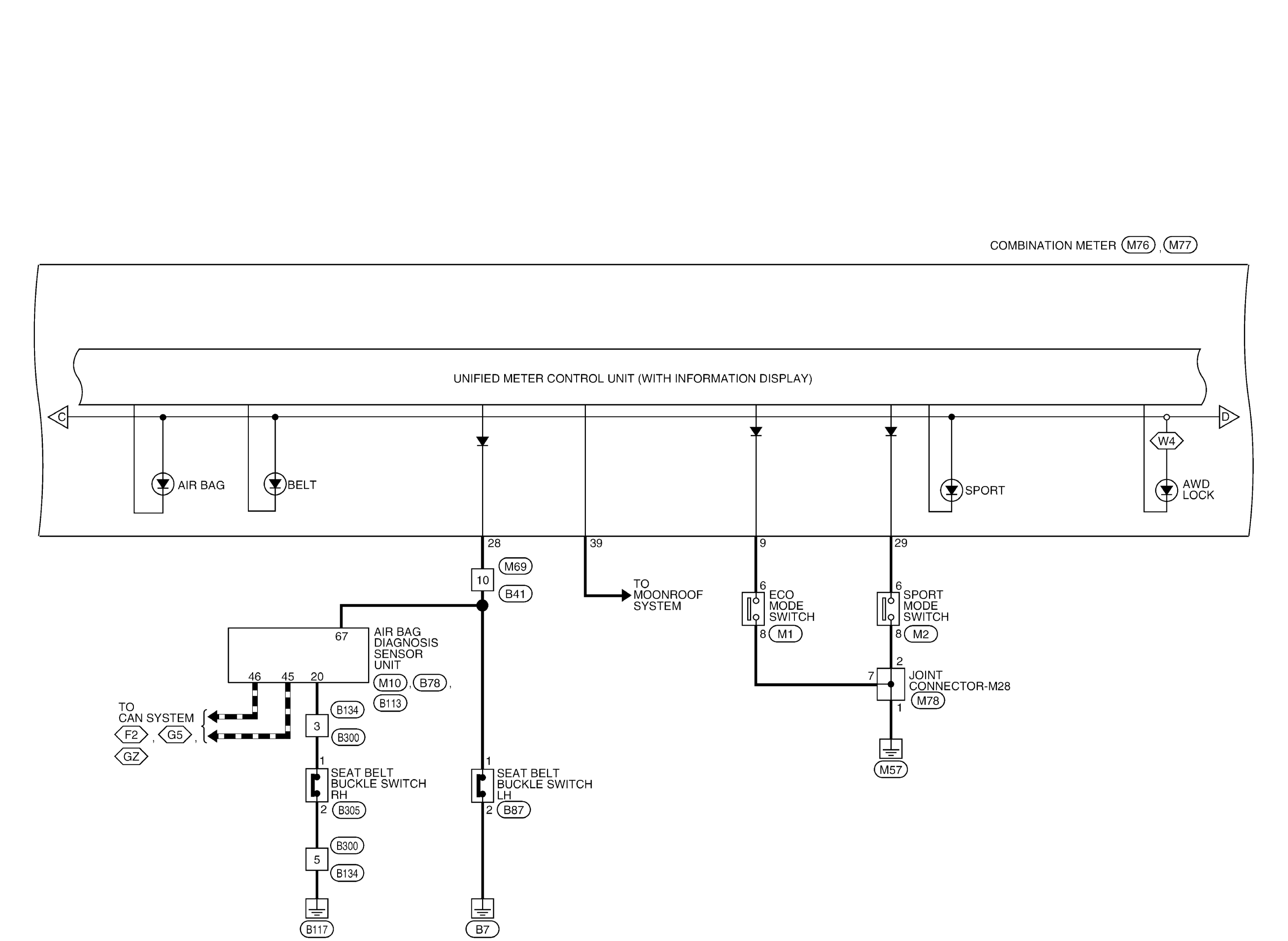

GNSAANWA1767GB-767

Courtesy of NISSAN NORTH AMERICA, INC.

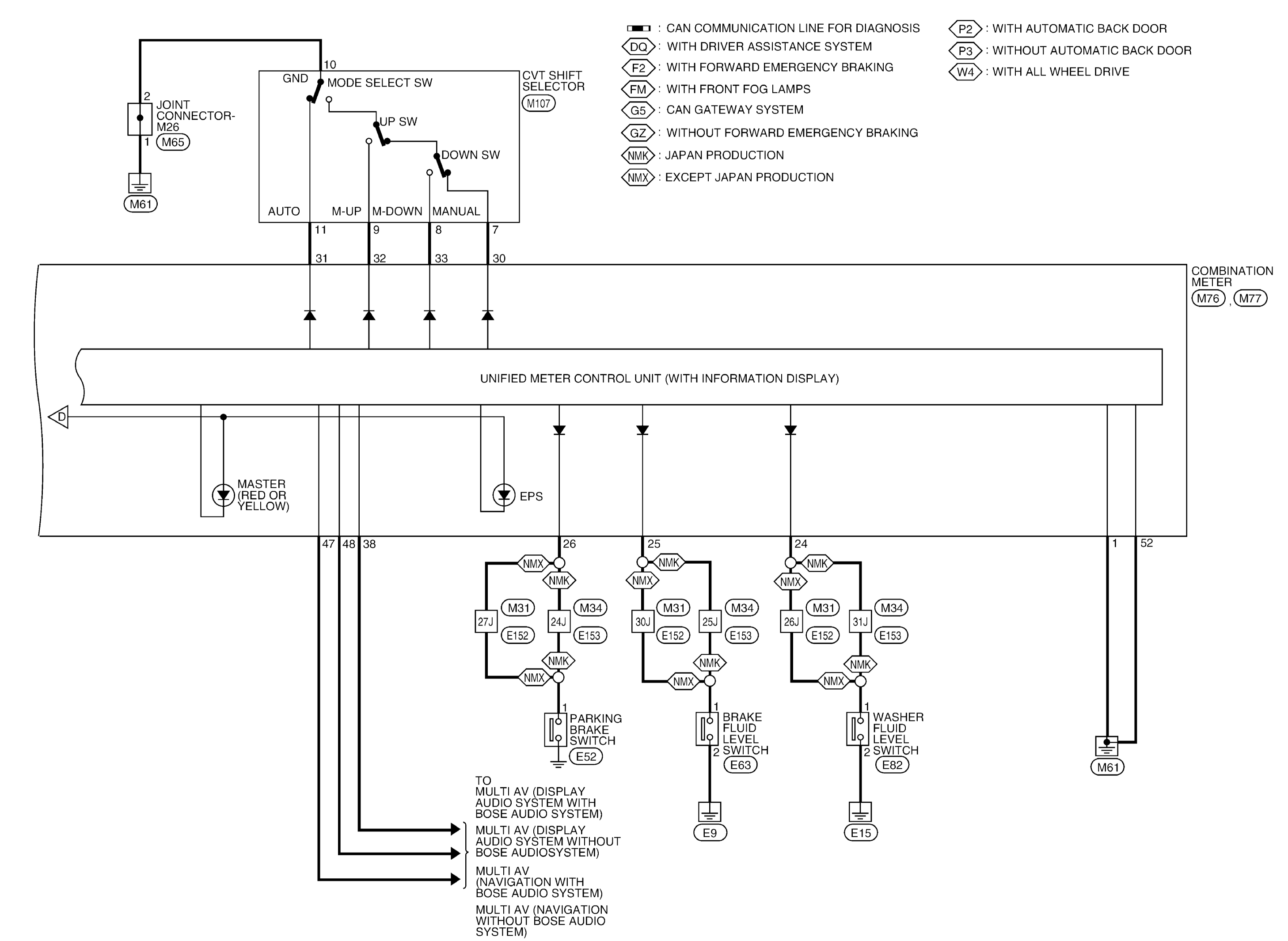

GNSAANWA1768GB-768

Courtesy of NISSAN NORTH AMERICA, INC.

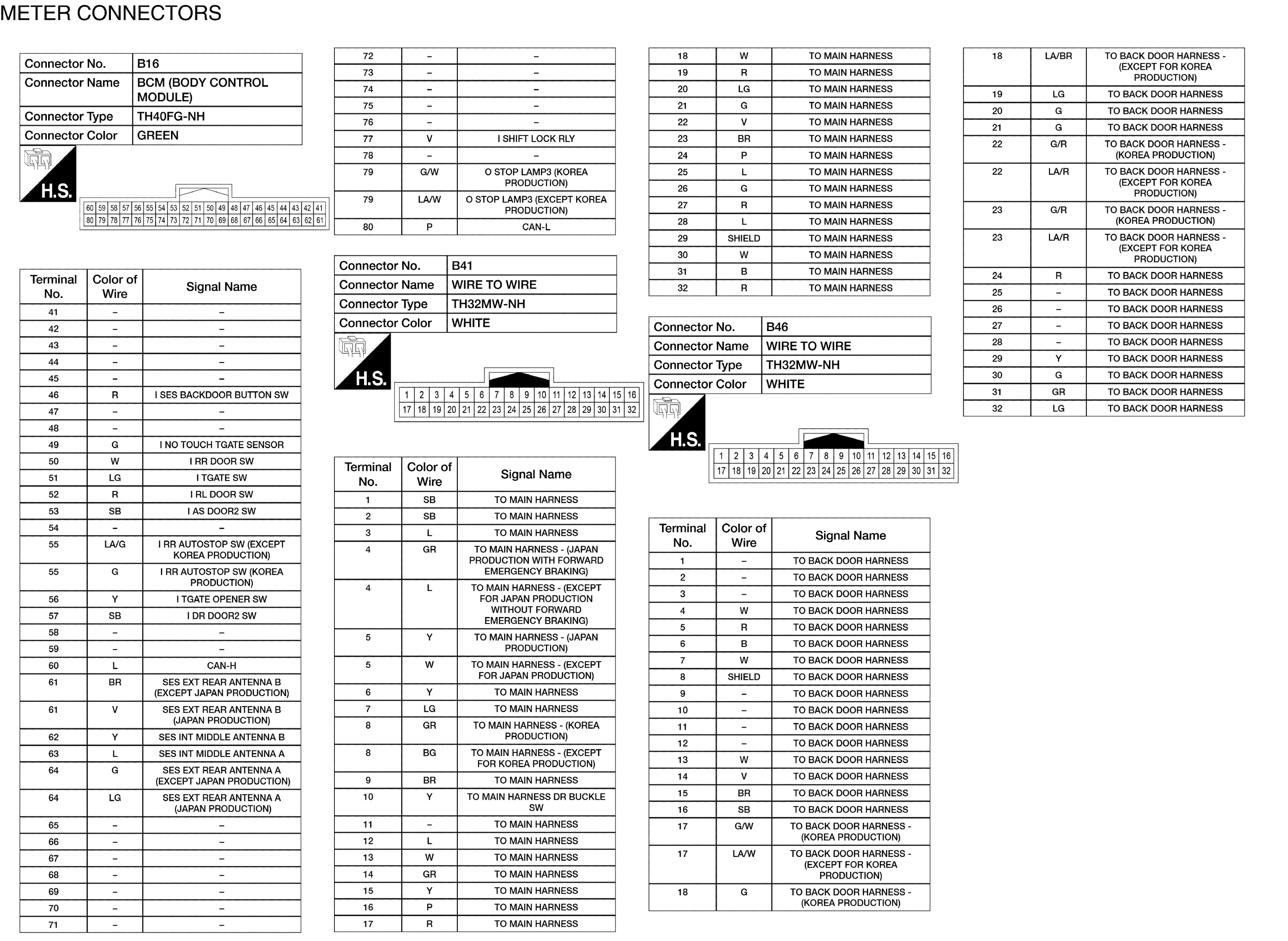

GNSAANIA5539GB-539

Courtesy of NISSAN NORTH AMERICA, INC.

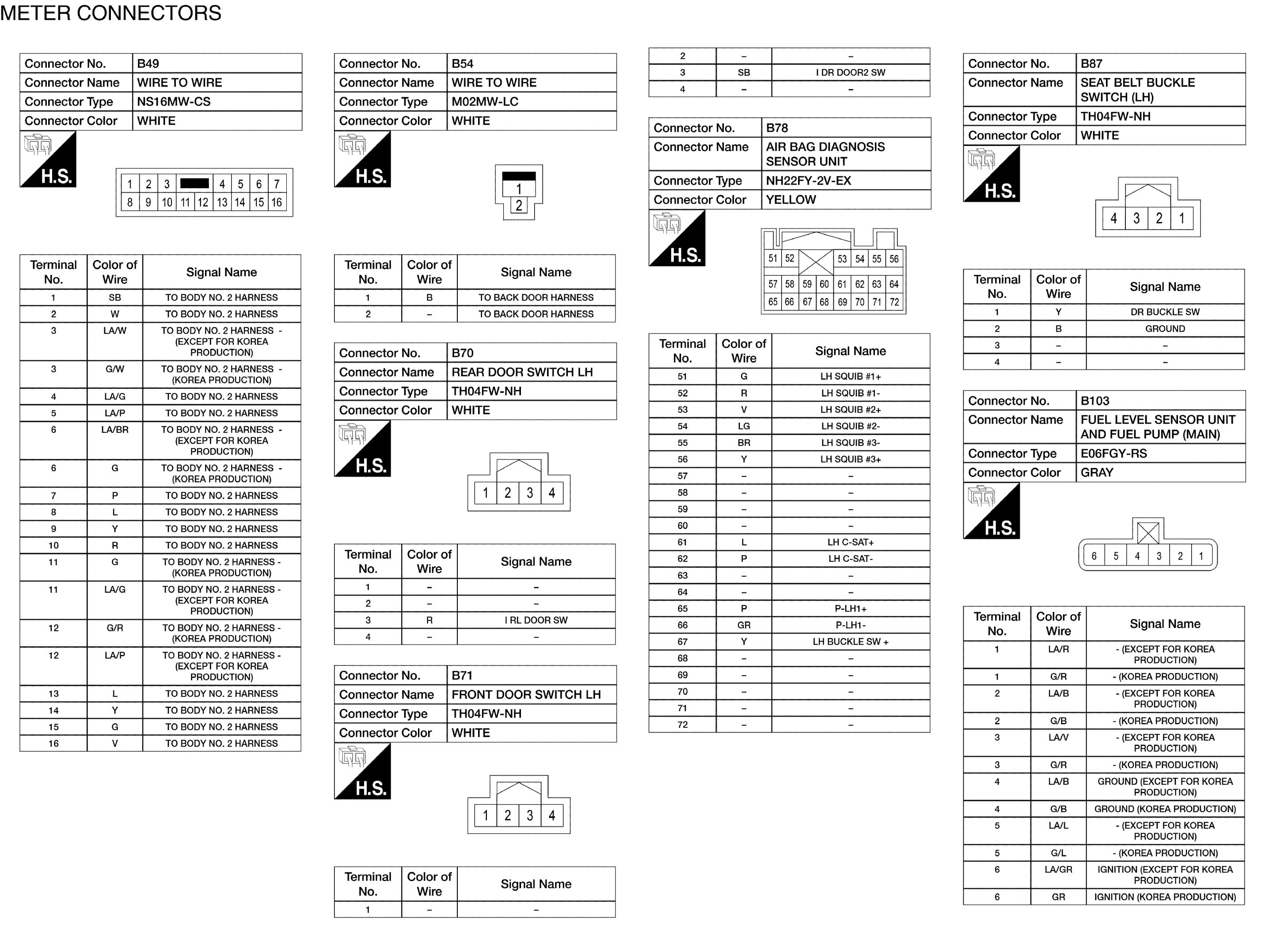

GNSAANIA5540GB-540

Courtesy of NISSAN NORTH AMERICA, INC.

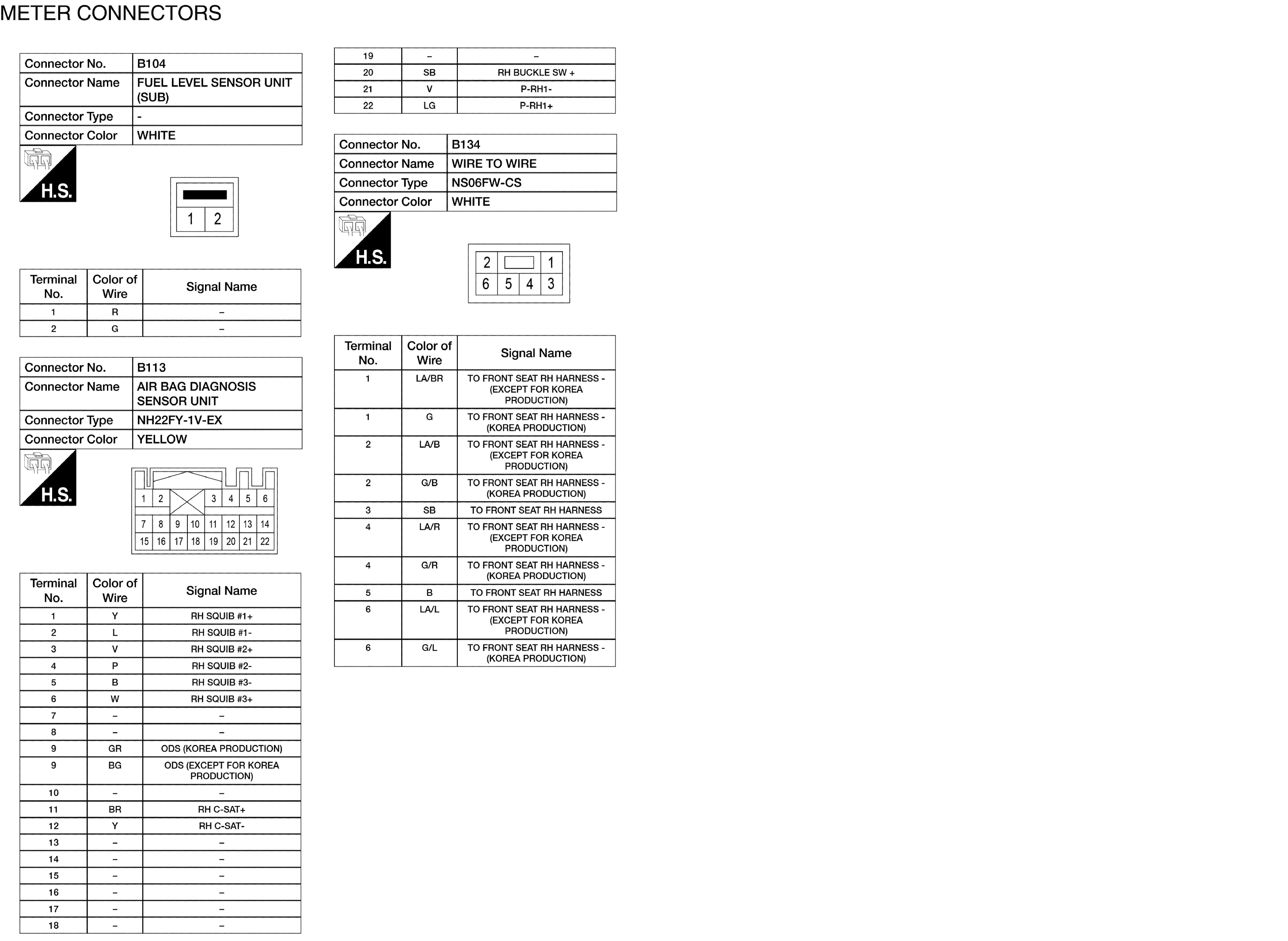

GNSAANIA5541GB-541

Courtesy of NISSAN NORTH AMERICA, INC.

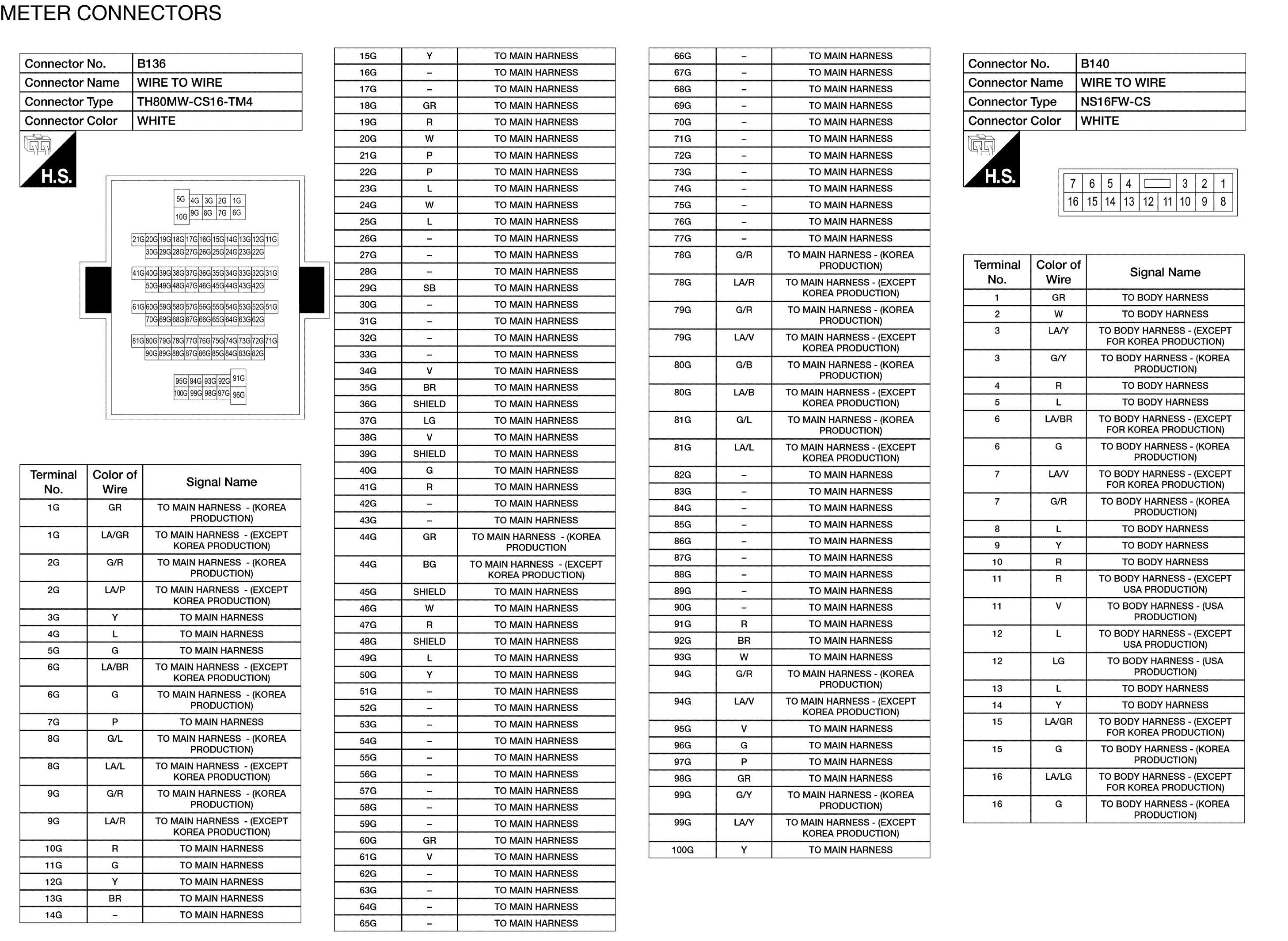

GNSAANIA5542GB-542

Courtesy of NISSAN NORTH AMERICA, INC.

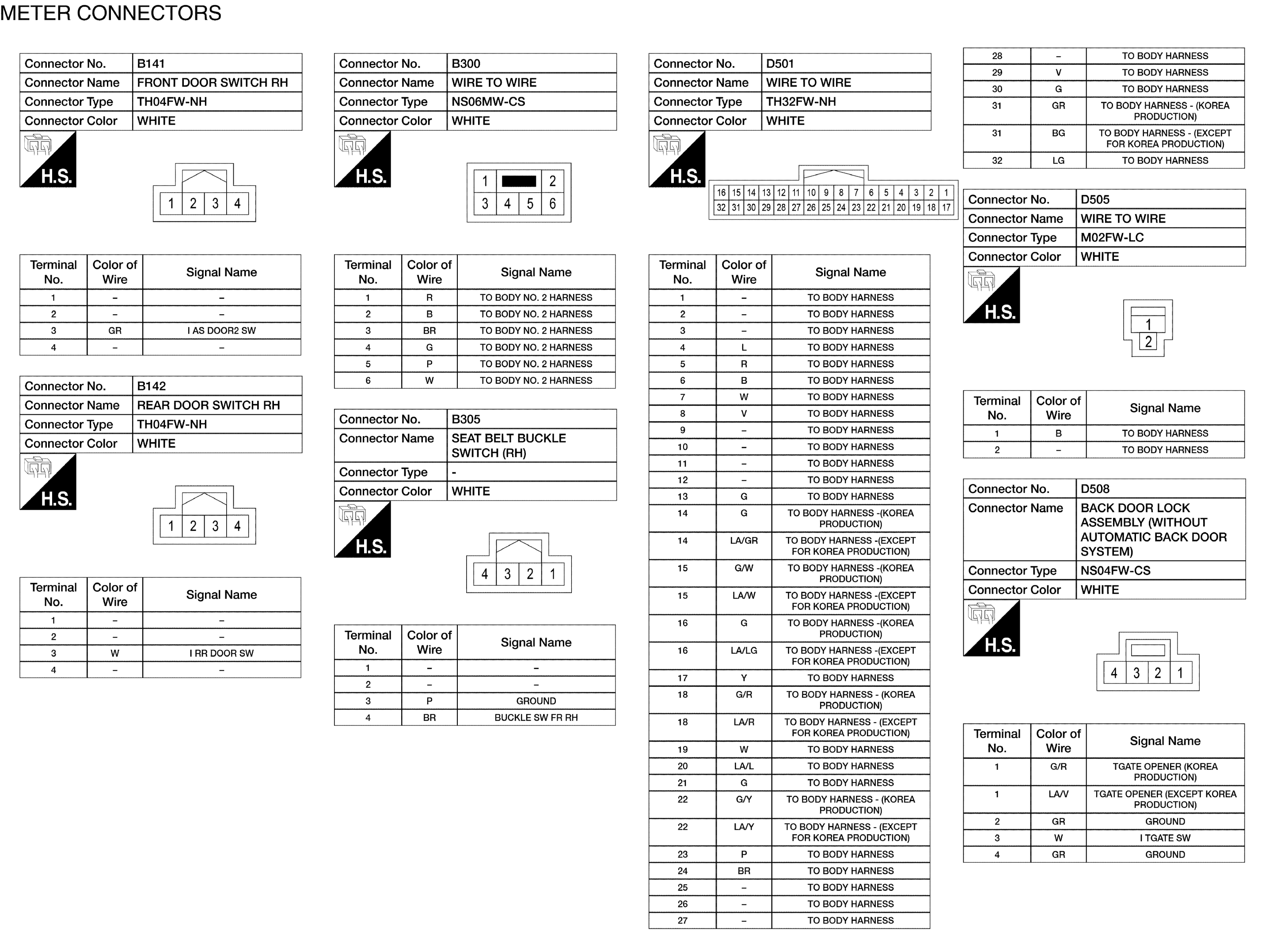

GNSAANIA5543GB-543

Courtesy of NISSAN NORTH AMERICA, INC.

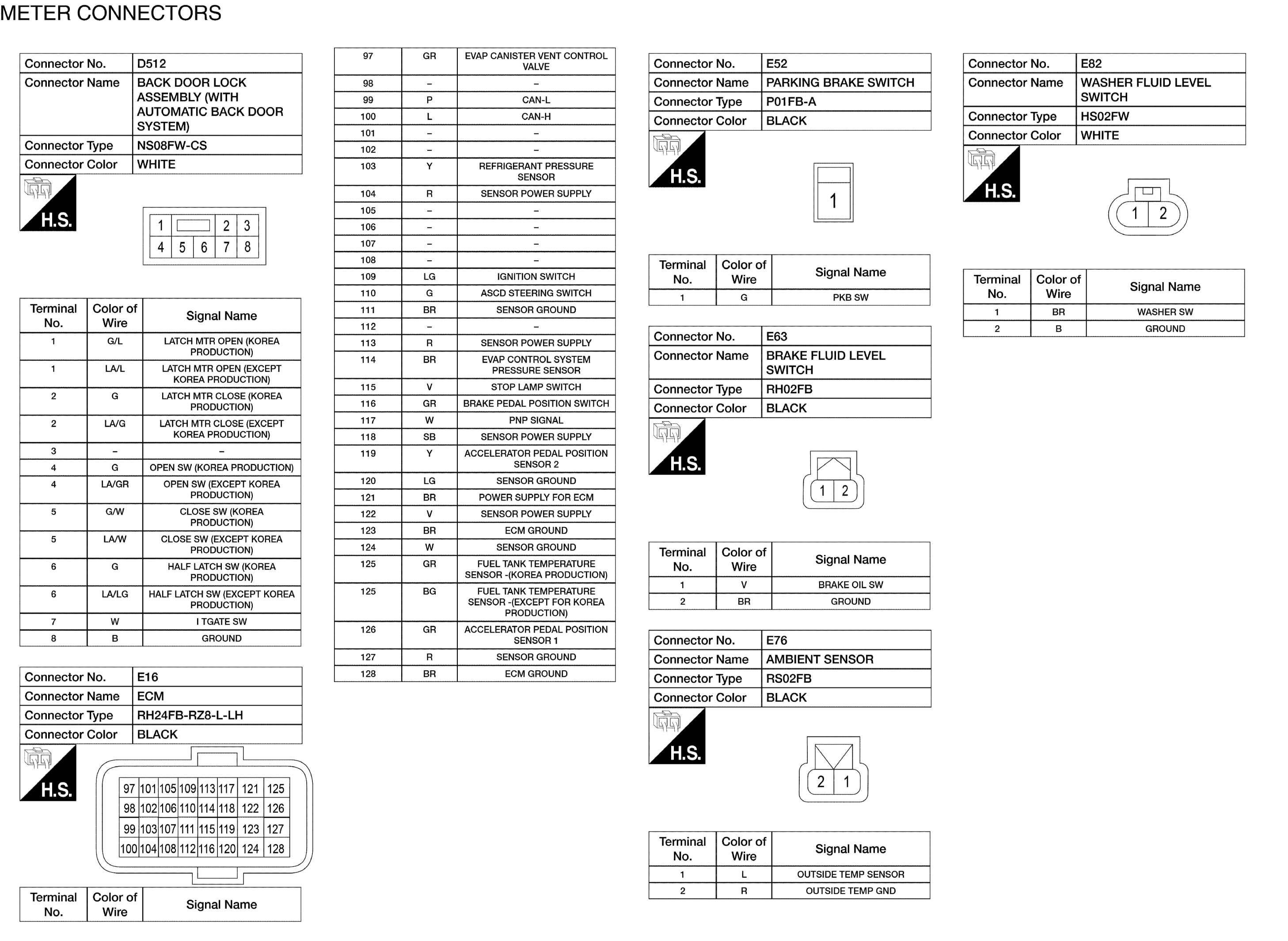

GNSAANIA5544GB-544

Courtesy of NISSAN NORTH AMERICA, INC.

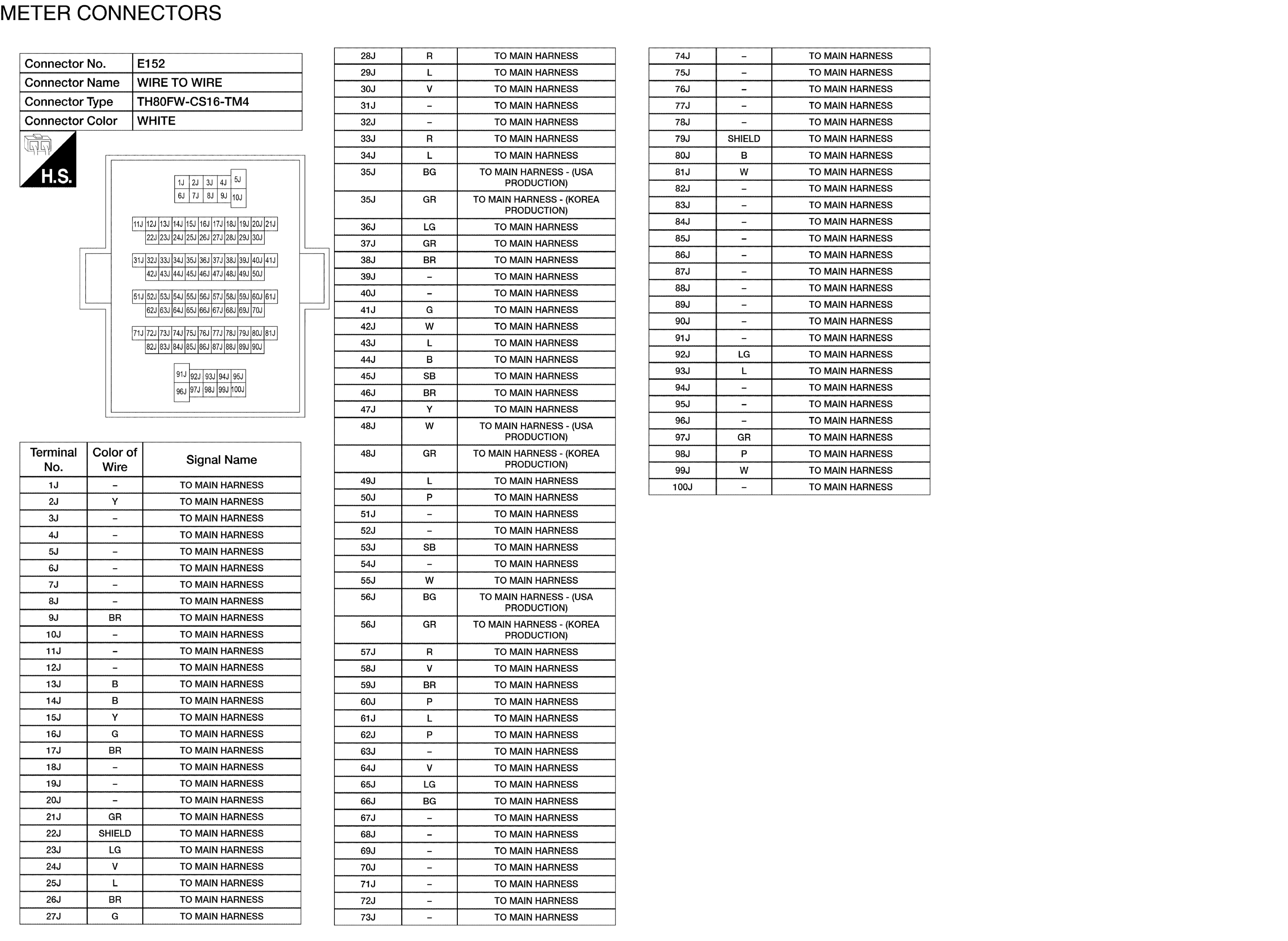

GNSAANIA5545GB-545

Courtesy of NISSAN NORTH AMERICA, INC.

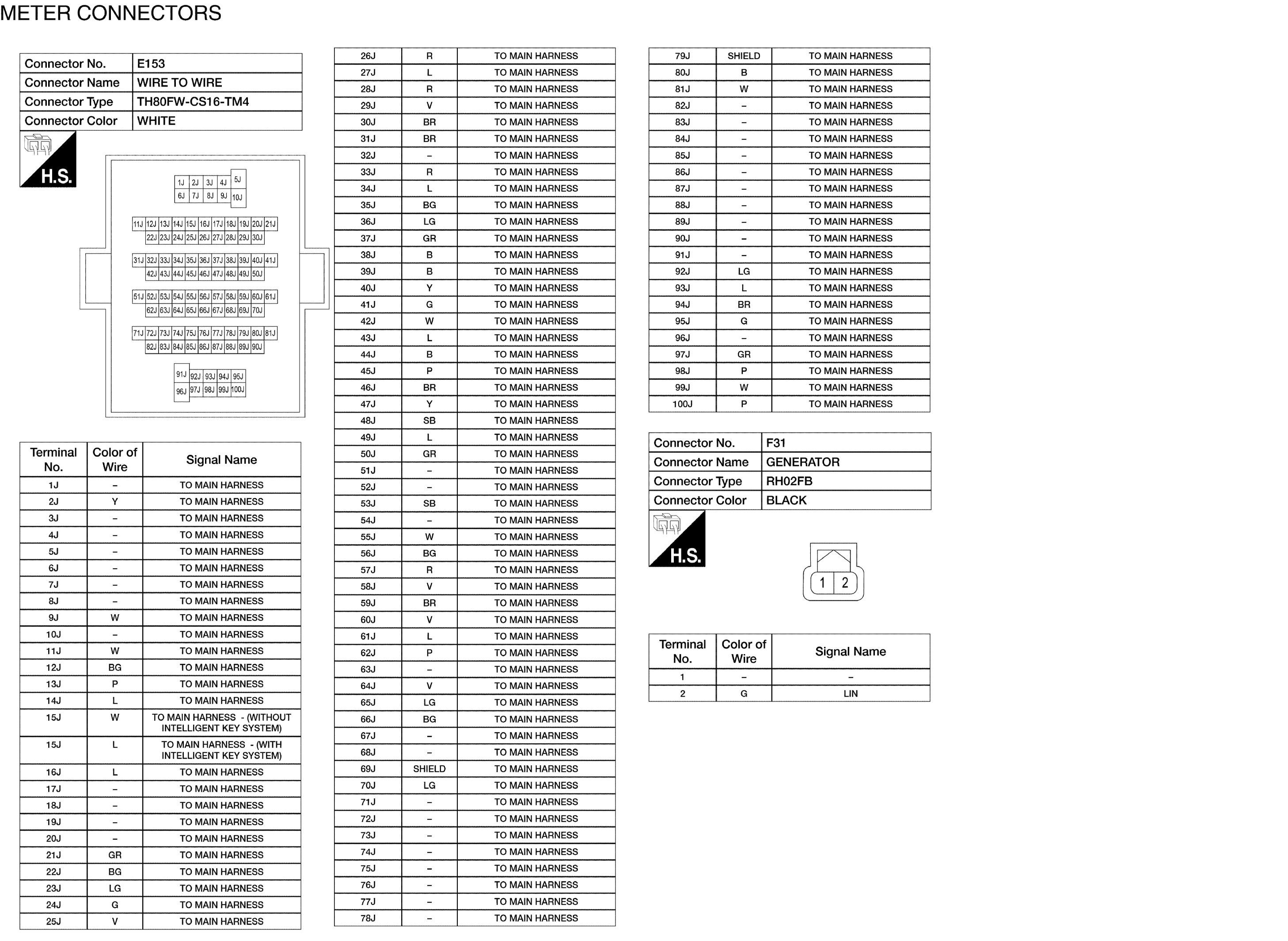

GNSAANIA5546GB-546

Courtesy of NISSAN NORTH AMERICA, INC.

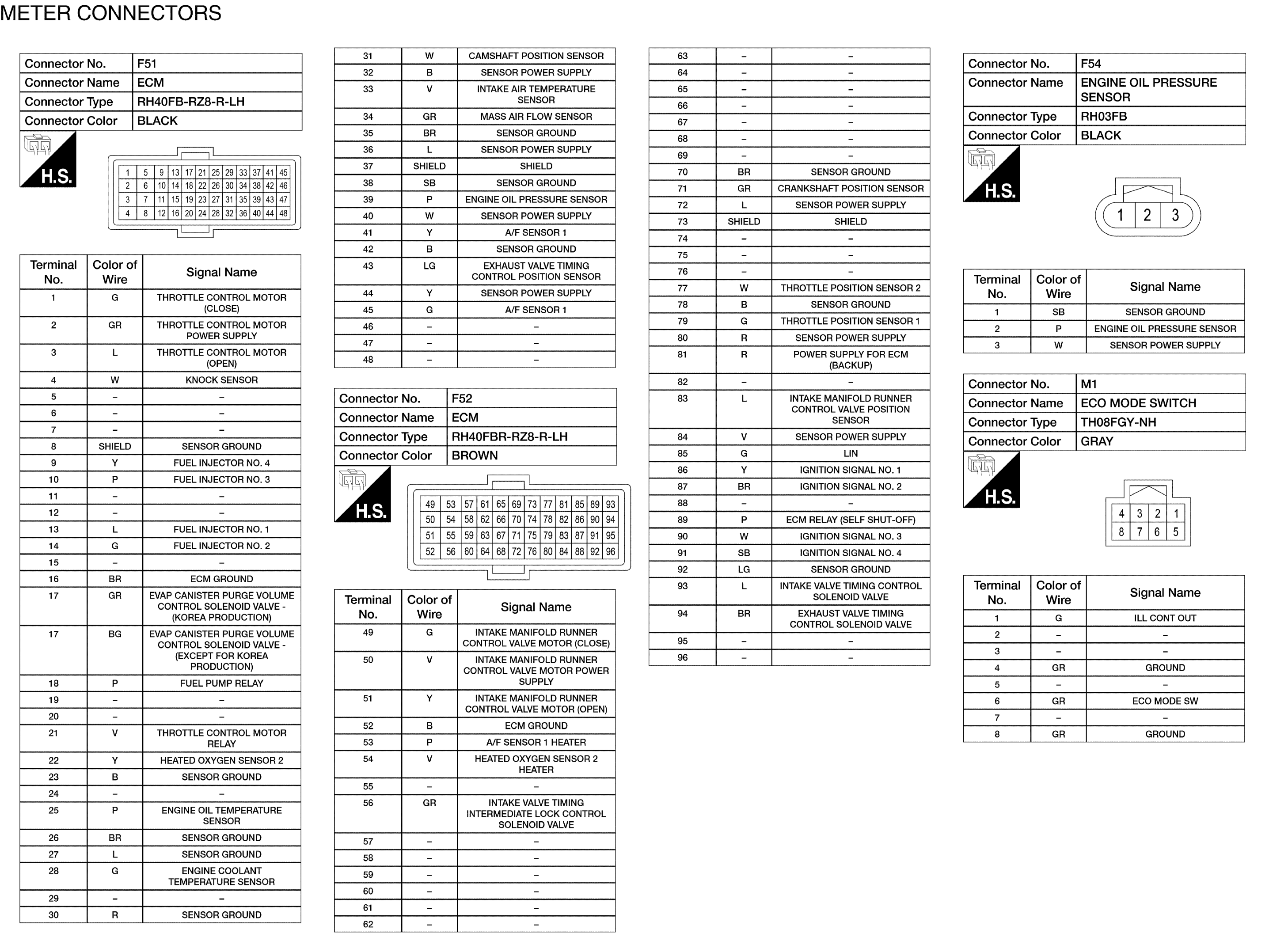

GNSAANIA5547GB-547

Courtesy of NISSAN NORTH AMERICA, INC.

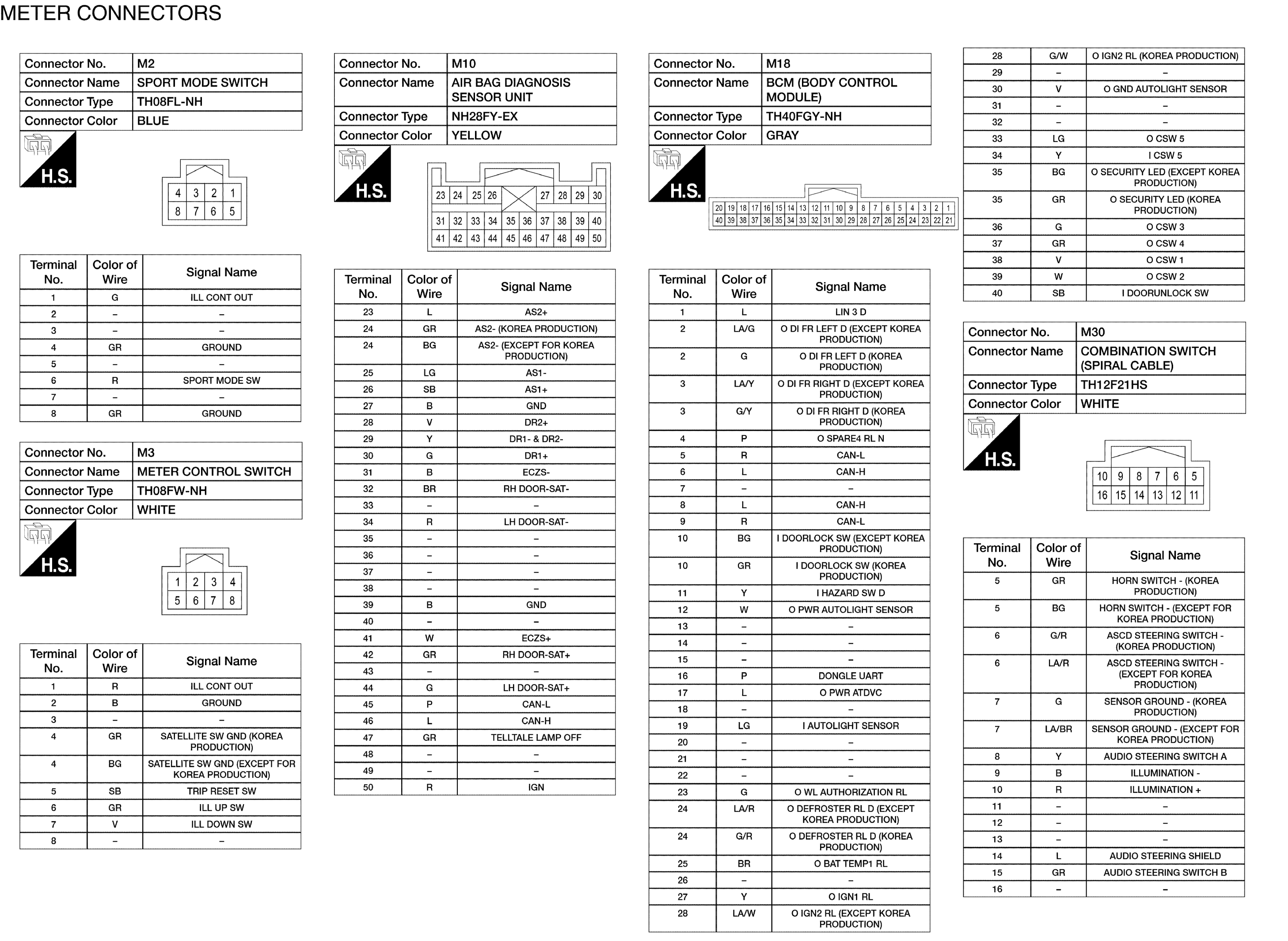

GNSAANIA5548GB-548

Courtesy of NISSAN NORTH AMERICA, INC.

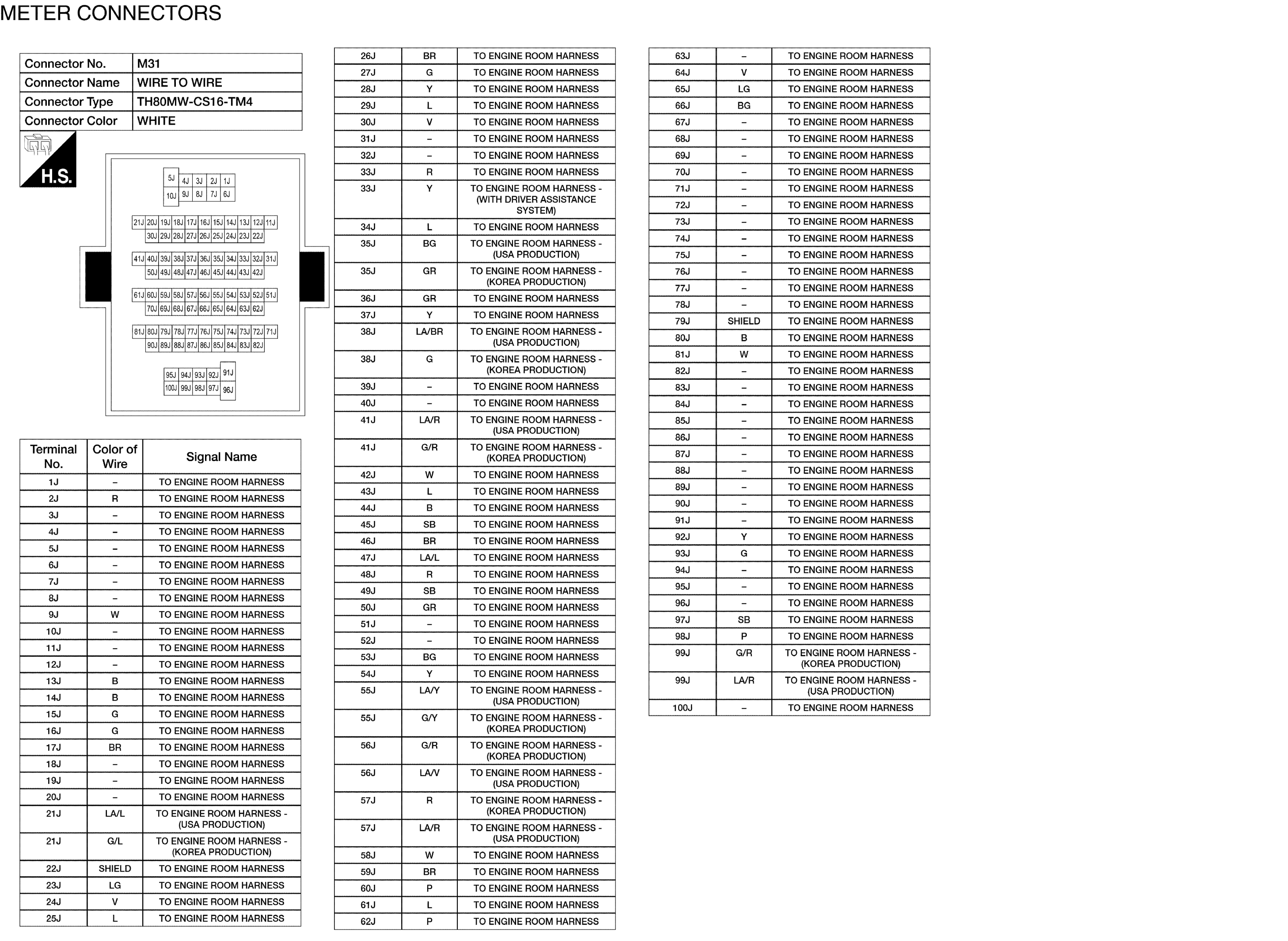

GNSAANIA5549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.

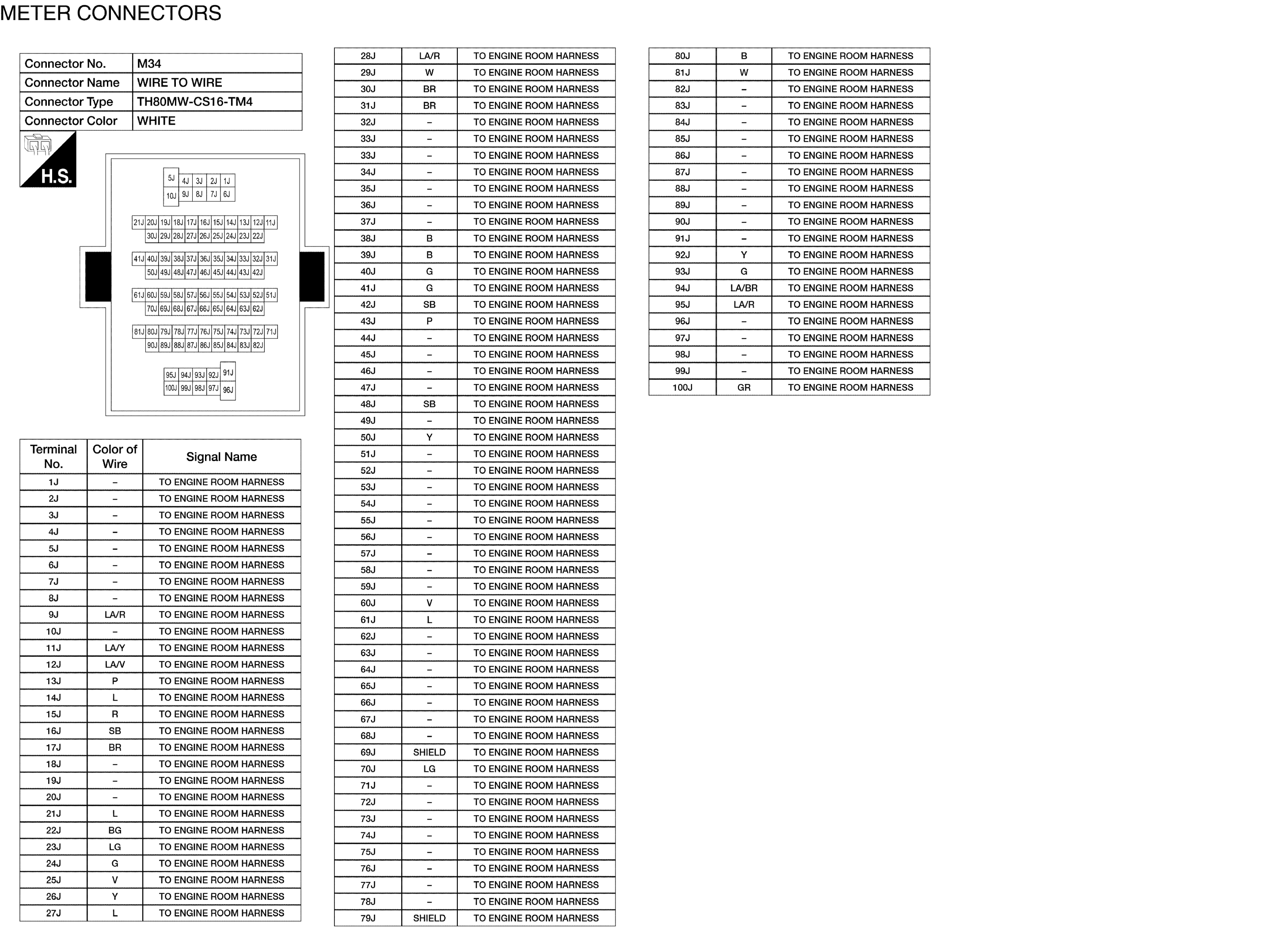

GNSAANIA5550GB-550

Courtesy of NISSAN NORTH AMERICA, INC.

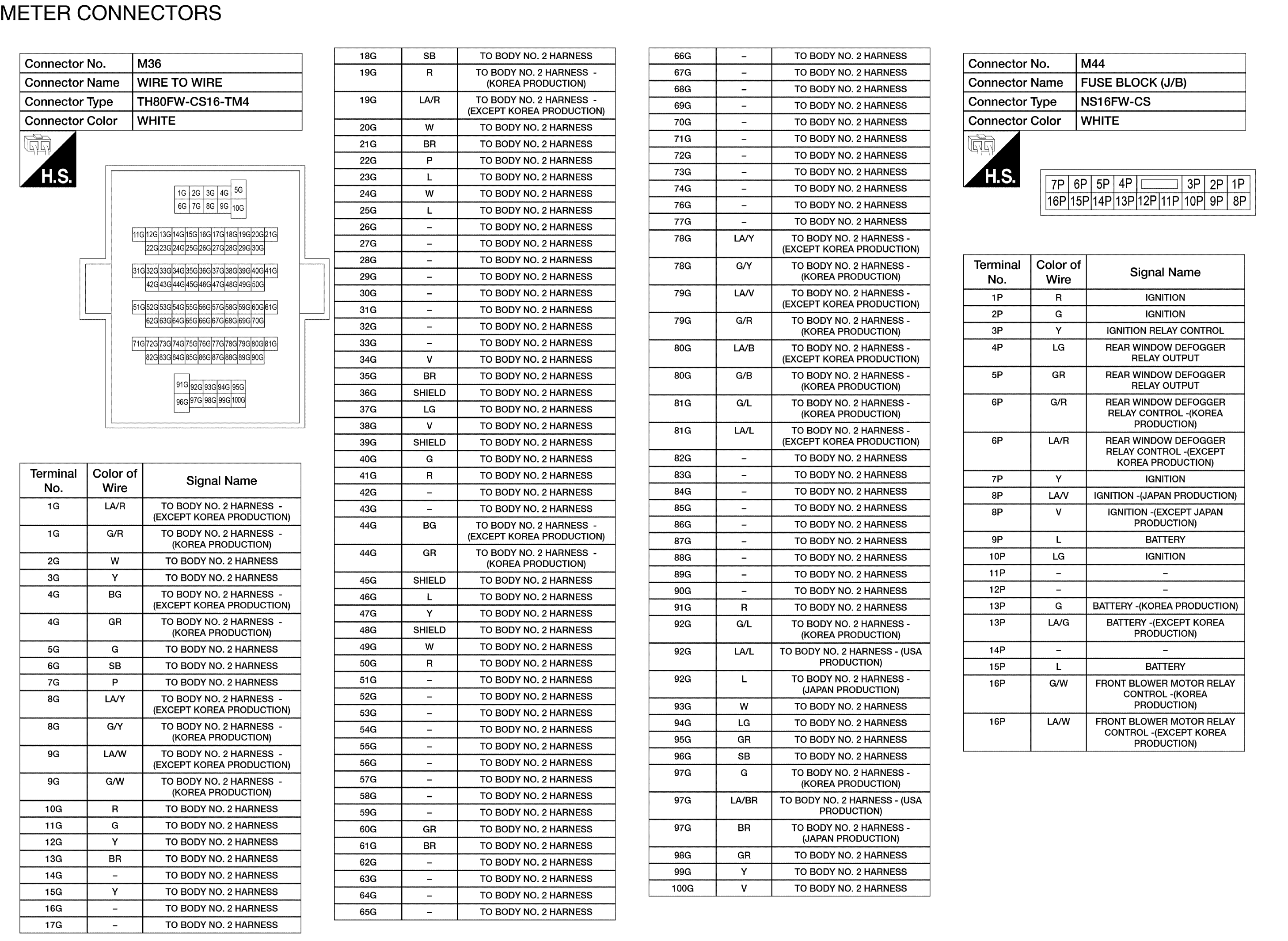

GNSAANIA5551GB-551

Courtesy of NISSAN NORTH AMERICA, INC.

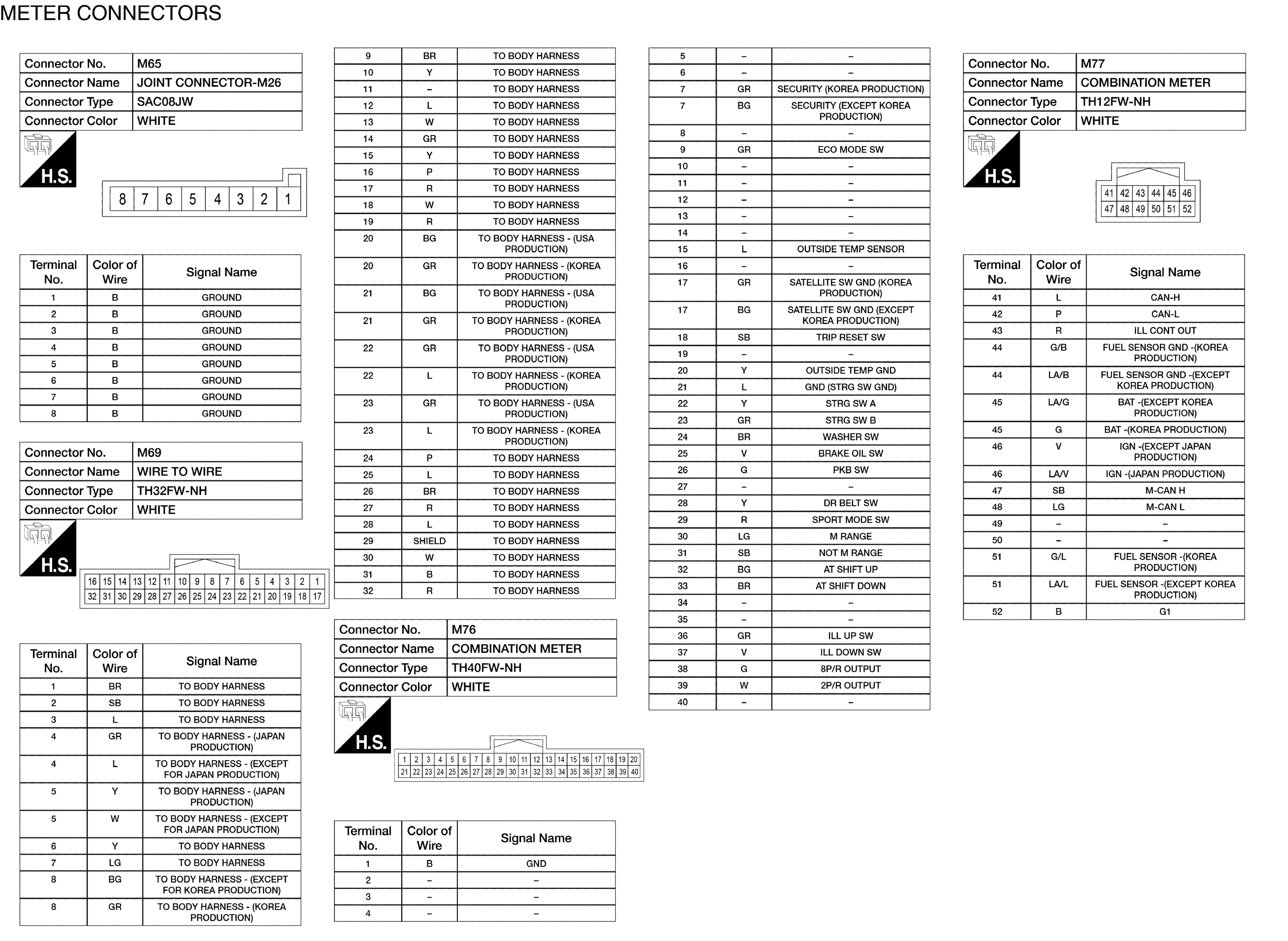

GNSAANIA5552GB-552

Courtesy of NISSAN NORTH AMERICA, INC.

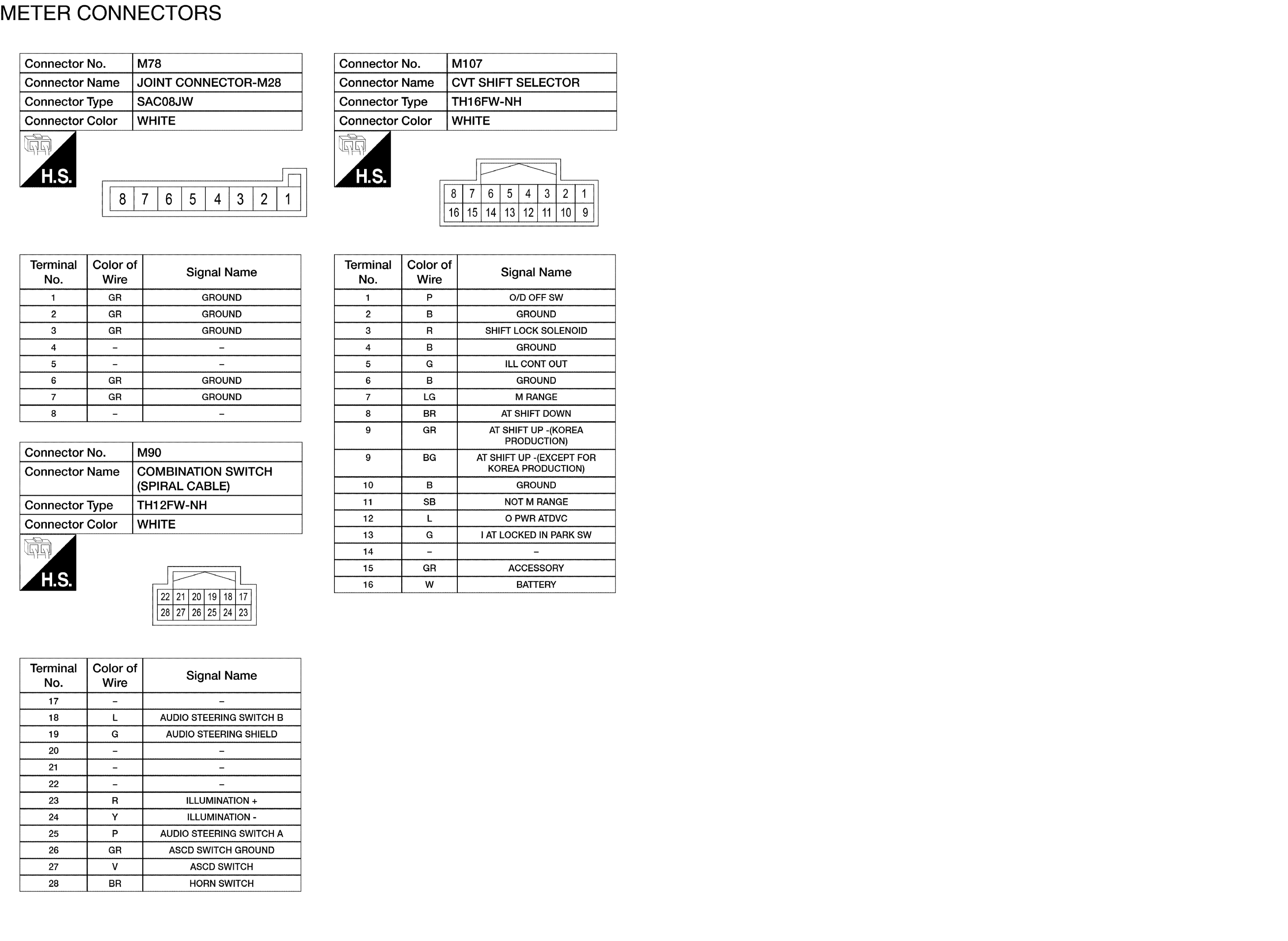

GNSAANIA5553GB-553

Courtesy of NISSAN NORTH AMERICA, INC.
