Removal And Installation: Removal

  1. Release instrument side finisher (RH) (1) pawls using a suitable tool and remove.
    GNSALJIA1394ZZ-394Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    NOTE:

    LH side shown; RH similar.

  2. Release the glove box damper (1) from the glove box assembly (2) as shown, below.
    G09158144Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the glove box assembly pawls as shown, below.

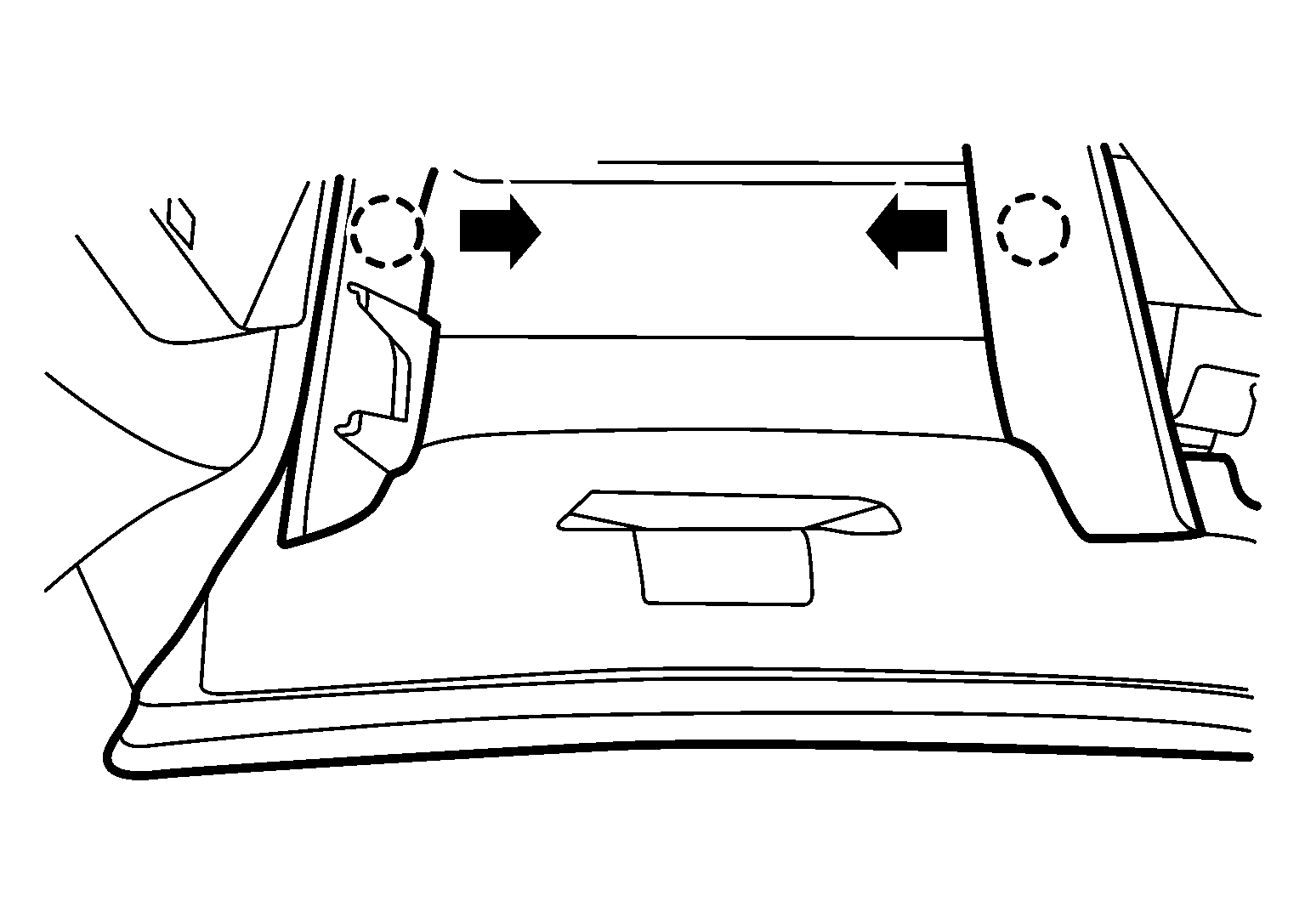

    GNSALJIA1407ZZ-407Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  4. Release the pawls and remove the glove box assembly.

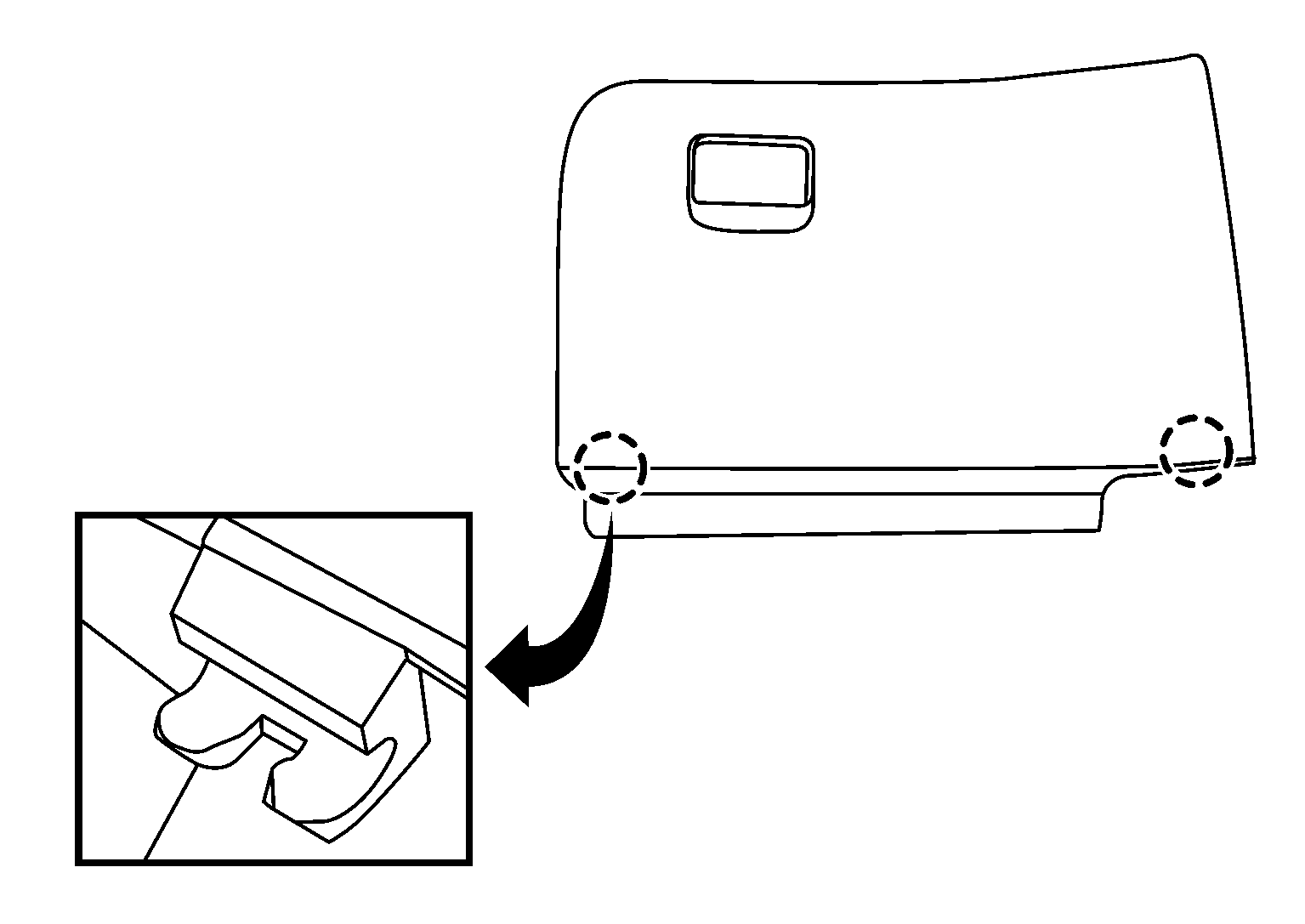

    GNSALJIA1405ZZ-405Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  5. Remove instrument finisher E. Refer to REMOVAL AND INSTALLATION .
  6. Remove audio unit. Refer to REMOVAL AND INSTALLATION (DISPLAY AUDIO WITHOUT BOSE) or REMOVAL AND INSTALLATION (DISPLAY WITH BOSE).
  7. Remove AV control unit. Refer to REMOVAL AND INSTALLATION (NAVIGATION WITHOUT BOSE) or REMOVAL AND INSTALLATION (NAVIGATION WITH BOSE).
  8. Remove front air control or A/C switch assembly. Refer to REMOVAL AND INSTALLATION (MANUAL AIR CONDITIONING) or REMOVAL AND INSTALLATION (AUTOMATIC AIR CONDITIONING).
  9. Remove the glove box housing screws (A).
    G09158147Courtesy of NISSAN NORTH AMERICA, INC.
  10. Release the clips using a suitable tool, disconnect the harness connector and remove glove box housing.

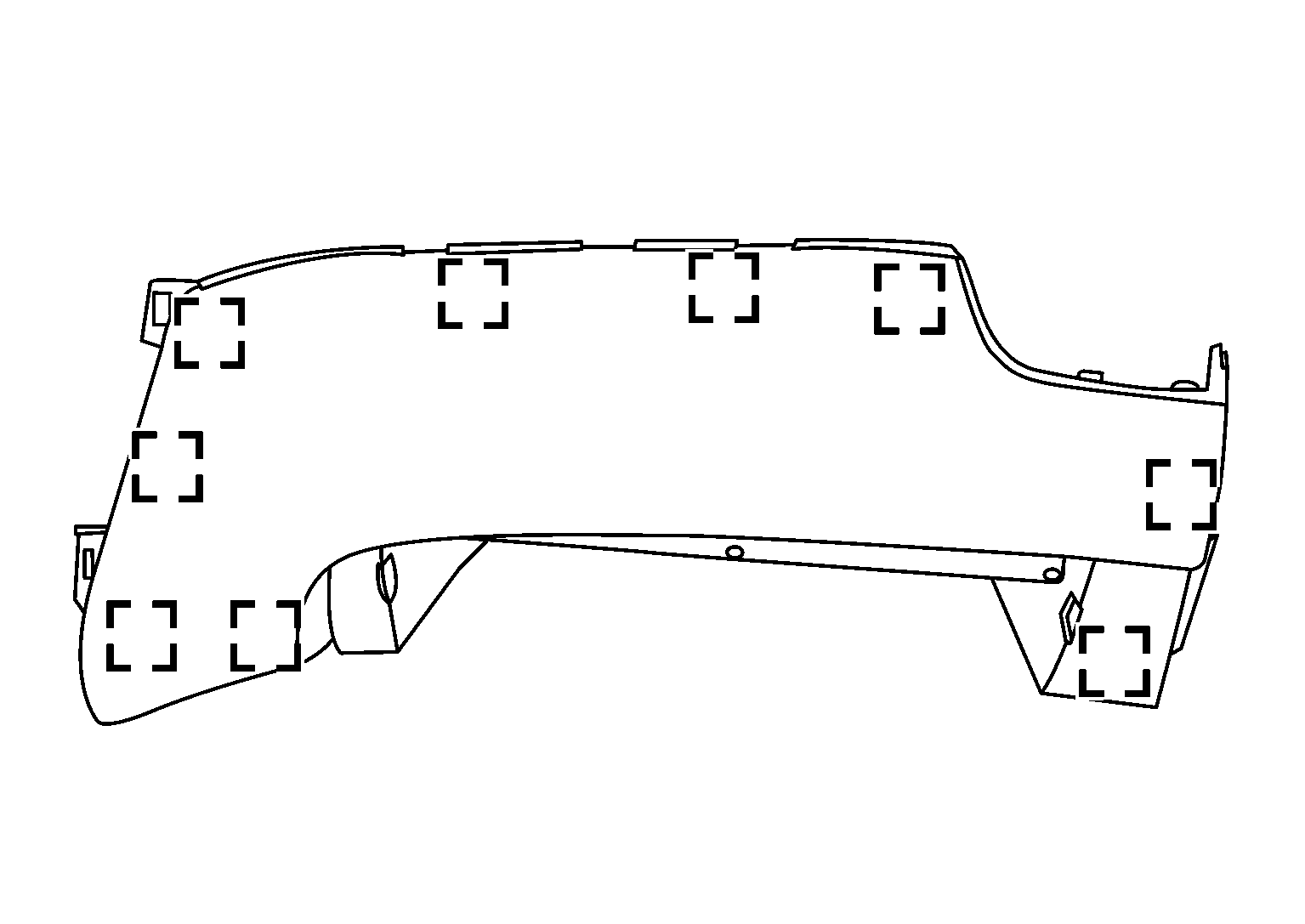

    GNSALJIA1472ZZ-472Courtesy of NISSAN NORTH AMERICA, INC.

    SHIKAKU-H : Metal clip
