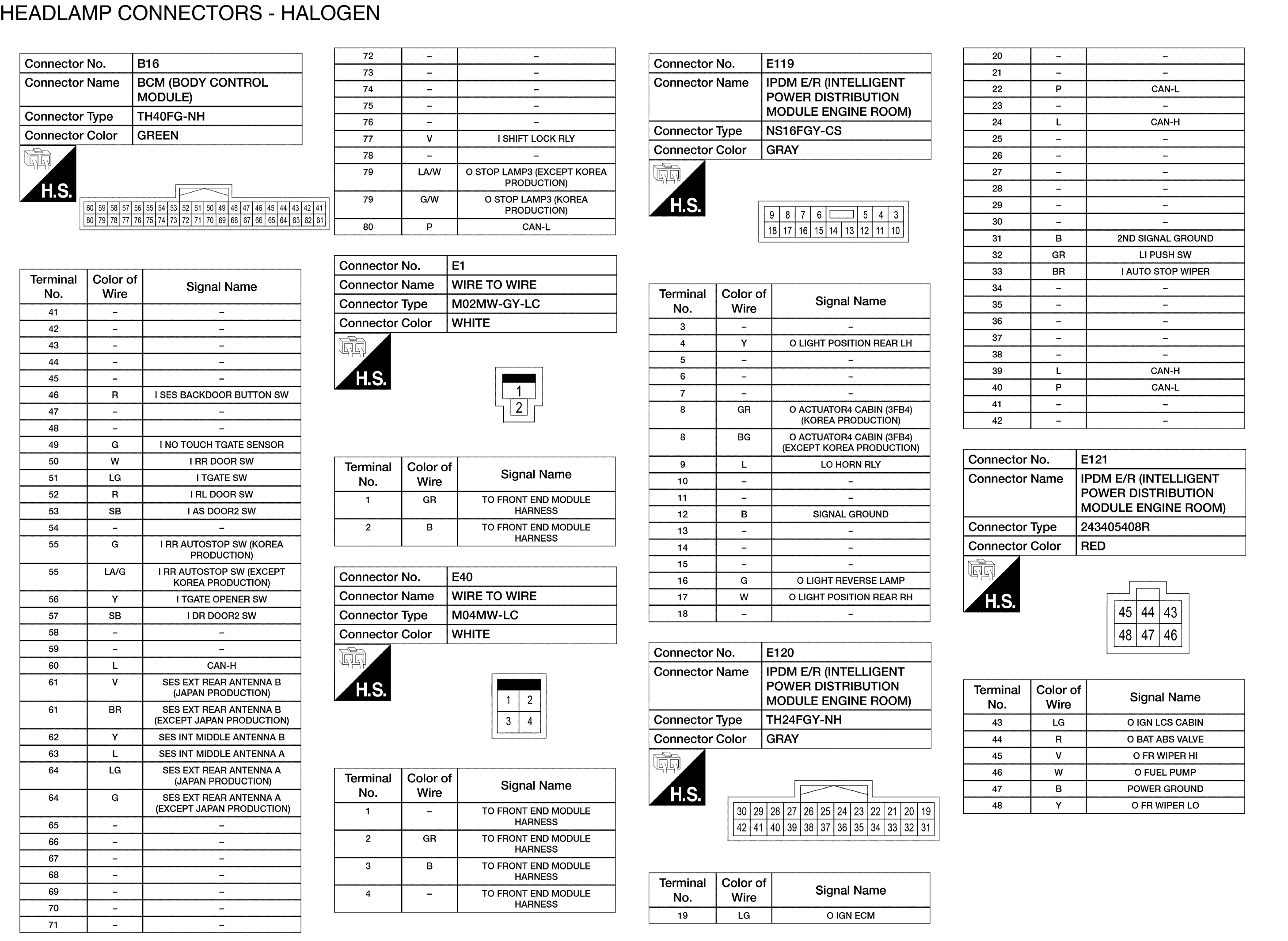

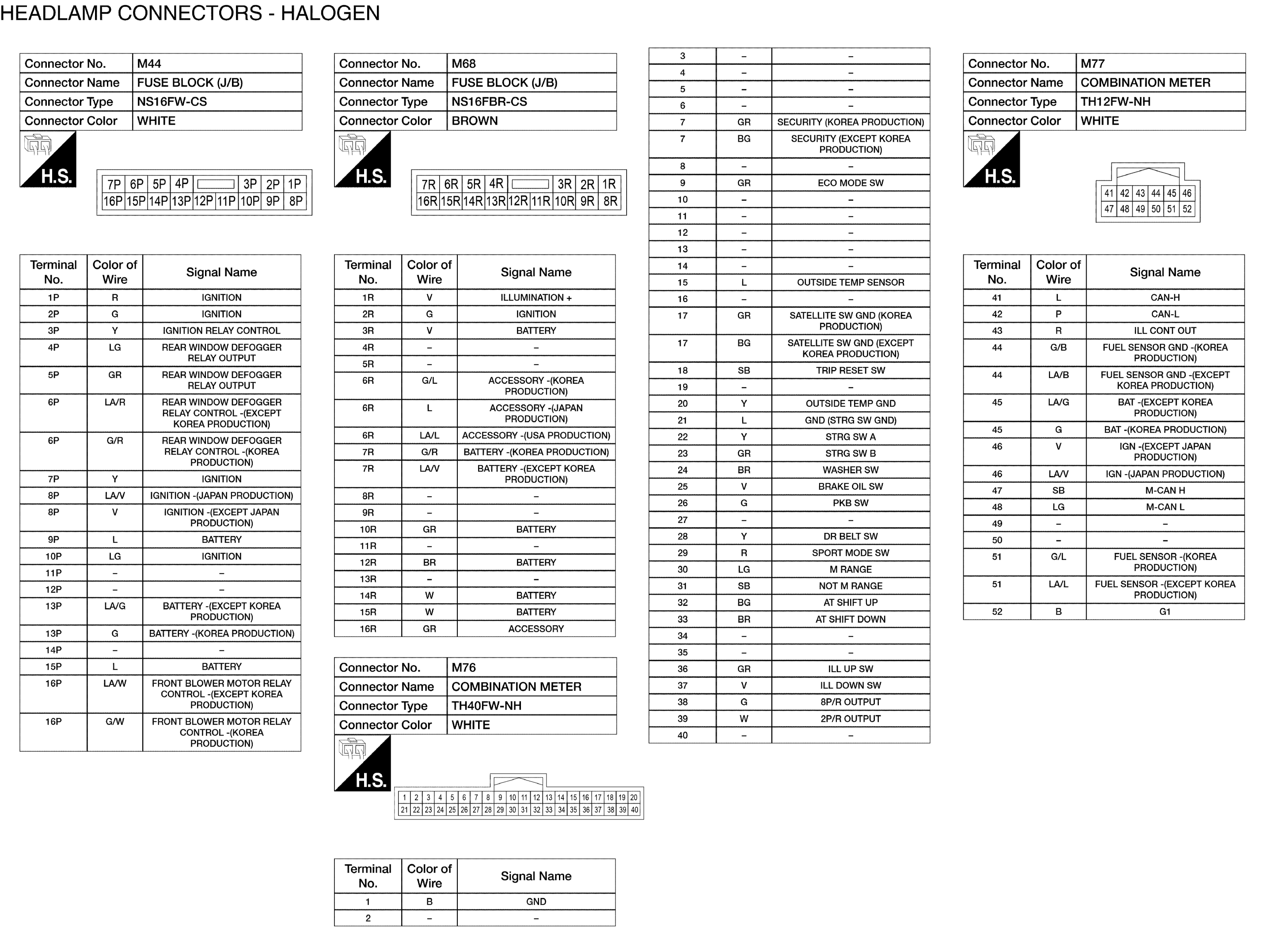

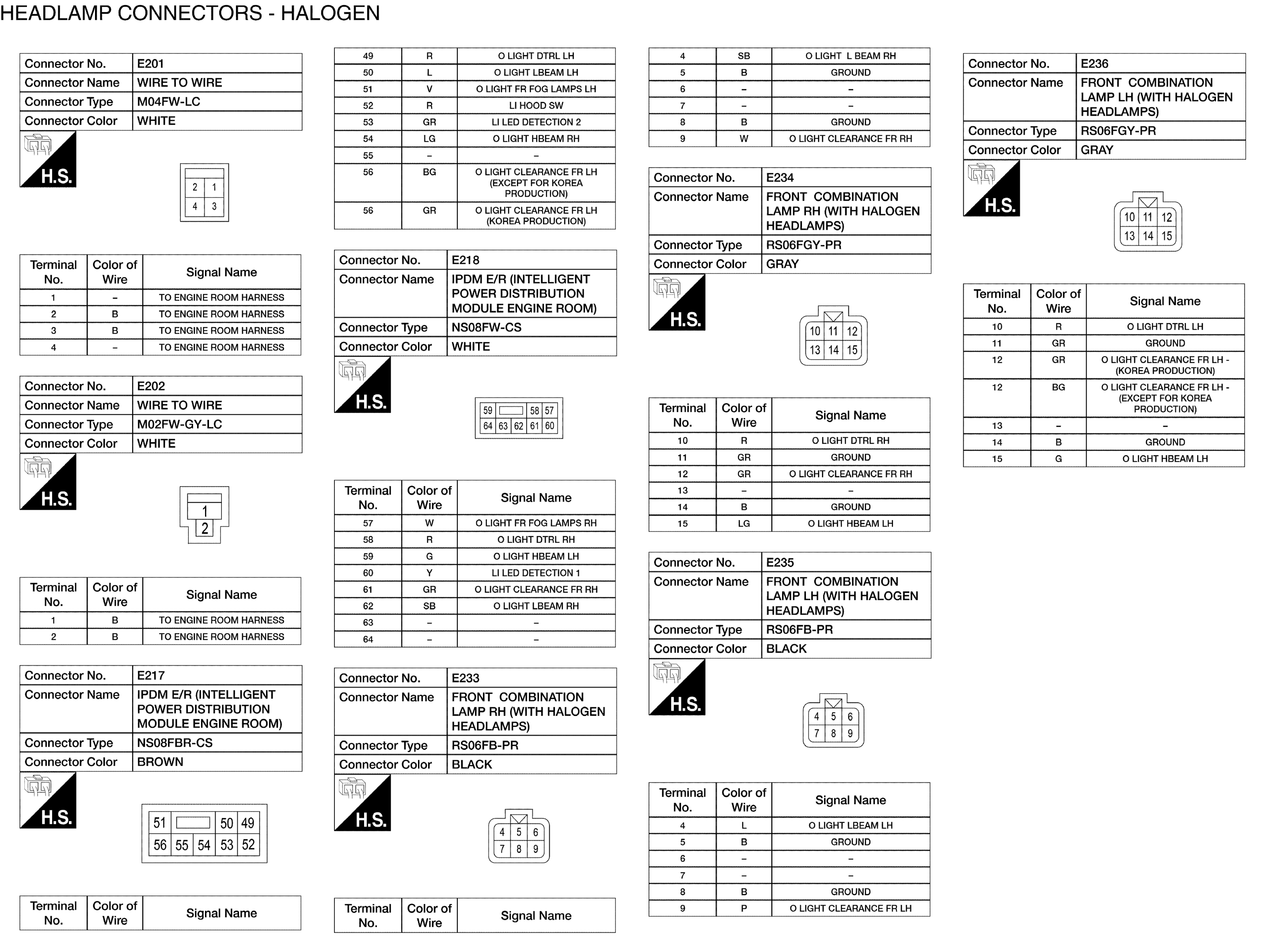

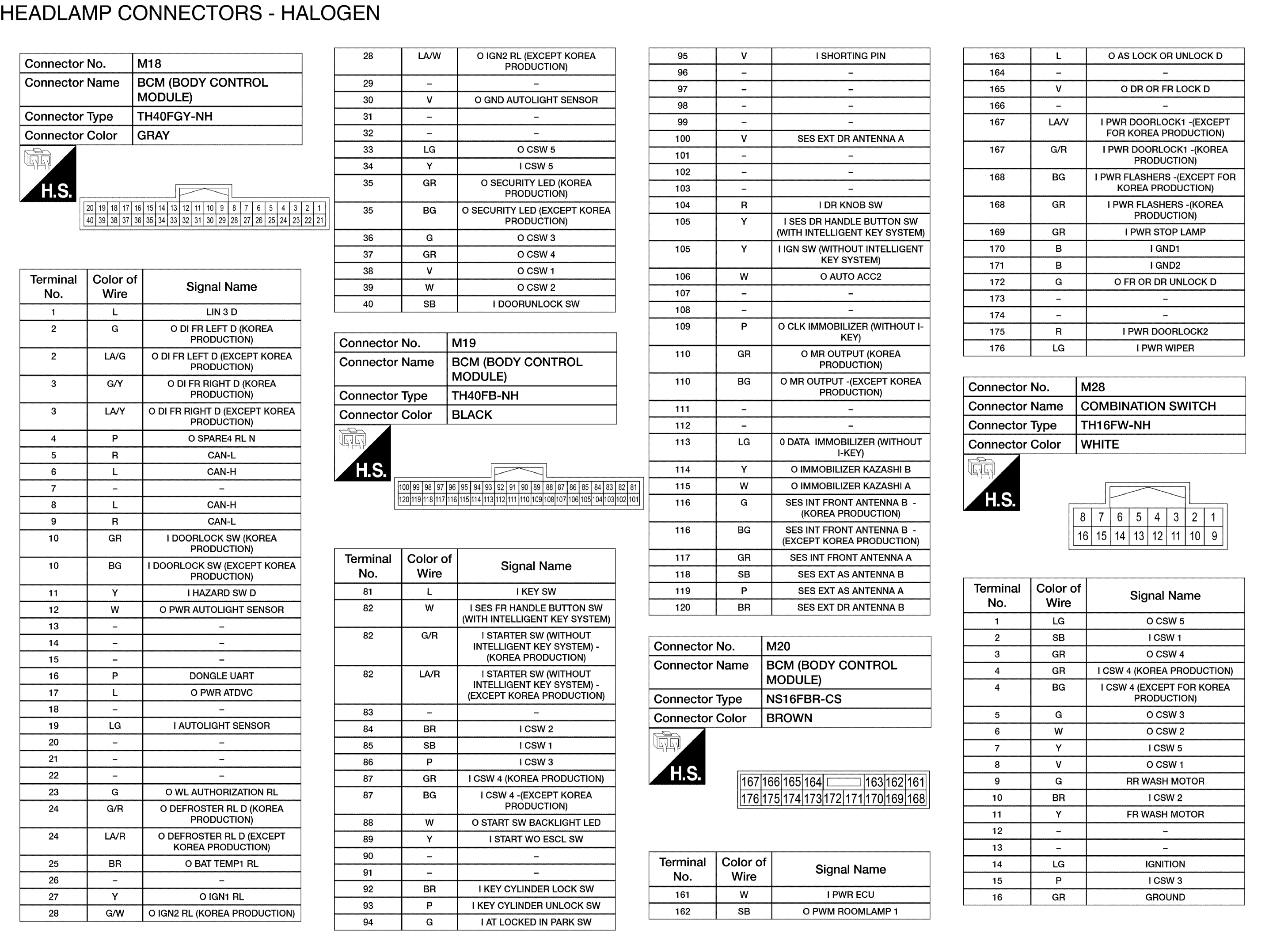

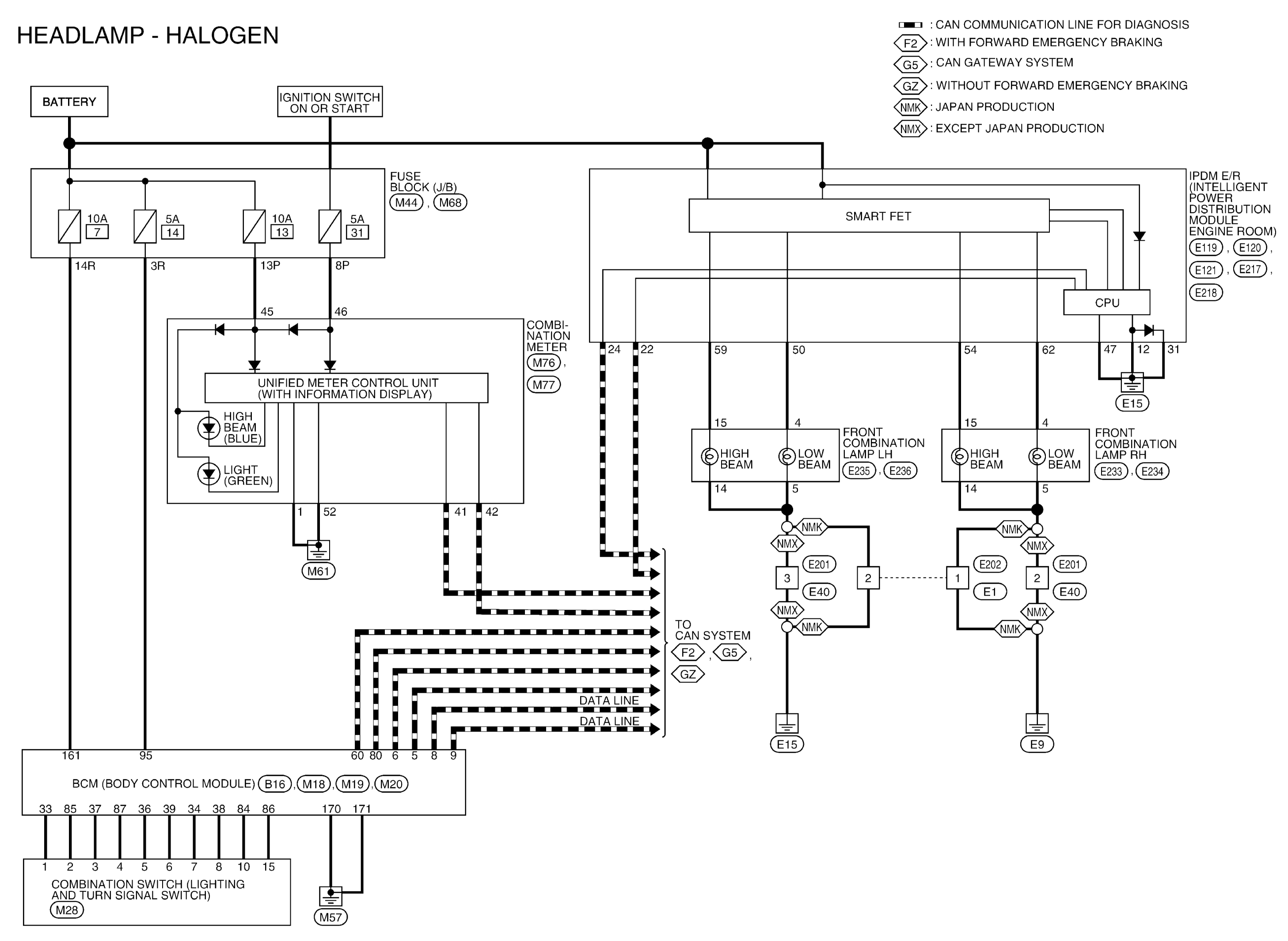

Exterior Lighting System (Halogen Headlamp) (Except Hybrid): Wiring Diagram: Headlamp: Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.
