FEB Operating Condition

FEB setting is ON (FEB warning lamp OFF)
Vehicle speed: Approximately 5km/h (3 MPH) and above

Courtesy of NISSAN NORTH AMERICA, INC.

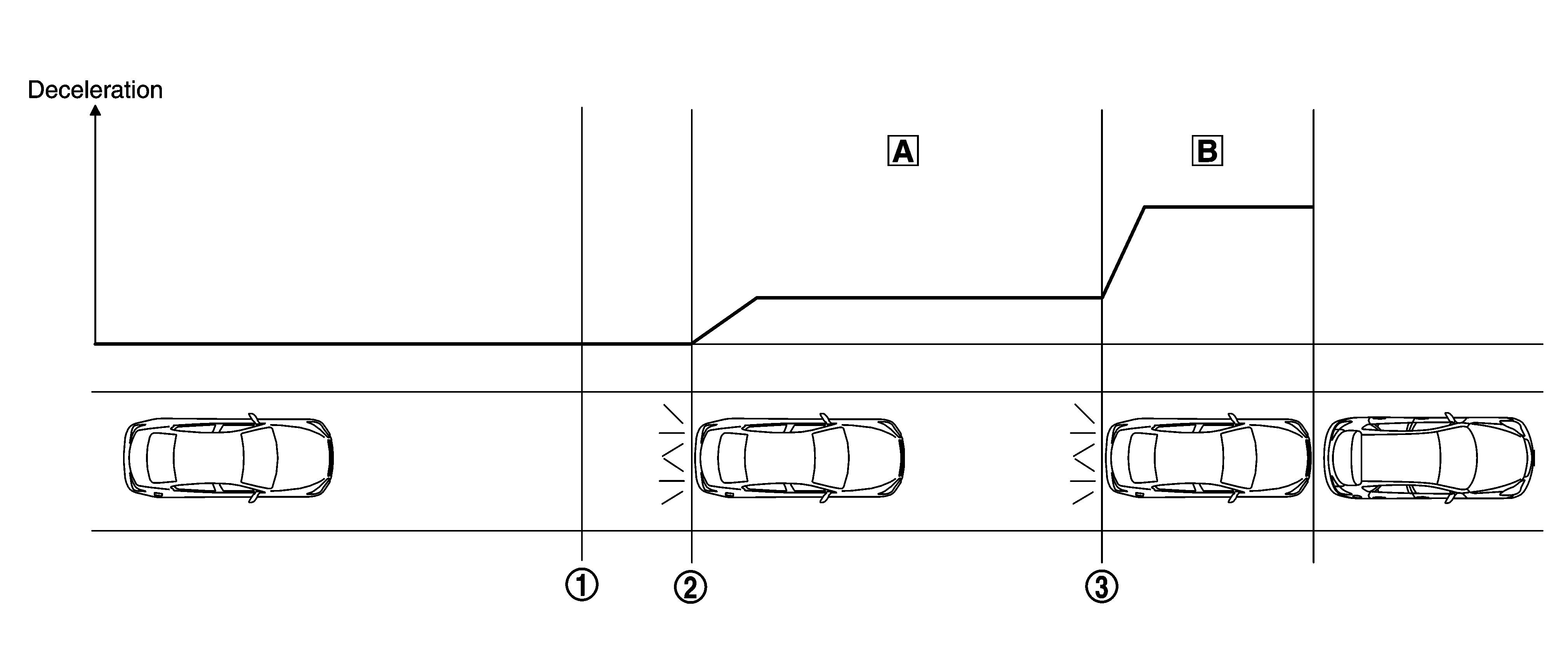

	Start of warning and partial brake		Start of harder brake
	Partial brake		Harder brake

Situation		Brake	Warning
No obstacle approached		No operation	-
	Start of warning and partial brake	Courtesy of NISSAN NORTH AMERICA, INC. Partial brake	Sounds the buzzer Blinks vehicle ahead indicator
	Start of harder brake	Harder brake Courtesy of NISSAN NORTH AMERICA, INC.	Sounds the buzzer (Higher pitched buzzer) Indicates FEB warning

Courtesy of NISSAN NORTH AMERICA, INC.

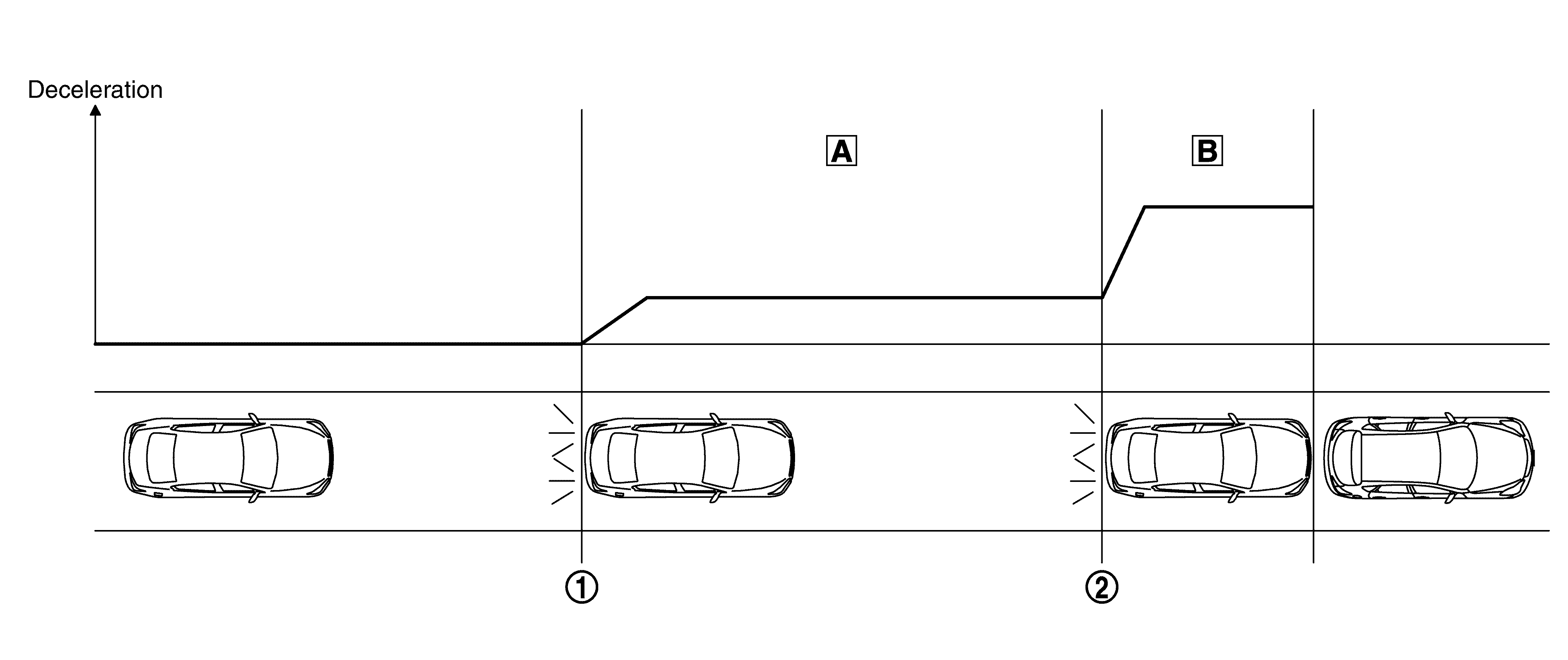

	Start of warning		Start of partial brake		Start of harder brake
	Partial brake		Harder brake

Situation		Brake	Warning
No obstacle approached		No operation	-
	Start of warning	No operation	Sounds the buzzer Blinks vehicle ahead indicator
	Start of partial brake	Courtesy of NISSAN NORTH AMERICA, INC. Partial brake	Sounds the buzzer (Higher pitched buzzer) Indicates FEB warning
	Start of harder brake	Harder brake Courtesy of NISSAN NORTH AMERICA, INC.	Sounds the buzzer (Higher pitched buzzer) Indicates FEB warning

CAUTION:

It is the driver's responsibility to stay alert, drive safely and be in control of the vehicle at all times. As there is a performance limit, it may not provide a warning or brake in certain conditions.
