Required Tools

• ICC alignment kit in addition to one of the following:

  a) Hunter self-centering wheel adapter (Hunter wheel alignment tool)

  b) Special Service Tool kit 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

The following ICC alignment kit are necessary to perform the Distance sensor alignment:

• ICC target board.

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. : Position 1, with top tilted 2° toward vehicle (Not used).
  2. : Position 2, vertical.
  3. : Position 3, with top tilted 2° away from vehicle (Not used).
• Hunter self-centering wheel adapter [shown with laser assembly installed] (Hunter alignment rack head may be substituted).

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • Retailers that are not equipped with a Hunter self-centering wheel adapter will require the following kit:

    Part No. 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

  • Directional arrows and are shown to illustrate the direction of the laser assembly beams.
• Laser assembly (with bi-directional laser beam) as shown in the illustration.

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. Tightening knob
  2. Power ON/OFF button
  3. Front laser beam opening
  4. Rear laser beam opening
  5. Attaching shaft

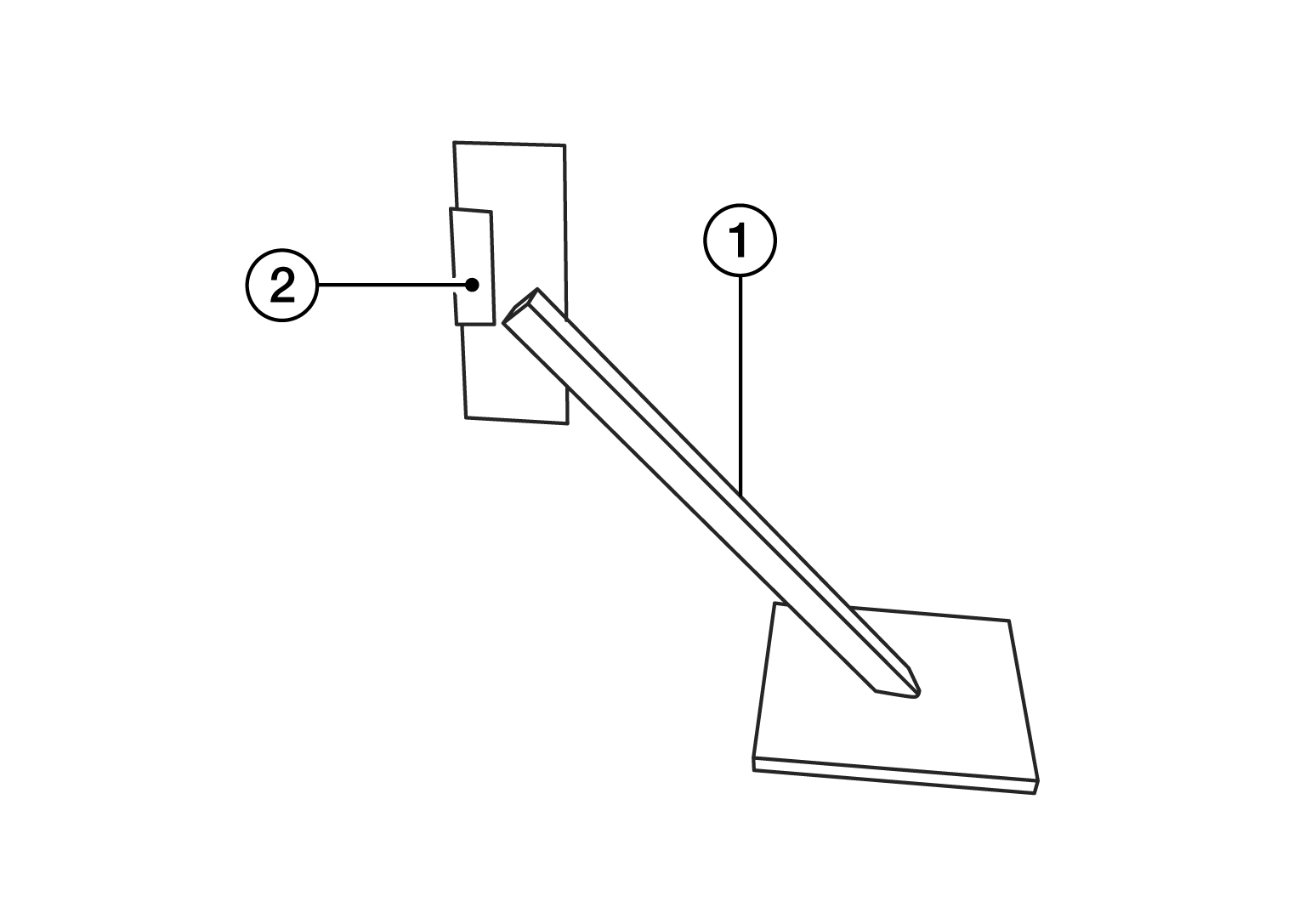

• Stationary target as shown in the illustration.

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. Stationary target
  2. Laser signal reception plate
• ICC alignment kit attachment board as shown in the illustration.

  Courtesy of NISSAN NORTH AMERICA, INC.
