System Display

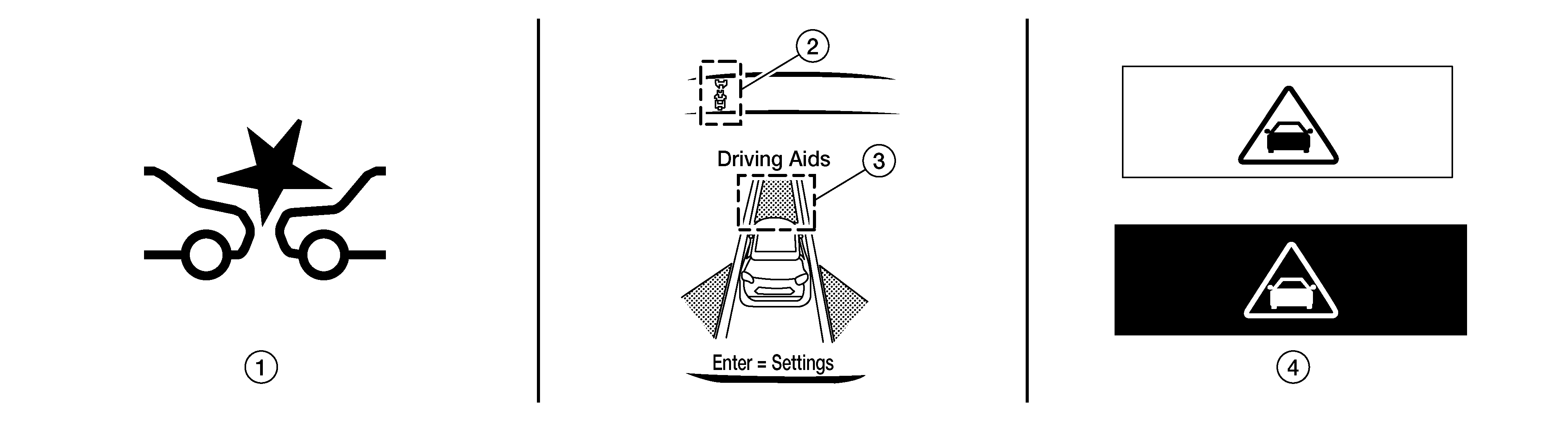

GNSALFIA0607ZZ-607Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 FEB warning lamp
  • FEB warning lamp indicates that an abnormal condition is present in FEB system
  • When the FEB system turns OFF, the FEB warning lamp will illuminate.
WHITE-2 Vehicle ahead indicator
  • Indicates whether it detects a vehicle ahead.
  • Blinks when there is a possibility of a collision with the vehicle ahead.
WHITE-3 FEB warning Displays immediately before the harder brake operates
