Removal And Installation: Removal

  1. Release cluster lid A clips and pawls using a suitable tool.

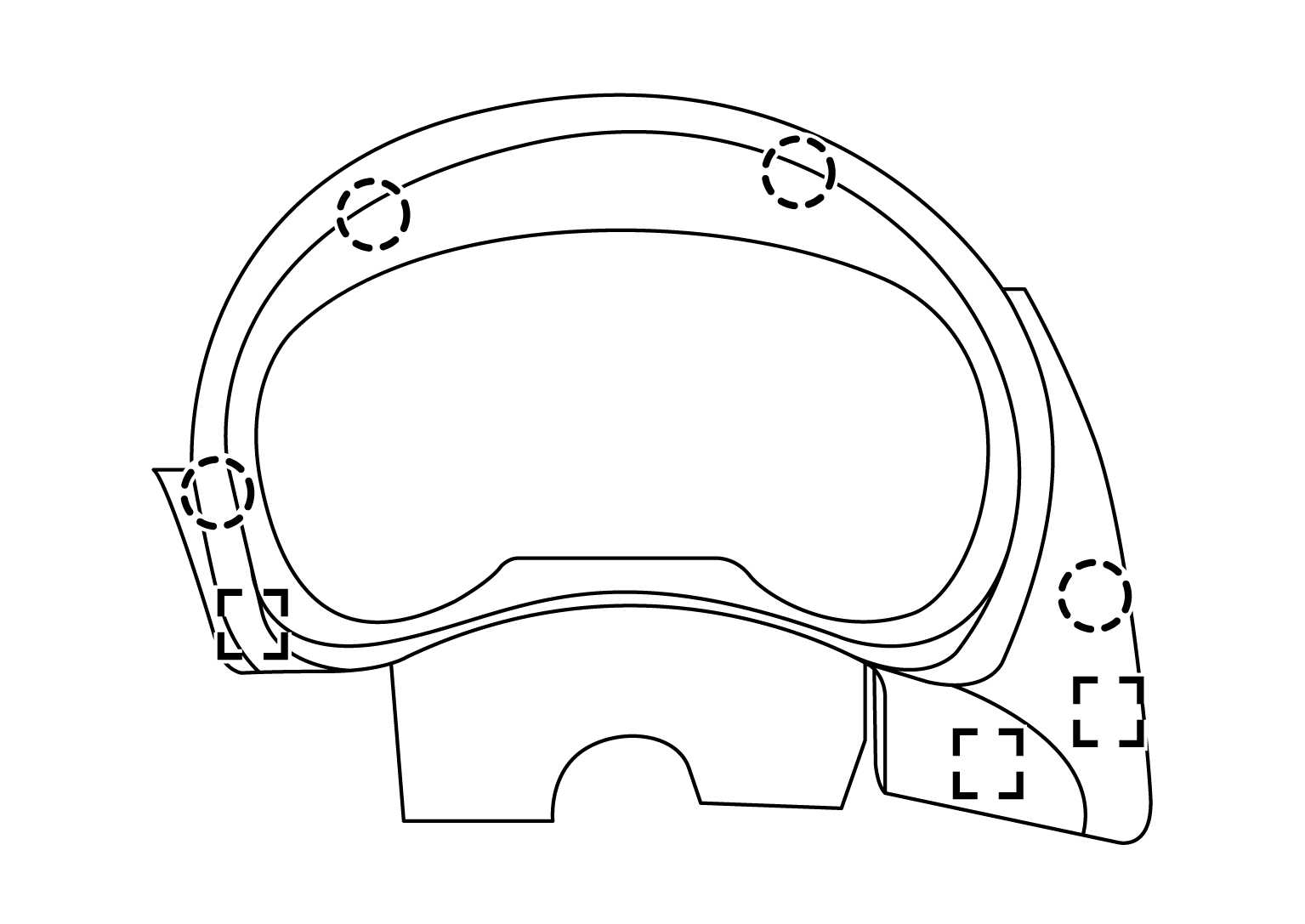

    Fig 1: Cluster Lid A Clips And Pawls
    GNSALJIA1045ZZ-045Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SHIKAKU-H : Metal clip

  2. Remove cluster lid A.
