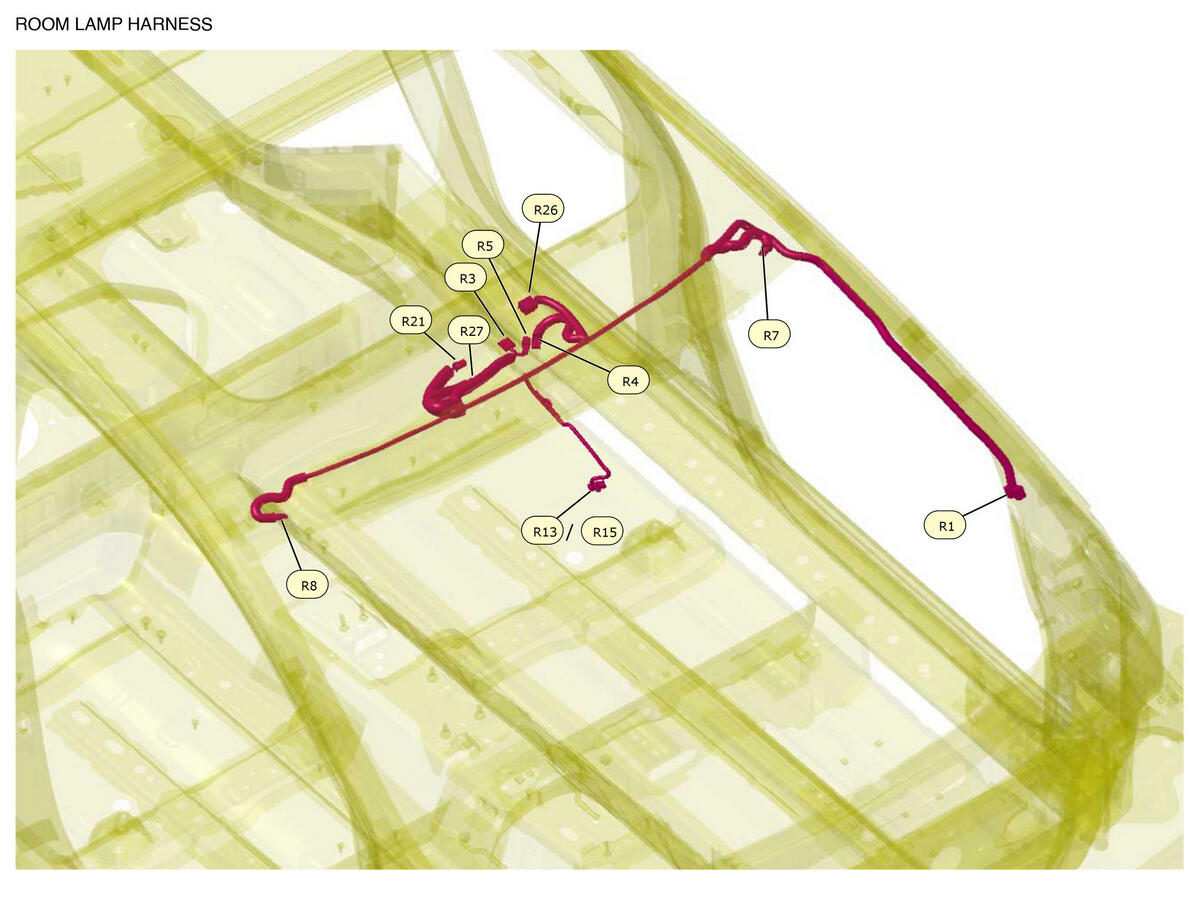

Room Lamp Harness
| R1 | WIRE TO WIRE |
| R7 | VANITY MIRROR LAMP LH |
| R26 | MOONROOF MOTOR ASSEMBLY |
| R4 | MICROPHONE |
| R5 | INTERIOR ROOM LAMP |
| R3 | MAP LAMP |
| R27 | MOONROOF SWITCH |
| R13 | AUTO ANTI-DAZZLING INSIDE MIRROR (WITHOUT HOMELINK UNIVERSAL TRANSCEIVER) |
| R8 | VANITY MIRROR LAMP RH |
| R21 | TELEMATIC SWITCH |
| R15 | AUTO ANTI-DAZZLING INSIDE MIRROR (WITH HOMELINK UNIVERSAL TRANSCEIVER) |
