Removal And Installation - Cluster Lid C Lower: Removal

  1. Release cluster lid C lower clips and pawls using a suitable tool.

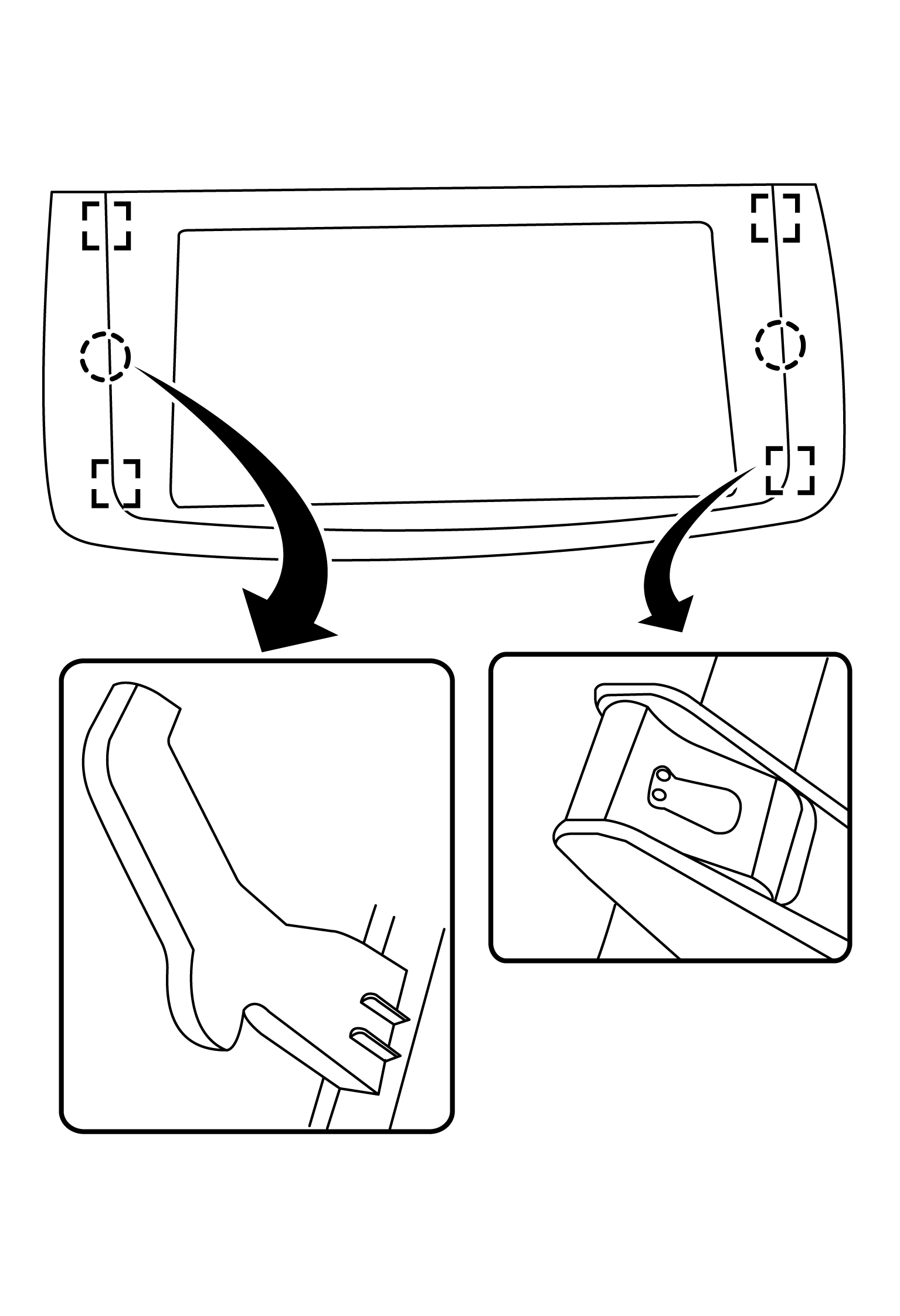

    Fig 1: Cluster Lid C Lower Clips And Pawls
    GNSALJIA1047ZZ-047Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SHIKAKU-H : Metal clip

  2. Remove cluster lid C lower.
