Removal And Installation: Removal

Remove the instrument side finisher RH using a suitable tool.
Remove the glove box assembly upper screws (A).

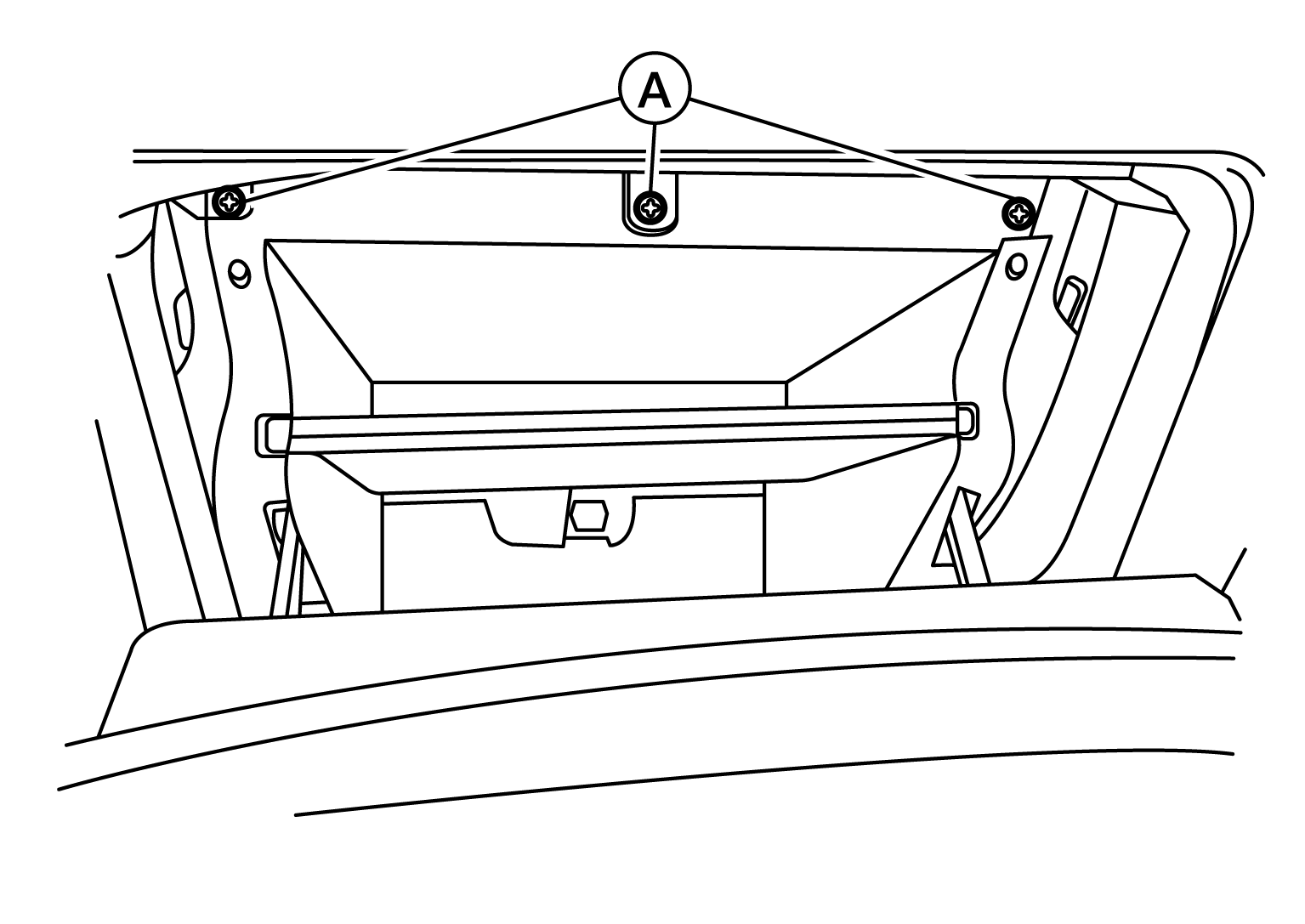

Fig 1: Glove Box Assembly Upper Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the instrument lower panel RH (1).

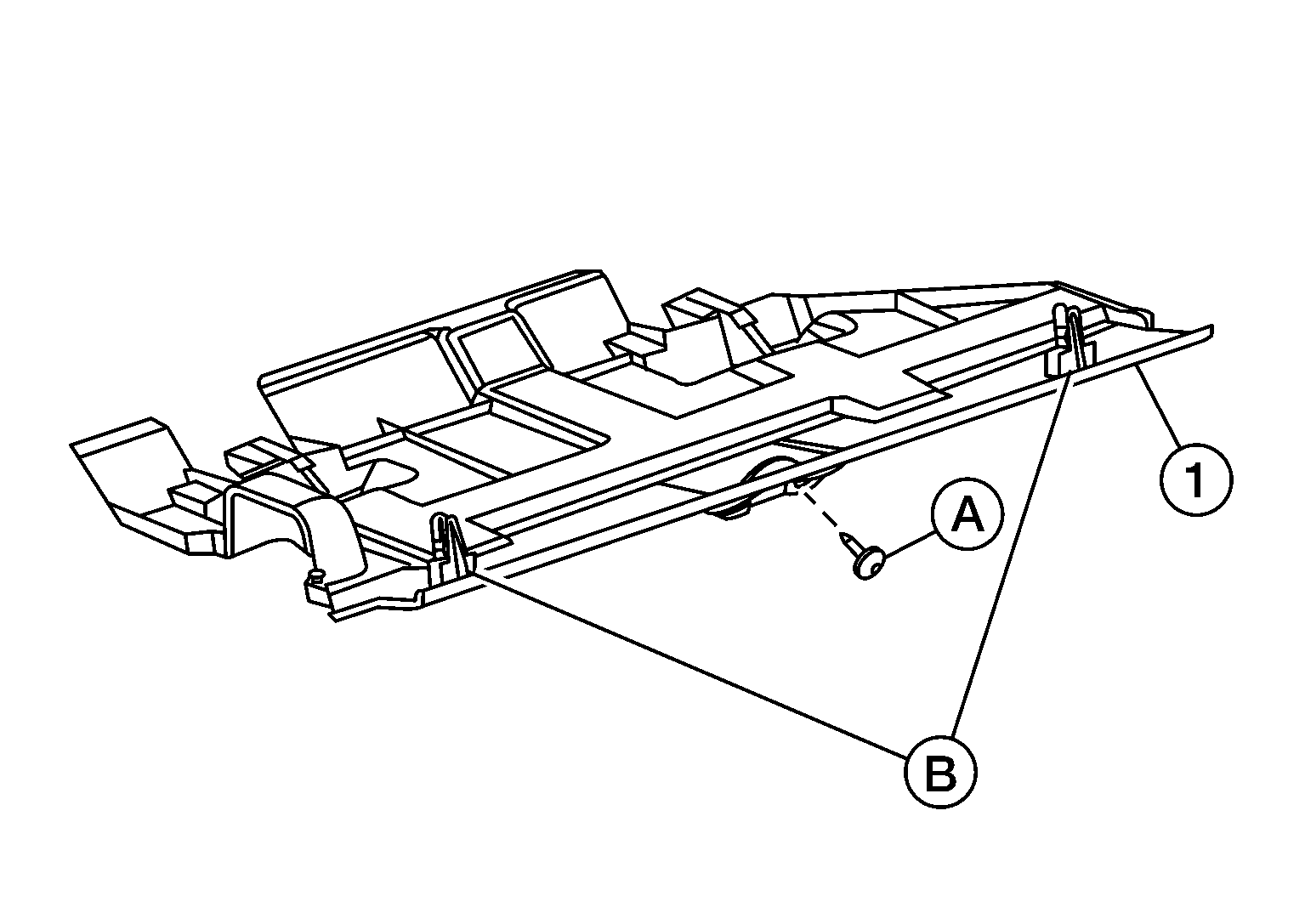

Fig 2: Instrument Lower Panel RH
Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove the instrument lower panel RH screw (A).
2. Release the metal clips (B) using a suitable tool, then remove the instrument lower panel RH.
Remove the glove box assembly lower screws (A).

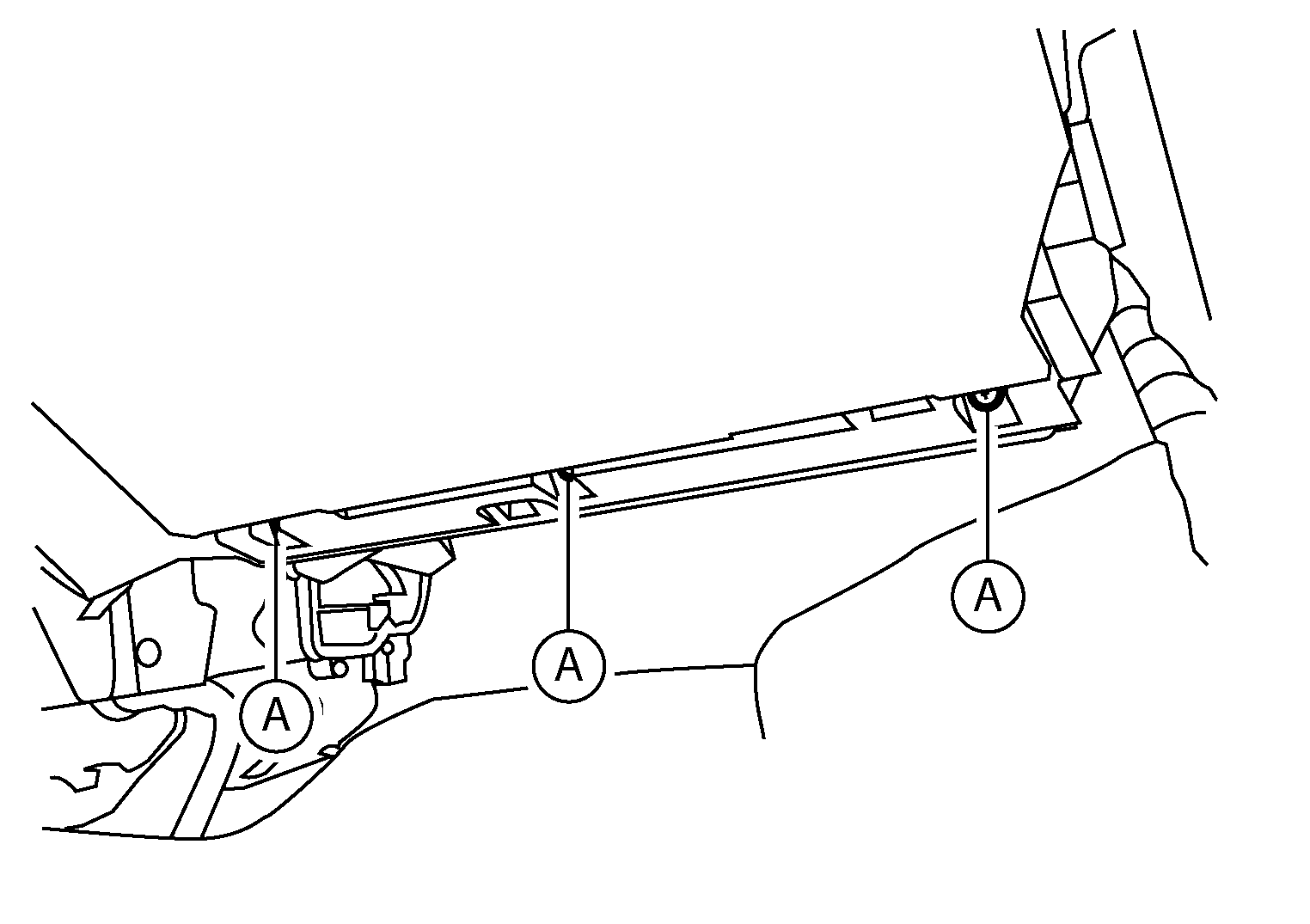

Fig 3: Glove Box Assembly Lower Screws
Courtesy of NISSAN NORTH AMERICA, INC.
