Removal And Installation - Cluster Lid C: Removal

  1. Remove cluster lid C lower. Refer to REMOVAL AND INSTALLATION - CLUSTER LID C LOWER .
  2. Remove the cluster lid C screws (A).

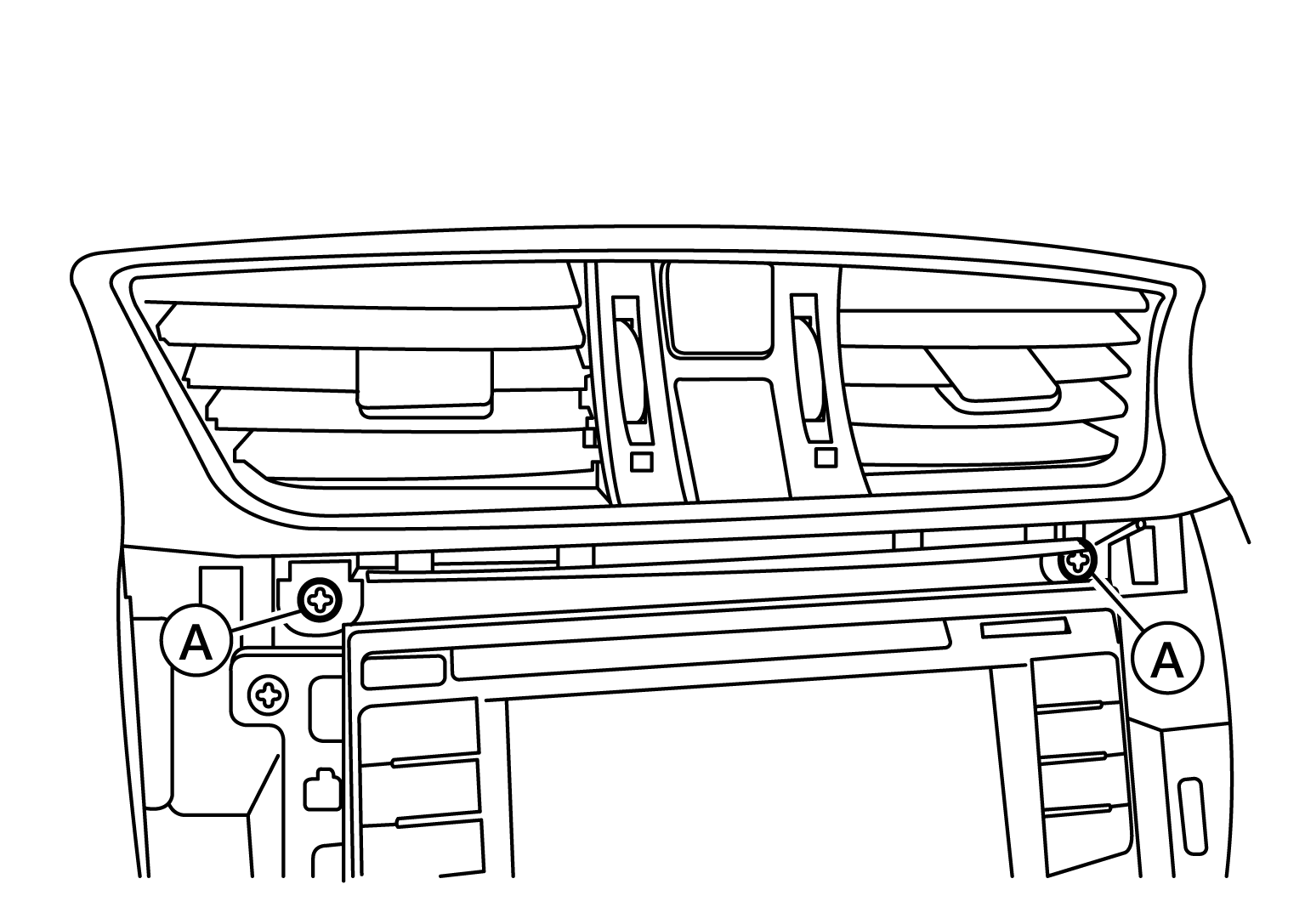

    Fig 1: Cluster Lid C Screws
    G08990618Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from cluster lid C.
  4. Remove the center ventilator grilles assembly and hazard switch from the cluster lid C (if necessary). Refer to REMOVAL AND INSTALLATION (Center Ventilator Grilles) and REMOVAL AND INSTALLATION (Hazard Switch).
