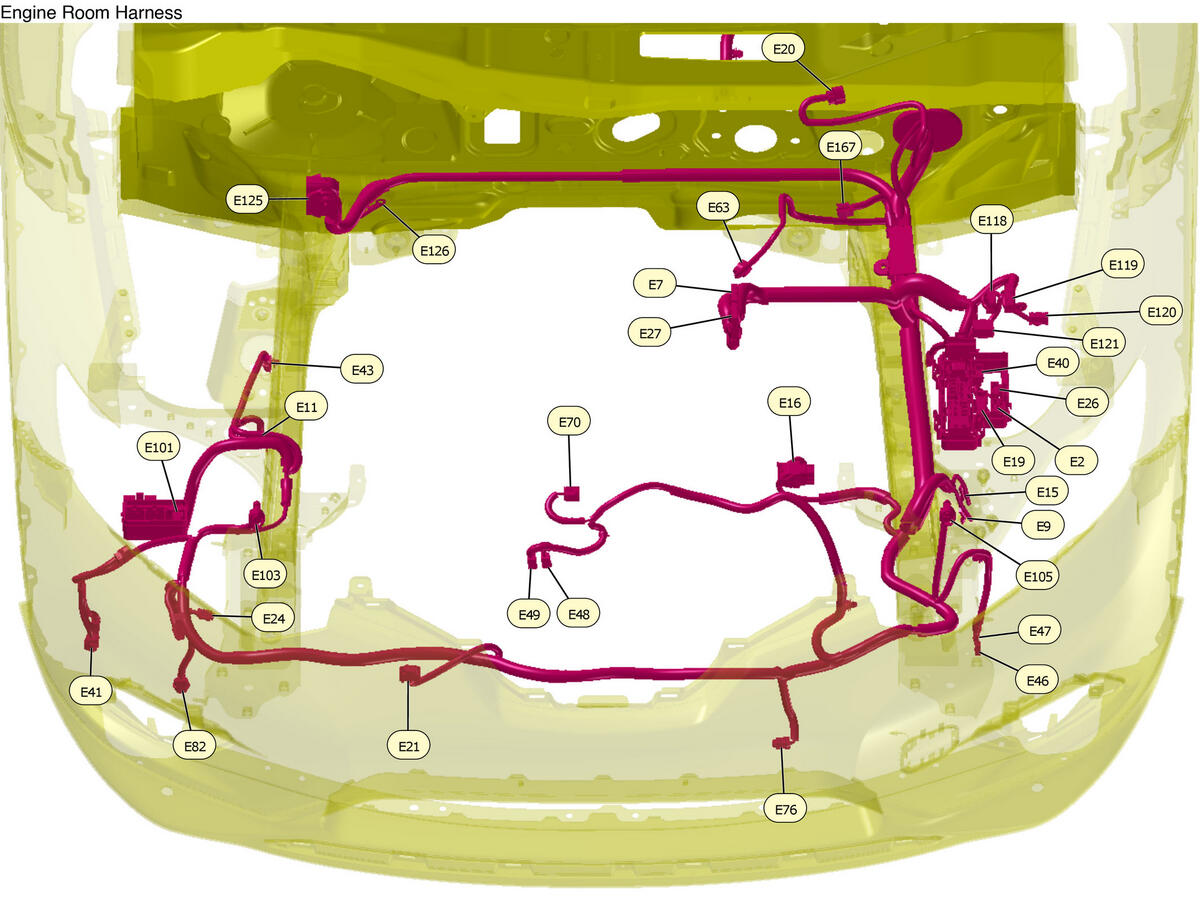

| E20 |
FRONT WIPER MOTOR |
| E167 |
VACUUM SENSOR |
| E63 |
BRAKE FLUID LEVEL SWITCH |
| E125 |
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) |
| E126 |
BODY GROUND |
| E27 |
FUSIBLE LINK BOX (BATTERY) |
| E7 |
FUSIBLE LINK BOX (BATTERY) |
| E120 |
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) |
| E119 |
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) |
| E118 |
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) |
| E121 |
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) |
| E2 |
WIRE TO WIRE |
| E19 |
WIRE TO WIRE |
| E40 |
WIRE TO WIRE |
| E26 |
WIRE TO WIRE |
| E15 |
BODY GROUND |
| E9 |
BODY GROUND |
| E16 |
ECM |
| E105 |
FRONT COMBINATION LAMP LH |
| E46 |
HORN |
| E47 |
HORN |
| E70 |
CRASH ZONE SENSOR |
| E49 |
HORN (LOW) |
| E48 |
HORN (LOW) |
| E76 |
AMBIENT SENSOR |
| E21 |
DISTANCE SENSOR |
| E82 |
WASHER FLUID LEVEL SWITCH |
| E24 |
INTELLIGENT KEY WARNING BUZZER |
| E41 |
FRONT AND REAR WASHER MOTOR |
| E103 |
FRONT COMBINATION LAMP RH |
| E101 |
ANTI-THEFT HORN RELAY |
| E43 |
FRONT WHEEL SENSOR RH |
| E11 |
BODY GROUND |
