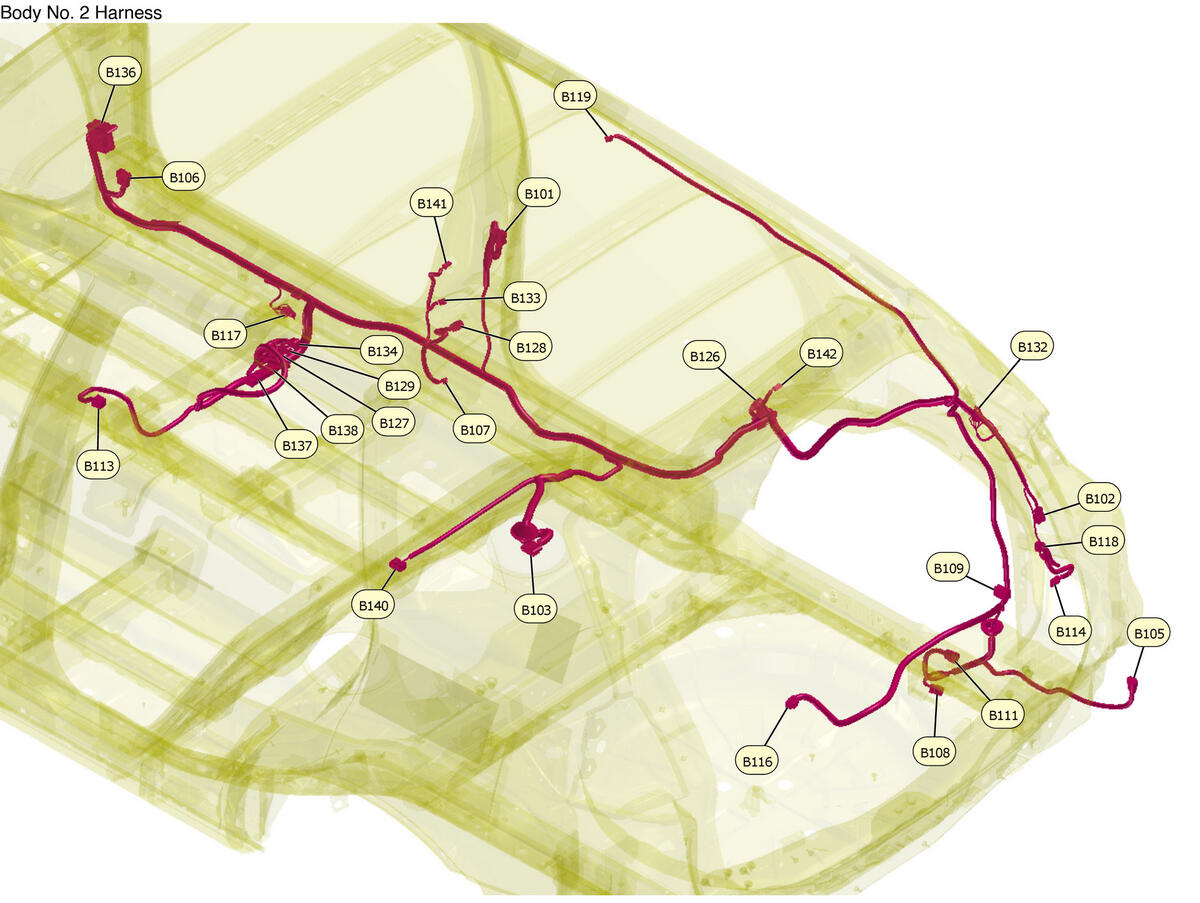

| B136 |
WIRE TO WIRE |
| B106 |
WIRE TO WIRE |
| B117 |
BODY GROUND |
| B137 |
BOSE SPEAKER AMP. |
| B138 |
BOSE SPEAKER AMP. |
| B113 |
AIR BAG DIAGNOSIS SENSOR UNIT |
| B134 |
WIRE TO WIRE |
| B129 |
SIDE AIR BAG MOUDLE RH |
| B127 |
WIRE TO WIRE |
| B133 |
FRONT RH SEAT BELT PRE-TENSIONER (SHOULDER BELT) |
| B128 |
FRONT SIDE AIR BAG SATELLITE SENSOR RH |
| B107 |
FRONT RH SEAT BELT PRE-TENSIONER (LAP BELT) |
| B141 |
FRONT DOOR SWITCH RH |
| B101 |
WIRE TO WIRE |
| B103 |
FUEL LEVEL SENSOR UNIT AND FUEL PUMP (MAIN) |
| B140 |
WIRE TO WIRE |
| B126 |
REAR SIDE SATELLITE SENSOR RH |
| B142 |
REAR DOOR SWITCH RH |
| B119 |
SIDE CURTAIN AIR BAG MODULE RH |
| B132 |
BODY GROUND |
| B102 |
REAR COMBINATION LAMP RH (BODY SIDE) |
| B114 |
REAR CARGO POWER SOCKET |
| B118 |
LUGGAGE ROOM LAMP |
| B109 |
JOINT CONNECTOR-B05 |
| B116 |
SUBWOOFER |
| B105 |
SIDE RADAR RH |
| B108 |
EVAP CANISTER VENT CONTROL VALVE |
| B111 |
EVAP CONTROL SYSTEM PRESSURE SENSOR |
