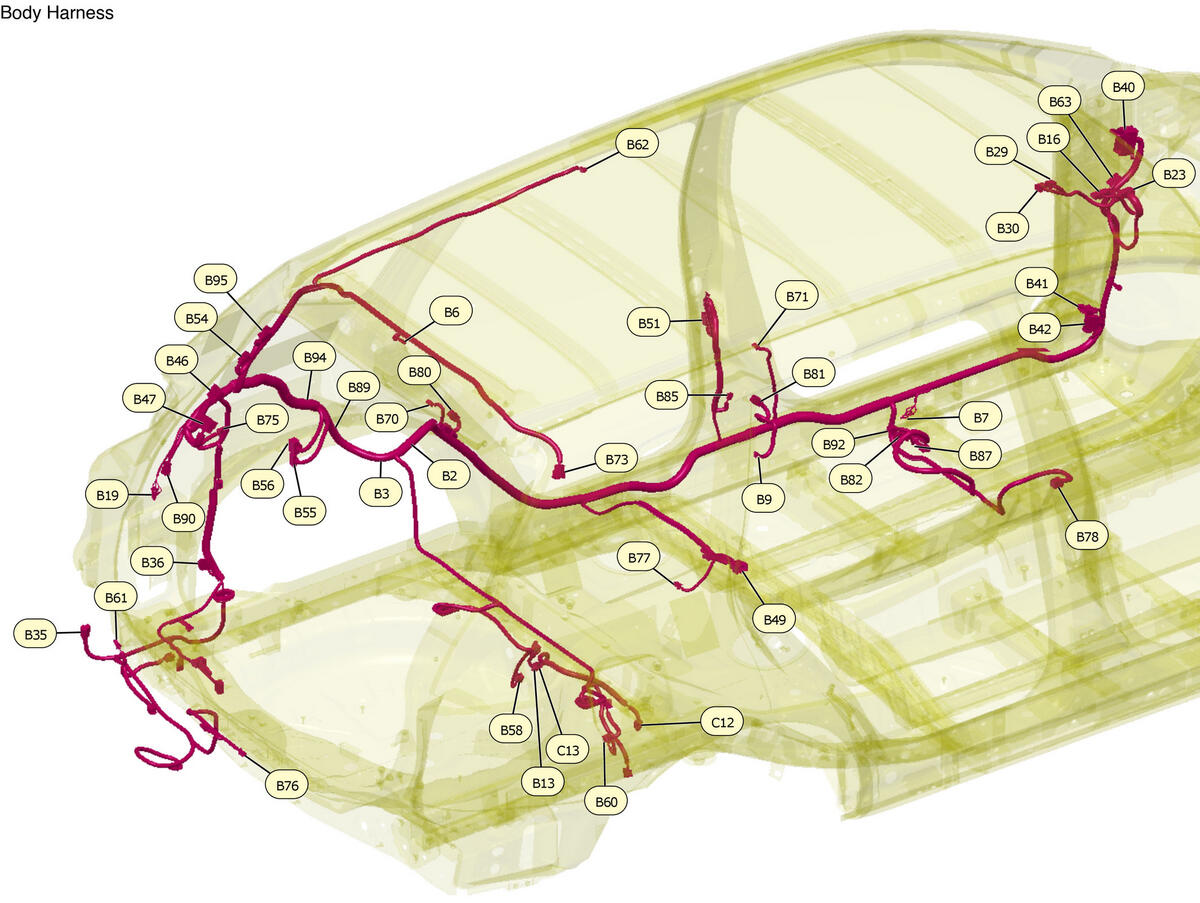

| B40 |
WIRE TO WIRE |
| B63 |
JOINT CONNECTOR-B01 |
| B29 |
FUSE BLOCK (J/B) |
| B30 |
FUSE BLOCK (J/B) |
| B16 |
BCM (BODY CONTROL MODULE) |
| B23 |
BCM (BODY CONTROL MODULE) |
| B41 |
WIRE TO WIRE |
| B42 |
WIRE TO WIRE |
| B7 |
BODY GROUND |
| B92 |
WIRE TO WIRE |
| B82 |
SIDE AIR BAG MODULE LH |
| B87 |
SEAT BELT BUCKLE SWITCH LH |
| B78 |
AIR BAG DIAGNOSIS SENSOR UNIT |
| B71 |
FRONT DOOR SWITCH LH |
| B81 |
FRONT SIDE AIR BAG SATELLITE SENSOR LH |
| B9 |
FRONT LH SEAT BELT PRE-TENSIONER (LAP BELT) |
| B85 |
FRONT LH SEAT BELT PRE-TENSIONER (SHOULDER BELT) |
| B51 |
WIRE TO WIRE |
| B77 |
INSIDE KEY ANTENNA (CONSOLE) |
| B49 |
WIRE TO WIRE |
| B70 |
REAR DOOR SWITCH LH |
| B80 |
REAR SIDE SATELLITE SENSOR LH |
| B2 |
JOINT CONNECTOR-B27 |
| B3 |
JOINT CONNECTOR-B03 |
| B13 |
WIRE TO WIRE |
| B58 |
REAR WHEEL SENSOR LH |
| C13 |
WIRE TO WIRE |
| C12 |
AWD SOLENOID |
| B60 |
REAR WHEEL SENSOR RH |
| B89 |
JOINT CONNECTOR-B25 |
| B56 |
AUTOMATIC BACK DOOR CONTROL MODULE |
| B55 |
AUTOMATIC BACK DOOR CONTROL MODULE |
| B94 |
JOINT CONNECTOR-B24 |
| B95 |
SPINDLE UNIT LH |
| B54 |
WIRE TO WIRE |
| B62 |
SIDE CURTAIN AIR BAG MODULE LH |
| B73 |
SPINDLE UNIT RH |
| B6 |
REAR WINDOW DEFOGGER CONDENSER |
| B47 |
WIRE TO WIRE |
| B46 |
WIRE TO WIRE |
| B90 |
REAR COMBINATION LAMP LH (BODY SIDE) |
| B19 |
BODY GROUND |
| B75 |
AWD CONTROL UNIT |
| B36 |
JOINT CONNECTOR-B06 |
| B61 |
AUTOMATIC BACK DOOR WARNING BUZZER |
| B35 |
SIDE RADAR LH |
| B76 |
OUTSIDE KEY ANTENNA (REAR BUMPER) |
