Exploded View With Torque Specifications

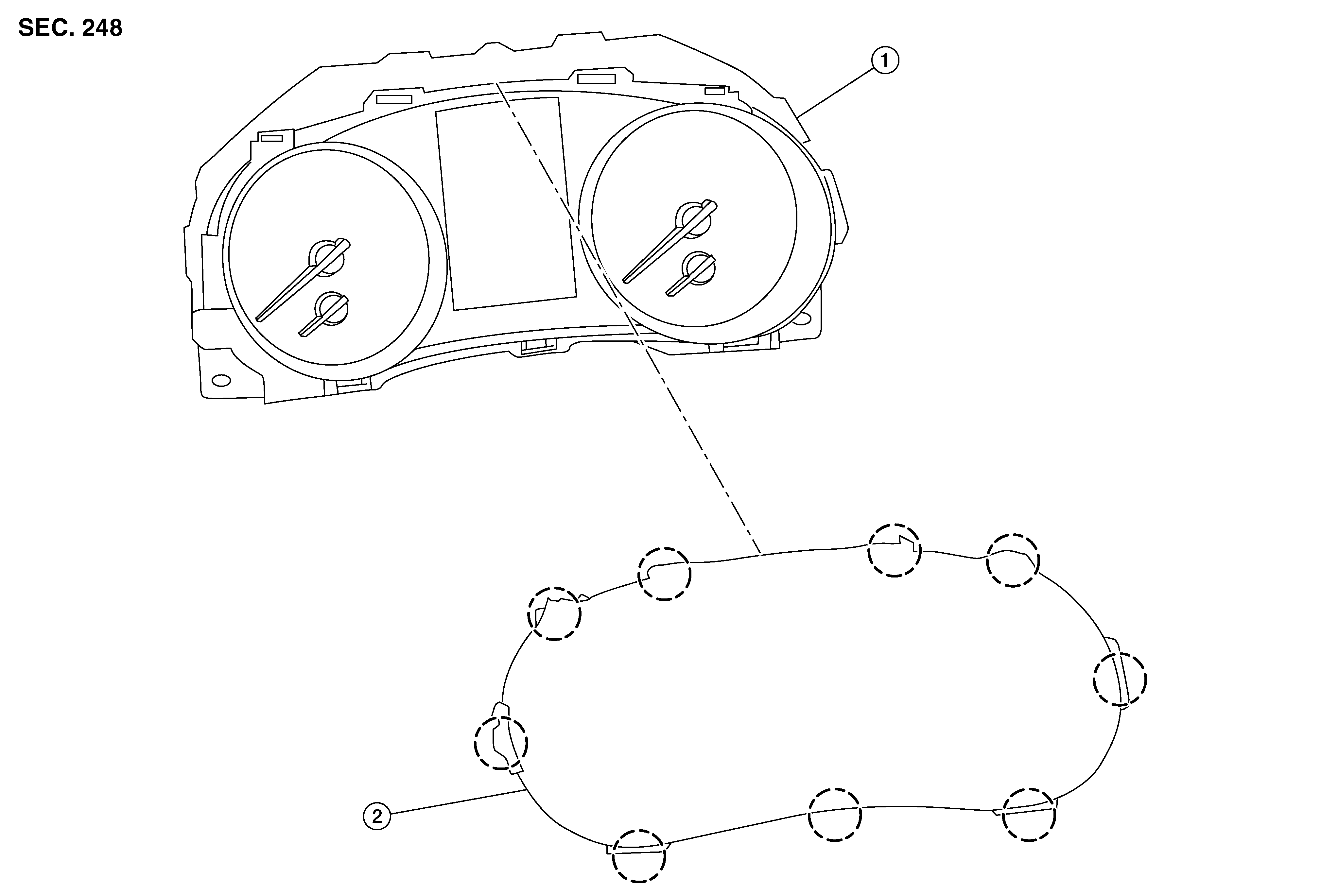

Fig 1: Exploded View Of Combination Meter

GNSALNIA1609ZZ-609

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination meter

2.

Combination meter lens

Pawl
