Disassembly And Assembly: Disassembly

  1. Remove center console assembly. Refer to REMOVAL AND INSTALLATION .
  2. Remove the center console bin mat. Refer to EXPLODED VIEW .
  3. Release clips using a suitable tool and remove shift selector finisher.

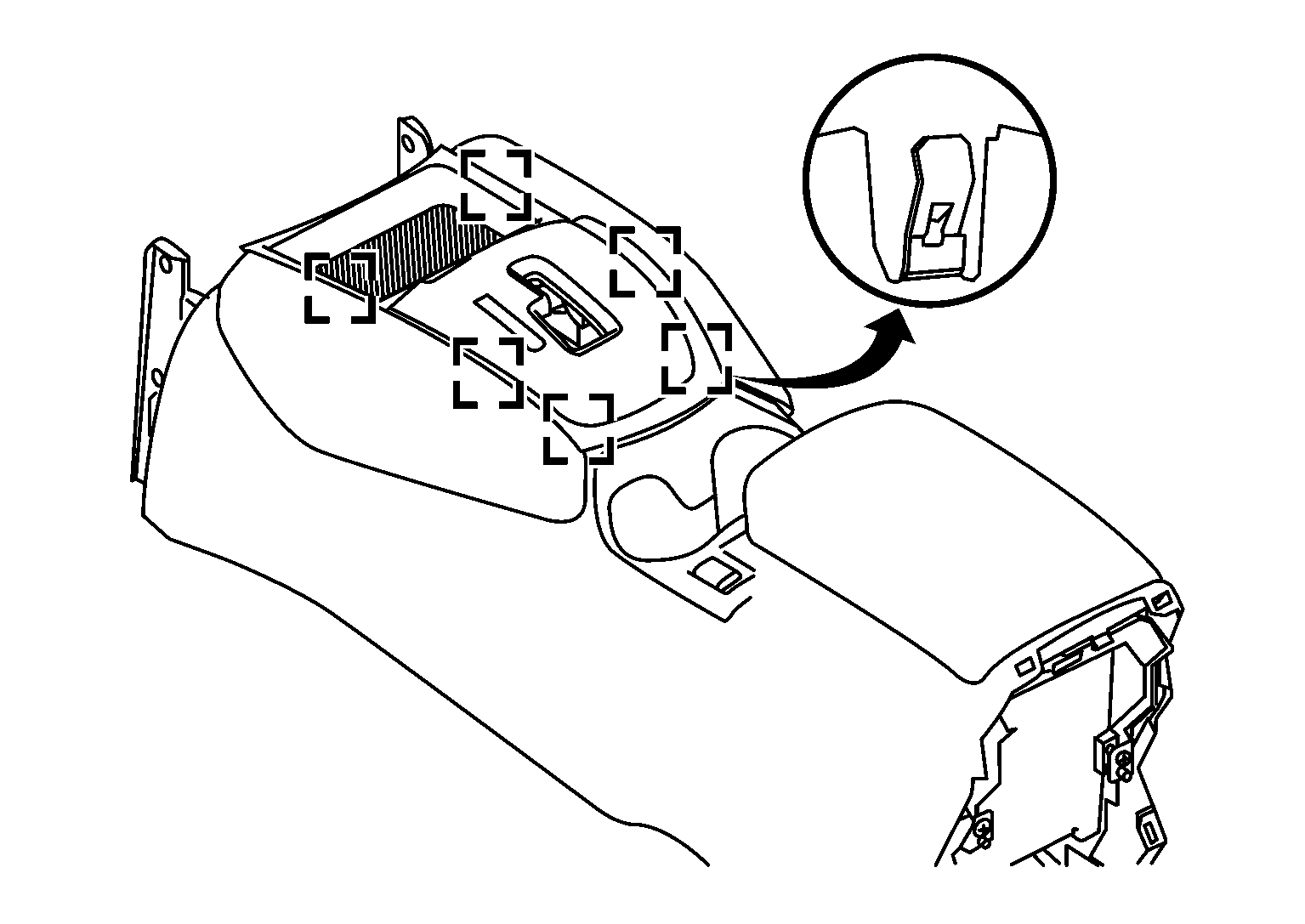

    Fig 1: Clips & Shift Selector Finisher
    GNSALJIA1470ZZ-470Courtesy of NISSAN NORTH AMERICA, INC.

    SHIKAKU-H : Metal clip

  4. Release clips and pawls using a suitable tool and remove center console cup holder.

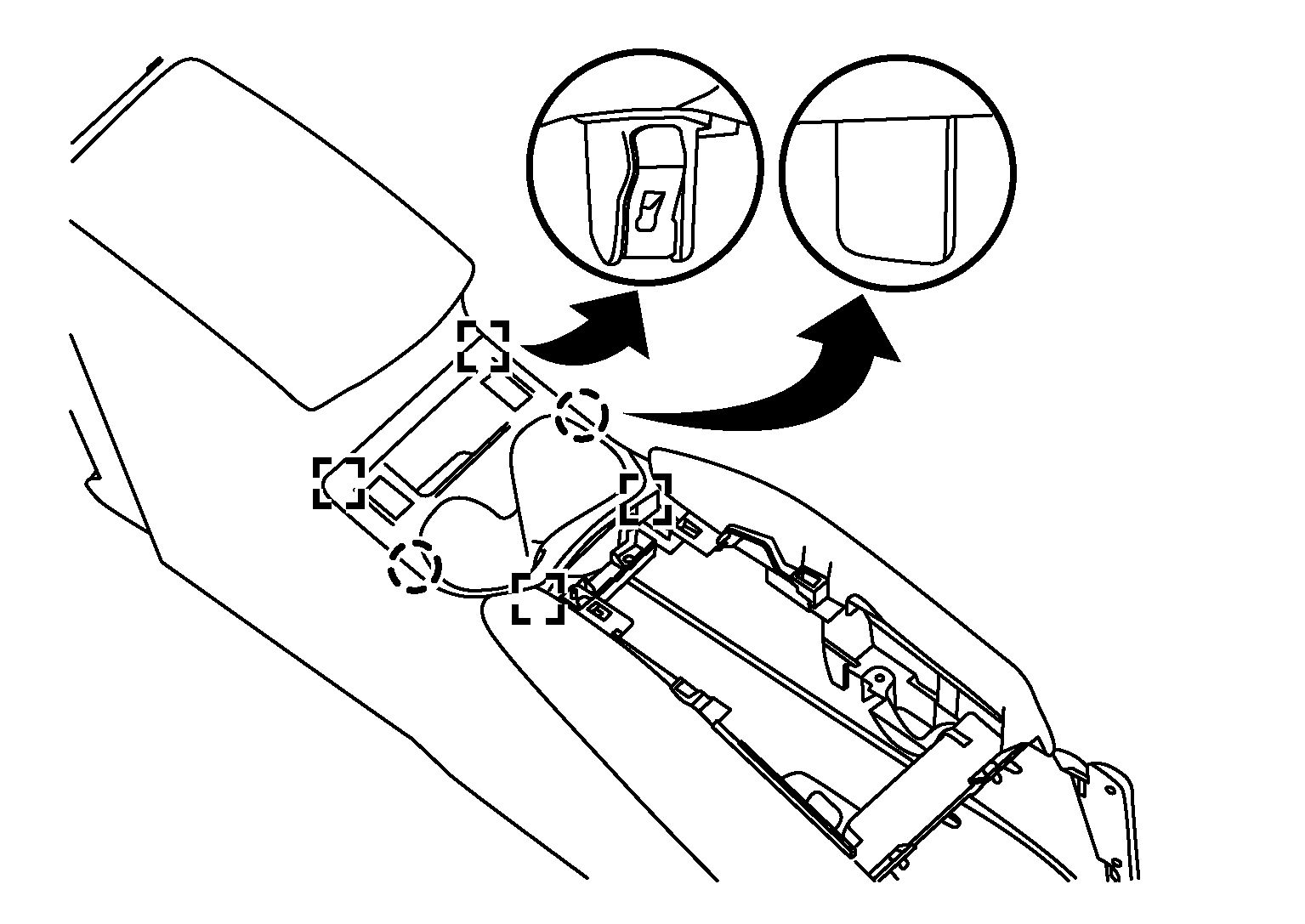

    Fig 2: Clips And Pawls, Center Console Cup Holder
    GNSALJIA1471ZZ-471Courtesy of NISSAN NORTH AMERICA, INC.

    SHIKAKU-H : Metal clip

    MARU-H : Pawl

  5. Release pawls and remove center console rear brace finisher. Refer to EXPLODED VIEW .
  6. Remove screws and center console tray. Refer to EXPLODED VIEW .
