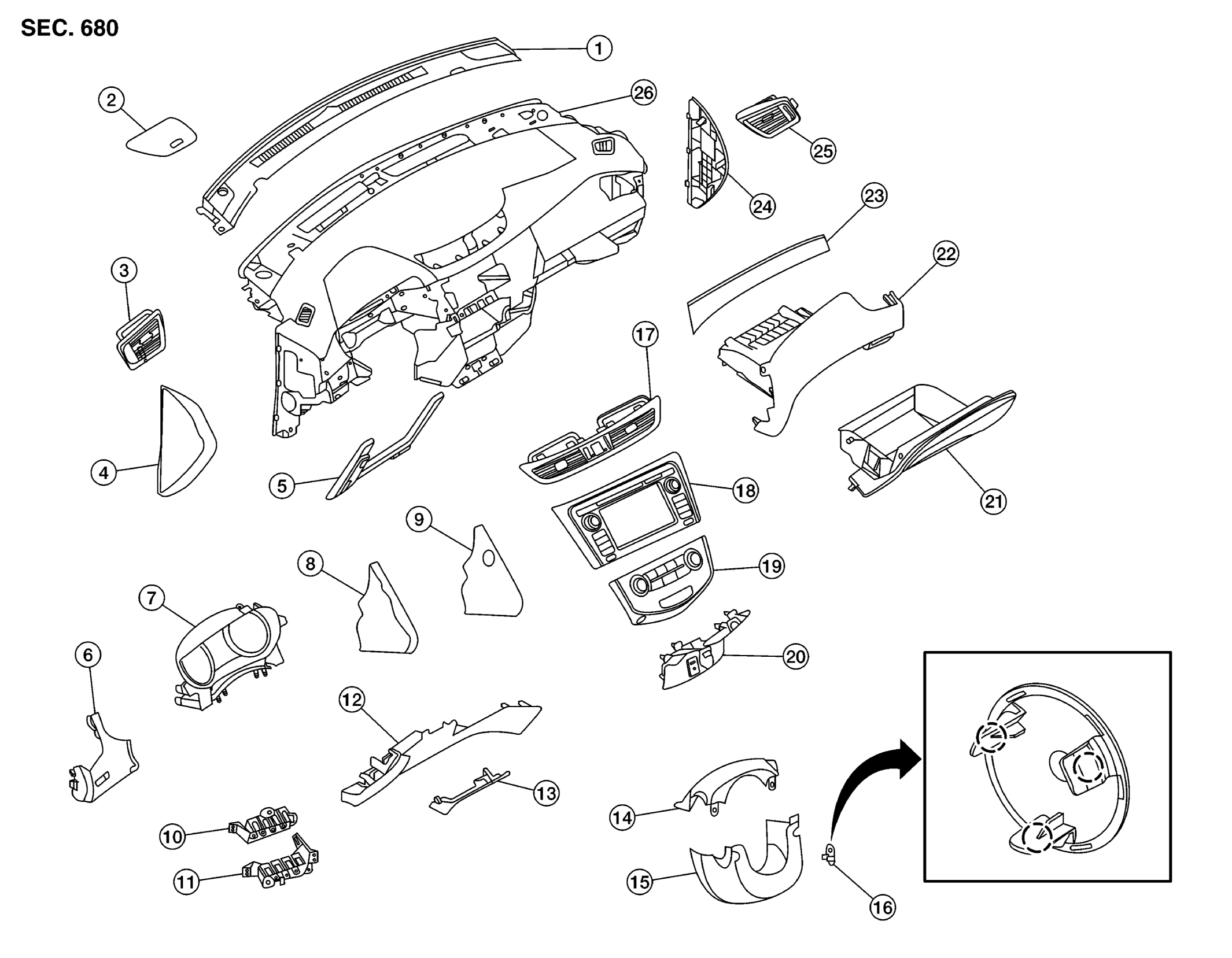

| 1. |
Defroster grille |
2. |
Center speaker grille (if equipped) |
3. |
Side ventilator grille (LH) |
| 4. |
Instrument side finisher (LH) |
5. |
Knee protector |
6. |
Instrument finisher A |
| 7. |
Cluster lid A |
8. |
Instrument finisher B (without push-button ignition) |
9. |
Instrument finisher B (with push-button ignition) |
| 10. |
Upper switch carrier |
11. |
Lower switch carrier |
12. |
Instrument lower panel LH |
| 13. |
Data link cover |
14. |
Steering column upper cover |
15. |
Steering column lower cover |
| 16. |
Steering lock escutcheon |
17. |
Center ventilator grille |
18. |
Audio unit (DISPLAY AUDIO) / AV control unit (NAVIGATION WITHOUT BOSE) (NAVIGATION WITH BOSE) |
| 19. |
A/C switch assembly (AUTOMATIC AIR CONDITIONING) / front air control (MANUAL AIR CONDITIONING) |
20. |
Cluster lid C |
21. |
Glove box assembly |
| 22. |
Glove box housing |
23. |
Instrument finisher E |
24. |
Instrument side finisher (RH) |
| 25. |
Side ventilator grille (RH) |
26. |
Instrument panel |
 |
Pawl |
