Removal And Installation: Removal

  1. Release instrument side finisher (LH) (1) pawls using a suitable tool and remove.

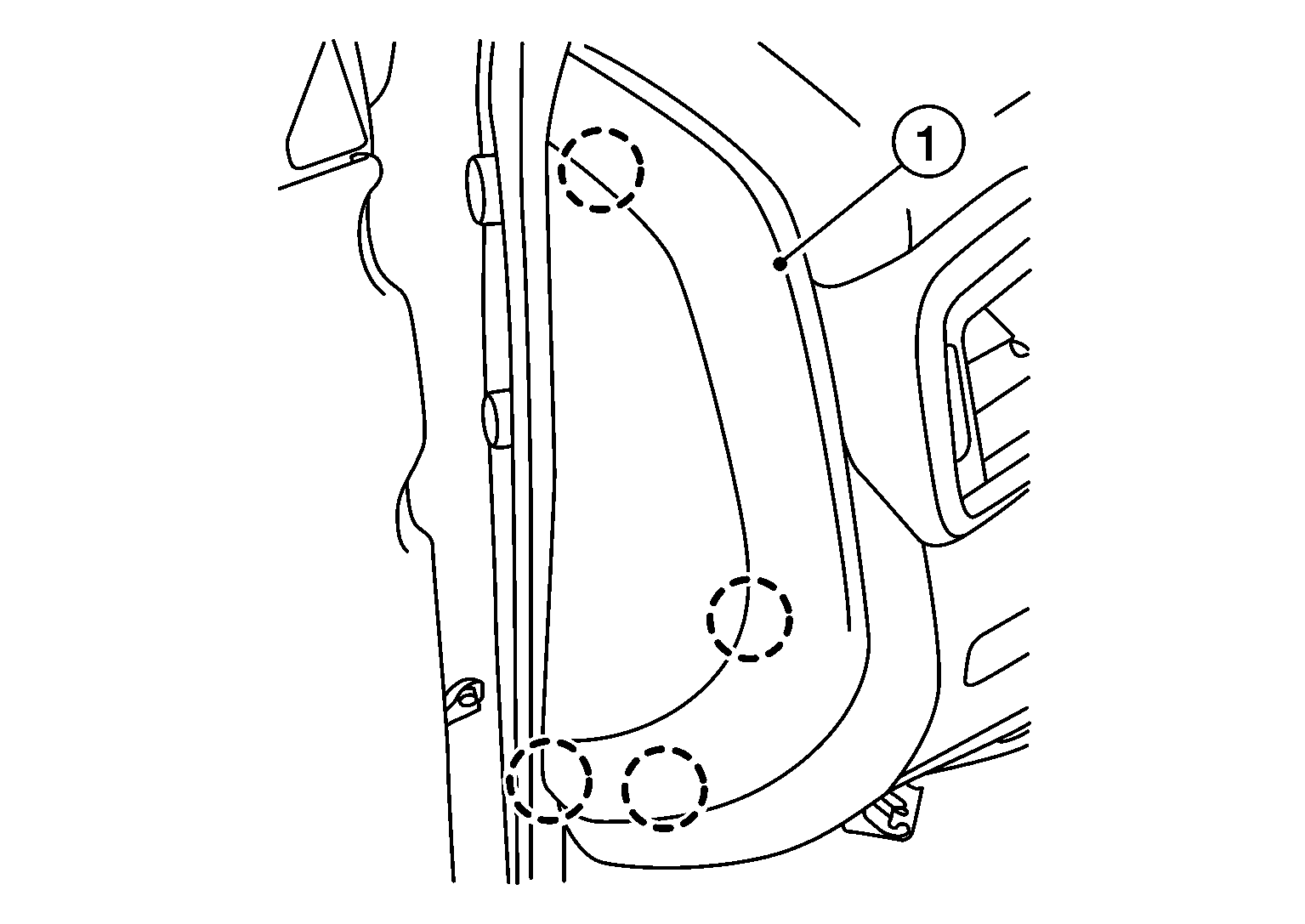

    Fig 1: Locating Instrument Side Finisher (LH) (1) Pawls
    GNSALJIA1394ZZ-394Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  2. Remove bolts (A) and fuel filler lid/hood lock release handle (1) from instrument lower panel LH.

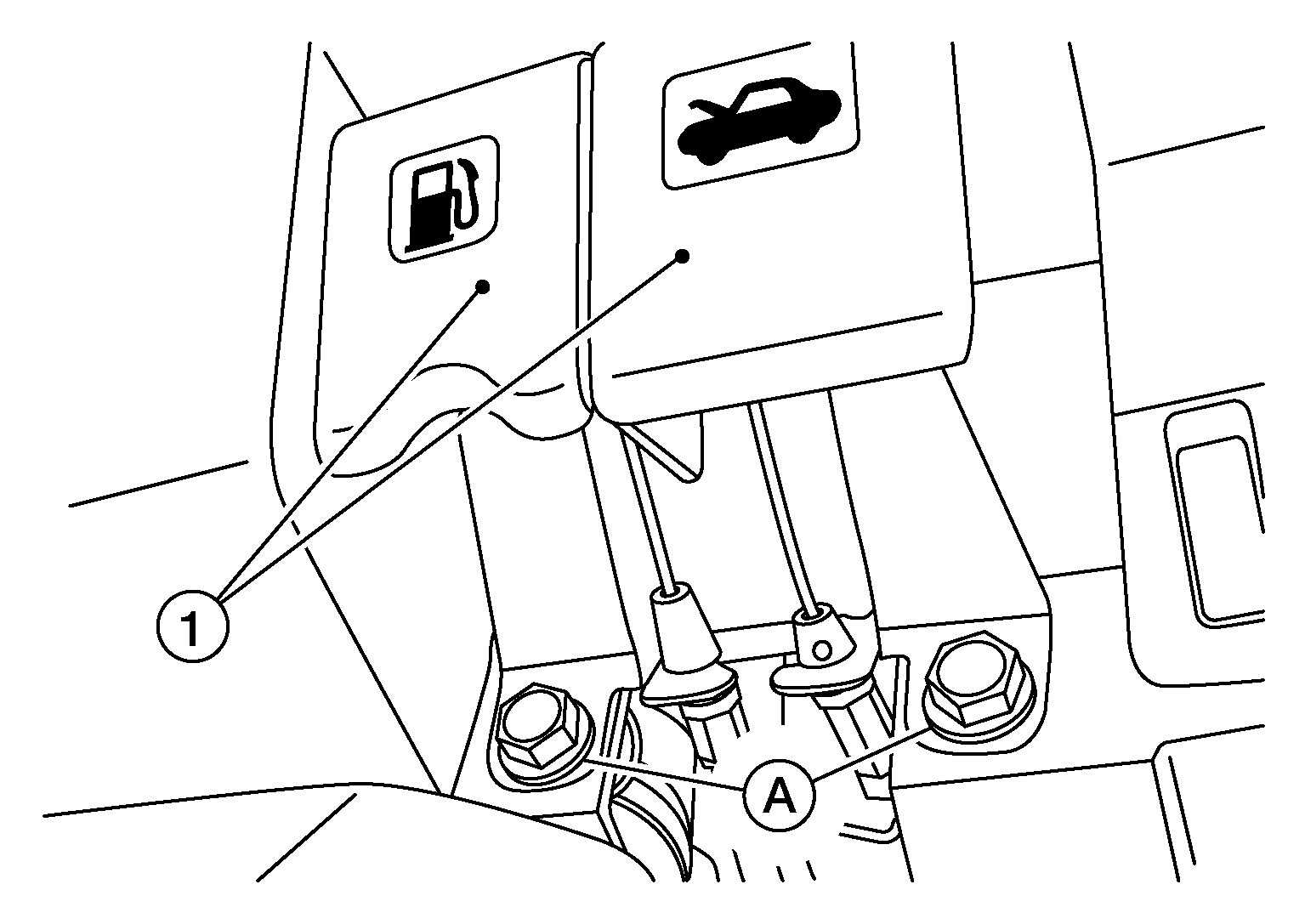

    Fig 2: Locating Fuel Filler Lid/Hood Lock Handle Bolts
    G09158140Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove data link cover from the instrument lower panel LH.
  4. Release the clip using a suitable tool and remove accessory connector (1) from instrument lower panel LH.

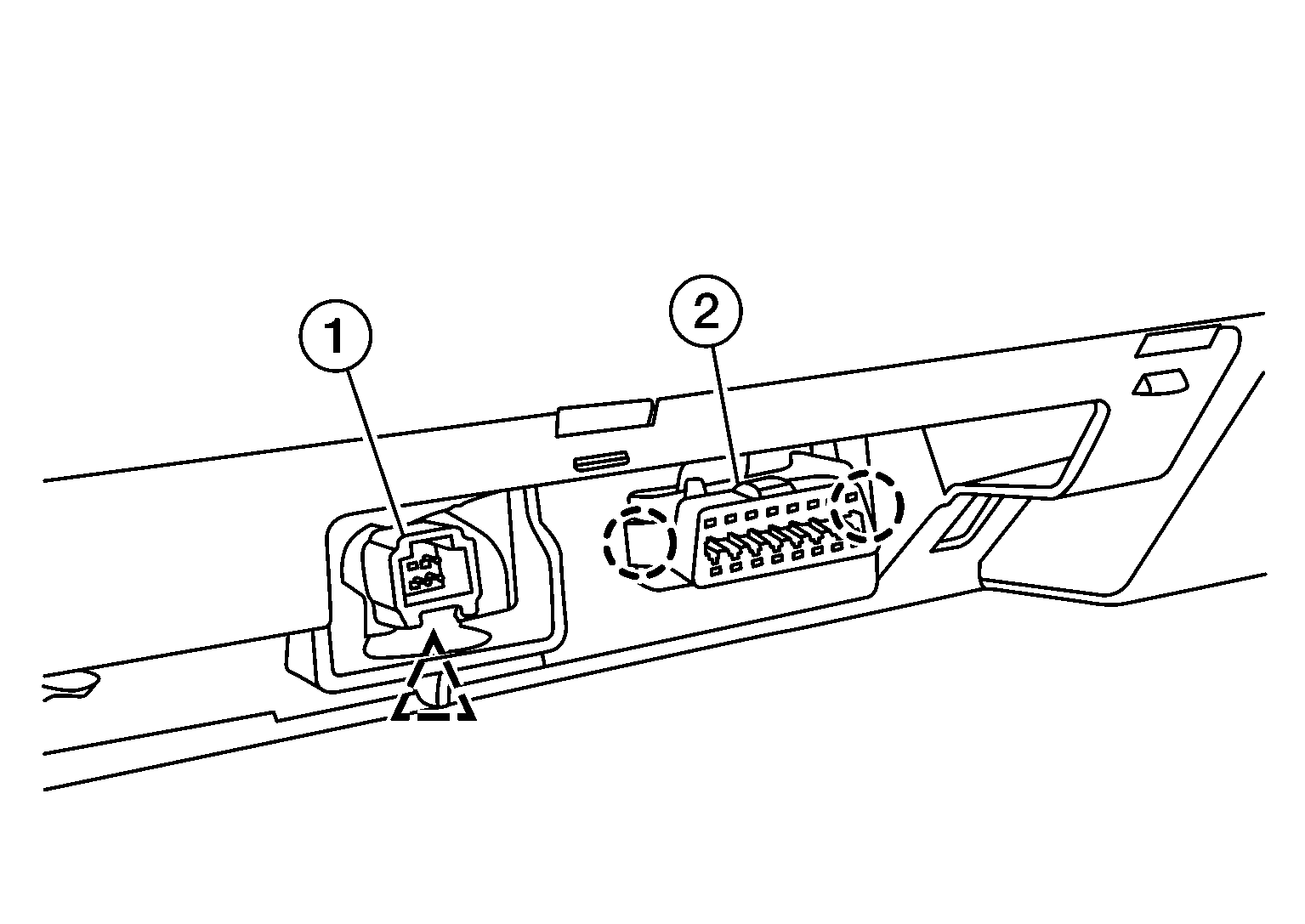

    Fig 3: Clip, Accessory Connector (1) From Instrument Lower Panel LH
    GNSALJIA1392ZZ-392Courtesy of NISSAN NORTH AMERICA, INC.

    SANKAKU-H : Clip

  5. Release the pawls using a suitable tool and remove data link connector (2) from instrument lower panel LH.

    MARU-H : Pawl

  6. Release the clips and pawls using a suitable tool, disconnect the harness connectors and remove instrument lower panel LH (1).
    Fig 4: Locating Clips, Pawls, Harness Connector Instrument Lower Panel LH (1)
    GNSALJIA1396ZZ-396Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SHIKAKU-H : Metal clip
